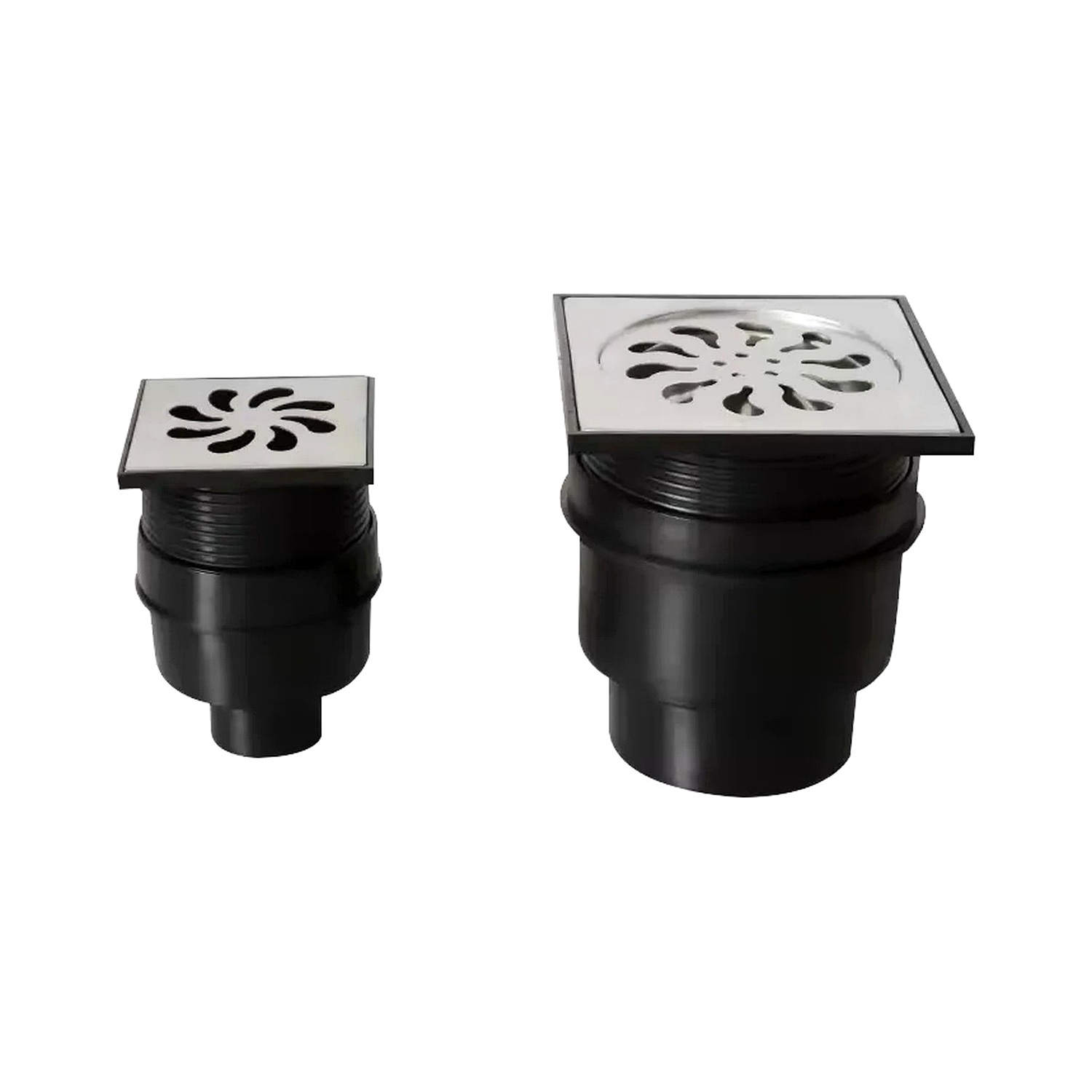

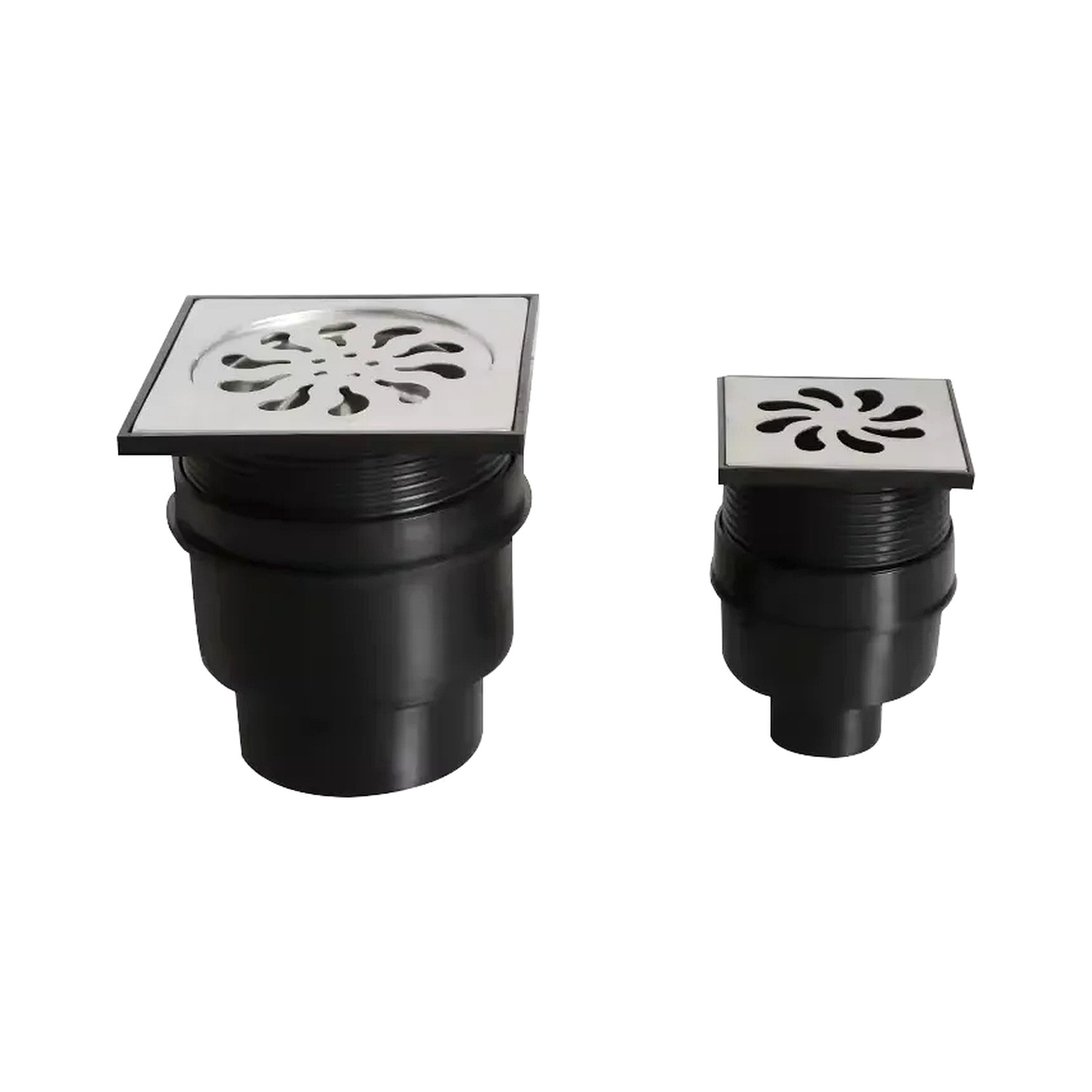

HDPE Butt Fusion Vertical Floor Drain for Siphonic Drainage

Key Features

• Vertical Outlet: Downward outlet connects directly to drainage stack for shortest flow path.
• Butt Fusion Connection: Outlet fuses permanently with HDPE stack.
• Water Seal: 50mm internal water seal effectively prevents odor and insects.
• High Flow: Straight-through design ensures efficient drainage for high-flow applications.

Production Technology

• Drain body, water seal bowl, and grate cover are injection molded from HDPE
• Outlet is a butt fusion interface located at the bottom

Critical Process Parameters

• Water seal height 50mm ± 2mm
• Outlet end face flatness

Typical Applications

• Bathrooms and shower rooms requiring direct downward drainage
• Access points to drainage stacks within pipe shafts
• Floor drains in same-floor drainage systems
• Connection between roof outlets and vertical stacks

Application Scenarios

• Drainage in high-rise bathrooms and pipe shafts
• Floor drainage in mechanical and refuge floors
• Commercial building drainage systems
