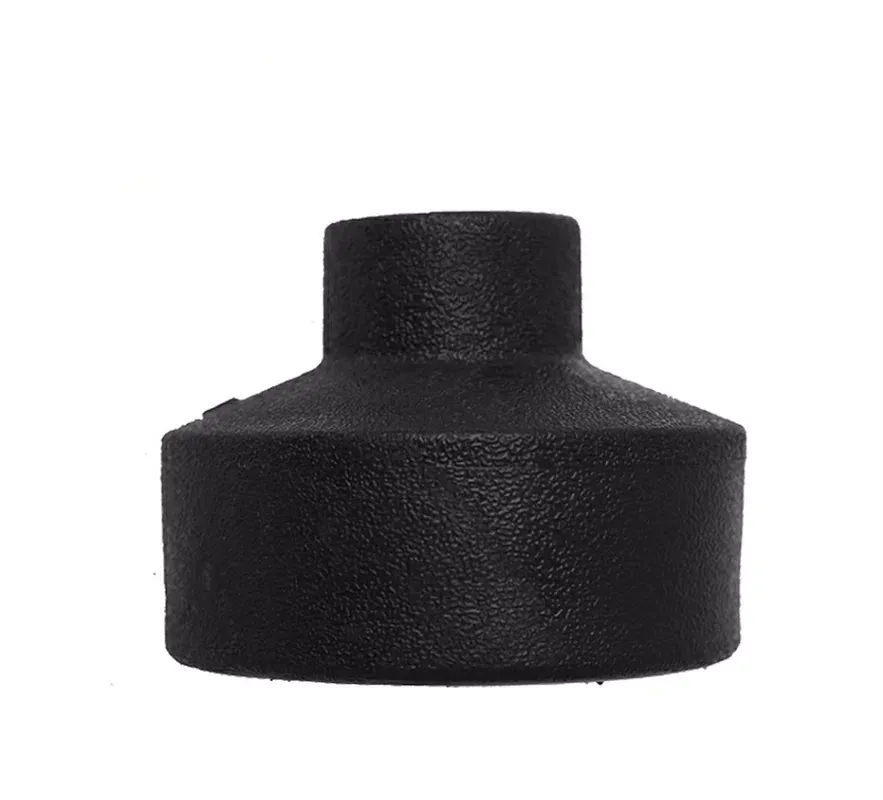

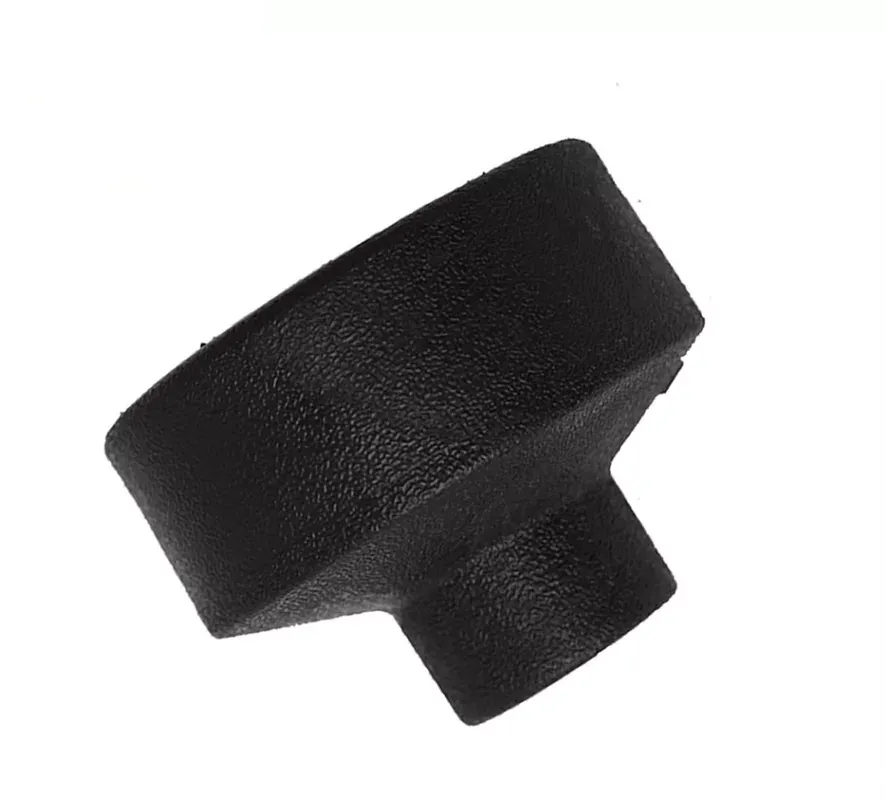

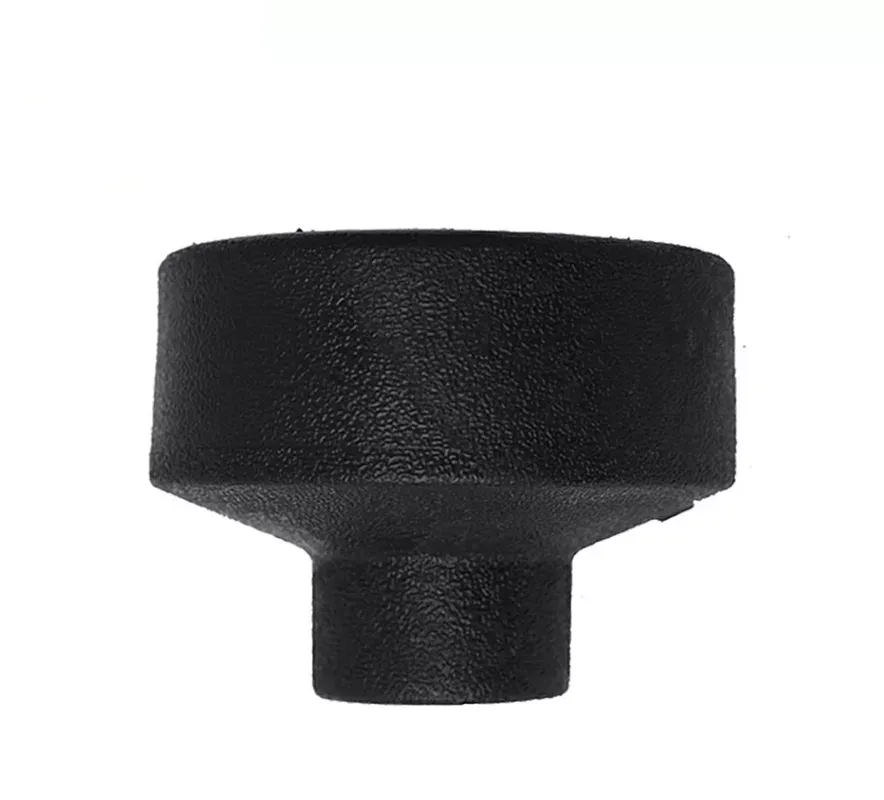

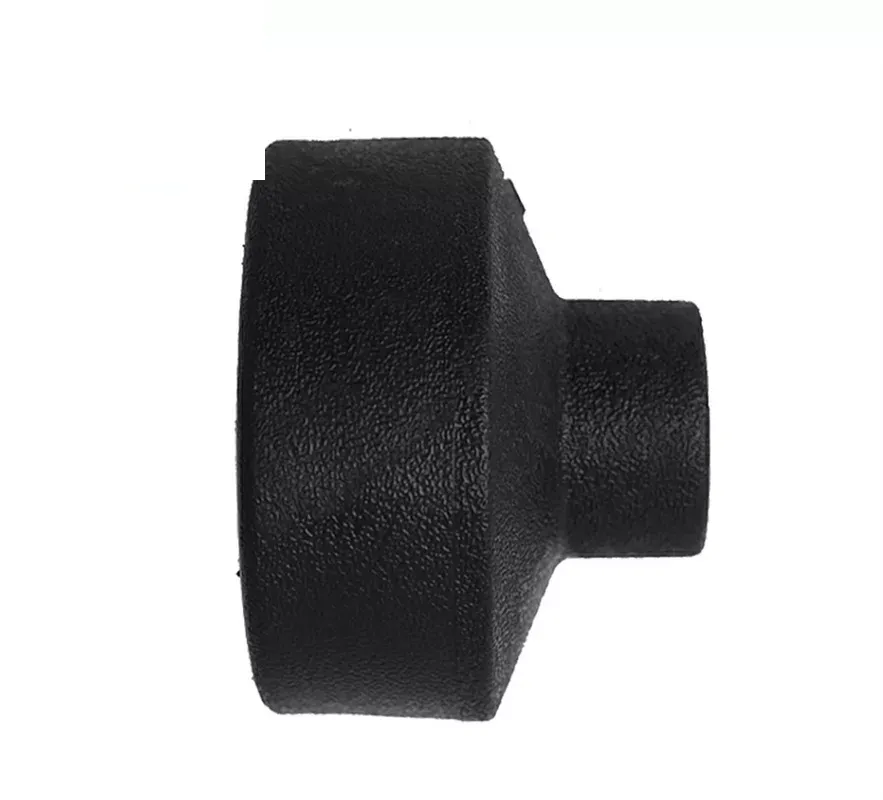

HDPE Socket Fusion Reducer for Water

Key Features of HDPE Socket Fusion Reducer for Water

• Socket fusion technology ensures leak-free sealing.
• HDPE material resists chemical corrosion and UV degradation.
• Smooth interior minimizes fluid resistance.
• Lightweight design simplifies field installation.

Manufacturing Process of HDPE Socket Fusion Reducer for Water

Each is produced by injection molding with controlled process parameters.

Critical Process Parameters of HDPE Socket Fusion Reducer for Water

• Precise melt temperature control: 190–230°C
• Optimized mold cooling rate
• Wall thickness uniformity tolerance ≤5%
• Weld line strength verification

Raw Material Characteristics of HDPE Socket Fusion Reducer for Water

• Density: 0.950–0.965 g/cm³ (ISO 1183)
• Melt Flow Index: 0.3–0.5 g/10min (ISO 1133)
• Tensile Strength ≥22 MPa (ISO 527)
• Elastic Modulus ≥800 MPa

Typical Applications of HDPE Socket Fusion Reducer for Water

• is used in municipal water supply network retrofits.
• serves industrial cooling water circulation systems.
• is installed in mainline connections for agricultural irrigation.
• is used in building water supply and drainage systems.

Application Scenarios of HDPE Socket Fusion Reducer for Water

• Diameter transition joints in water transmission mains and pressure stations — is the standard reducer for these size changes.
