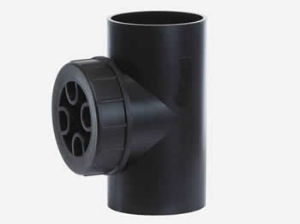

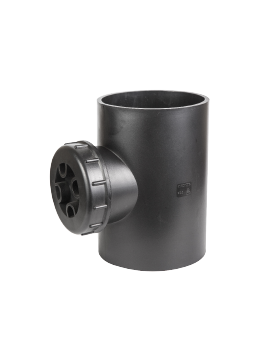

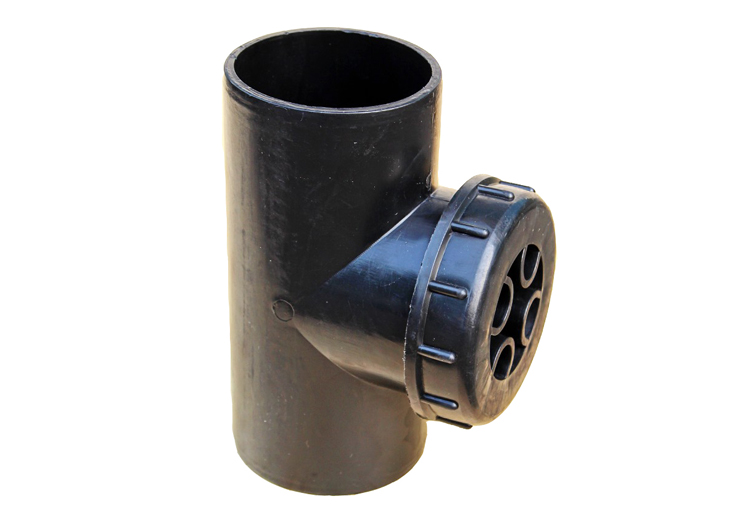

The HDPE Butt Fusion Riser Inspection Opening for Siphonic Drainage is an access fitting installed on vertical stacks, providing a sealed opening for inspection, rodding, and maintenance in siphonic roof drainage systems.
|
Specification
|
|
50*50
|
|
63*50
|
|
75*75
|
|
90*75
|
|
110*110
|
|
125*110
|
|
160*110
|
|
200*110
|
Key Features of HDPE Butt Fusion Riser Inspection Opening for Siphonic Drainage
- Provides direct access to vertical stacks for inspection and rodding.
- Tight-sealing access cover prevents leakage and odor escape.
- Butt fusion joints on both ends form a homogeneous monolithic structure.
- High-strength body withstands drainage surge and water hammer.
- Corrosion-resistant HDPE ensures long service life inside buildings.
Manufacturing Process of HDPE Butt Fusion Riser Inspection Opening for Siphonic Drainage
Each inspection opening is injection molded from HDPE PE100 resin with precision tooling. The branch access port is formed via multi-slider tooling, and the sealing cover seat is precision-machined for a consistent, leak-tight fit. The butt fusion ends are machined to precise diameter and flatness for reliable fusion joining.
Critical Process Parameters of HDPE Butt Fusion Riser Inspection Opening for Siphonic Drainage
- Access port and cover seat dimensional accuracy.
- Cover sealing face flatness and gasket compression.
- Wall thickness uniformity at the branch junction.
- Butt fusion surface flatness and end alignment.
Raw Material Characteristics of HDPE Butt Fusion Riser Inspection Opening for Siphonic Drainage
- Body: HDPE (PE100), virgin resin.
- Excellent corrosion resistance to rainwater and wastewater.
- Smooth inner wall minimizes flow resistance and debris buildup.
- High impact resistance and toughness.
- UV stabilized for exposed installation periods.
Typical Applications of HDPE Butt Fusion Riser Inspection Opening for Siphonic Drainage
- Installed on vertical stacks in siphonic roof drainage systems for maintenance access.
- Provides inspection and cleaning points at intermediate floor levels.
- Used in high-rise building drainage risers requiring periodic rodding.
- Located at bends and transitions where blockage risk is higher.
Application Scenarios of HDPE Butt Fusion Riser Inspection Opening for Siphonic Drainage
- Siphonic drainage risers in commercial and industrial buildings.
- Maintenance access nodes on concealed or suspended vertical stacks.
- Inspection points required by drainage design codes.
