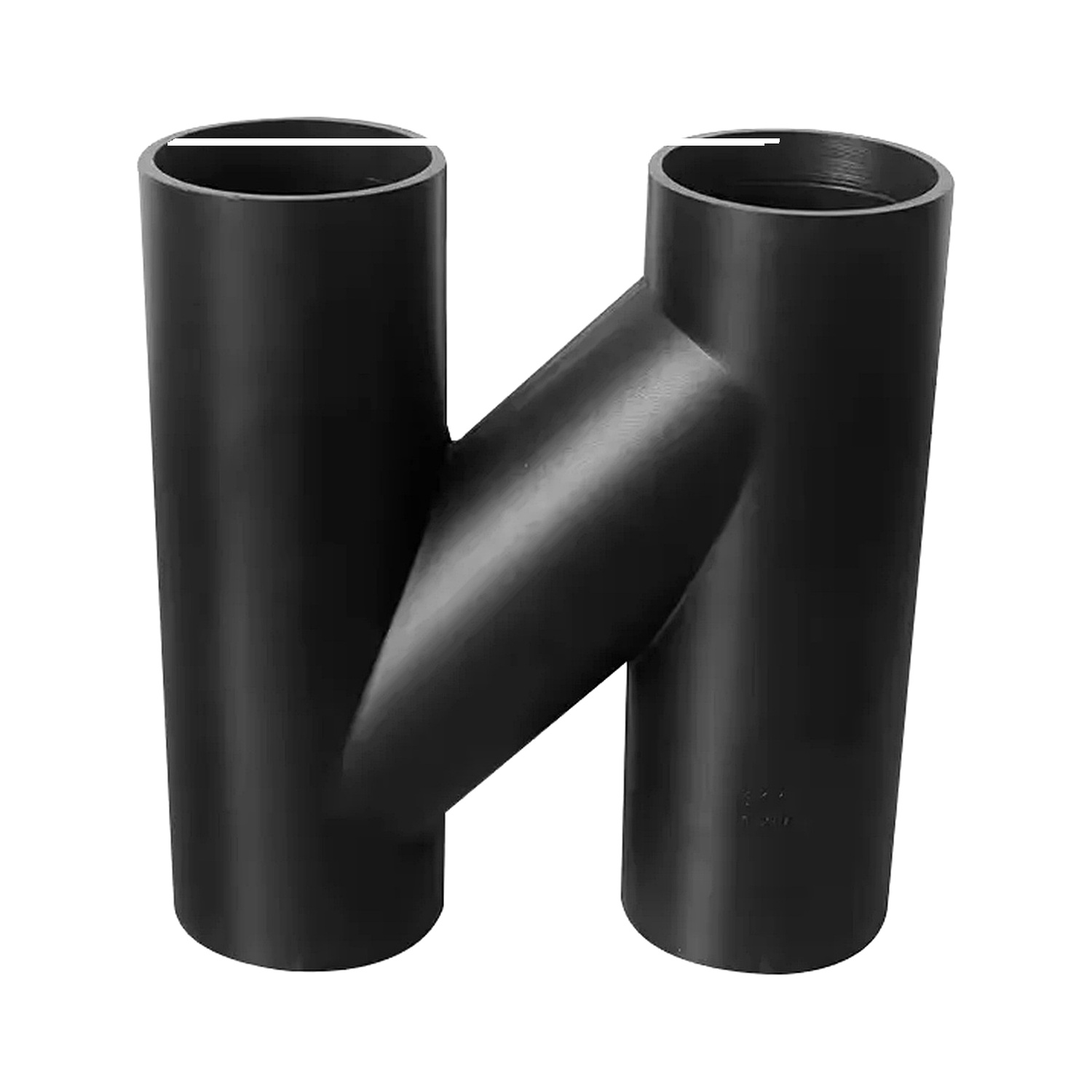

HDPE Butt Fusion H-Type Tube for Siphonic Drainage

Key Features of HDPE Butt Fusion H-Type Tube for Siphonic Drainage

• H-type structure creates an air circulation path to balance pressure.
• Blow molded construction gives uniform wall thickness and high strength.
• Butt fusion joints on all ports provide permanent pipe connections.
• Lightweight design facilitates overhead installation.
• Pressure balancing function protects water seals.

Manufacturing Process of HDPE Butt Fusion H-Type Tube for Siphonic Drainage

Each is manufactured via blow molding, with port ends subsequently machined flat.

Critical Process Parameters of HDPE Butt Fusion H-Type Tube for Siphonic Drainage

• Control of blow pressure and cooling time for uniform wall thickness
• Control of center distance and parallelism between ports
• Machining flatness of port end faces

Raw Material Characteristics of HDPE Butt Fusion H-Type Tube for Siphonic Drainage

• HDPE material with excellent impact and chemical resistance
• The fitting Complies with ISO 8770 and EN 1519-1

Typical Applications of HDPE Butt Fusion H-Type Tube for Siphonic Drainage

• is used for connection between drainage stacks and vent pipes in high-rise buildings.
• serves alternate floor vent connections in dual-stack drainage systems.
• is installed at drainage nodes requiring air pressure balancing.
• is used for pressure equalization in large commercial building drainage.

Application Scenarios of HDPE Butt Fusion H-Type Tube for Siphonic Drainage

• Dual-stack drainage systems and alternate floor venting — is the standard fitting for these pressure-balancing connections.
