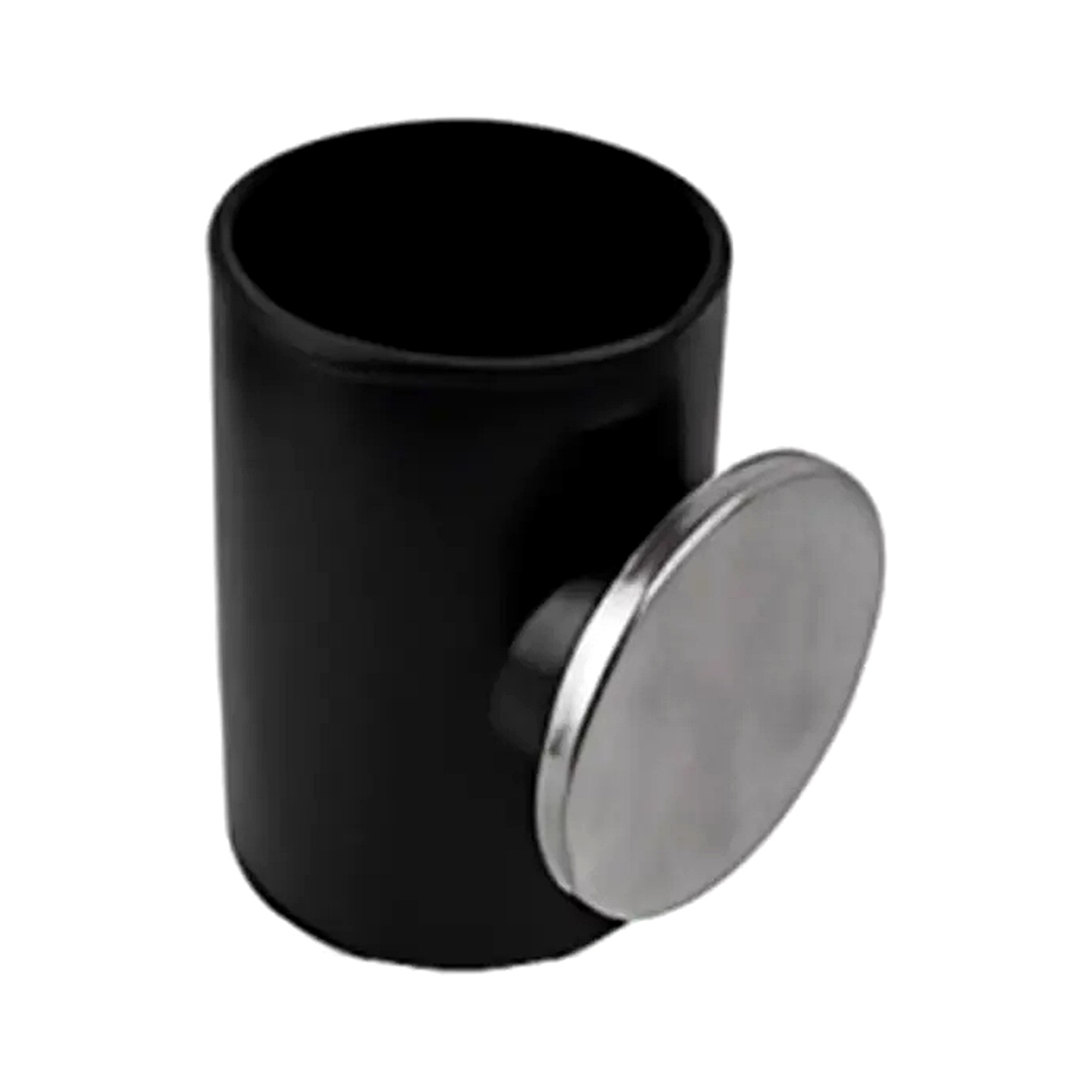

A HDPE butt fusion cleanout fitting equipped with a stainless steel blind flange cover. The stainless steel cover is bolted onto the cleanout port, providing higher sealing reliability and pressure resistance than standard plastic plugs.
Need help? Contact our technical support team
+86 1551559 6408The HDPE Butt Fusion Cleanout with Steel Cover for Siphonic Drainage is a sealed cleanout fitting with a stainless steel cover, designed for high-performance siphonic drainage systems requiring reliable access points.
| Article | d1 | K | k1 | k2 | e | H | L | D |
|---|---|---|---|---|---|---|---|---|
| Cleanout with steel cover | 50.2 | 35.0 | 35.0 | 35.0 | 3.2 | 95.0 | 100.0 | 110.0 |
| Cleanout with steel cover | 56.7 | 37.0 | 37.0 | 37.0 | 3.2 | 100.0 | 105.0 | 120.0 |
| Cleanout with steel cover | 63.2 | 39.0 | 39.0 | 39.0 | 3.2 | 104.0 | 110.0 | 130.0 |
| Cleanout with steel cover | 75.3 | 42.0 | 42.0 | 42.0 | 3.2 | 113.0 | 120.0 | 145.0 |
| Cleanout with steel cover | 90.3 | 47.0 | 47.0 | 47.0 | 3.2 | 125.0 | 135.0 | 165.0 |
| Cleanout with steel cover | 110.4 | 52.0 | 52.0 | 52.0 | 3.2 | 138.0 | 150.0 | 190.0 |
| Cleanout with steel cover | 125.5 | 55.0 | 55.0 | 55.0 | 3.2 | 148.0 | 162.0 | 210.0 |
| Cleanout with steel cover | 140.6 | 60.0 | 60.0 | 60.0 | 3.2 | 160.0 | 175.0 | 230.0 |
Each is produced by injection molding the HDPE body and fabricating the stainless steel cover.
