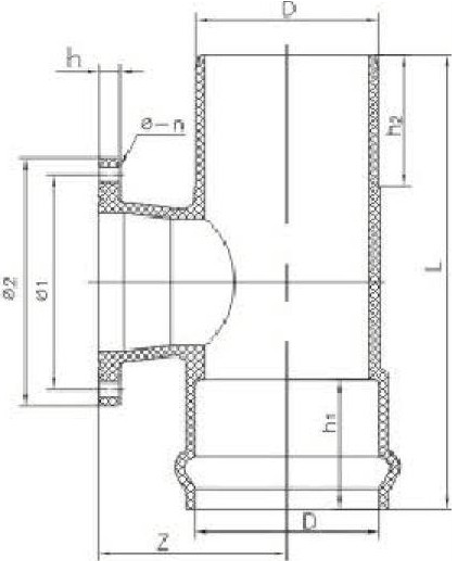

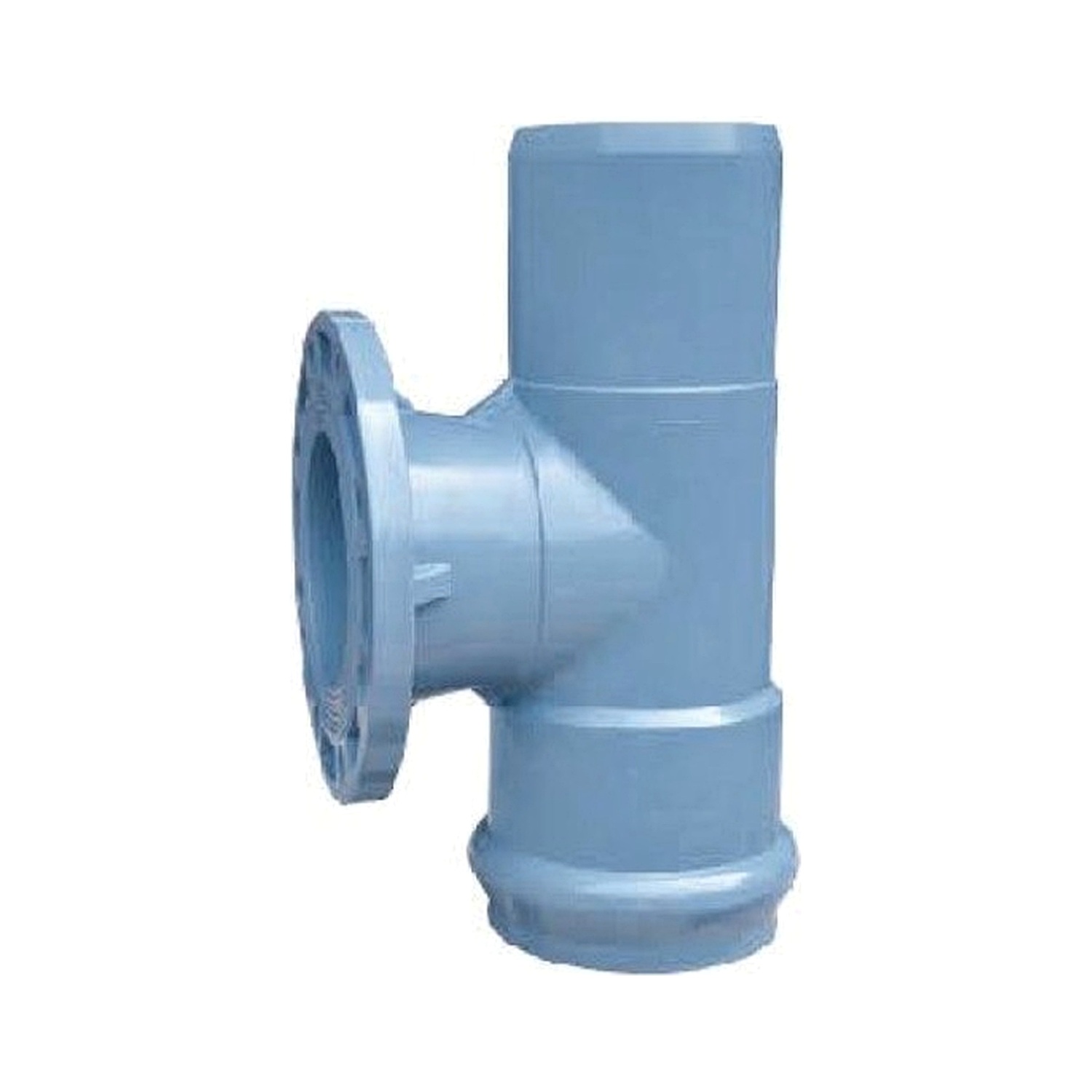

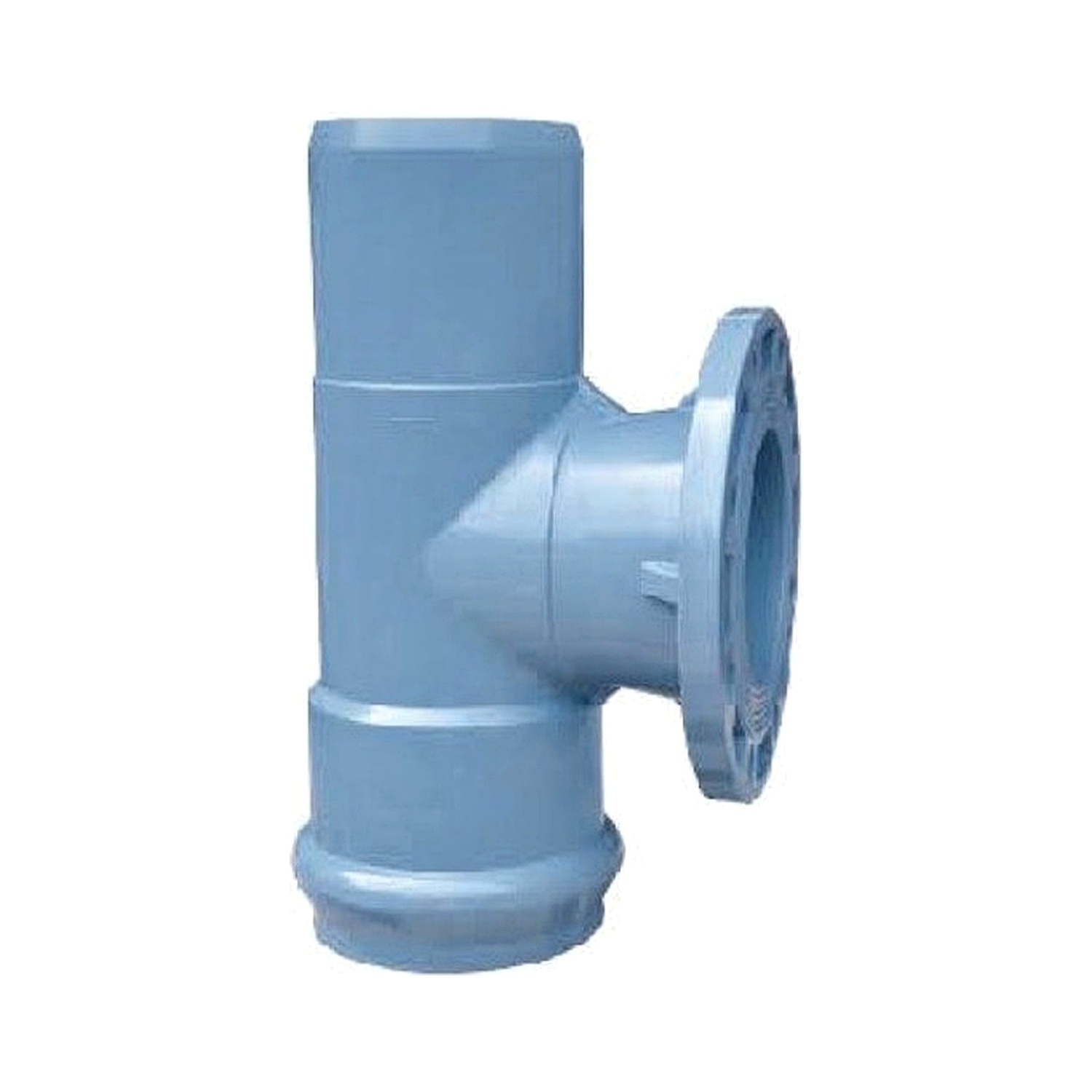

The UPVC Socket-Spigot-Flange 3-Way Tee for Water integrates three connection types in a single fitting, so one branch point can serve socketed pipe, spigot insertion, and flanged equipment at the same time.
|
Coding
|

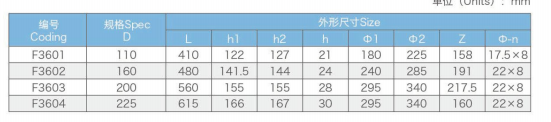

Spec(D)
|
|
|
|
Size
|
|
|
|
|
Unit:mm
|
|
|
|
L
|
h1
|
h2
|
h
|
Φ1
|
Φ2
|
Z
|
Φ-n
|
|
|
F3601
|
110
|
410
|
122
|
127
|
21
|
180
|
225
|
158
|
17.5×8
|
|
|
F3602
|
160
|
480
|
141.5
|
144
|
24
|
240
|
285
|
191
|
22×8
|
|
|
F3603
|
200
|
560
|
155
|
155
|
28
|
295
|
340
|
217.5
|
22×8
|
|
|
F3604
|
225
|
615
|
166
|
167
|
30
|
295
|
340
|
160
|
22×8
|
|
Key Features of UPVC Socket-Spigot-Flange 3-Way Tee for Water
- Socket + Spigot + Flange: combines three connection types in one body.
- Flexible combination: one handles diverse piping connection requirements.
- Rubber ring seal: the socket end of this UPVC 3-way tee installs without solvent cement.
- Flange interface: the plain flange end of this UPVC tee mates with valves and equipment.
Manufacturing Process of UPVC Socket-Spigot-Flange 3-Way Tee for Water
Each is made by multi-slide precision injection molding. The socket has a rubber ring groove, the spigot is chamfered, and the flange face is flat.
Critical Process Parameters of UPVC Socket-Spigot-Flange 3-Way Tee for Water
Every is checked against these parameters:
- Socket rubber ring groove accuracy on the socket end.
- Precise spigot OD and chamfer machining.
- Plain flange face flatness.
- Coaxiality and perpendicularity of all three ports of this UPVC tee.
Raw Material Characteristics of UPVC Socket-Spigot-Flange 3-Way Tee for Water
- Material Composition: UPVC body, EPDM sealing rings.
- Material Properties: provides high mechanical strength, outstanding chemical resistance, suitability for cold water up to 45°C, and compliance with potable water standards.
Typical Applications of UPVC Socket-Spigot-Flange 3-Way Tee for Water
- Complex branch nodes: serves socketed pipe, spigot insertion, and flanged equipment in one branch.
- Transition points: lets systems switch between connection types without extra adapters.
- Water treatment branching: fits filter and equipment tap-in points.
Application Scenarios of UPVC Socket-Spigot-Flange 3-Way Tee for Water
- Any UPVC water system needing three different connection types at one node.
