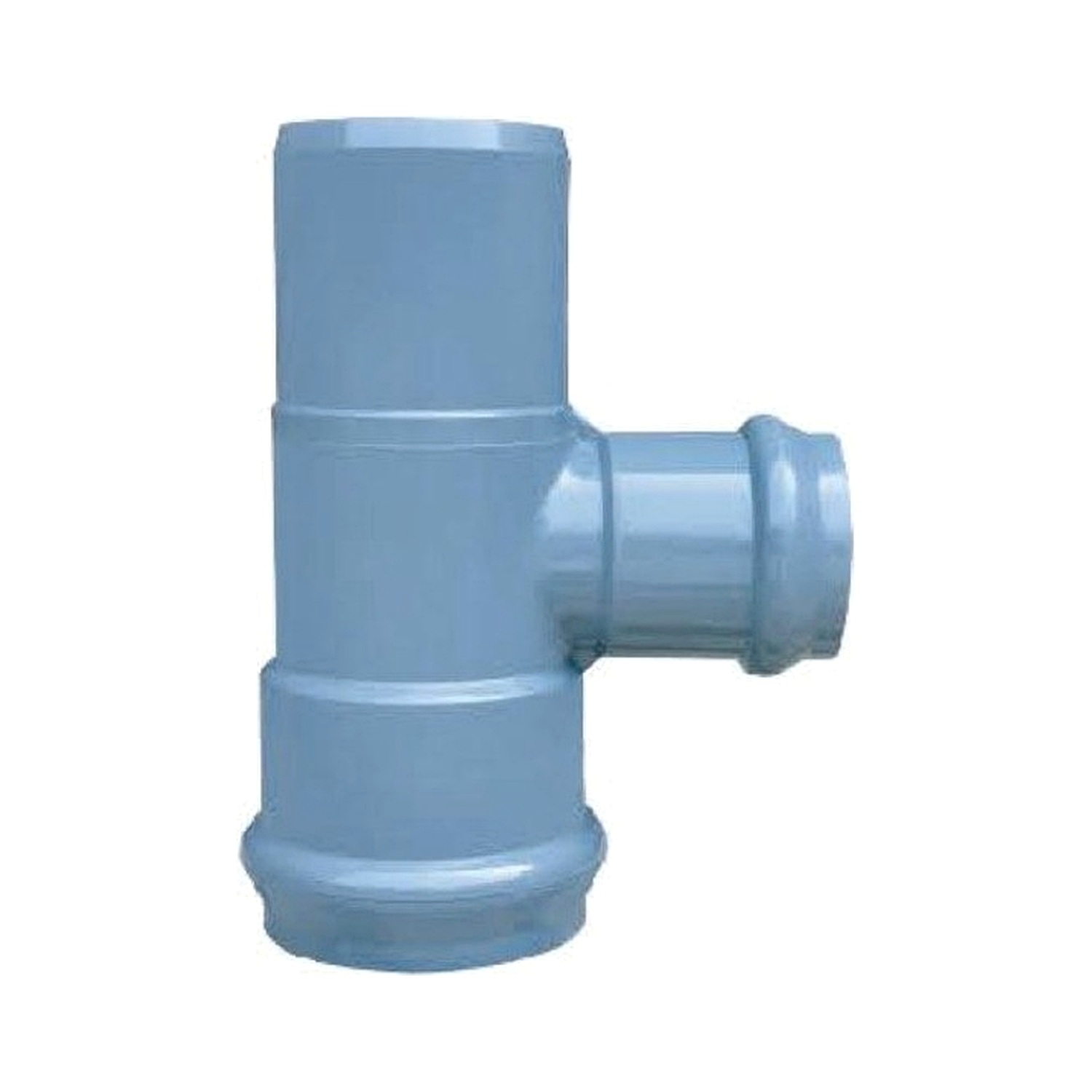

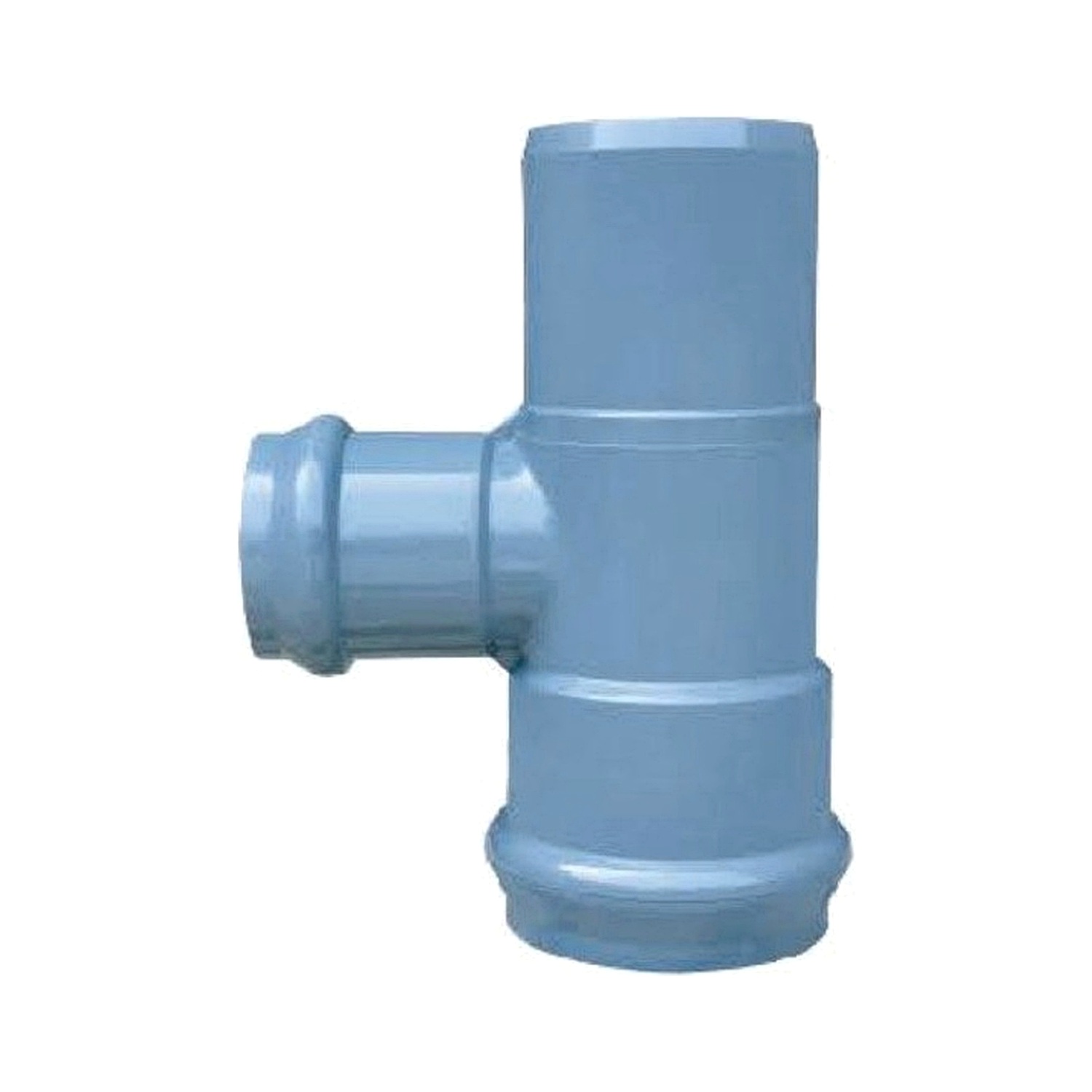

UPVC Socket and Rubber Ring Joint Flanged Reducing Tee for Water

Key Features

• Socket + Spigot + Flange: integrates three connection types for complex piping layouts.
• Reducing branch: branch diameter differs from main, meeting size reduction needs.
• Rubber ring seal: quick socket connection without solvent cement.
• Flanged branch: facilitates connection to flanged valves or equipment.

Manufacturing Process

Multi-slide precision injection molding. Socket end has rubber ring groove; spigot end is chamfered; flange face is flat. Smooth flow transition at reducing section.

Critical Process Parameters

• Socket rubber ring groove dimensional accuracy.
• Precise spigot OD and chamfer machining.
• Flange face flatness.
• Streamlined reducing section design.

Raw Material Characteristics

• Material Composition: UPVC, EPDM sealing rings.
• Material Properties: Consistent with series.

Typical Applications

• Nodes requiring reducing branch and flanged equipment connection in rubber ring systems.
• Branching small-diameter flanged lines from main pipes.
• Complex pipe connections in pump stations and water plants.

Application Scenarios

• Complex branch connections in rubber ring piping systems.
