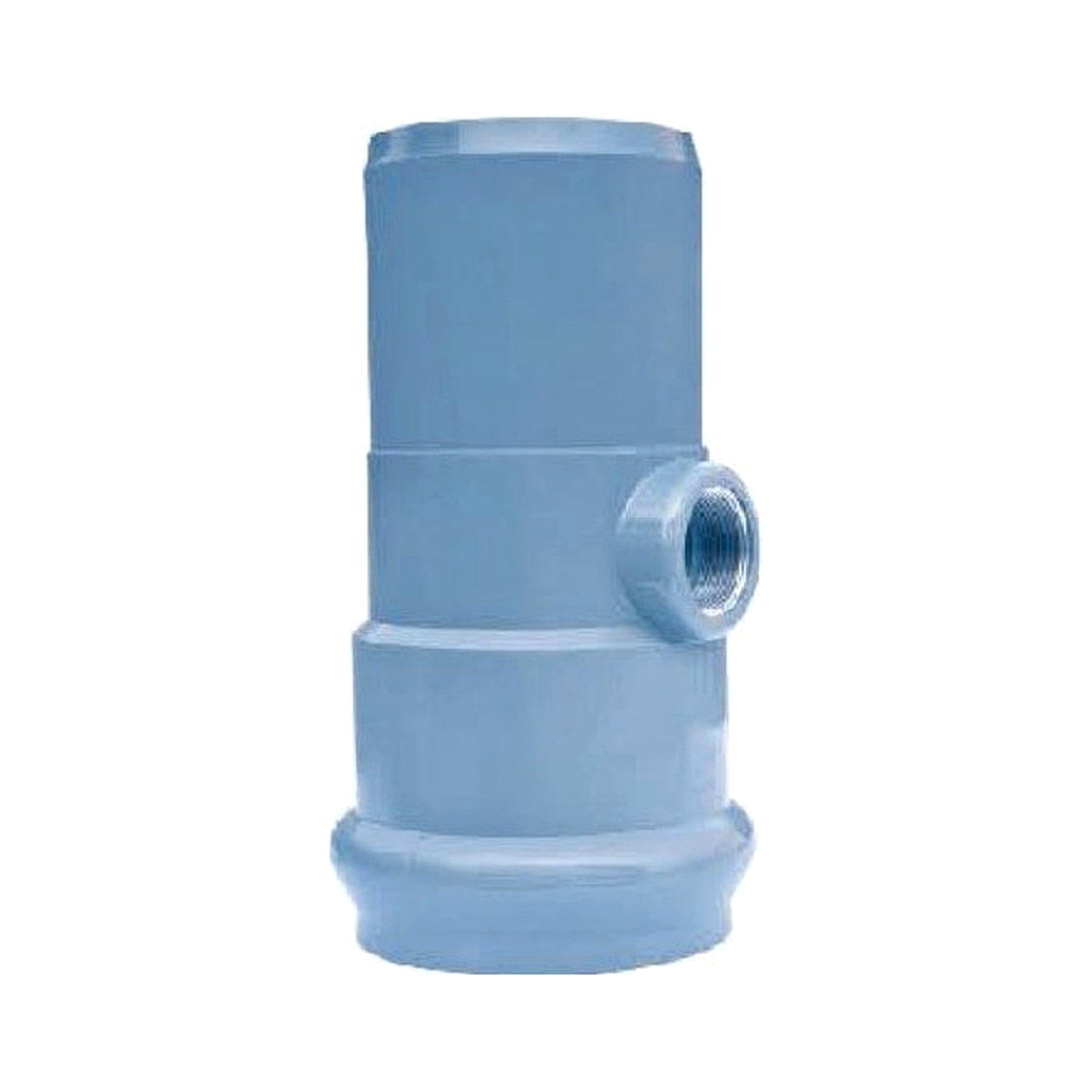

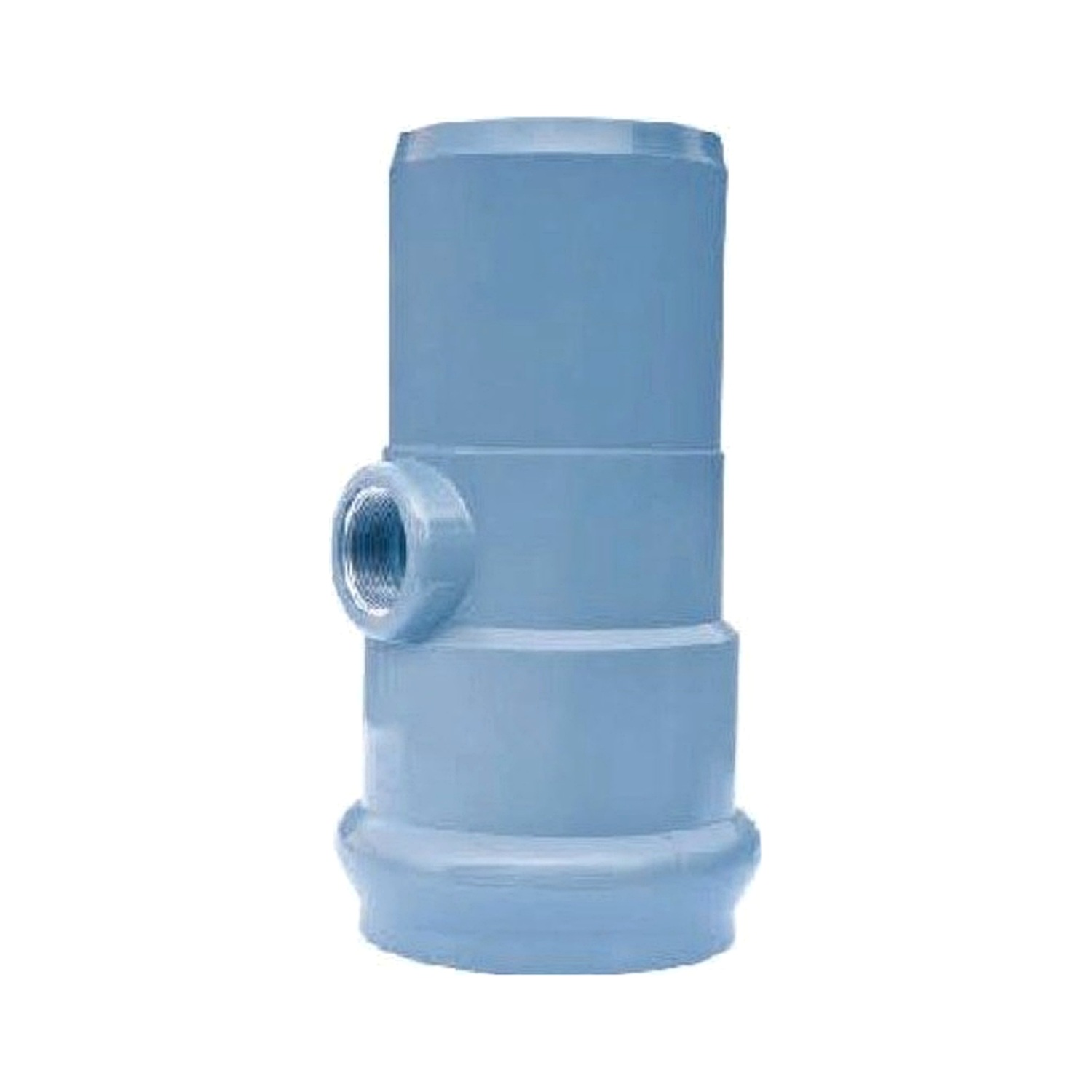

Key Features
- Rubber ring + threaded combination: main uses rubber ring seal; branch is female threaded.
- Flexible connection: facilitates branching metal threaded lines from rubber ring piping.
- Easy installation: quick rubber ring connection on main; detachable threaded branch.
- Corrosion resistant: UPVC body; optional brass insert for enhanced thread strength.
Manufacturing Process

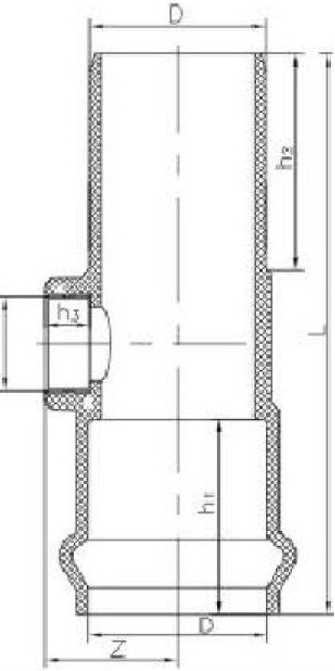

Injection molded from UPVC. Main socket has rubber ring groove; spigot is chamfered. Branch female threads formed during molding or machined; optional brass insert available.
Critical Process Parameters
- Socket rubber ring groove dimensional accuracy.
- Precise spigot OD and chamfer machining.
- Female thread accuracy and form.
- Brass insert positioning accuracy (if applicable).
Raw Material Characteristics
- Material Composition: UPVC, optional brass insert. Sealing ring: EPDM.
- Material Properties: Consistent with series.
Typical Applications
- Branching metal threaded lines from UPVC rubber ring mains.
- Connecting threaded water meters and valves.
- Threaded service line connections.
Application Scenarios
- Nodes for branching threaded lines from rubber ring piping.
