UPVC Rubber Ring Joint and Flanged Reducer Tee for Water

Hot Product

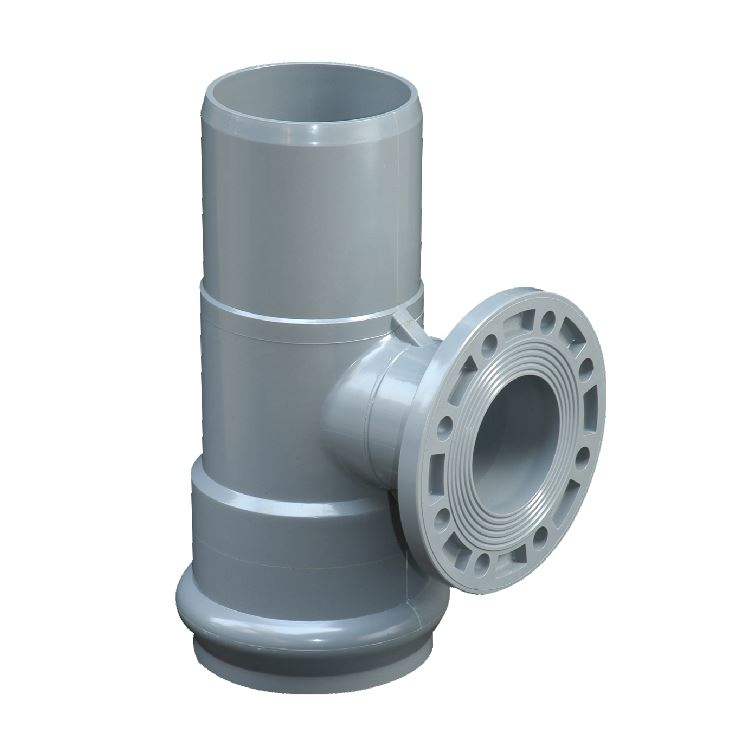

A UPVC tee fitting with rubber ring sockets on both main ends and a flanged branch outlet, with branch diameter different from main. Used in rubber ring piping systems for nodes requiring a reducing flanged branch.

Diameter Range: 63-400mm（异径组合）
Pressure Rating: PN10, PN16
Applicable Standards: GB/T 10002.2, ISO 1452-3
Stock Availability: In stock
Sample Policy: Free sample available
Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The UPVC Rubber Ring Joint and Flanged Reducer Tee for Water taps a smaller flanged branch from a rubber ring sealed main line, connecting straight to flanged valves or equipment.

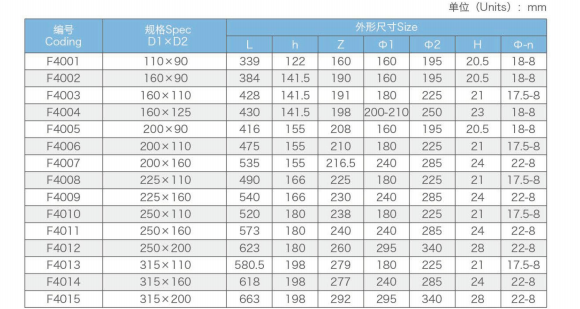

Coding	Spec (D1×D2)					Size
		L	h	Z	Φ1	Φ2	H	Φ-n
F4001	110×90	339	122	160	160	195	20.5	18-8
F4002	160×90	384	141.5	190	160	195	20.5	18-8
F4003	160×110	428	141.5	191	180	225	21	17.5-8
F4004	160×125	430	141.5	198	200-210	250	23	18-8
F4005	200×90	416	155	208	160	195	20.5	18-8
F4006	200×110	475	155	210	180	225	21	17.5-8
F4007	200×160	535	155	216.5	240	285	24	22-8
F4008	225×110	490	166	225	180	225	21	17.5-8
F4009	225×160	540	166	230	240	285	24	22-8
F4010	250×110	520	180	238	180	225	21	17.5-8
F4011	250×160	573	180	240	240	285	24	22-8
F4012	250×200	623	180	260	295	340	28	22-8
F4013	315×110	580.5	198	279	180	225	21	17.5-8
F4014	315×160	618	198	277	240	285	24	22-8
F4015	315×200	663	198	292	295	340	28	22-8

Key Features of UPVC Rubber Ring Joint and Flanged Reducer Tee for Water

Two sockets + one flanged reducing branch: is ideal for nodes needing a reducing flanged branch.
Reducing branch: branch diameter differs from main for this UPVC flanged reducer tee.
Rubber ring seal: quick main pipe connection without solvent cement.
Flanged branch: connects directly to flanged valves and equipment.

Manufacturing Process of UPVC Rubber Ring Joint and Flanged Reducer Tee for Water

Each is made by multi-slide precision injection molding. Main sockets have rubber ring grooves, branch flange face is flat, and the reducing section is smooth.

Critical Process Parameters of UPVC Rubber Ring Joint and Flanged Reducer Tee for Water

Every is checked against these parameters:

Socket rubber ring groove dimensional accuracy.
Flange face flatness of this UPVC flanged reducer tee.
Streamlined reducing section design.

Raw Material Characteristics of UPVC Rubber Ring Joint and Flanged Reducer Tee for Water

Material Composition: UPVC body, EPDM sealing rings.
Material Properties: provides high mechanical strength, outstanding chemical resistance, suitability for cold water up to 45°C, and compliance with potable water standards.

Typical Applications of UPVC Rubber Ring Joint and Flanged Reducer Tee for Water

Reducing flanged branch: connects to flanged valves of smaller diameter.
Equipment branch taps: feeds flanged pumps and filters.
Trunk line size change: handles branch reduction with one piece.

Application Scenarios of UPVC Rubber Ring Joint and Flanged Reducer Tee for Water

UPVC rubber ring systems needing a reducing flanged branch tee.
