The UPVC Rubber Ring Joint and Flanged Equal Tee for Water puts a flanged equal branch on a rubber ring sealed main line, ideal for flanged valves, equipment, or metal pipe connections.
|

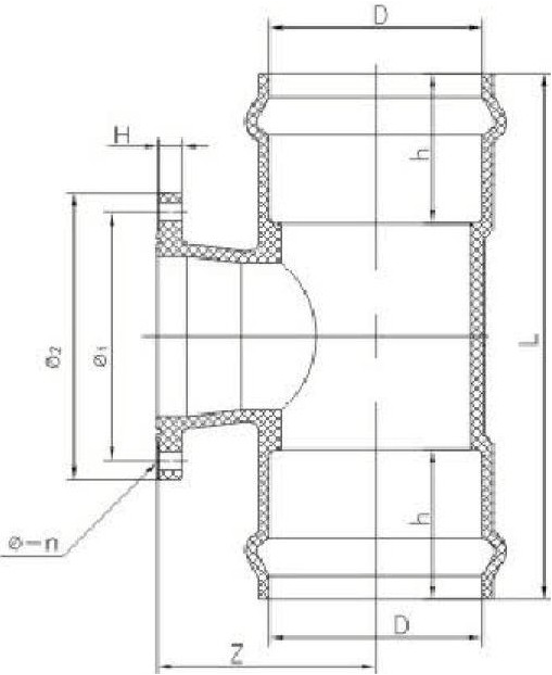

Coding
|
Spec(D)
|
|
|
|
Size
|
|
|
|
Unit:mm
|
|
|
|
L
|
h
|
Z
|
Φ1
|
Φ2
|
H
|
Φ-N
|
|
|
F3801
|
110
|
413
|
122
|
158
|
180
|
225
|
21
|
17.5-8
|
|
|
F3802
|
125
|
356
|
106
|
182
|
210-220
|
260
|
23
|
18-8
|
|
|
F3803
|
160
|
475
|
141.5
|
191
|
240
|
285
|
24
|
22-8
|
|
|
F3804
|
200
|
560
|
155
|
217.5
|
295
|
340
|
28
|
22-8
|
|
|
F3805
|
225
|
611
|
166
|
260
|
295
|
340
|
30
|
22-8
|
|
Key Features of UPVC Rubber Ring Joint and Flanged Equal Tee for Water
- Two sockets + one flanged equal branch: adds a flanged equal branch to a rubber ring sealed main.
- Rubber ring seal: quick main pipe connection without solvent cement.
- Flanged branch: facilitates connection to flanged valves and equipment for this UPVC flanged equal tee.
- High-strength body: reinforced junction design.
Manufacturing Process of UPVC Rubber Ring Joint and Flanged Equal Tee for Water
Each is made by multi-slide precision injection molding. Main sockets carry machined rubber ring grooves, and the branch flange face is flat with bolt holes per standards.
Critical Process Parameters of UPVC Rubber Ring Joint and Flanged Equal Tee for Water
Every is checked against these parameters:
- Socket rubber ring groove dimensional accuracy.
- Flange face flatness and perpendicularity of this UPVC flanged equal tee.
- Coaxiality and perpendicularity of all three ports.
Raw Material Characteristics of UPVC Rubber Ring Joint and Flanged Equal Tee for Water
- Material Composition: UPVC body, EPDM sealing rings.
- Material Properties: provides high mechanical strength, outstanding chemical resistance, suitability for cold water up to 45°C, and compliance with potable water standards.
Typical Applications of UPVC Rubber Ring Joint and Flanged Equal Tee for Water
- Flanged equal branch: branches a flanged line from a rubber ring main.
- Flanged valve taps: lets you add flanged valves to rubber ring systems.
- Metal pipe transitions: connects to flanged metal pipes.
Application Scenarios of UPVC Rubber Ring Joint and Flanged Equal Tee for Water
- Any UPVC rubber ring system needing an equal flanged branch tee.
