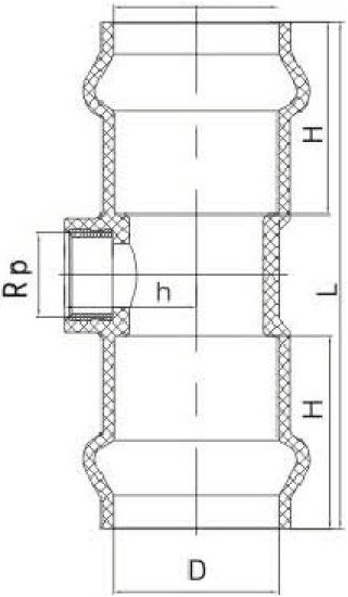

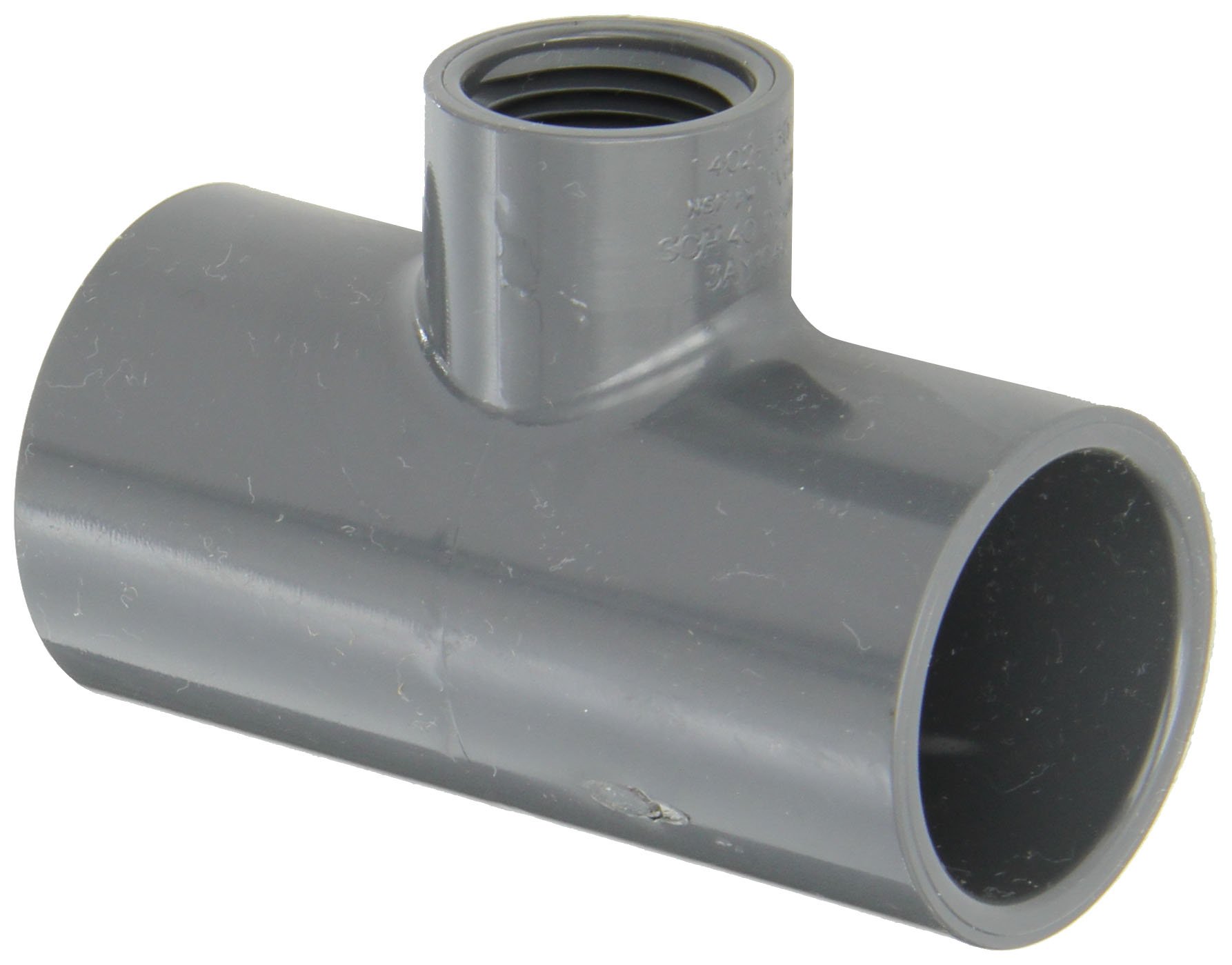

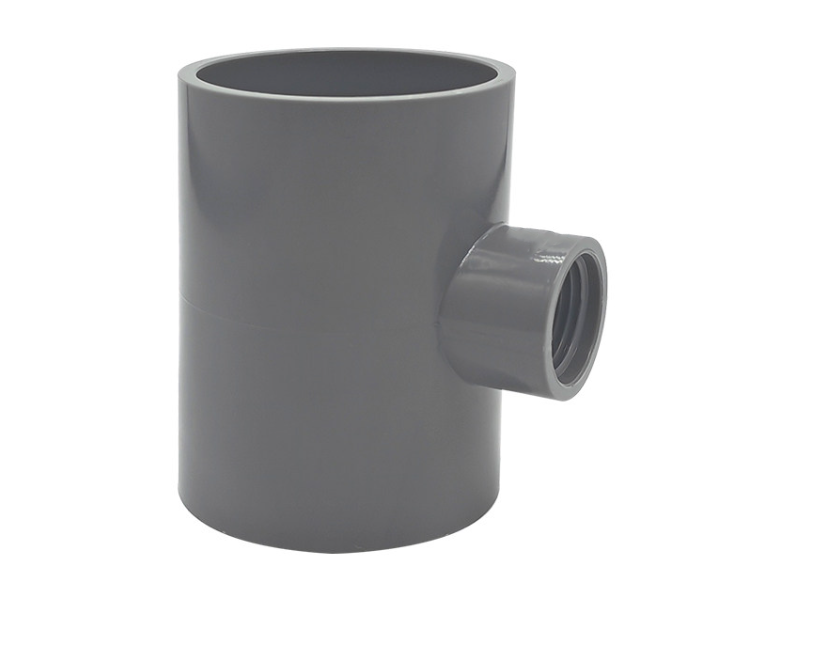

The UPVC Rubber Ring Joint Female Tee for Water branches to a female threaded outlet, so threaded water meters and valves connect directly to a rubber ring sealed main line.
|

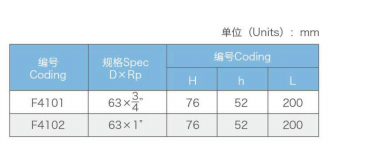

Coding
|
Spec (D×Rp)
|
Coding
|
|
Unit: mm
|
|
|
|
h
|
L
|
|
|
F4101
|
63×3/4"
|
76
|
52
|
200
|
|
F4102
|
63×1"
|
76
|
52
|
200
|
Key Features of UPVC Rubber Ring Joint Female Tee for Water
- Double socket + female thread: main ends are rubber ring sockets while the branch is female threaded.
- Rubber ring seal: quick main pipe connection without solvent cement.
- Threaded branch: facilitates connection to threaded water meters and valves.
- Corrosion resistant: UPVC body with optional brass thread insert for this UPVC female tee.
Manufacturing Process of UPVC Rubber Ring Joint Female Tee for Water
Each is injection molded from UPVC. Both main sockets have rubber ring grooves, and the branch female thread is formed with an optional brass insert.
Critical Process Parameters of UPVC Rubber Ring Joint Female Tee for Water
Every is checked against these parameters:
- Socket rubber ring groove dimensional accuracy.
- Female thread accuracy of this UPVC female tee.
- Brass insert positioning accuracy where used.
Raw Material Characteristics of UPVC Rubber Ring Joint Female Tee for Water
- Material Composition: UPVC body, optional brass insert. Sealing rings: EPDM.
- Material Properties: provides high mechanical strength, outstanding chemical resistance, suitability for cold water up to 45°C, and compliance with potable water standards.
Typical Applications of UPVC Rubber Ring Joint Female Tee for Water
- Threaded branch off rubber ring main: connects to threaded water meters.
- Instrument tap-in: the female thread of this UPVC female tee accepts sensors and pressure gauges.
- Transition branch: switches between UPVC rubber ring and metal threaded systems.
Application Scenarios of UPVC Rubber Ring Joint Female Tee for Water
- Any UPVC rubber ring system needing a female threaded branch connection.
