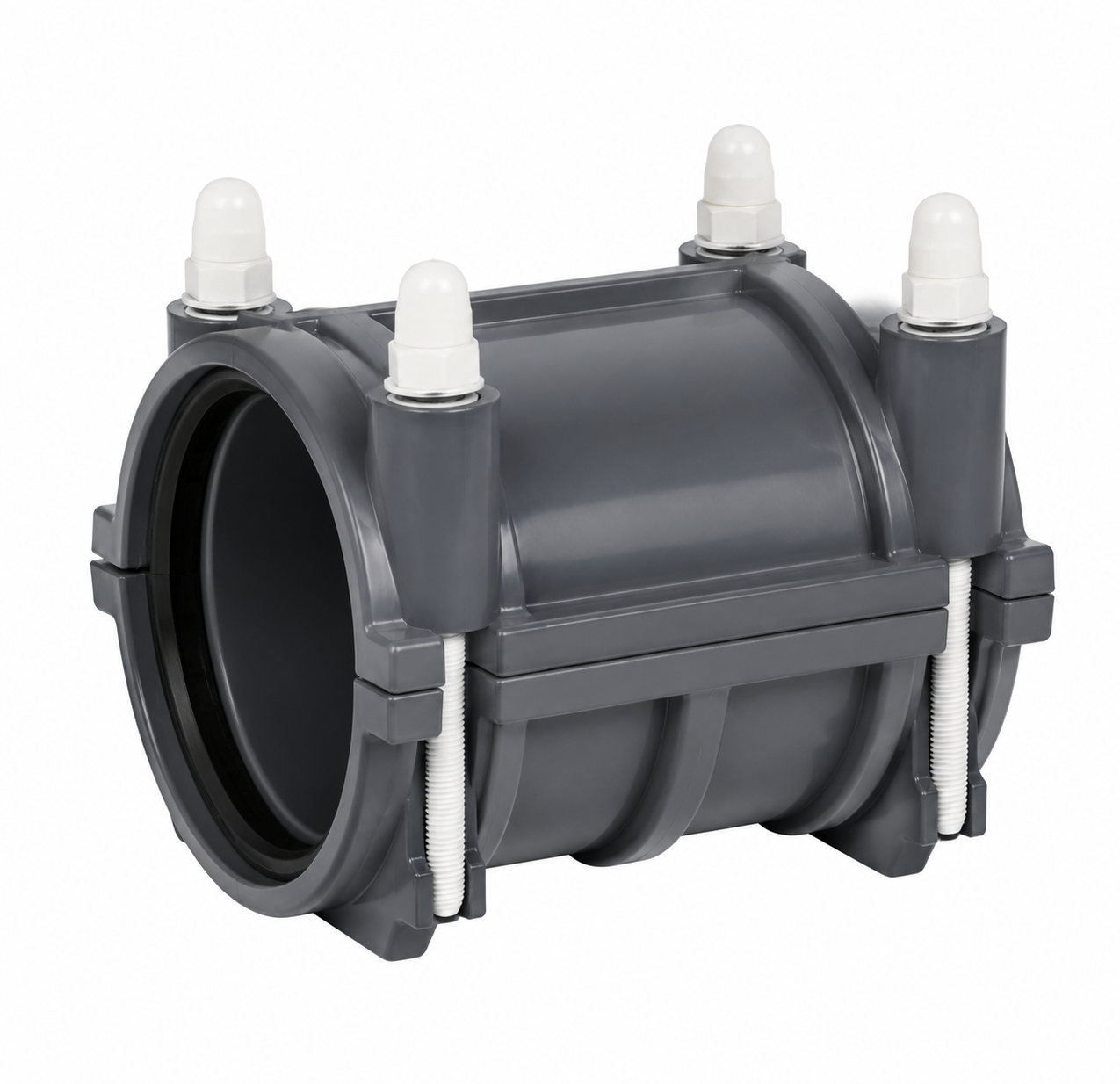

A UPVC split repair coupling with a two-piece clamp design, used for quick repair of pipe leaks. Consisting of two half shells, rubber sealing gaskets, and tightening bolts, it can be installed under pressure without shutting off water or replacing pipe sections.
Need help? Contact our technical support team
+86 1551559 6408

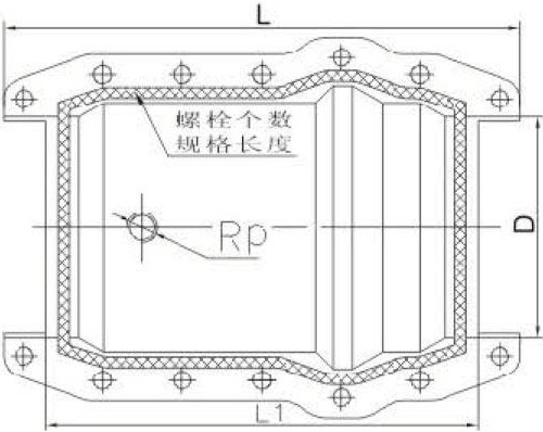

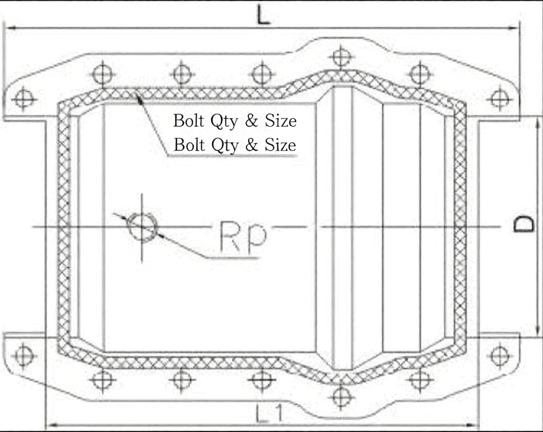

| Coding | Spec | Size | Unit: mm | |||
|---|---|---|---|---|---|---|
| L | L1 | Rp | Bolts | |||
| F5401 | 63 | 245 | 200 | 3/4" | 10×M10×60 | |
| F5402 | 75 | 300 | 250 | 3/4" | 12×M10×60 | |
| F5403 | 90 | 313 | 260 | 3/4" | 12×M10×70 | |
| F5404 | 110 | 340 | 280 | 1/2" | 12×M12×70 | |
| F5405 | 125 | 345 | 284 | 1/2" | 12×M12×70 | |
| F5406 | 140 | 347 | 286 | 1/2" | 12×M12×70 | |
| F5407 | 160 | 382 | 320 | 1/2" | 14×M12×80 | |
| F5408 | 180 | 402 | 340 | 1/2" | 14×M12×80 | |
| F5409 | 200 | 462 | 400 | 1" | 16×M12×80 | |
| F5410 | 225 | 462 | 400 | 1" | 16×M12×80 | |
| F5411 | 250 | 494 | 430 | 1" | 18×M12×80 | |
| F5412 | 280 | 495 | 430 | 1" | 18×M12×90 | |
| F5413 | 315 | 525 | 450 | 1" | 18×M12×90 | |
| F5414 | 355 | 545 | 470 | 1 1/2" | 18×M16×100 | |
| F5415 | 400 | 575 | 500 | 1 1/2" | 20×M16×100 |
Each has a housing injection molded from UPVC or ductile iron. Rubber gaskets are made by compression molding, and fasteners are galvanized carbon steel or stainless steel.
Every is checked against these parameters:
