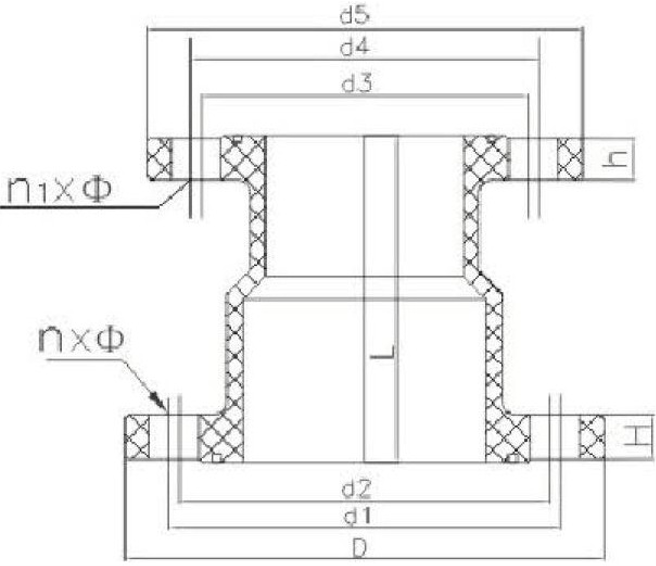

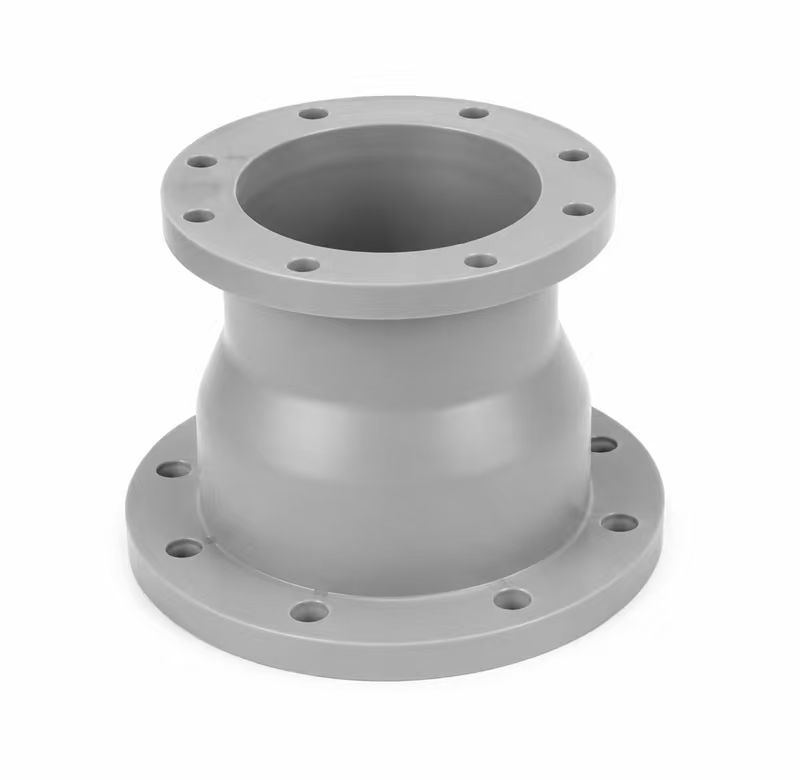

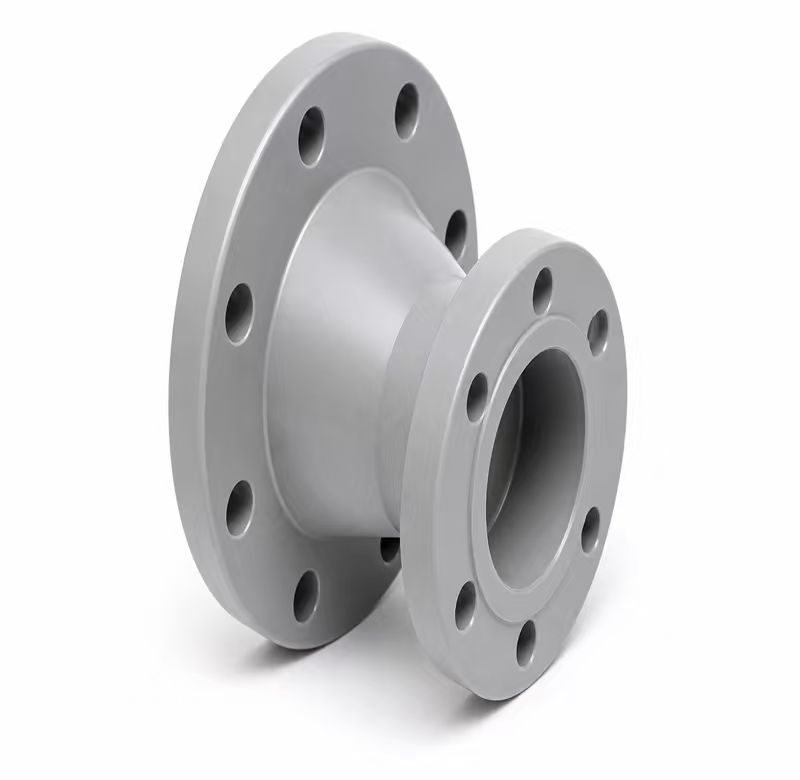

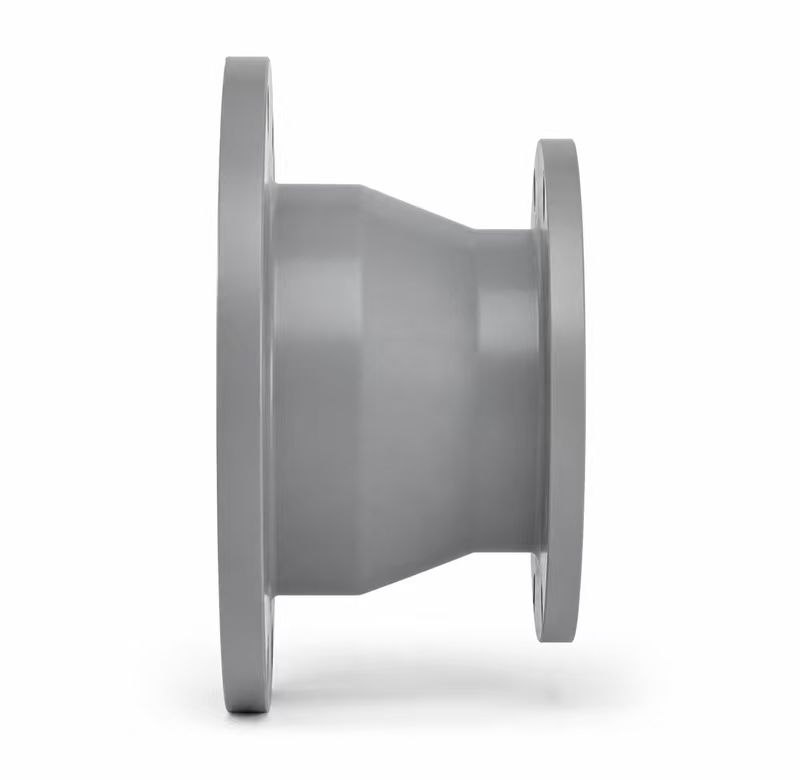

UPVC Reduced Flange for Water

Key Features

• Double flange reducing: both ends are flanges of different diameters for reducing flanged connections.
• One-piece molding: reducing section and flanges integrally molded for high strength.
• Tapered flow path: gradual transition minimizes pressure loss.
• Easy installation: standard flanged bolt connection.

Manufacturing Process

One-piece injection molded from UPVC. Both flange faces are flat; uniform wall thickness in reducing section; bolt holes distributed per respective standards.

Critical Process Parameters

• Parallelism of both flange faces.
• Streamlined reducing section design.
• Bolt hole accuracy on both flanges.

Raw Material Characteristics

• Material Composition: UPVC.
• Material Properties: Consistent with series.

Typical Applications

• Connection between flanged pipes of different diameters.
• Transition between flanged valves and pipes of different diameters.
• Reducing connections at equipment flange interfaces.

Application Scenarios

• Reducing connections between flanged pipes of different diameters.
