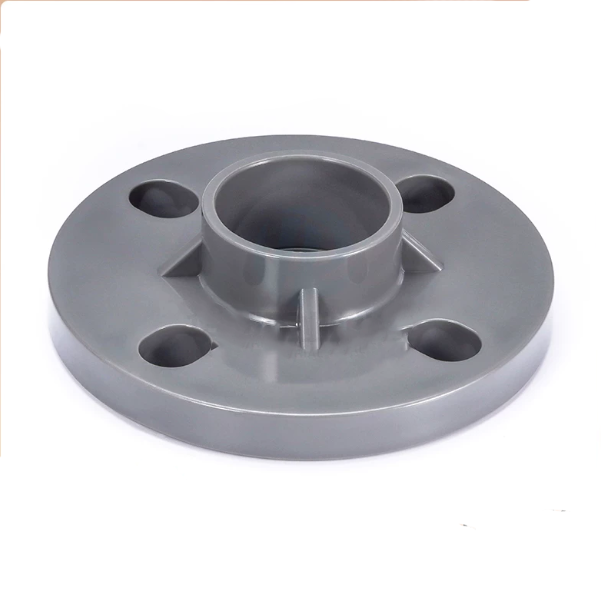

UPVC Insert Flange for Water

Key Features of UPVC Insert Flange for Water

• Spigot + Flange: spigot end inserts into a rubber ring socket while flange end bolts to equipment.
• Flexible connection: works with socket flanges or double socket fittings to connect rubber ring piping to flanged equipment.
• Detachable: flanged connection allows easy maintenance and replacement.
• Corrosion resistant: all-UPVC construction of this UPVC insert flange.

Manufacturing Process of UPVC Insert Flange for Water

Each is injection molded from UPVC. The spigot end is chamfered per standards and the flange face is flat with bolt holes per standards.

Critical Process Parameters of UPVC Insert Flange for Water

Every is checked against these parameters:

• Precise spigot OD and chamfer machining for this UPVC insert flange.
• Flange face flatness and perpendicularity.
• Bolt circle and hole diameter conform to standards.

Raw Material Characteristics of UPVC Insert Flange for Water

• Material Composition: UPVC body; flange ring can be UPVC, PP, or metal.
• Material Properties: provides high mechanical strength, outstanding chemical resistance, suitability for cold water up to 45°C, and compliance with potable water standards.

Typical Applications of UPVC Insert Flange for Water

• Rubber ring pipe to flanged equipment: connects UPVC rubber ring piping to flanged valves and equipment.
• Flanged valve inline: lets you install flanged valves in rubber ring systems.
• Metal pipe transition: bridges to metal flanged pipes.

Application Scenarios of UPVC Insert Flange for Water

• Any UPVC rubber ring system needing a flanged equipment connection via insert flange.
