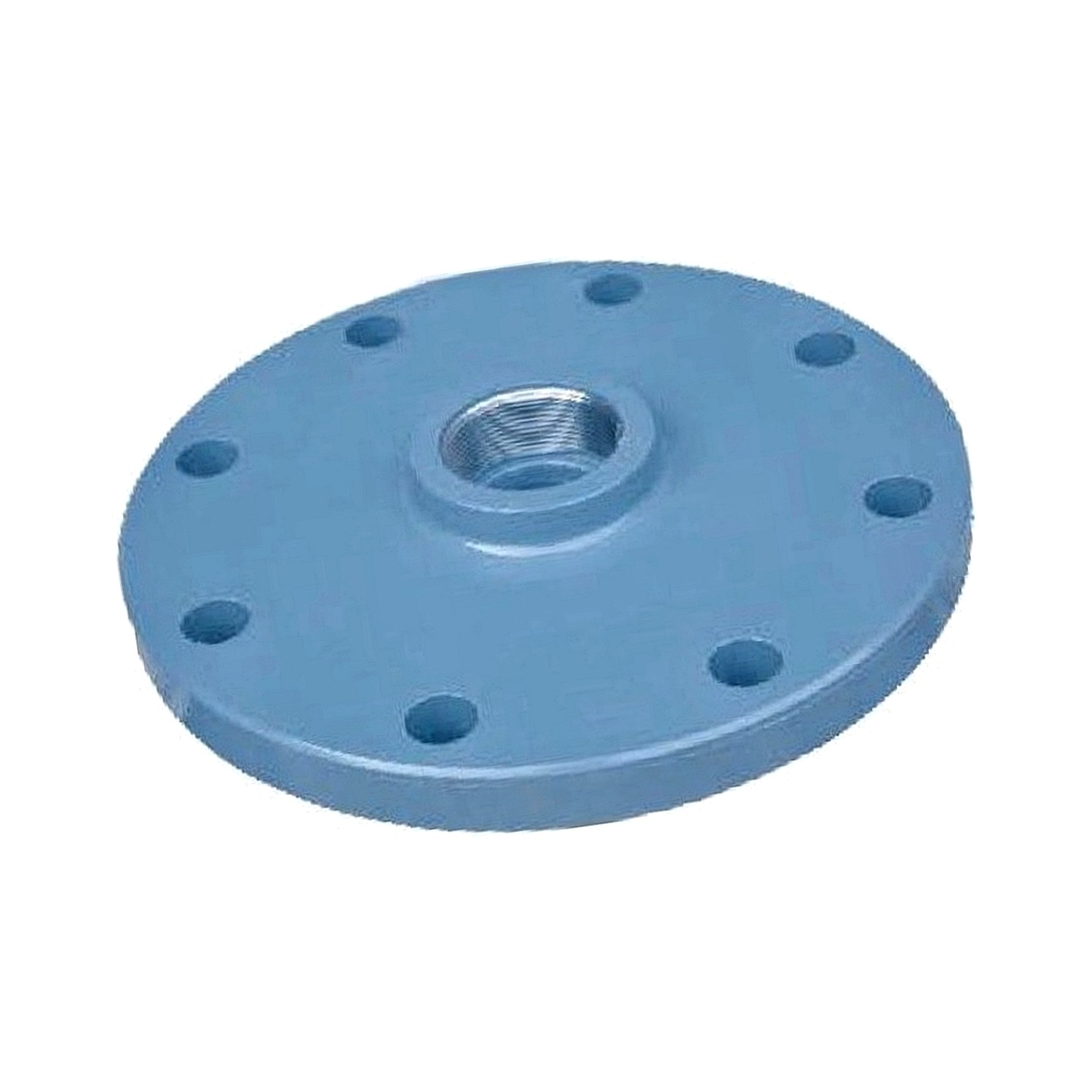

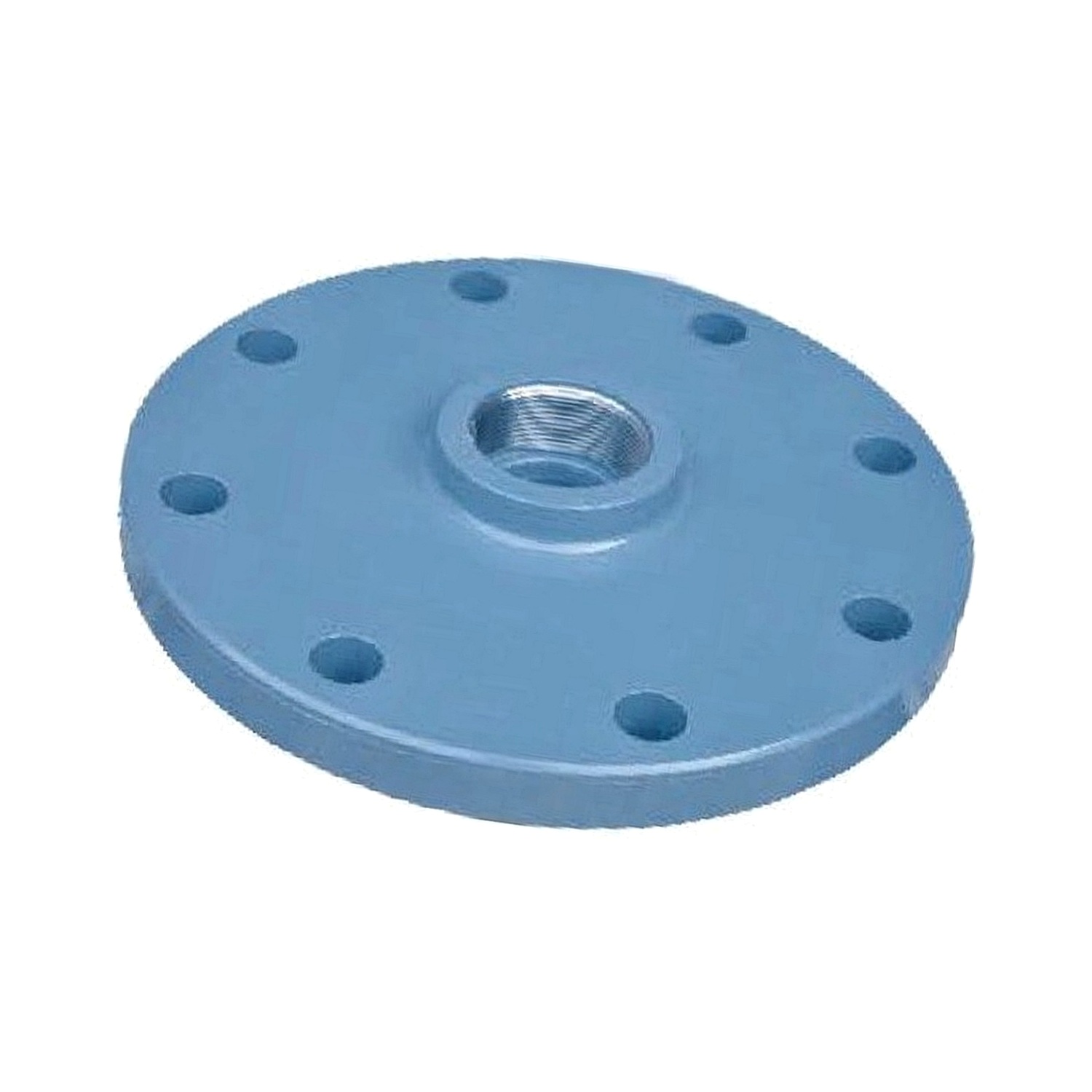

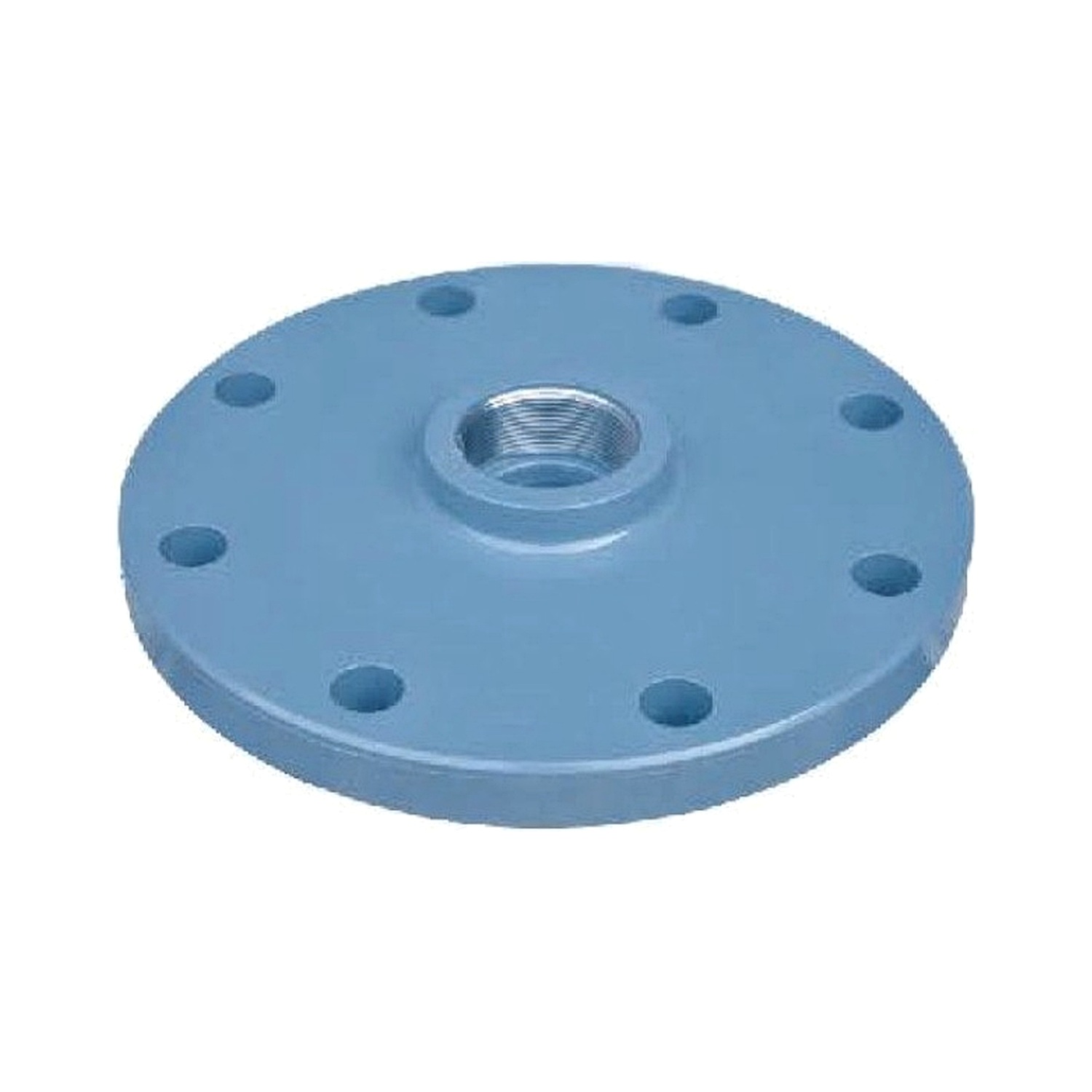

The UPVC Blank Flange with Thread Hole for Water closes a flanged joint and still offers a central threaded outlet for instruments, gauges, or valve accessories.
|
Coding
|

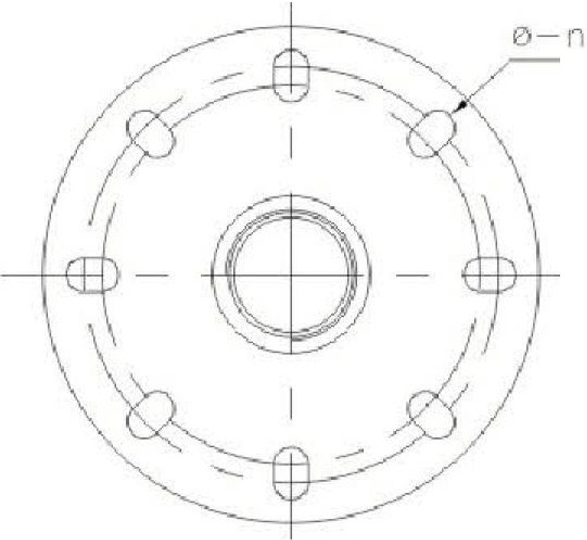

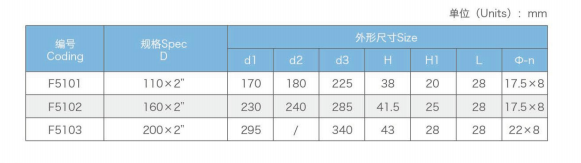

Spec(D)
|
|
|
Size
|
|
|
|
|
Unit:mm
|
|
|
|
d1
|
d2
|
d3
|
H
|
H1
|
L
|
Φ-n
|
|
|
F5101
|
110×2"
|
170
|
180
|
225
|
38
|
20
|
28
|
17.5×8
|
|
|
F5102
|
160×2"
|
230
|
240
|
285
|
41.5
|
25
|
28
|
17.5×8
|
|
|
F5103
|
200×2"
|
295
|
/
|
340
|
43
|
28
|
28
|
22×8
|
|
Key Features of UPVC Blank Flange with Thread Hole for Water
- Threaded hole design: the central threaded hole lets you install instruments.
- Sealing function: works as a blank flange to close flanged interfaces.
- One-piece molding: blind flange and thread are integrally molded for strength.
- Corrosion resistant: all-UPVC construction of this UPVC blank flange with thread hole.
Manufacturing Process of UPVC Blank Flange with Thread Hole for Water
Each is one-piece injection molded from UPVC. The flange face is flat, the central threaded hole is formed or machined, and bolt holes follow standards.
Critical Process Parameters of UPVC Blank Flange with Thread Hole for Water
Every is checked against these parameters:
- Flange face flatness of this UPVC blank flange.
- Central thread dimensional accuracy and form.
- Bolt circle and hole diameter conform to standards.
Raw Material Characteristics of UPVC Blank Flange with Thread Hole for Water
- Material Composition: UPVC; the central thread may carry a brass insert.
- Material Properties: offers high mechanical strength, outstanding chemical resistance, suitability for cold water up to 45°C, and compliance with potable water standards.
Typical Applications of UPVC Blank Flange with Thread Hole for Water
- Flange closure with accessory port: seals a flanged end and still offers a threaded outlet.
- Instrument mounting: install gauges, sensors, or valves through the central thread of this UPVC blank flange.
- Water distribution system closure: terminates branches needing future tap-in.
Application Scenarios of UPVC Blank Flange with Thread Hole for Water
- Any UPVC water system needing a flanged closure with a threaded accessory port.
