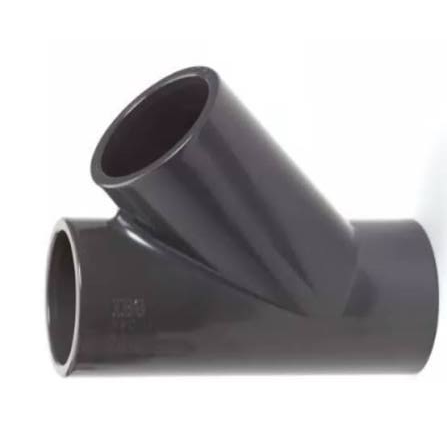

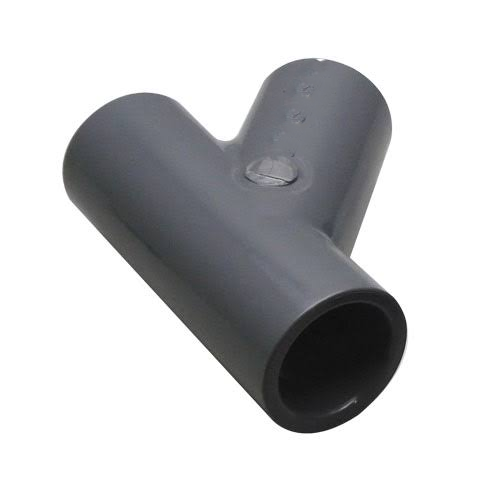

A 45° wye tee (Y-tee) manufactured from PVC-U or PVC-C, with branch angled at 45° to the main. Used for smooth flow splitting or confluence in industrial piping systems; the 45° swept design significantly reduces head loss and turbulence. Chemical fusion with pipes via specialized solvent cement.
Need help? Contact our technical support team

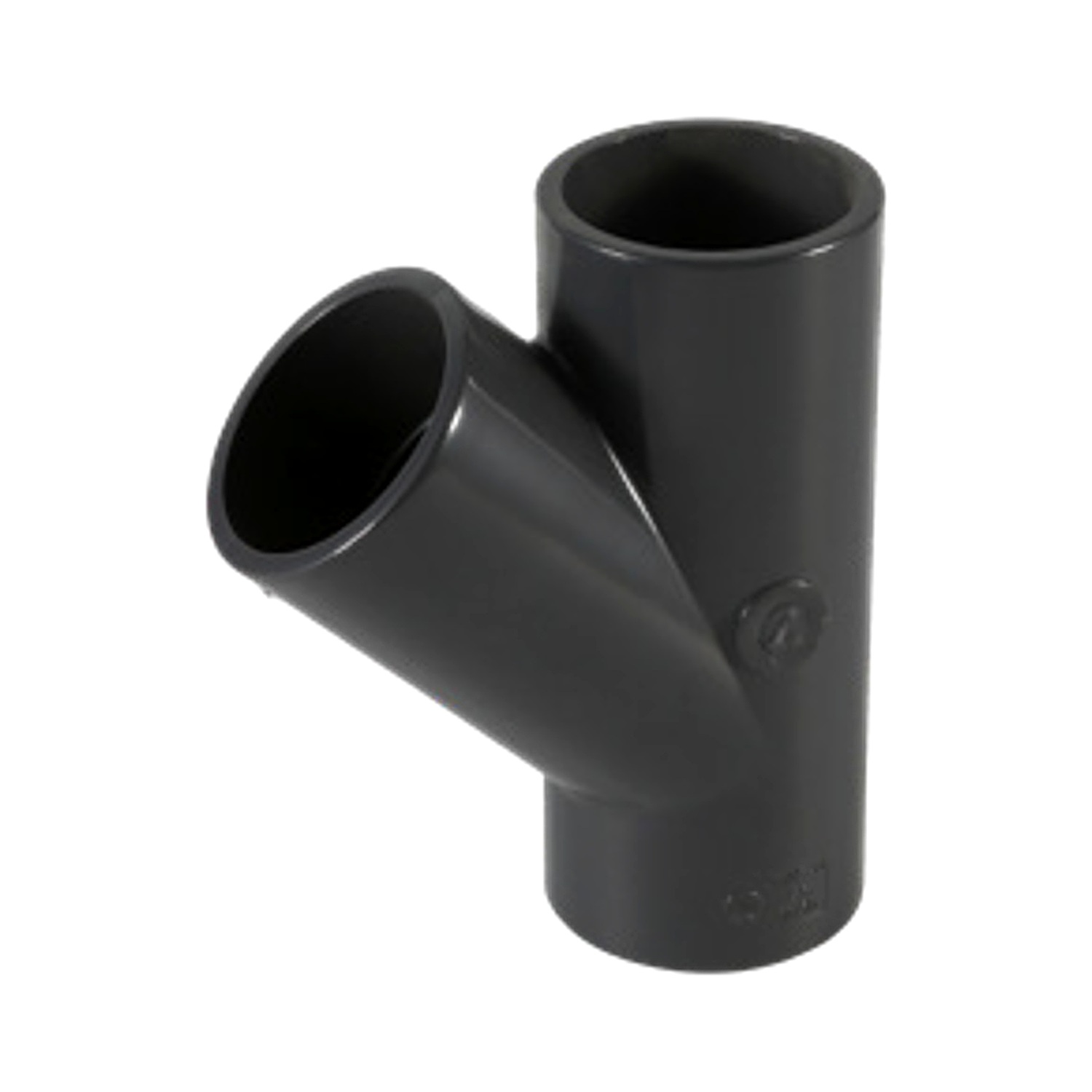

+86 1551559 6408The UPVC Y-Tee for Industry is a 45° solvent-cement socket wye fitting designed for smooth flow splitting or confluence in chemical and industrial water treatment piping. Its swept design reduces head loss and debris accumulation.
| Size DN(De) | Dimensions (mm) | Pressure level | ||||||
|---|---|---|---|---|---|---|---|---|
| D1 | d1 | d2 | T | L | L2 | H | ||
| 15(20) | 29.10 | 20.30 | 19.95 | 23.22 | 82.50 | 53.22 | 53.22 | PN16 |
| 20(25) | 34.90 | 25.30 | 24.95 | 26.40 | 97.80 | 62.40 | 62.40 | PN16 |
| 25(32) | 42.90 | 32.30 | 31.90 | 29.58 | 114.20 | 74.58 | 74.58 | PN16 |
| 32(40) | 52.00 | 40.40 | 39.90 | 32.75 | 131.50 | 88.75 | 88.75 | PN16 |
| 40(50) | 60.00 | 50.40 | 49.90 | 35.93 | 149.90 | 101.93 | 101.93 | PN16 |
| 50(63) | 75.00 | 63.40 | 62.90 | 39.10 | 177.20 | 124.10 | 124.10 | PN16 |
| 65(75) | 91.00 | 75.40 | 74.90 | 45.50 | 210.00 | 146.50 | 146.50 | PN16 |
| 80(90) | 107.00 | 90.50 | 89.90 | 51.20 | 244.50 | 173.20 | 173.20 | PN16 |
| 100(110) | 134.00 | 110.60 | 109.90 | 61.20 | 298.50 | 210.20 | 210.20 | PN16 |
| 125(140) | 168.00 | 140.70 | 139.90 | 76.20 | 376.40 | 266.20 | 266.20 | PN16 |
| 150(160) | 191.00 | 160.80 | 159.90 | 86.20 | 426.40 | 299.20 | 299.20 | PN16 |
| 200(225) | 260.00 | 226.20 | 224.90 | 118.70 | 587.40 | 414.70 | 414.70 | PN16 |
Each is produced by multi-slide precision injection molding with precise 45° branch angle control. The flow transition at the junction is smooth, and all three sockets are precisely machined.
Every is checked against these parameters:
