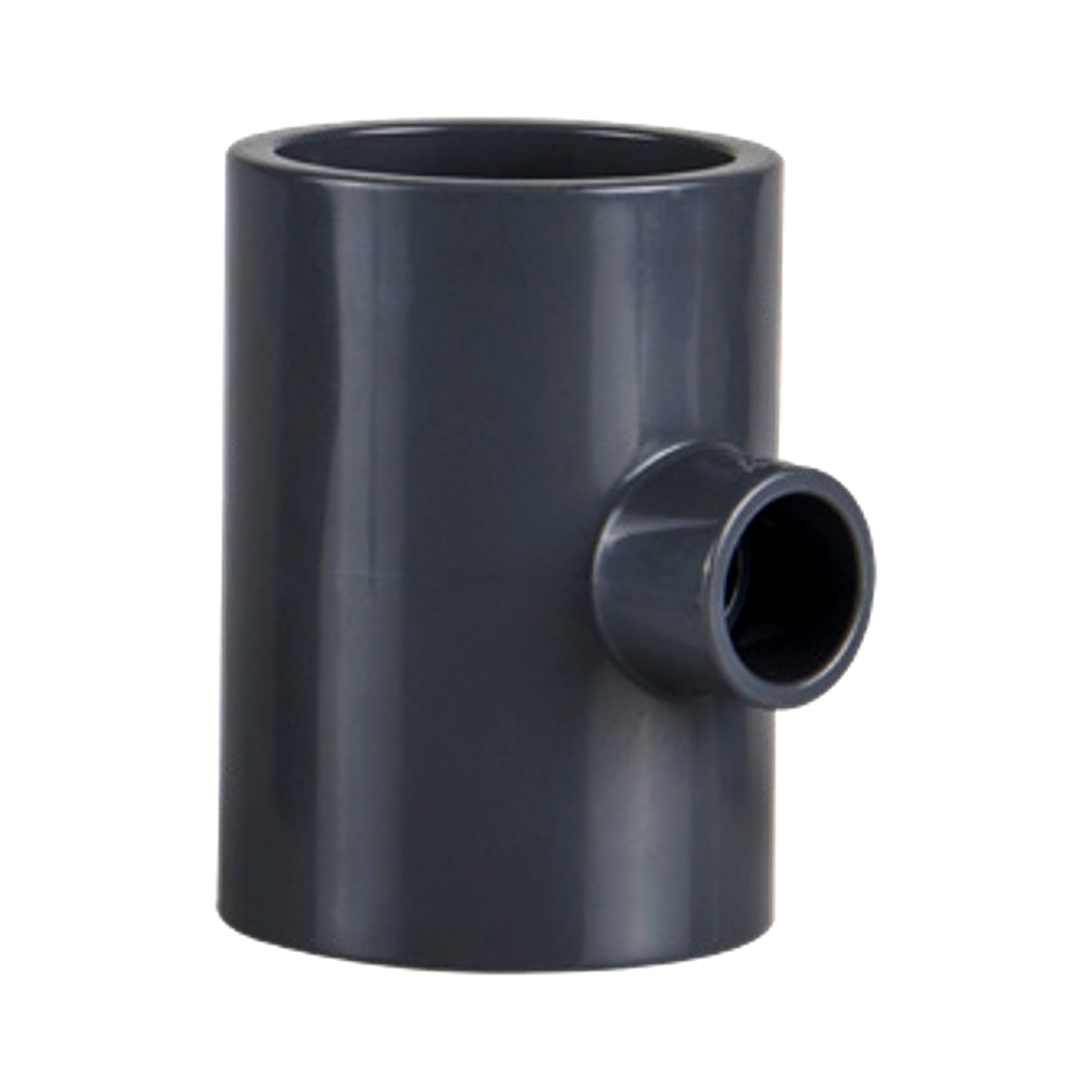

UPVC Reducer Tee for Industry

A solvent-cement socket reducer tee manufactured from PVC-U or PVC-C, used for branching a different diameter pipe from the main line in industrial piping systems. All three ports achieve chemical fusion with pipes via specialized solvent cement for corrosion-resistant permanent sealing.

UPVC Reducer Tee for Industry

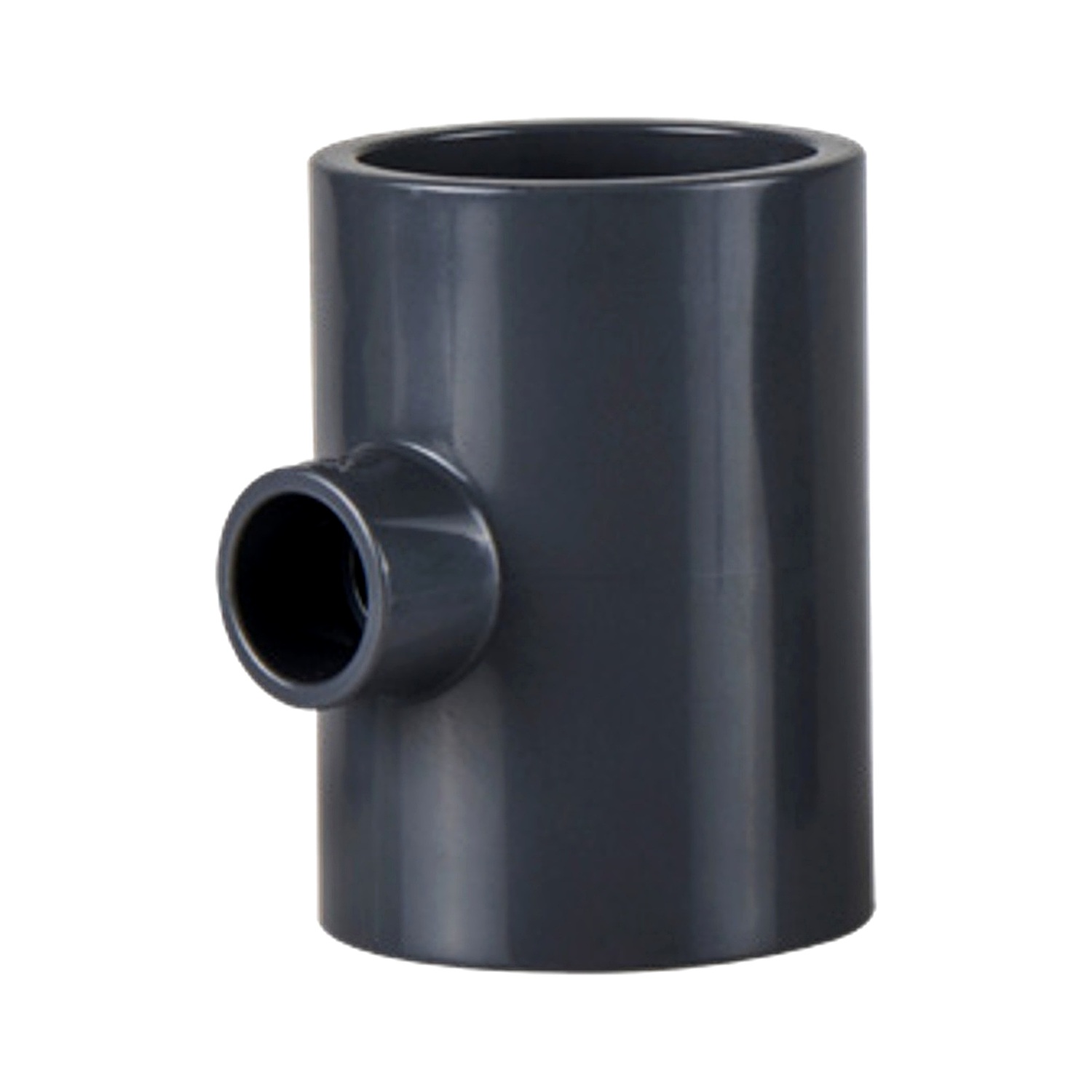

View 1 View 1 View 1

UPVC Reducer Tee for Industry

Hot Product
The UPVC Reducer Tee for Industry is a solvent-cement socket tee for branching a different diameter pipe from the main line in industrial piping systems.
  • Diameter Range: DN15 – 400mm（Reducing combination）
  • Pressure Rating: PN10, PN16
  • Applicable Standards: ISO 1452-3, ASTM D2467
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The UPVC Reducer Tee for Industry is a solvent-cement socket fitting that enables branch connections of a smaller diameter from the main line in chemical and water treatment piping. Its smooth reducing transition minimizes flow turbulence.

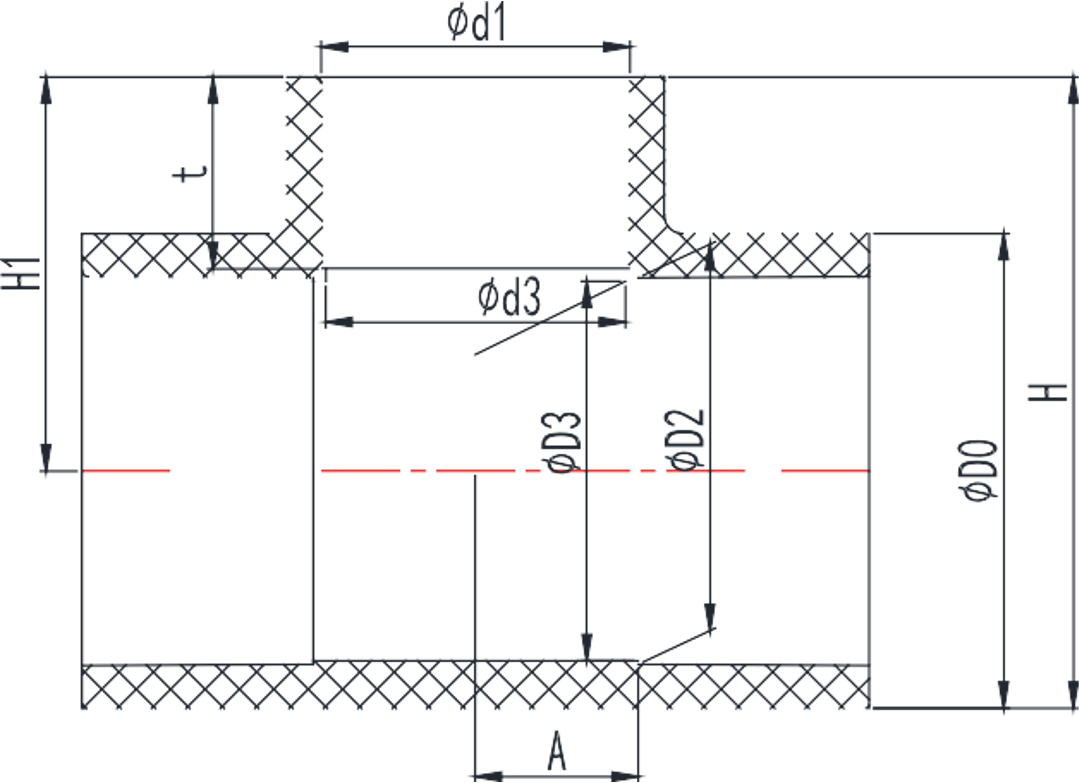

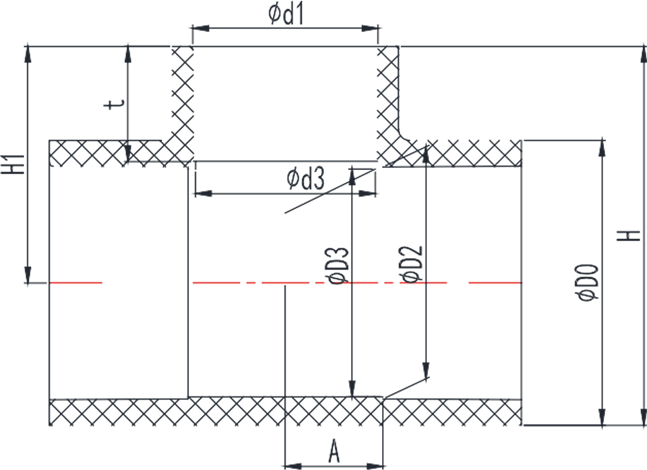

UPVC Reducer Tee for Industry
Size DN(De) Dimensions (mm) Nominal Pressure
PN(kg/cm²)
D0 D1 D2 D3 d0 d1 d2 d3 d t T H1 H L
20X15(25*20) 31.80 25.25 24.95 23.00 26.30 20.30 19.95 18.00 18.70 16.20 30.20 46.1 60.40 S5(PN20)
25X15(32*20) 39.90 32.30 31.90 30.00 26.50 20.30 19.95 18.00 22.20 16.20 34.40 54.35 69.00 S5(PN20)
25X20(32*25) 39.90 32.30 31.90 30.00 31.80 25.30 24.95 23.00 22.20 18.70 36.20 56.15 72.10 S5(PN20)
32X15(40*20) 49.70 40.35 39.90 38.00 26.40 20.30 19.95 18.00 26.20 16.20 39.00 63.85 75.50 S5(PN20)
32X20(40*25) 49.70 40.35 39.90 38.00 31.10 25.30 24.95 23.00 26.20 18.70 40.70 65.55 80.50 S5(PN20)
32X25(40*32) 49.70 40.35 39.90 38.00 39.70 32.30 31.90 30.00 26.20 22.20 43.70 68.55 87.40 S5(PN20)
40X15(50*20) 61.90 50.35 49.90 48.00 26.30 20.30 19.95 18.00 31.20 16.20 45.20 77.65 94.70 S5(PN20)
40X20(50*25) 61.90 50.35 49.90 48.00 31.80 25.30 24.95 23.00 31.20 18.70 47.90 78.45 97.40 S5(PN20)
40X25(50*32) 61.90 50.35 49.90 48.00 39.90 32.30 31.90 30.00 31.20 22.20 52.70 83.20 96.65 S5(PN20)
40X32(50*40) 61.90 50.35 49.90 48.00 49.30 40.35 39.90 38.00 31.20 26.20 53.20 83.65 92.25 S5(PN20)
50X15(63*20) 77.90 63.40 62.90 61.00 26.30 20.30 19.95 18.00 37.70 16.20 54.70 93.65 103.10 S5(PN20)
50X20(63*25) 77.90 63.40 62.90 61.00 31.80 25.30 24.95 23.00 37.70 18.70 57.20 96.15 110.40 S5(PN20)
50X25(63*32) 77.90 63.40 62.90 61.00 39.90 32.30 31.90 30.00 37.70 22.20 59.20 97.10 111.80 S5(PN20)
50X32(63*40) 77.90 63.40 62.90 61.00 49.70 40.35 39.90 38.00 37.70 26.20 59.20 98.40 115.70 S5(PN20)
50X40(63*50) 77.90 63.40 62.90 61.00 61.50 50.35 49.90 48.00 37.70 31.20 64.20 103.15 127.40 S5(PN20)
65X15(75*20) 91.20 75.40 74.90 71.00 26.30 20.30 19.95 18.00 43.70 16.20 55.70 100.8 143.40 S6.3(PN16)
65X20(75*25) 91.20 75.40 74.90 71.00 31.80 25.30 24.95 23.00 43.70 18.70 57.70 104.0 140.00 S6.3(PN16)
65X25(75*32) 91.20 75.40 74.90 71.00 39.40 32.30 31.90 30.00 43.70 22.20 61.20 106.8 114.00 S6.3(PN16)
65X32(75*40) 91.20 75.40 74.90 71.00 49.70 40.35 39.90 38.00 43.70 26.20 65.20 110.8 140.00 S6.3(PN16)
65X40(75*50) 91.20 75.40 74.90 71.00 61.70 50.35 49.90 48.00 43.70 31.20 70.00 115.8 152.20 S6.3(PN16)
65X50(75*63) 91.20 75.40 74.90 71.00 77.30 63.40 62.90 61.00 43.70 37.70 77.30 122.9 152.00 S6.3(PN16)
80X20(90*25) 107.60 90.50 89.90 85.90 31.80 25.30 24.95 23.00 51.20 18.70 72.70 122.5 167.80 S6.3(PN16)
80X25(90*32) 107.60 90.50 89.90 85.90 39.50 32.30 31.90 30.00 51.20 22.20 77.70 126.8 168.20 S6.3(PN16)
80X32(90*40) 107.60 90.50 89.90 85.90 49.70 40.35 39.90 38.00 51.20 26.20 77.70 126.5 168.00 S6.3(PN16)
80X40(90*50) 107.60 90.50 89.90 85.90 61.60 50.35 49.90 48.00 51.20 31.20 84.20 138 168.20 S6.3(PN16)
80X50(90*63) 107.60 90.50 89.90 85.90 77.30 63.40 62.90 61.00 51.20 37.70 92.30 146.1 180.70 S6.3(PN16)
80X65(90*75) 107.60 90.50 89.90 85.90 91.20 75.40 74.90 71.00 51.20 43.70 97.40 146.1 180.70 S6.3(PN16)
100X20(110*25) 127.00 110.60 109.90 103.90 31.80 25.30 24.95 23.00 61.20 18.70 74.40 137.7 189.60 S6.3(PN16)
100X25(110*32) 127.00 110.60 109.90 103.90 40.10 32.30 31.90 30.00 61.20 22.20 77.00 141.2 189.60 S6.3(PN16)
100X32(110*40) 127.00 110.60 109.90 103.90 49.70 40.35 39.90 38.00 61.20 26.20 81.70 145.2 189.60 S6.3(PN16)
100X40(110*50) 127.00 110.60 109.90 103.90 61.70 50.35 49.90 48.00 61.20 31.20 86.70 150.2 189.60 S6.3(PN16)
100X50(110*63) 127.00 110.60 109.90 103.90 77.50 63.40 62.90 61.00 61.20 37.70 93.00 156.7 189.60 S6.3(PN16)
100X65(110*75) 127.00 110.60 109.90 103.90 90.80 75.40 74.90 71.00 61.20 43.70 99.20 161.1 189.60 S6.3(PN16)
100X80(110*90) 127.00 110.60 109.90 103.90 107.00 90.50 89.90 85.90 61.20 51.20 103.50 173.85 199.25 S6.3(PN16)
De125*110 144.30 125.70 124.90 118.90 127.00 110.60 109.90 103.90 68.70 61.20 110.80 179.55 214.00 S6.3(PN16)
125X40(140*50) 161.60 140.75 139.90 133.90 61.60 50.35 49.90 48.00 76.20 31.11 101.70 182 247.00 S6.3(PN16)
125X50(140*63) 161.60 140.75 139.90 133.90 77.30 63.40 62.90 61.00 76.20 37.59 108.20 189 247.40 S6.3(PN16)
125X65(140*75) 161.60 140.75 139.90 133.90 91.00 75.40 74.90 71.00 76.20 43.70 113.60 194.8 247.40 S6.3(PN16)
125X80(140*90) 161.60 140.75 139.90 133.90 107.40 90.50 89.90 85.90 76.20 52.00 121.50 202.3 247.40 S6.3(PN16)
125X100(140*110) 161.60 140.75 139.90 133.90 127.20 110.60 109.90 103.90 76.20 61.02 127.00 217.5 266.00 S6.3(PN16)
De140*125 184.60 160.80 159.90 153.90 144.30 125.70 124.90 118.90 86.20 68.70 142.80 224.0 288.50 S6.3(PN16)
150X50(160*63) 184.60 160.80 159.90 153.90 77.70 63.40 62.90 61.00 86.20 37.70 104.00 210.5 285.00 S6.3(PN16)
150X65(160*75) 184.60 160.80 159.90 153.90 90.60 75.40 74.90 71.00 86.20 43.70 124.00 216.3 285.00 S6.3(PN16)

Key Features of UPVC Reducer Tee for Industry

  • Reducing branch: has main and branch diameters that differ to meet industrial reducing flow needs.
  • Solvent cement joints: provides reliable sealing on all three ports.
  • Smooth transition: features a gentle flow transition at the branch-main intersection.
  • Industrial-grade corrosion resistance: is suitable for chemical corrosive fluid transport.

Manufacturing Process of UPVC Reducer Tee for Industry

Each is produced by multi-slide precision injection molding with a smooth reducing transition and uniform wall thickness. All three sockets are precisely machined.

Critical Process Parameters of UPVC Reducer Tee for Industry

Every is checked against these parameters:

  • Coaxiality and perpendicularity control of different diameter sockets.
  • Streamlined reducing section design to minimize turbulence.
  • Precise socket machining.

Raw Material Characteristics of UPVC Reducer Tee for Industry

  • Material: UPVC (PVC-C version available for high-temperature use)
  • High mechanical strength
  • Chemical resistance
  • UPVC suitable up to 60°C; PVC-C suitable up to 93°C

Typical Applications of UPVC Reducer Tee for Industry

  • branches small-diameter lines from large mains in chemical piping.
  • The fitting provides reducing branch distribution in industrial water treatment systems.
  • is used for chemical fluid distribution in electroplating and semiconductor industries.

Application Scenarios of UPVC Reducer Tee for Industry

  • Reducing branch connections in industrial piping systems — is the standard fitting for these transitions.
