A pipe clip manufactured from PVC-U or PVC-C, used to secure industrial pipes to walls, brackets, or hanger rods, providing stable support and positioning. Installed via bolts or expansion screws; chemical resistant for industrial environments.
Need help? Contact our technical support team

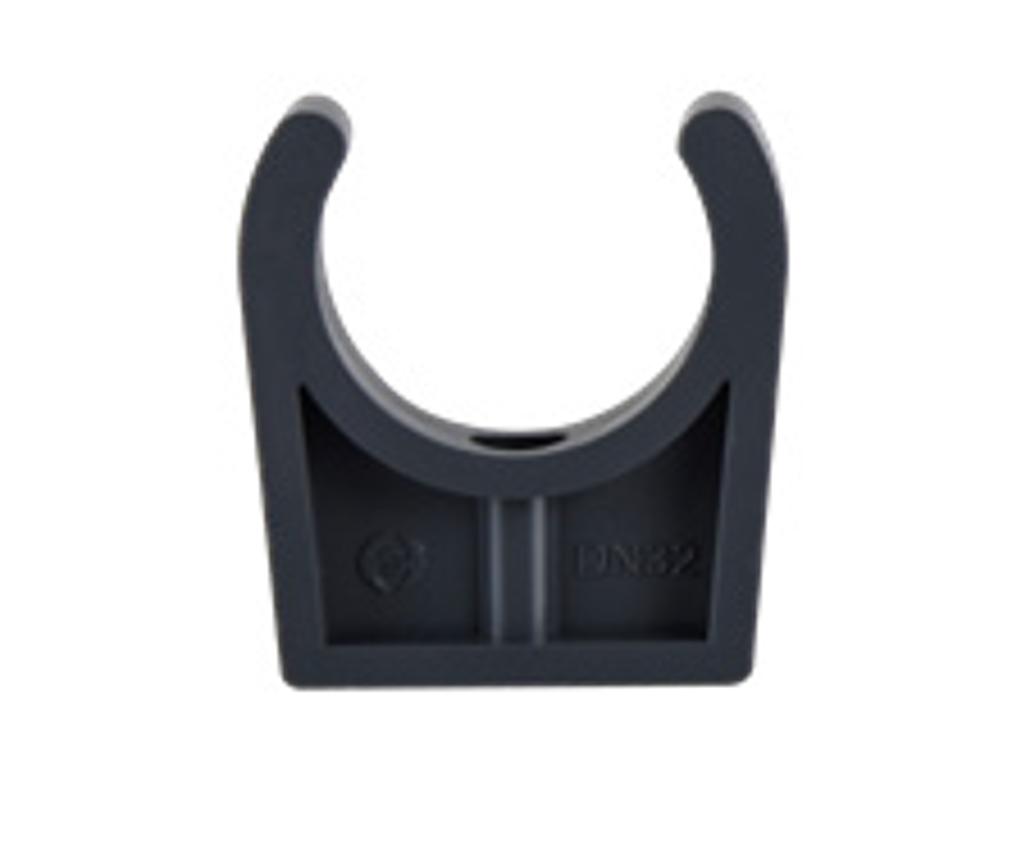

+86 1551559 6408The UPVC Pipe Clip for Industry is a chemical-resistant pipe support that securely fastens UPVC pipes to walls, brackets, or hanger rods. It is suitable for chemical plants and industrial water treatment installations where corrosion resistance is essential.

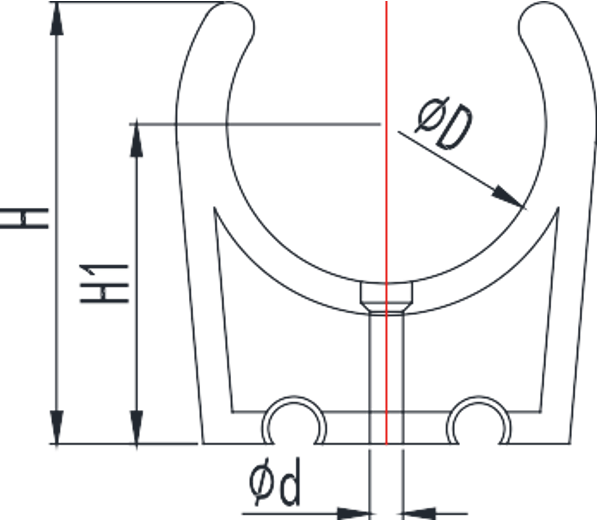

| Size DN | Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | H | H1 | d | S | L | L1 | h1 | h2 | S1 | |
| 15 | 20.20 | 35.40 | 27.20 | 5.20 | 16.00 | - | - | - | - | - |
| 20 | 25.10 | 41.00 | 30.50 | 5.20 | 16.00 | - | - | - | - | - |
| 25 | 32.10 | 52.80 | 40.00 | 5.20 | 16.00 | - | - | - | - | - |
| 32 | 40.10 | 59.30 | 44.00 | 5.20 | 16.00 | - | - | - | - | - |
| 40 | 50.10 | 71.20 | 52.00 | 5.20 | 16.00 | - | - | - | - | - |
| 50 | 63.10 | 88.50 | 65.00 | 5.20 | 16.00 | - | - | - | - | - |
| 65 | 75.10 | 91.80 | 62.50 | 5.20 | 16.00 | 82.85 | 79.11 | 20.00 | 26.90 | 16.00 |
| 80 | 90.10 | 103.90 | 69.00 | 5.20 | 20.00 | 97.22 | 91.87 | 30.00 | 36.90 | 20.00 |
| 100 | 110.10 | 124.50 | 85.00 | 5.20 | 20.00 | 105 | 96.38 | 30.00 | 36.90 | 20.00 |
| 125 | 140.10 | 154.50 | 108.00 | 9.00 | 25.40 |
Each is injection molded from UPVC in a two-piece or one-piece design. The inner surface may include a rubber pad for enhanced friction, and fasteners are stainless steel.
Every is checked against these parameters:
