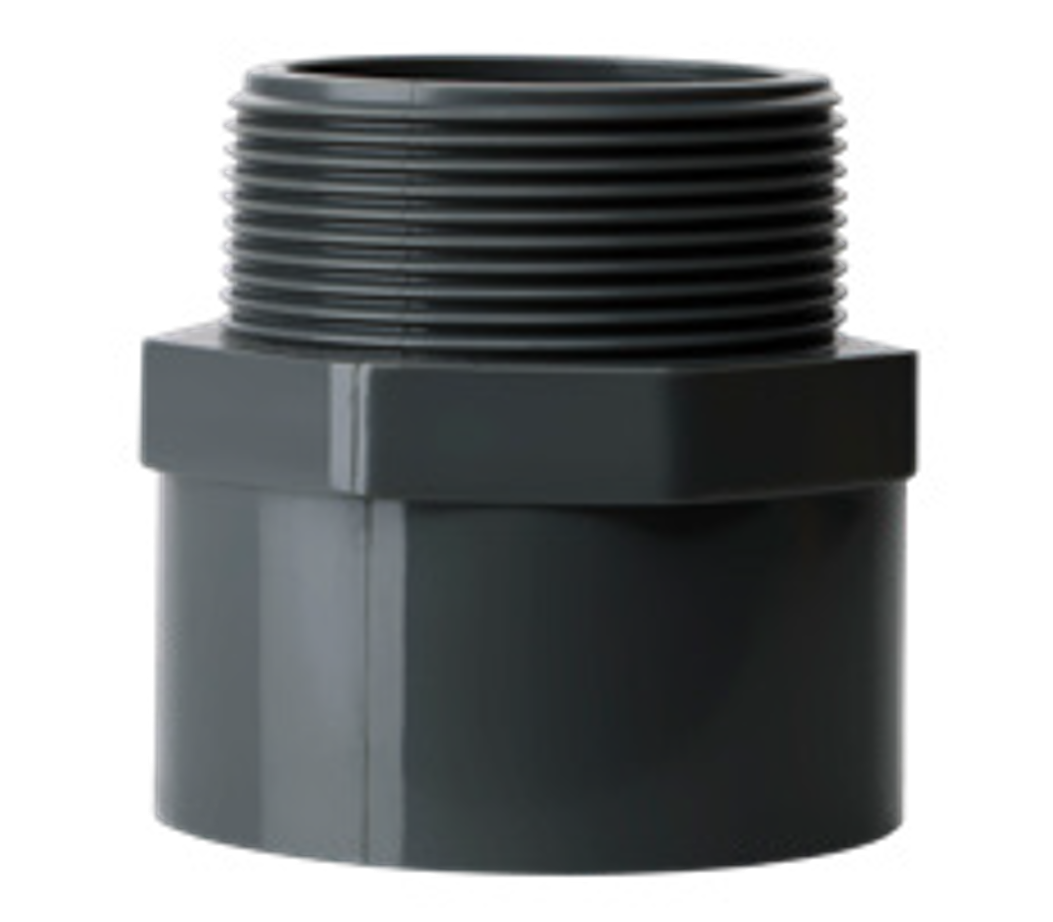

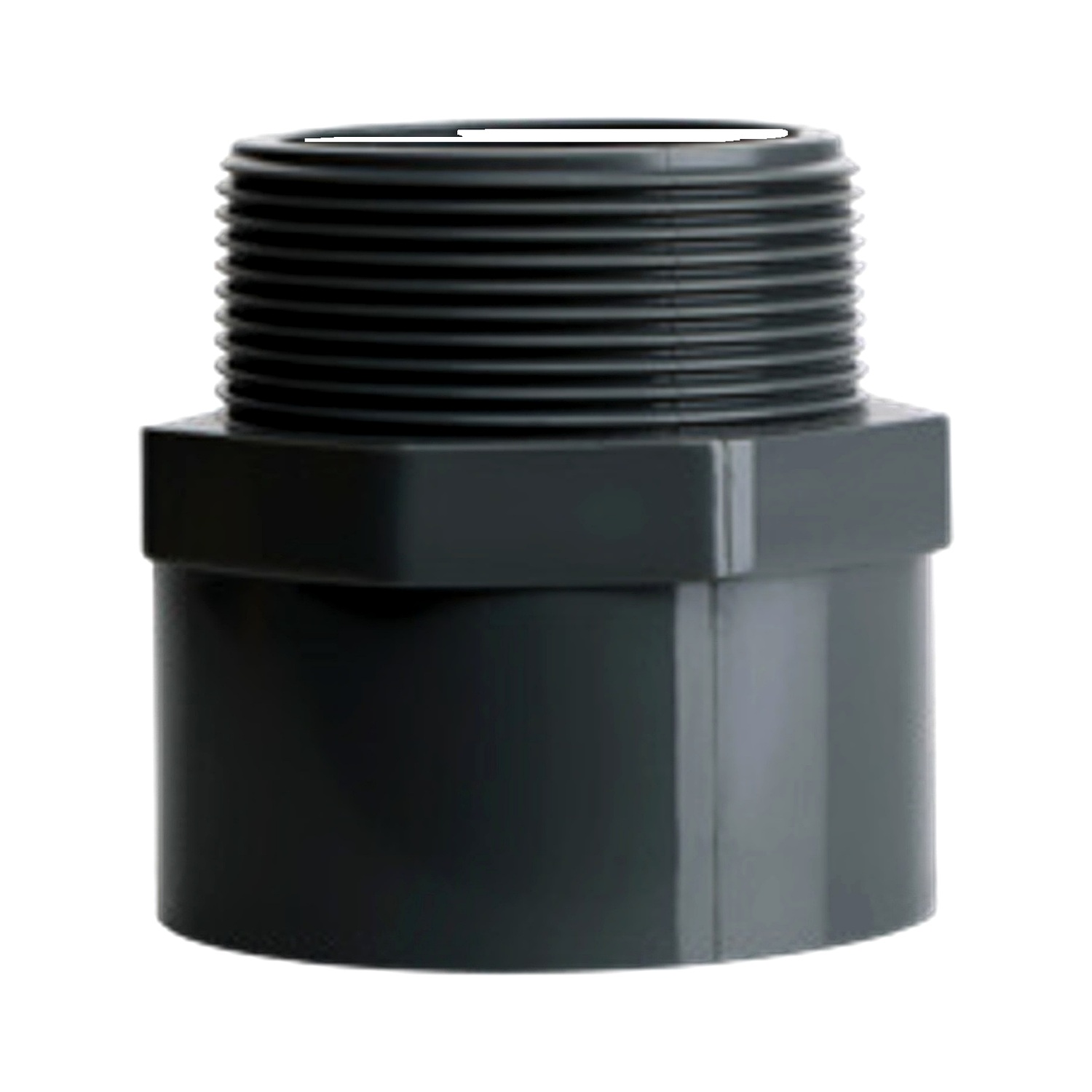

A male threaded adapter manufactured from UPVC, featuring a solvent cement socket on one end and male threads on the other. Used for connecting UPVC piping to equipment with female threaded interfaces in industrial systems.
Need help? Contact our technical support team

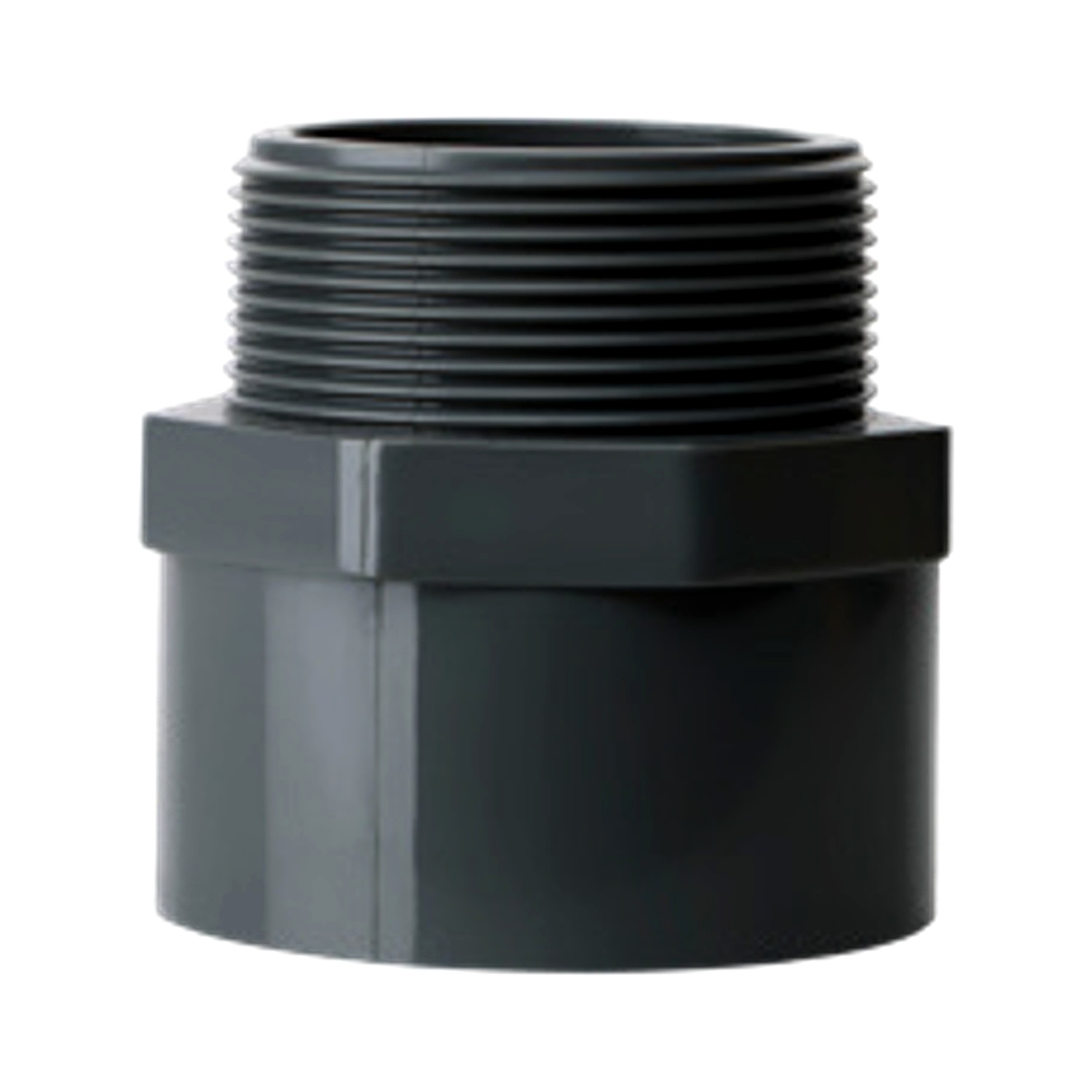

+86 1551559 6408The UPVC Male Threaded Coupler is a solvent-cement socket adapter with an all-plastic male thread, designed for reliable transition connections between UPVC piping and threaded valves or instruments in chemical and water treatment systems.

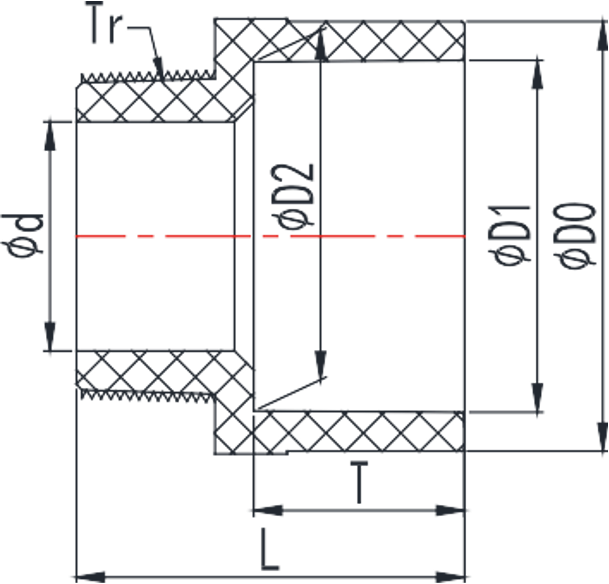

| Size DN | Dimensions (mm) |
|
Nominal Pressure
|
|||||
|---|---|---|---|---|---|---|---|---|
| D0 | D1 | D2 | d | T | L | Tr / PT | ||
| 15 | 26.80 | 20.30 | 19.95 | 11.30 | 16.50 | 35.00 | 1/2" | S5(PN20) |
| 20 | 32.50 | 25.30 | 24.95 | 16.10 | 19.00 | 38.50 | 3/4" | S5(PN20) |
| 25 | 40.30 | 32.30 | 31.90 | 21.40 | 22.50 | 44.50 | 1" | S5(PN20) |
| 32 | 49.50 | 40.35 | 39.90 | 28.80 | 26.50 | 51.00 | 1-1/4" | S5(PN20) |
| 40 | 61.60 | 50.35 | 49.90 | 32.50 | 31.50 | 56.50 | 1-1/2" | S5(PN20) |
| 50 | 77.00 | 63.40 | 62.90 | 41.30 | 38.00 | 69.40 | 2" | S5(PN20) |
| 65 | 90.40 | 75.40 | 74.90 | 55.80 | 44.00 | 79.90 | 2-1/2" | S6.3(PN16) |
| 80 | 106.50 | 90.50 | 89.90 | 67.30 | 51.50 | 91.50 | 3" | S6.3(PN16) |
| 100 | 126.90 | 110.60 | 109.90 | 91.60 | 61.50 | 108.00 | 4" | S6.3(PN16) |
Each coupler is injection-molded as a single piece with precision tooling. The male thread is formed via a rotating core insert during molding, ensuring uniform thread pitch and depth. Socket dimensions are precision-machined for proper solvent cement joint fit.
