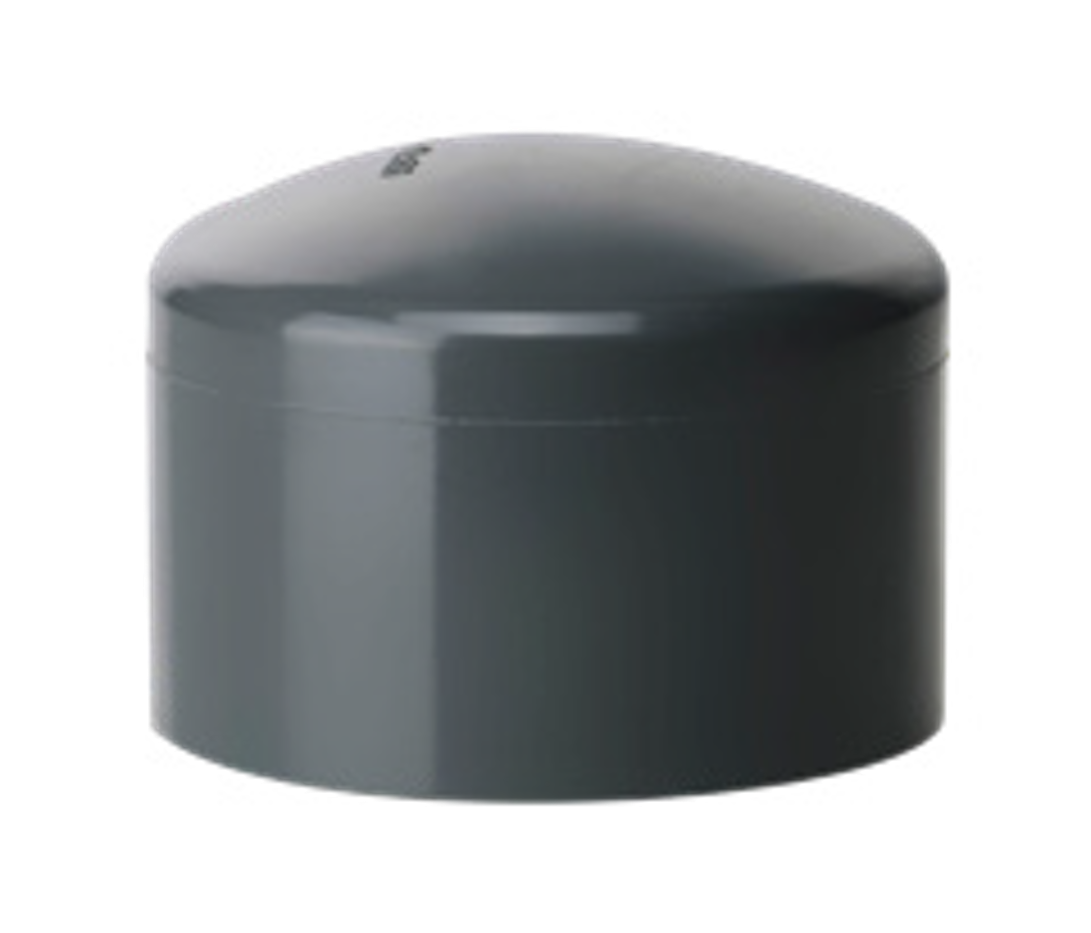

UPVC End Cap for Industry

Hot Product

The UPVC End Cap for Industry is a solvent-cement socket end cap for permanently or temporarily closing off the end of industrial piping systems.

Diameter Range: DN15 – 400mm
Pressure Rating: PN10, PN16
Applicable Standards: ISO 1452-3, ASTM D2467
Stock Availability: In stock
Sample Policy: Free sample available
Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The UPVC End Cap for Industry is a solvent-cement socket cap that permanently or temporarily seals the end of UPVC pipe in chemical and water treatment systems. Its solid construction prevents leakage and protects pipe ends.

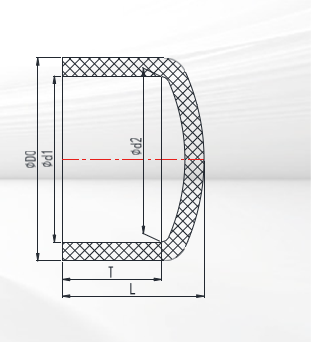

Size DN	Dimensions (mm)					Nominal Pressure PN(kg/cm²)
	D0	d1	d2	T	L
15	26.30	20.30	19.95	16.20	21.90	S5(PN20)
20	31.80	25.30	24.95	18.70	25.70	S5(PN20)
25	39.90	32.30	31.90	22.20	30.70	S5(PN20)
32	49.70	40.40	39.90	26.20	36.90	S5(PN20)
40	61.90	50.40	49.90	31.20	44.70	S5(PN20)
50	77.90	63.40	62.90	37.70	54.00	S5(PN20)
65	91.20	75.40	74.90	43.70	62.60	S6.3(PN16)
80	107.60	90.50	89.90	51.20	73.30	S6.3(PN16)
100	127.00	110.60	109.90	61.20	84.50	S6.3(PN16)
De125	144.30	125.70	124.90	68.70	96.10	S6.3(PN16)
125	161.60	140.80	139.90	76.20	109.70	S6.3(PN16)
150	184.60	160.80	159.90	86.20	126.20	S6.3(PN16)
De180	202.60	180.90	179.90	97.00	142.90	S6.3(PN16)
De200	230.50	201.00	199.90	106.20	151.10	S6.3(PN16)
200	259.40	226.20	224.90	119.10	170.40	S6.3(PN16)
De250	287.90	251.30	249.90	131.65	186.90	S8(PN16)
250	314.80	281.50	279.90	147.00	212.50	S8(PN16)
300	358.20	316.70	314.90	164.30	234.50	S8(PN16)
350	391.00	356.80	355.00	184.30	265.00	PN6
400	442.00	402.00	400.00	204.20	294.00	PN6

Key Features of UPVC End Cap for Industry

End closure: prevents fluid leakage and ingress of external contaminants.
Solvent cement joint: provides a permanent seal through chemical fusion with the pipe.
Robust structure: is injection molded with pressure rating matching other fittings.
Industrial-grade corrosion resistance: is suitable for chemical corrosive environments.

Manufacturing Process of UPVC End Cap for Industry

Each is produced by high-precision injection molding from UPVC; one end is a socket, and the other is a hemispherical or flat closed end. Uniform closed end wall thickness ensures pressure capacity.

Critical Process Parameters of UPVC End Cap for Industry

Every is checked against these parameters:

Precise machining of socket ID, ovality, and chamfer.
Control of closed end wall thickness uniformity for pressure capacity.
Socket depth conforms to standard requirements.

Raw Material Characteristics of UPVC End Cap for Industry

Material: UPVC, industrial-grade resin, no plasticizers
High mechanical strength and internal pressure resistance
UPVC suitable up to 60°C; PVC-C version suitable up to 93°C

Typical Applications of UPVC End Cap for Industry

The fitting provides end capping of chemical piping systems.
is used for temporary capping during sectional pressure testing of new pipelines.
The fitting protects reserved branch interfaces from contamination.
safely caps abandoned pipelines.

Application Scenarios of UPVC End Cap for Industry

End capping and pressure test sealing for industrial piping — is the standard cap for these closures.
