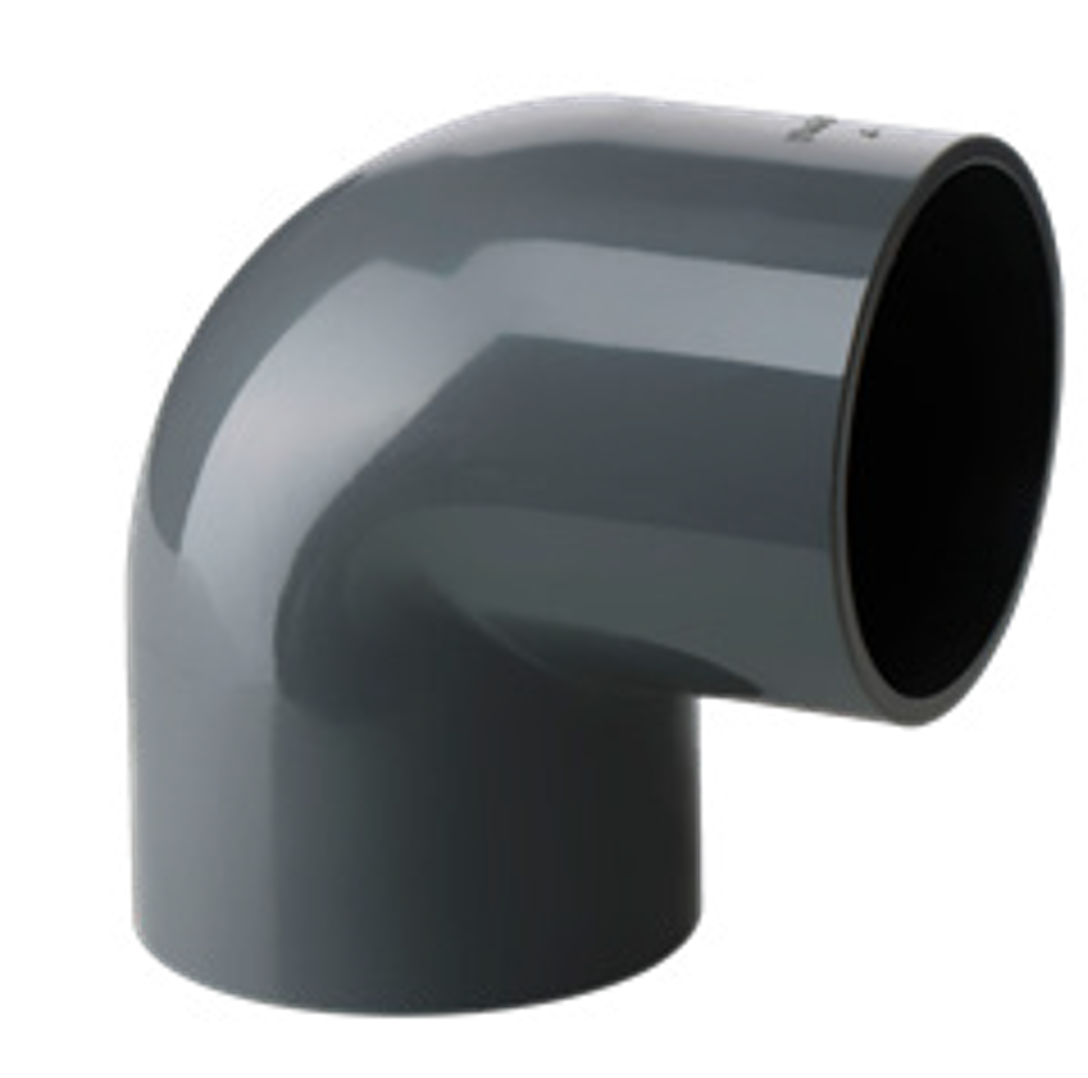

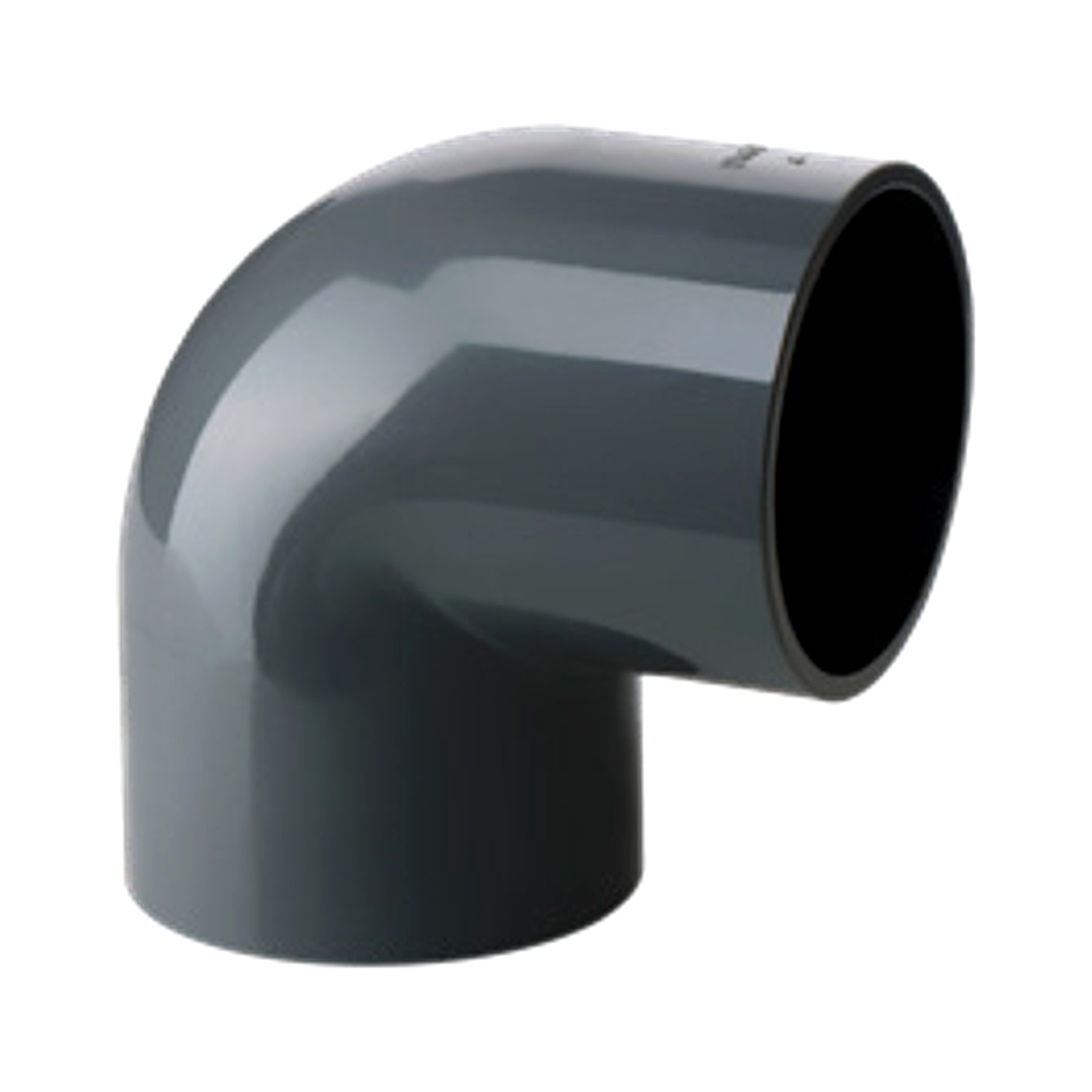

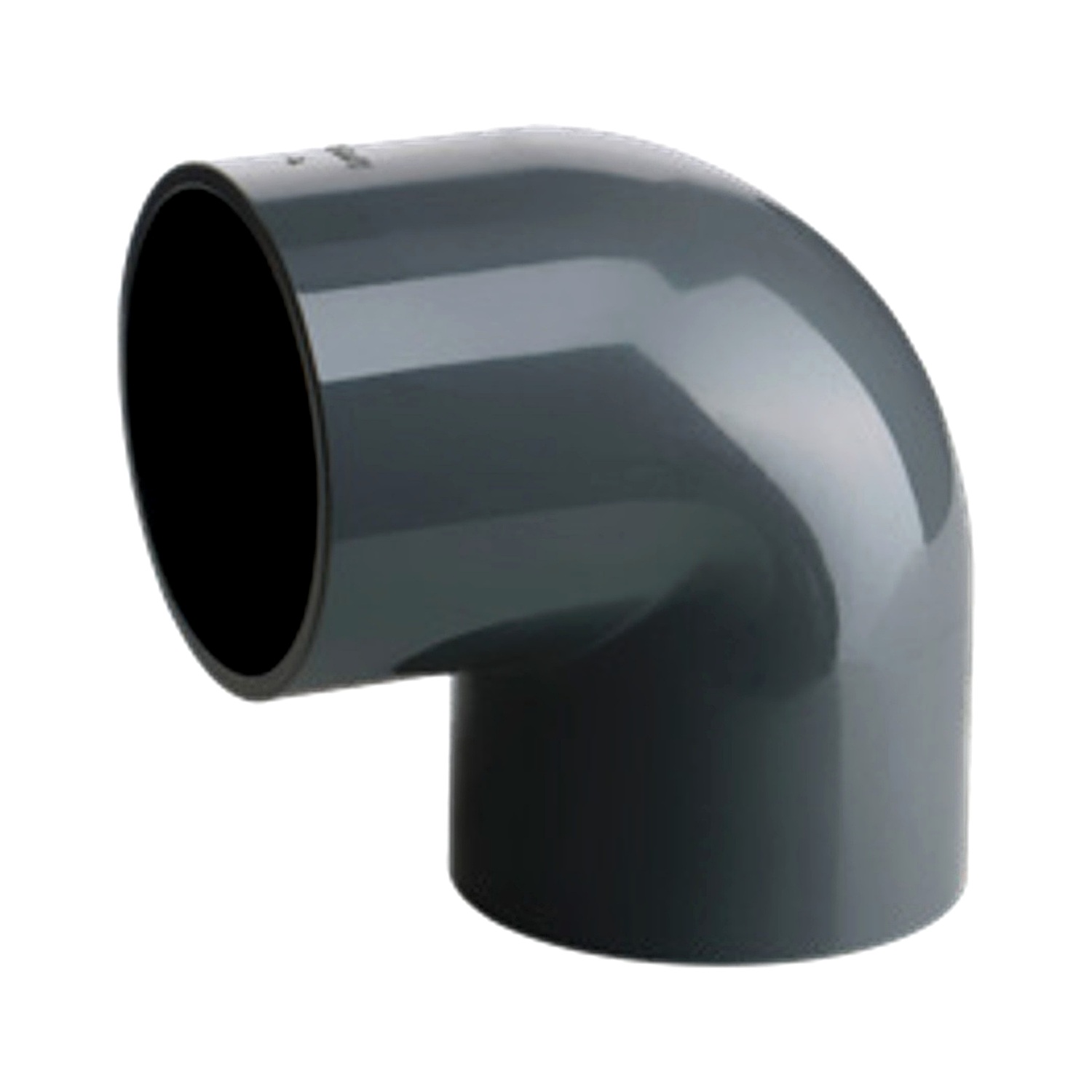

UPVC 90° Elbow for Industry

Hot Product

The UPVC 90° Elbow for Industry is a solvent-cement socket elbow that provides right-angle directional changes in industrial piping systems.

Diameter Range: DN15 – 400mm
Pressure Rating: PN10, PN16
Applicable Standards: ISO 1452-3, ASTM D2467
Stock Availability: In stock
Sample Policy: Free sample available
Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The UPVC 90° Elbow for Industry is a solvent-cement socket fitting designed for right-angle directional changes in chemical and industrial water treatment piping systems. Its smooth interior ensures low flow resistance and long-term reliability.

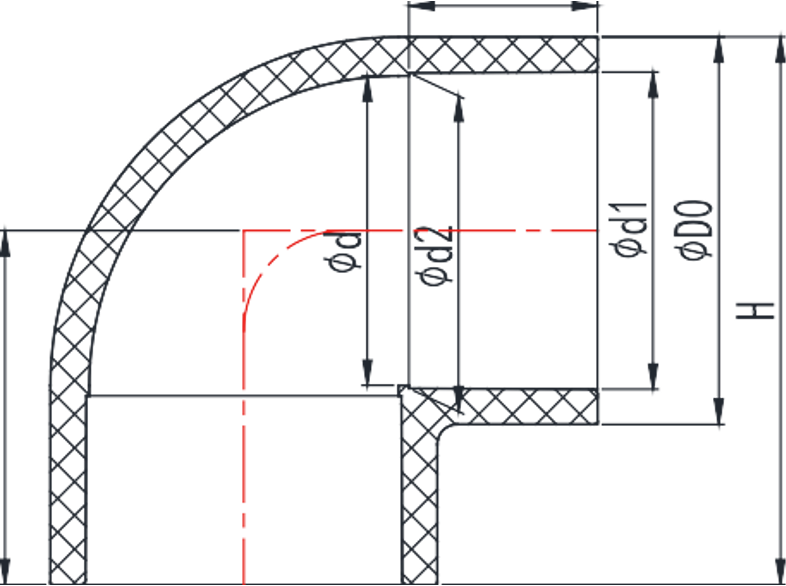

Size DN	Dimensions (mm)							Nominal Pressure PN(kg/cm²)
	D0	d1	d2	d	T	L	H
15	26.30	20.30	19.95	18.00	16.20	27.70	40.80	S5(PN20)
20	31.80	25.30	24.95	23.00	18.70	32.70	48.60	S5(PN20)
25	39.90	32.30	31.90	30.00	22.20	39.70	59.60	S5(PN20)
32	49.70	40.40	39.90	38.00	26.20	47.70	72.50	S5(PN20)
40	61.90	50.40	49.90	48.00	31.20	57.70	88.70	S5(PN20)
50	77.90	63.40	62.90	61.00	37.70	70.70	109.70	S5(PN20)
65	91.00	75.40	74.90	70.90	43.70	82.50	128.00	S6.3(PN16)
80	107.40	90.50	89.90	85.90	51.20	97.50	151.20	S6.3(PN16)
100	127.00	110.60	109.90	103.90	61.20	117.50	181.10	S6.3(PN16)
De125	144.30	125.70	124.90	118.90	68.70	132.50	204.70	S6.3(PN16)
125	162.30	140.80	139.90	133.90	76.20	148.00	229.10	S6.3(PN16)
150	184.60	160.80	159.90	153.50	86.20	168.50	260.80	S6.3(PN16)
De180	202.60	180.90	179.90	178.50	97.00	190.00	291.30	S6.3(PN16)
De200	230.50	201.00	199.90	193.50	106.20	208.00	323.30	S6.3(PN16)
200	259.40	226.20	224.90	216.90	119.10	233.60	363.20	S6.3(PN16)
De250	287.90	251.30	249.90	241.90	131.65	258.50	402.50	S8(PN16)
250	314.80	281.50	279.90	278.00	147.00	291.00	448.40	S8(PN16)
300	358.20	316.70	314.90	306.90	164.30	323.00	502.10	S8(PN16)
350	394.00	356.80	355.00	331.50	184.00	375.75	576.00	S8(PN16)
400	450.00	402.00	400.00	363.80	204.20	413.50	657.50	S8(PN16)
500	540.50	503.00	500.00	469.00	256.00	515.00	784.75	PN6
600	668.50	633.00	630.00	591.80	321.00	645.00	978.75	PN6

Key Features of UPVC 90° Elbow for Industry

Standard 90° turn: is suitable for vertical-to-horizontal transitions and corner turns.
Solvent cement joint: uses chemical fusion for reliable sealing.
Industrial-grade corrosion resistance: is suitable for chemical corrosive fluid transport.
Smooth interior: has low flow resistance and prevents scaling over long-term use.

Manufacturing Process of UPVC 90° Elbow for Industry

Each is produced by high-precision injection molding with uniform bend wall thickness. Socket machining is precise on both ends, and the angle between centerlines is 90°±1°.

Critical Process Parameters of UPVC 90° Elbow for Industry

Every is checked against these parameters:

Wall thinning in bend ≤10%.
90°±1° angle between socket centerlines.
Precise machining of socket ID, ovality, and chamfer.

Raw Material Characteristics of UPVC 90° Elbow for Industry

Material: UPVC
UPVC suitable up to 60°C; PVC-C version suitable up to 93°C
High mechanical strength and chemical resistance

Typical Applications of UPVC 90° Elbow for Industry

is used for right-angle turns in chemical piping.
The fitting provides directional changes in industrial water treatment systems.
The fitting connects pipes in electroplating and semiconductor industries.

Application Scenarios of UPVC 90° Elbow for Industry

90° directional change nodes in industrial piping systems — is the standard fitting for these turns.
