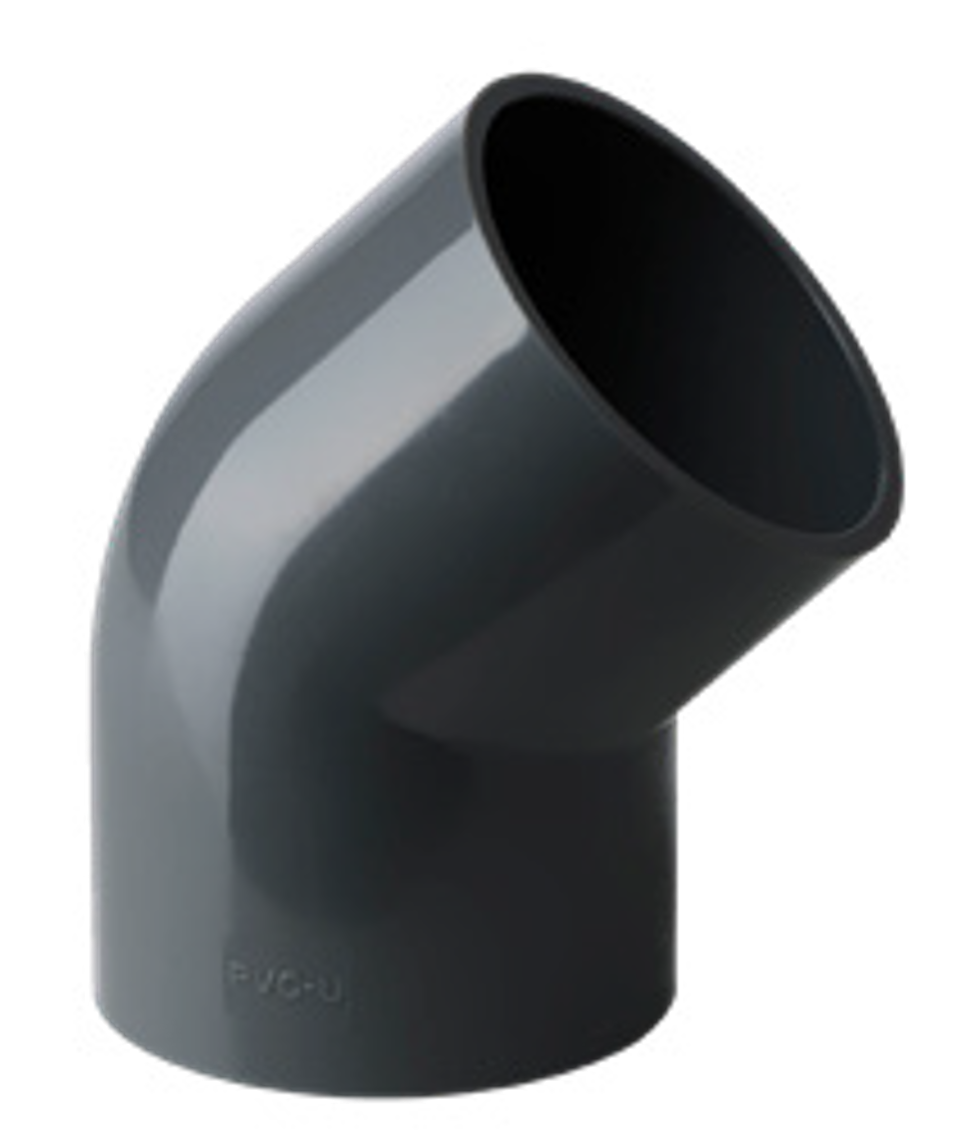

UPVC 45° Elbow for Industry

Hot Product

The UPVC 45° Elbow for Industry is a solvent-cement socket elbow that provides smooth 45° directional changes in industrial piping systems.

Diameter Range: DN15 – 400mm
Pressure Rating: PN10, PN16
Applicable Standards: ISO 1452-3, ASTM D2467
Stock Availability: In stock
Sample Policy: Free sample available
Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The UPVC 45° Elbow for Industry is a solvent-cement socket fitting designed for smooth low-angle directional changes in chemical and industrial water treatment piping. Its compact design reduces flow resistance and fits tight spaces.

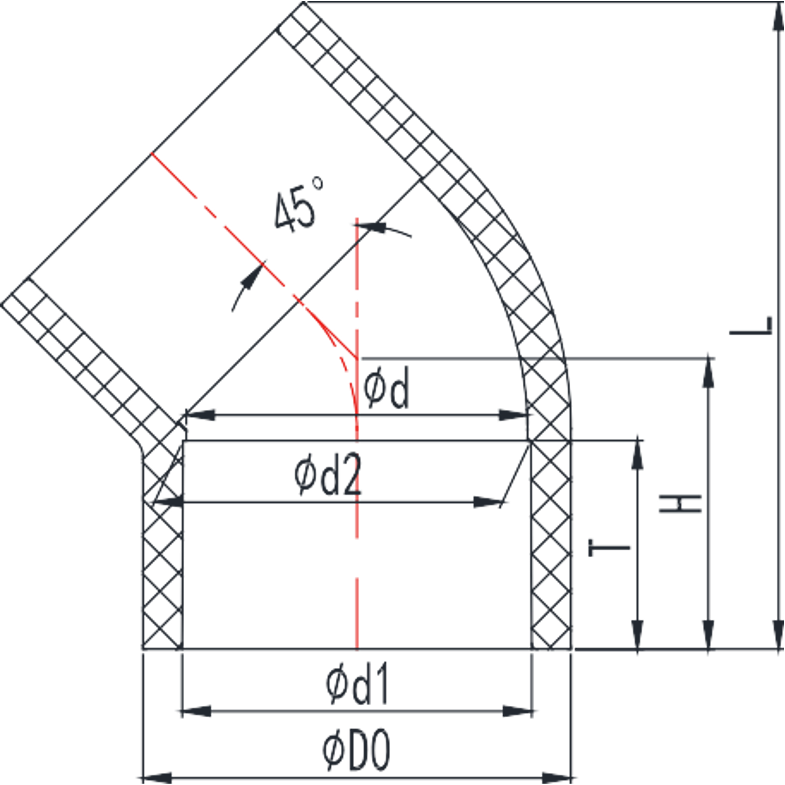

Size DN	Dimensions (mm)							Nominal Pressure PN(kg/cm²)
	D0	d1	d2	d	T	H	L
15	26.30	20.30	19.95	18.00	16.20	22.10	46.90	S5(PN20)
20	31.80	25.30	24.95	23.00	18.70	25.70	54.90	S5(PN20)
25	38.60	32.30	31.90	30.00	22.20	30.60	66.20	S5(PN20)
32	49.70	40.40	39.90	38.00	26.20	36.30	79.30	S5(PN20)
40	61.90	50.40	49.90	48.00	31.20	43.30	95.70	S5(PN20)
50	77.50	63.40	62.90	61.00	37.70	52.50	116.90	S5(PN20)
65	91.20	75.40	74.90	70.90	43.70	64.60	142.50	S6.3(PN16)
80	107.60	90.50	89.90	85.90	51.20	75.60	166.90	S6.3(PN16)
100	127.00	110.60	109.90	103.90	61.20	89.20	197.60	S6.3(PN16)
De125	144.30	125.70	124.90	118.90	68.70	100.70	222.90	S6.3(PN16)
125	161.60	140.80	139.90	133.90	76.20	112.40	248.90	S6.3(PN16)
150	184.60	160.80	159.90	153.90	86.20	126.90	281.90	S6.3(PN16)
De180	202.60	180.90	179.90	178.50	97.00	137.90	307.00	S6.3(PN16)
De200	230.50	201.00	199.90	193.50	106.20	157.10	349.50	S6.3(PN16)
200	259.40	226.20	224.90	216.90	119.10	175.70	391.50	S6.3(PN16)
De250	287.90	251.30	249.90	241.90	131.65	193.30	432.20	S8(PN16)
250	314.80	281.50	279.90	278.00	147.00	209.60	469.10	S8(PN16)
300	358.20	316.70	314.90	306.90	164.30	242.80	541.20	S8(PN16)
350	394.11	356.80	355.00	331.50	184.00	270.94	602.20	S8(PN16)
400	450.00	402.00	400.00	369.80	363.80	306.81	662.20	S8(PN16)
500	540.50	503.00	500.00	469.00	256.00	377.00	834.00	PN6
600	668.50	633.00	630.00	591.80	321.00	471.00	1040.00	PN6

Key Features of UPVC 45° Elbow for Industry

45° smooth turn: provides low local resistance and smooth flow transition.
Solvent cement joint: uses chemical fusion for reliable sealing.
Industrial-grade corrosion resistance: is suitable for acids, alkalis, salts, and chemicals.
Compact structure: has a shorter lay length than 90° elbows, ideal for tight spaces.

Manufacturing Process of UPVC 45° Elbow for Industry

Each is produced by high-precision injection molding with uniform bend wall thickness. Socket machining is precise on both ends, and the angle between centerlines is 45°±1°.

Critical Process Parameters of UPVC 45° Elbow for Industry

Every is checked against these parameters:

Wall thinning in bend ≤10%.
45°±1° angle between socket centerlines.
Precise machining of socket ID, ovality, and chamfer.

Raw Material Characteristics of UPVC 45° Elbow for Industry

Material: UPVC
UPVC suitable up to 60°C; PVC-C version suitable up to 93°C
High mechanical strength and chemical resistance

Typical Applications of UPVC 45° Elbow for Industry

is used for low-angle turns in chemical piping.
The fitting provides smooth directional changes in industrial water treatment systems.
pairs with 45° wye tees to create streamlined branch entries.

Application Scenarios of UPVC 45° Elbow for Industry

Low-angle directional change nodes in industrial piping systems — is the standard fitting for these transitions.
