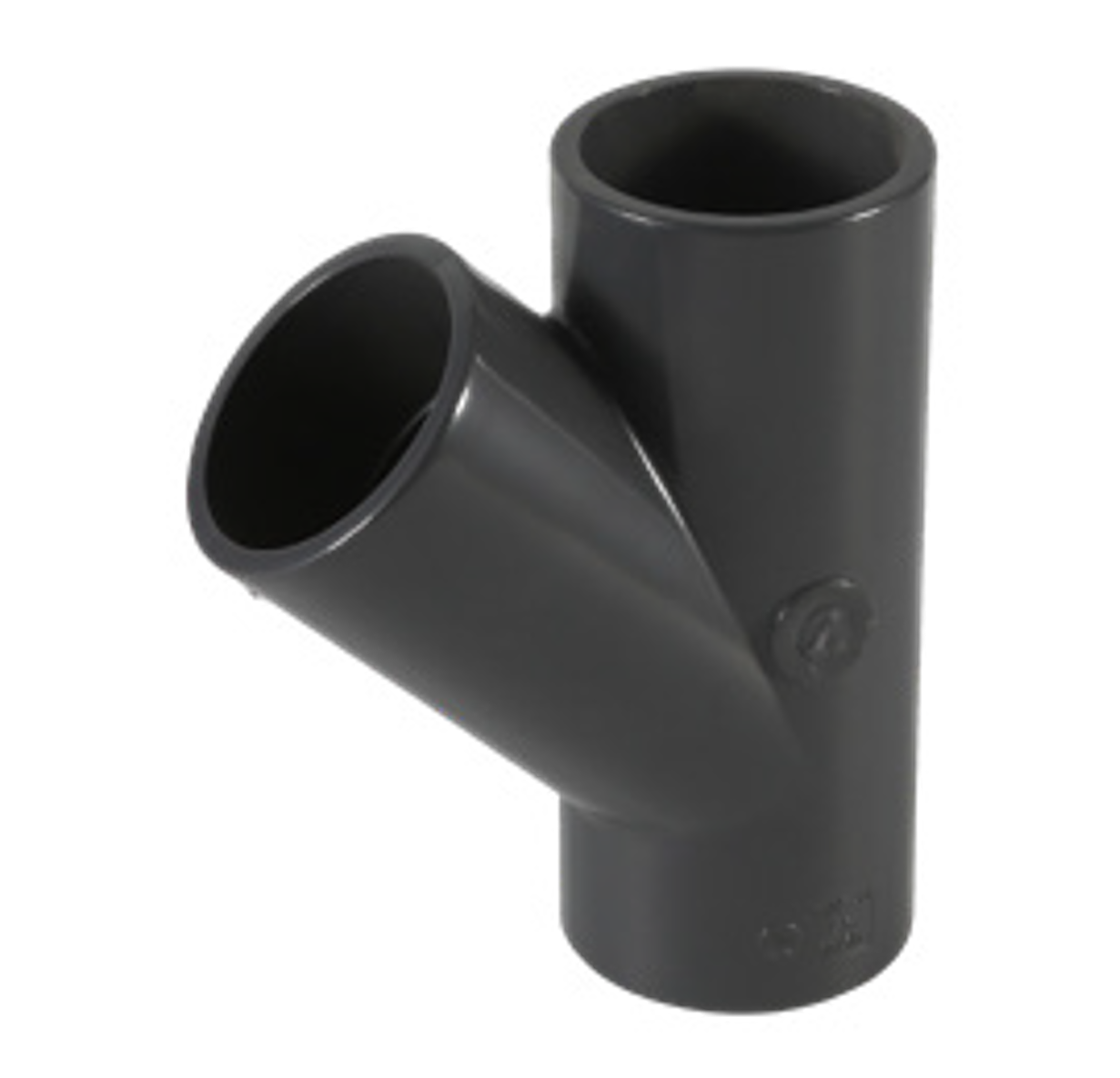

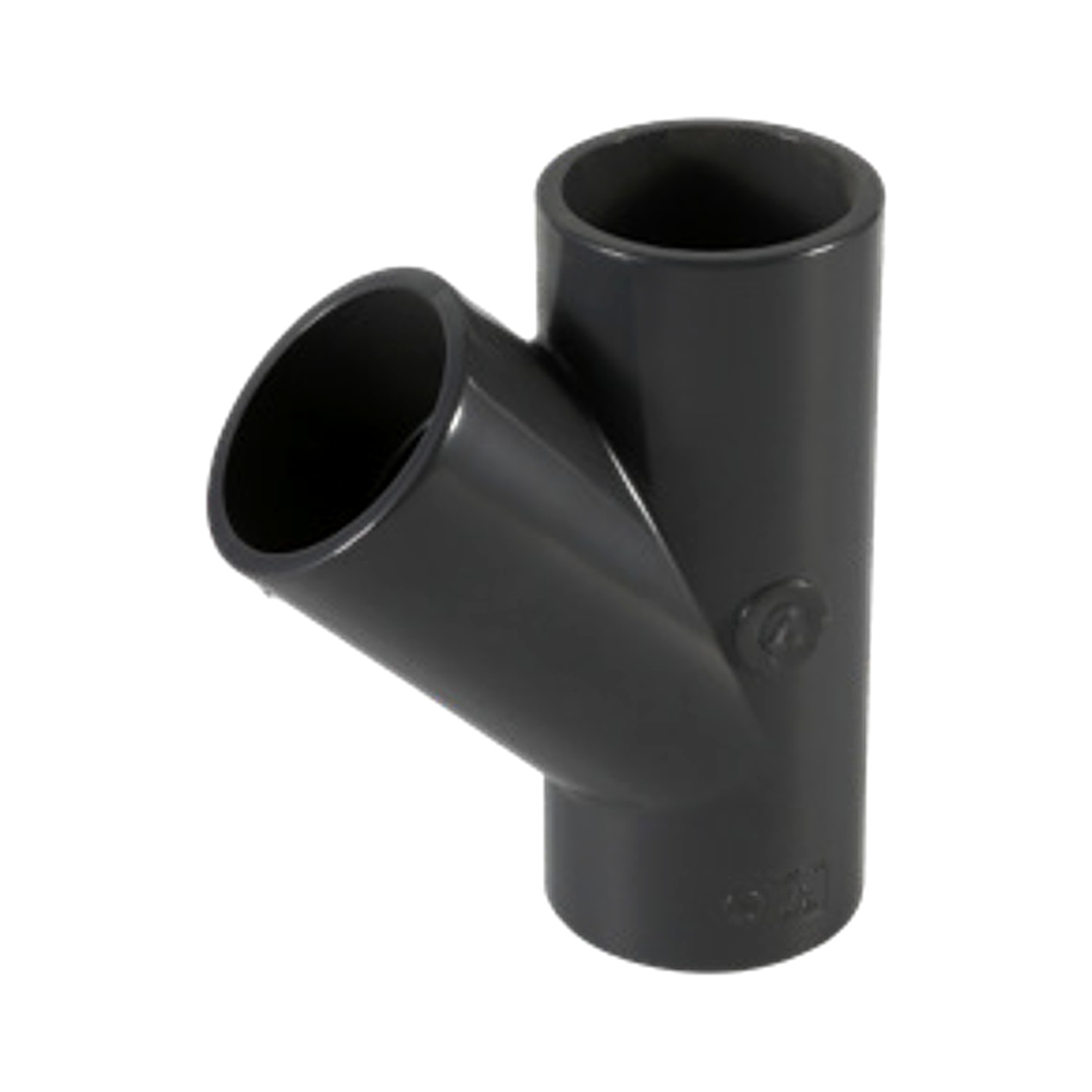

An ASTM SCH40 & SCH80 45° wye tee (Y-tee) manufactured from PVC-U or PVC-C, with branch angled at 45° to the main. Used for smooth flow splitting or confluence in ASTM industrial piping systems; the 45° swept design significantly reduces head loss and turbulence. Chemical fusion with pipes via specialized solvent cement.
Need help? Contact our technical support team
+86 1551559 6408The ASTM SCH40 & SCH80 UPVC Y-Tee is a 45° wye tee with solvent-cement sockets, designed for smooth branch connections and flow confluence in ASTM piping systems.

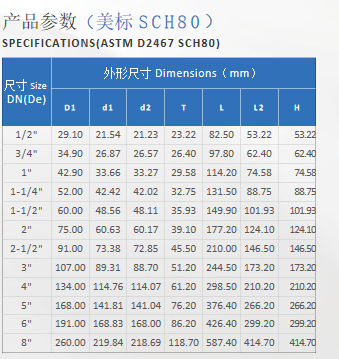

| Size DN(De) | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|

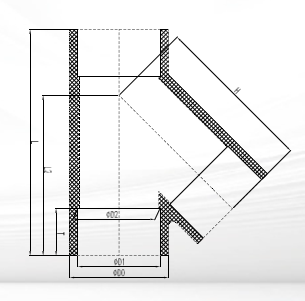

| D1 | d1 | d2 | T | L | L2 | H | |
| 1/2" | 29.10 | 21.54 | 21.23 | 23.22 | 82.50 | 53.22 | 53.22 |
| 3/4" | 34.90 | 26.87 | 26.57 | 26.40 | 97.80 | 62.40 | 62.40 |
| 1" | 42.90 | 33.66 | 33.27 | 29.58 | 114.20 | 74.58 | 74.58 |
| 1-1/4" | 52.00 | 42.42 | 42.02 | 32.75 | 131.50 | 88.75 | 88.75 |
| 1-1/2" | 60.00 | 48.56 | 48.11 | 35.93 | 149.90 | 101.93 | 101.93 |
| 2" | 75.00 | 60.63 | 60.17 | 39.10 | 177.20 | 124.10 | 124.10 |
| 2-1/2" | 91.00 | 73.38 | 72.85 | 45.50 | 210.00 | 146.50 | 146.50 |
| 3" | 107.00 | 89.31 | 88.70 | 51.20 | 244.50 | 173.20 | 173.20 |
| 4" | 134.00 | 114.76 | 114.07 | 61.20 | 298.50 | 210.20 | 210.20 |
| 5" | 168.00 | 141.81 | 141.04 | 76.20 | 376.40 | 266.20 | 266.20 |
| 6" | 191.00 | 168.83 | 168.00 | 86.20 | 426.40 | 299.20 | 299.20 |
| 8" | 260.00 | 219.84 | 218.69 | 118.70 | 587.40 | 414.70 | 414.70 |
Each is produced by multi-slide precision injection molding with precise 45° branch angle control.
