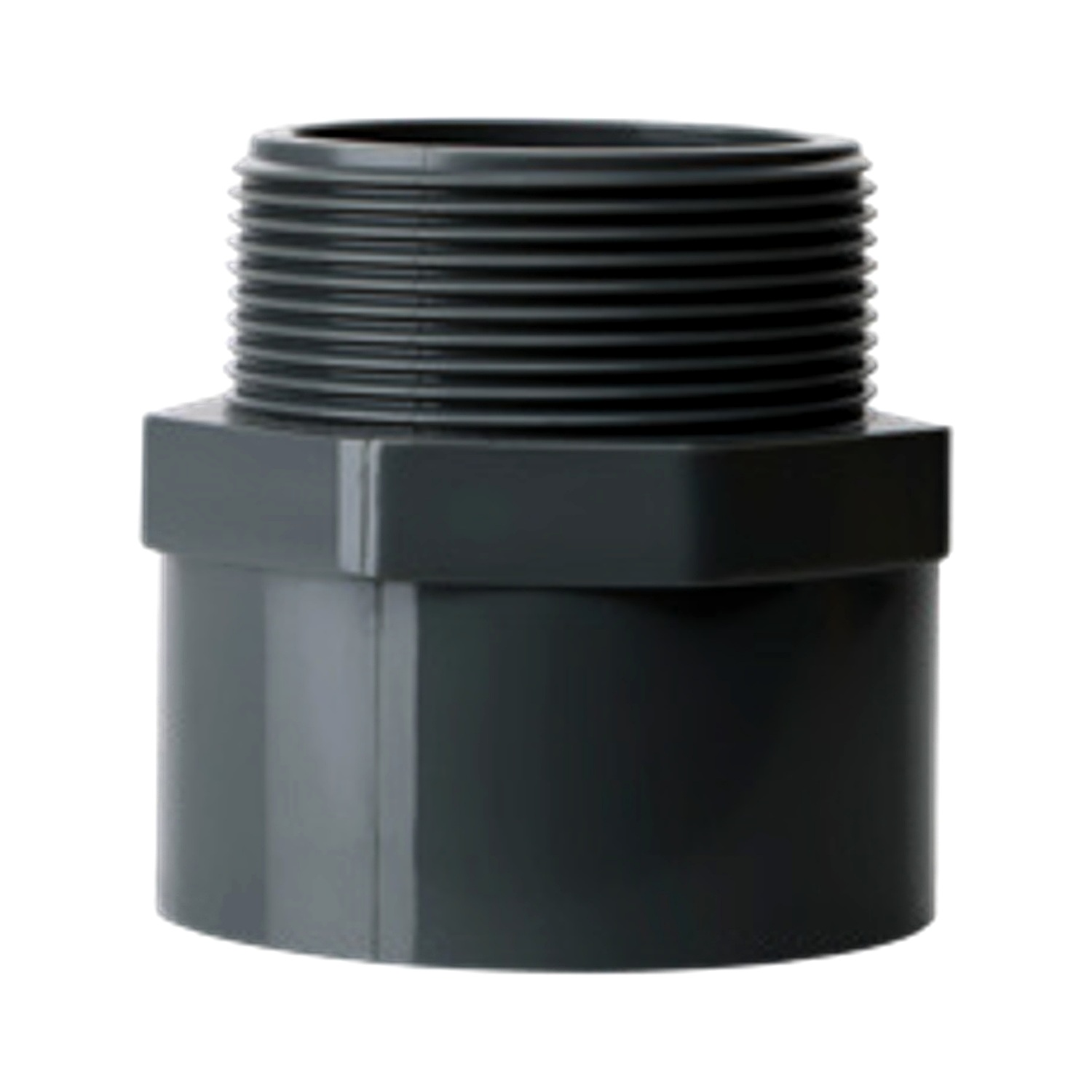

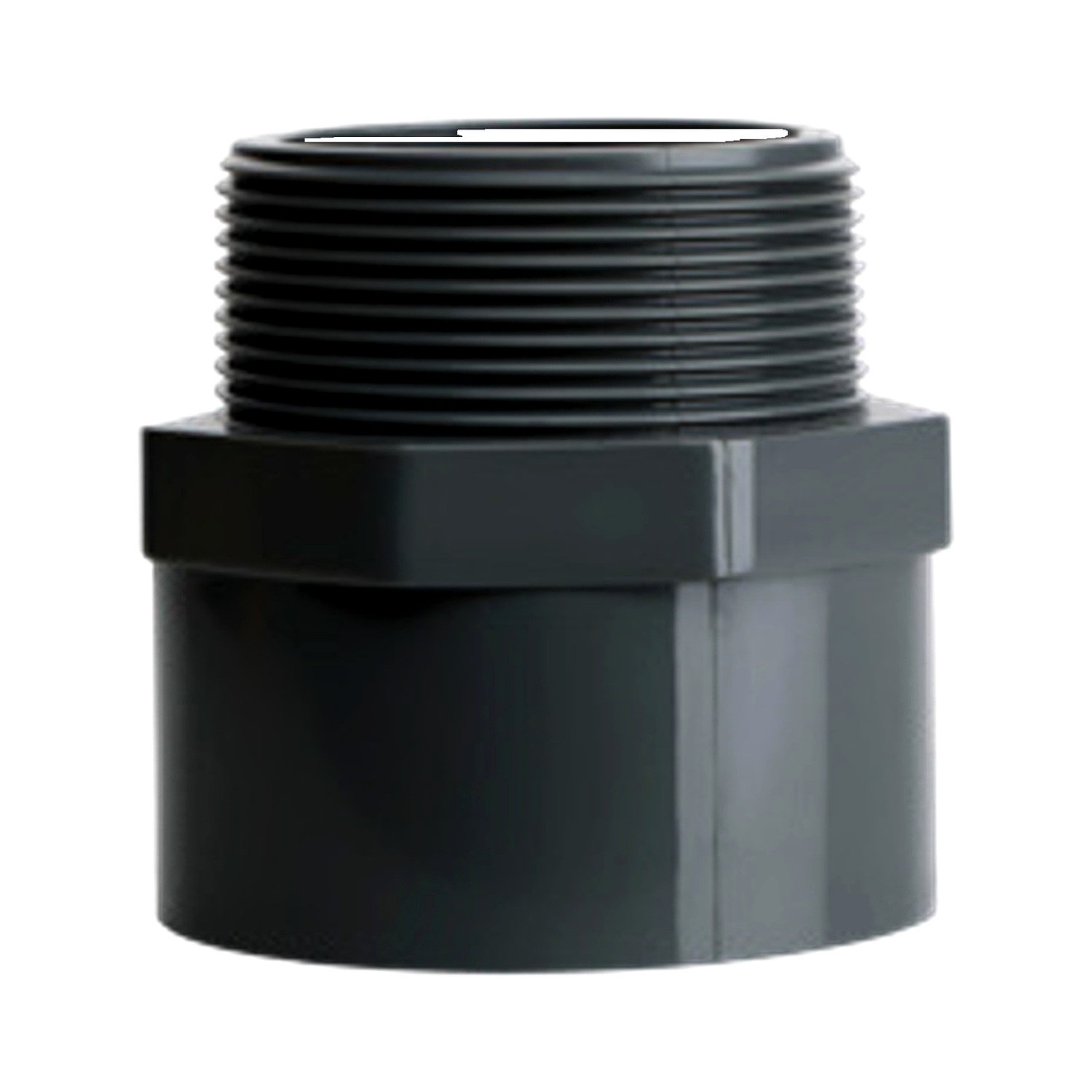

An ASTM SCH40 & SCH80 male threaded adapter manufactured from PVC-U or PVC-C, featuring a solvent cement socket on one end and all-plastic male threads on the other. Used for transition connections between PVC-U/C piping and metal female-threaded fittings or equipment in ASTM industrial piping systems.
Need help? Contact our technical support team
+86 1551559 6408The ASTM SCH40 & SCH80 UPVC Male Coupler is a solvent-cement socket adapter with male threads, designed for reliable transitions between UPVC pipe and metal female-threaded fittings in ASTM systems.

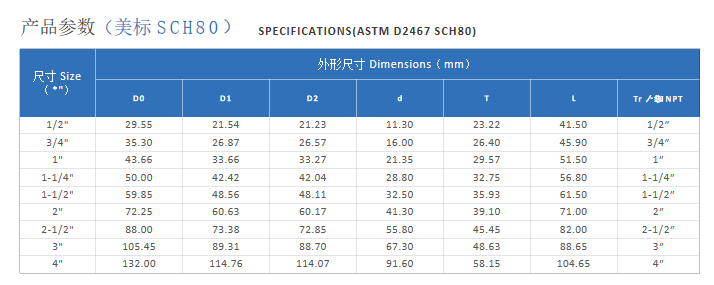

| SPECIFICATIONS(ASTM D2467 SCH80) | |||||||
|---|---|---|---|---|---|---|---|
| Size | Dimensions (mm) | ||||||
| D0 | D1 | D2 | d | T | L | Tr / NPT | |
| 1/2" | 29.55 | 21.54 | 21.23 | 11.30 | 23.22 | 41.50 | 1/2" |
| 3/4" | 35.30 | 26.87 | 26.57 | 16.00 | 26.40 | 45.90 | 3/4" |
| 1" | 43.66 | 33.66 | 33.27 | 21.35 | 29.57 | 51.50 | 1" |
| 1-1/4" | 50.00 | 42.42 | 42.04 | 28.80 | 32.75 | 56.80 | 1-1/4" |
| 1-1/2" | 59.85 | 48.56 | 48.11 | 32.50 | 35.93 | 61.50 | 1-1/2" |
| 2" | 72.25 | 60.63 | 60.17 | 41.30 | 39.10 | 71.00 | 2" |
| 2-1/2" | 88.00 | 73.38 | 72.85 | 55.80 | 45.45 | 82.00 | 2-1/2" |
| 3" | 105.45 | 89.31 | 88.70 | 67.30 | 48.63 | 88.65 | 3" |
| 4" | 132.00 | 114.76 | 114.07 | 91.60 | 58.15 | 104.65 | 4" |
Each is injection molded from UPVC with a socket on one end and male threads on the other, conforming to ASTM standards.
