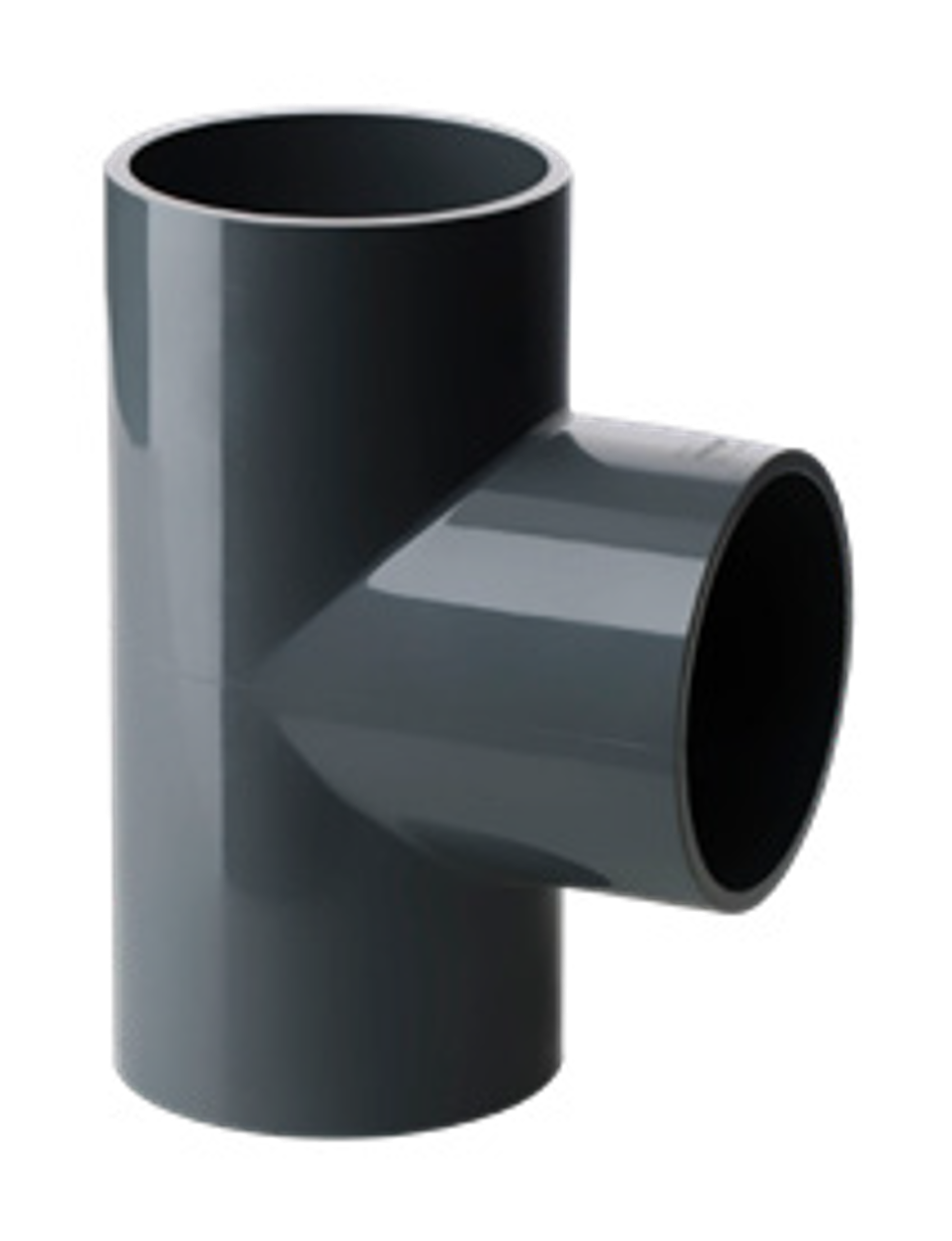

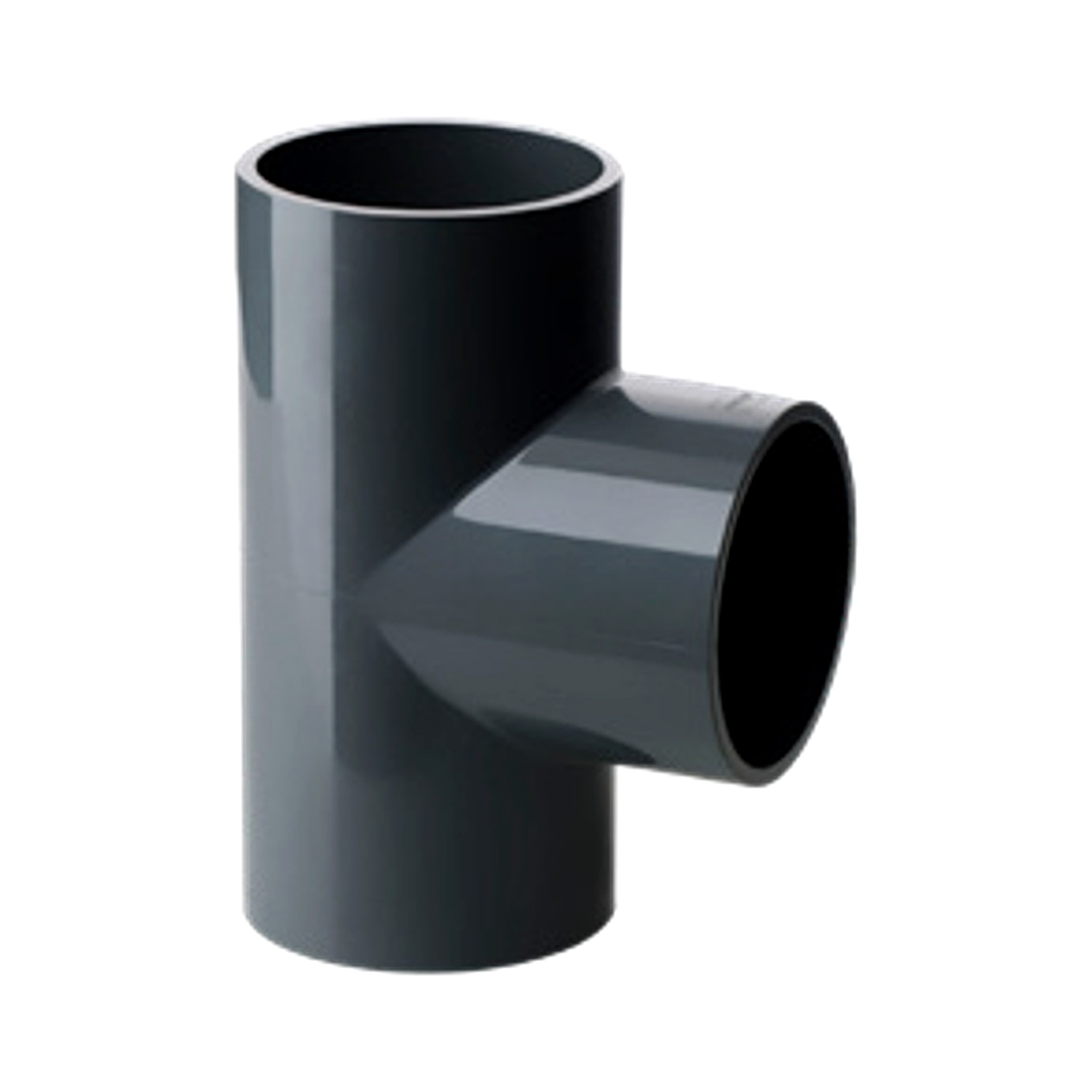

ASTM SCH40 & SCH80 UPVC Equal Tee

Hot Product

An ASTM SCH40 & SCH80 solvent-cement socket equal tee manufactured from UPVC, used for 90° equal diameter branch connections on main pipelines.

Diameter Range: 1/2" – 24"
Pressure Rating: SCH40 / SCH80
Applicable Standards: ASTM D2466 (SCH40), ASTM D2467 (SCH80), ASTM F1970
Stock Availability: In stock
Sample Policy: Free sample available
Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The ASTM SCH40 & SCH80 UPVC Equal Tee is a solvent-cement equal tee designed for reliable 90° branch connections in ASTM chemical and industrial piping systems.

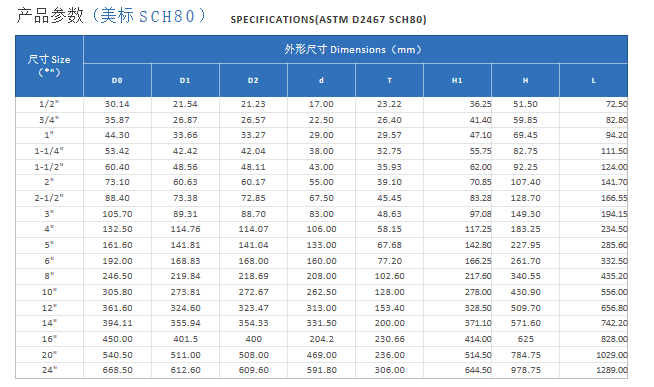

Size	Dimensions (mm)
	D0	D1	D2	d	T	H1	H	L
1/2"	30.14	21.54	21.23	17.00	23.22	36.25	51.50	72.50
3/4"	35.87	26.87	26.57	22.50	26.40	41.40	59.85	82.80
1"	44.30	33.66	33.27	29.00	29.57	47.10	69.45	94.20
1-1/4"	53.42	42.42	42.04	38.00	32.75	55.75	82.75	111.50
1-1/2"	60.40	48.56	48.11	43.00	35.93	62.00	92.25	124.00
2"	73.10	60.63	60.17	55.00	39.10	70.85	107.40	141.70
2-1/2"	88.40	73.38	72.85	67.50	45.45	83.28	128.70	166.55
3"	105.70	89.31	88.70	83.00	48.63	97.08	149.30	194.15
4"	132.50	114.76	114.07	106.00	58.15	117.25	183.25	234.50
5"	161.60	141.81	141.04	133.00	67.68	142.80	227.95	285.60
6"	192.00	168.83	168.00	160.00	77.20	166.25	261.70	332.50
8"	246.50	219.84	218.69	208.00	102.60	217.60	340.55	435.20
10"	305.80	273.81	272.67	262.50	128.00	278.00	430.90	556.00
12"	361.60	324.60	323.47	313.00	153.40	328.50	509.70	656.80
14"	394.11	355.94	354.33	331.50	200.00	371.10	571.60	742.20
16"	450.00	401.5	400	204.2	230.66	414.00	625	828.00
20"	540.50	511.00	508.00	469.00	236.00	514.50	784.75	1029.00
24"	668.50	612.60	609.60	591.80	306.00	644.50	978.75	1289.00

Key Features of ASTM SCH40 & SCH80 UPVC Equal Tee

ASTM SCH40/SCH80 compliant: meets ASTM wall thickness standards.
Standard tee branch enables 90° connection between main and perpendicular branch.
Three-way solvent cement joints provide reliable sealing and easy installation.
Industrial-grade corrosion resistance suits chemical corrosive fluid transport.

Manufacturing Process of ASTM SCH40 & SCH80 UPVC Equal Tee

Each is produced by multi-slide precision injection molding with uniform wall thickness and smooth flow paths.

Critical Process Parameters of ASTM SCH40 & SCH80 UPVC Equal Tee

Precise control of mold and melt temperatures to prevent weld lines.
Inspection of coaxiality and perpendicularity of three sockets.
Precise machining of socket ID, ovality, and chamfer conforming to ASTM tolerances.

Raw Material Characteristics of ASTM SCH40 & SCH80 UPVC Equal Tee

Material Composition: UPVC, conforming to ASTM D1784; PVC-C version available for high-temperature use.
Material Properties: UPVC suitable up to 60°C; PVC-C suitable up to 93°C.
SCH40 standard wall; SCH80 heavier wall for higher pressure.
Outstanding chemical resistance.

Typical Applications of ASTM SCH40 & SCH80 UPVC Equal Tee

is used for branch distribution in ASTM chemical piping systems.
serves branch connections in industrial water treatment systems.
is installed for parallel supply to multiple equipment in electroplating and semiconductor industries.

Application Scenarios of ASTM SCH40 & SCH80 UPVC Equal Tee

Nodes requiring branch take-offs from main lines in ASTM industrial piping — is the standard tee for these connections.
