ASTM SCH40 & SCH80 UPVC 90° Elbow

Hot Product

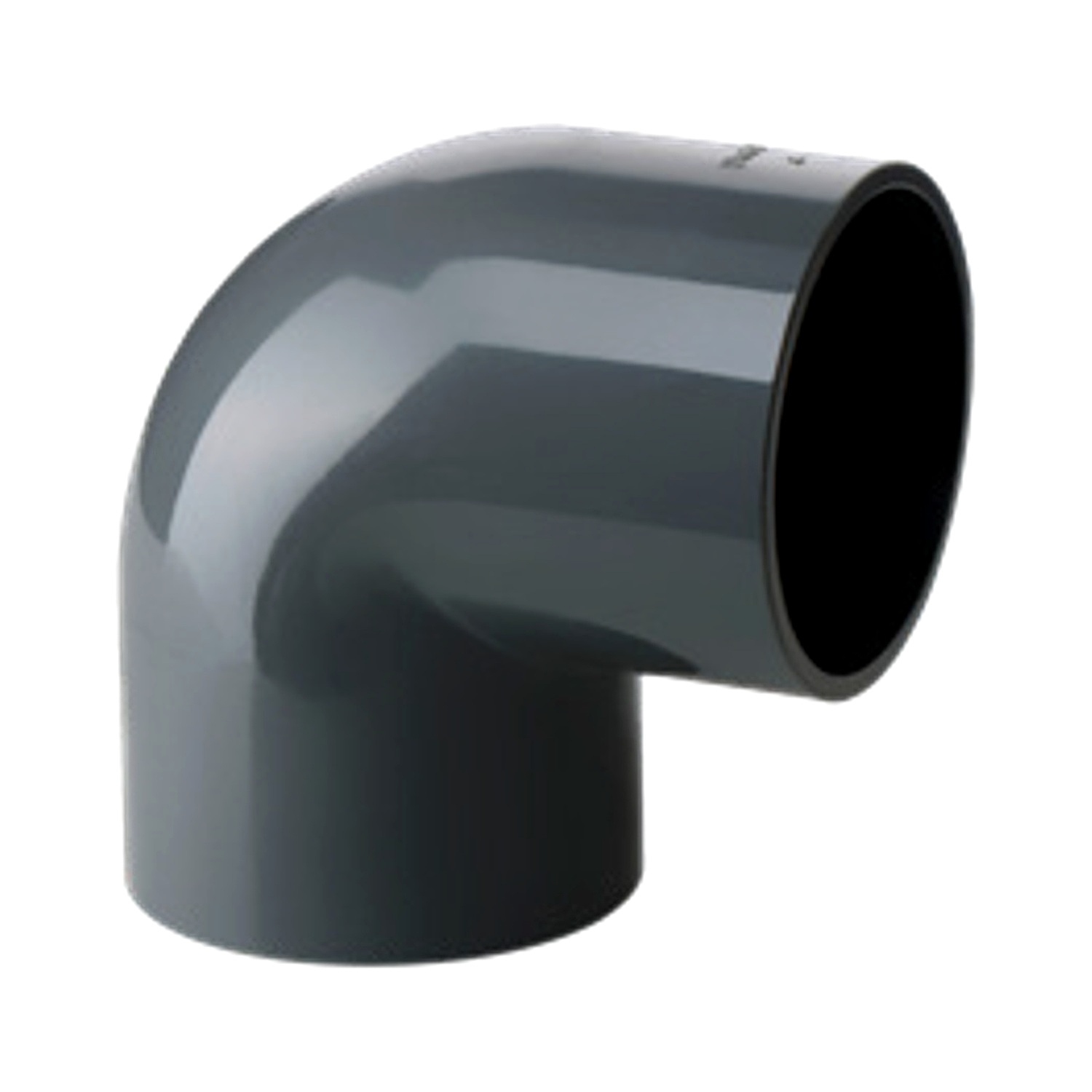

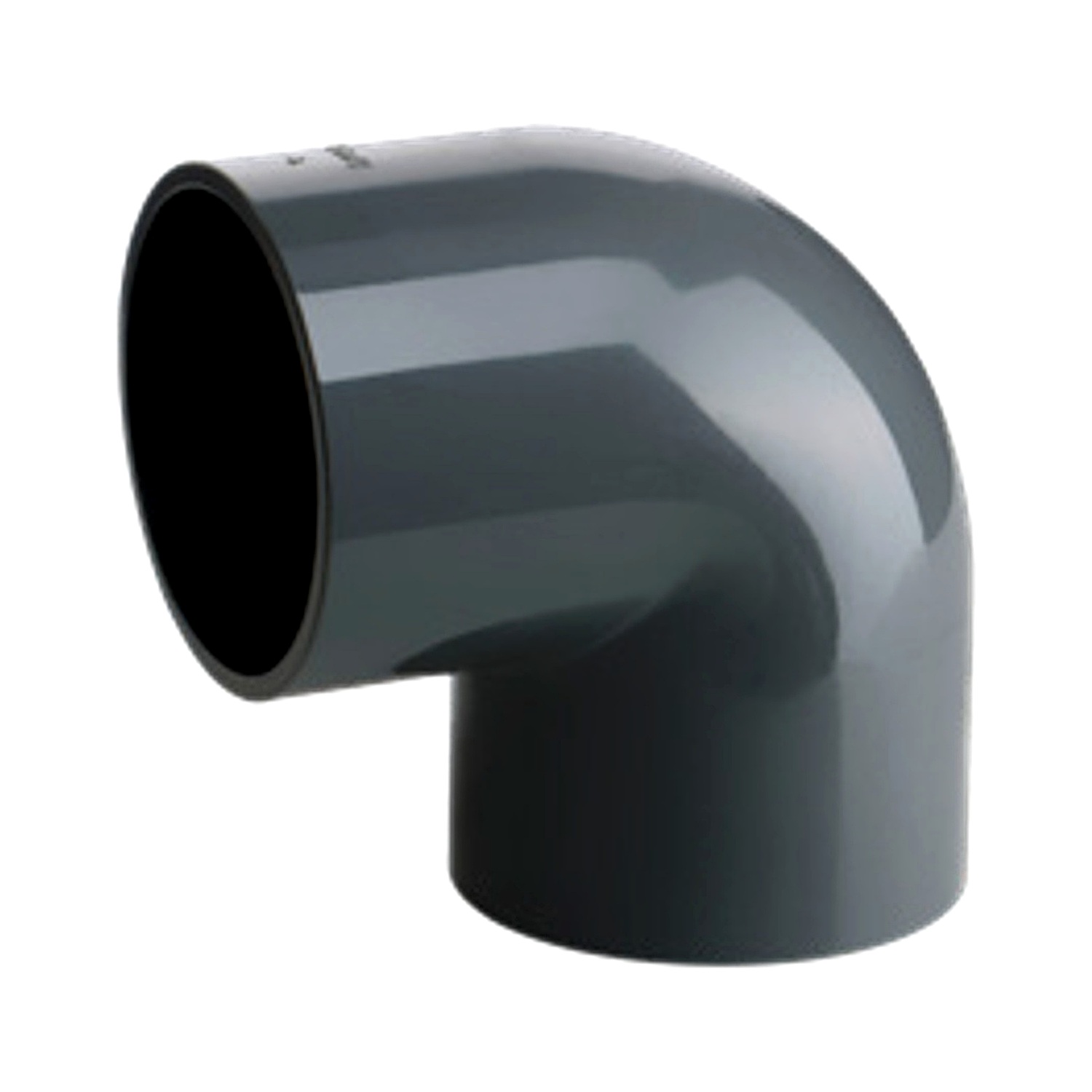

An ASTM SCH40 & SCH80 90° solvent-cement socket elbow manufactured from UPVC. Used for right-angle directional changes in ASTM industrial piping systems.

Diameter Range: 1/2" – 24"
Pressure Rating: SCH40 / SCH80
Applicable Standards: ASTM D2466, ASTM D2467, ASTM F1970
Stock Availability: In stock
Sample Policy: Free sample available
Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The ASTM SCH40 & SCH80 UPVC 90° Elbow is a solvent-cement socket elbow designed for right-angle directional changes in ASTM industrial piping systems. It offers reliable sealing and corrosion resistance.

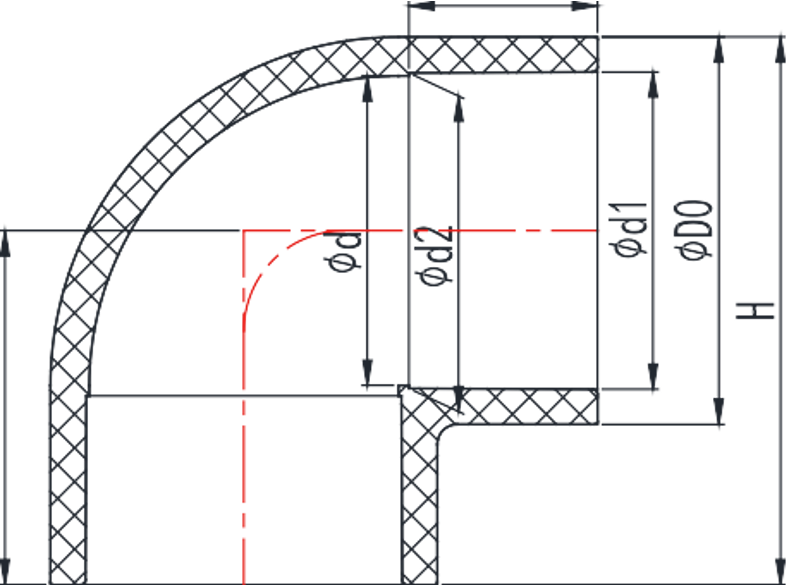

Size	Dimensions (mm)
	D0	d1	d2	d	T	L	H
1/2"	30.50	21.54	21.23	17.00	23.22	36.25	51.50
3/4"	36.90	26.87	26.57	22.50	26.40	41.40	59.85
1"	44.70	33.66	33.27	29.00	29.57	47.10	69.45
1-1/4"	54.00	42.42	42.04	38.00	32.75	55.75	82.75
1-1/2"	60.60	48.56	48.11	43.00	35.93	61.95	92.25
2"	73.10	60.63	60.17	55.00	39.10	70.85	107.40
2-1/2"	88.40	73.38	72.85	67.50	45.45	84.50	128.70
3"	105.30	89.31	88.70	83.00	48.63	97.63	149.30
4"	132.00	114.76	114.07	106.00	58.15	117.25	183.25
5"	161.90	141.81	141.04	133.00	67.68	143.50	224.45
6"	190.90	168.83	168.00	160.00	77.20	166.25	261.70
8"	245.90	219.84	218.69	208.00	102.60	216.30	340.55
10"	305.80	273.81	272.67	262.50	128.00	278.00	430.90
12"	361.60	324.60	323.47	288.50	153.40	328.50	509.70
14"	394.11	355.94	354.33	331.50	200.00	375.75	576.00
16"	450.00	407.19	405.33	363.80	230.66	431.50	657.50
20"	540.50	511.00	508.00	469.00	236.00	515.00	784.75
24"	668.50	612.60	609.60	591.80	306.00	645.00	978.75

Key Features of ASTM SCH40 & SCH80 UPVC 90° Elbow

ASTM SCH40/SCH80 compliant: meets ASTM wall thickness standards for different pressure ratings.
Standard 90° turn suits vertical-to-horizontal transitions and corner turns.
Solvent cement joint uses chemical fusion for reliable sealing.
Industrial-grade corrosion resistance: is suitable for chemical corrosive fluid transport.

Manufacturing Process of ASTM SCH40 & SCH80 UPVC 90° Elbow

Each is produced by high-precision injection molding from UPVC with uniform bend wall thickness and ASTM-compliant socket machining on both ends.

Critical Process Parameters of ASTM SCH40 & SCH80 UPVC 90° Elbow

Wall thinning in bend ≤10%.
90°±1° angle between socket centerlines.
Precise machining of socket ID, ovality, and chamfer conforming to ASTM tolerances.

Raw Material Characteristics of ASTM SCH40 & SCH80 UPVC 90° Elbow

Material Composition: UPVC, conforming to ASTM D1784; PVC-C version available for high-temperature use.
Material Properties: UPVC suitable up to 60°C; PVC-C suitable up to 93°C.
SCH40 standard wall; SCH80 heavier wall for higher pressure.
Outstanding chemical resistance.

Typical Applications of ASTM SCH40 & SCH80 UPVC 90° Elbow

is used for right-angle turns in ASTM chemical piping.
serves directional changes in industrial water treatment systems.
is installed in pipe connections for electroplating and semiconductor industries.

Application Scenarios of ASTM SCH40 & SCH80 UPVC 90° Elbow

90° directional change nodes in ASTM industrial piping systems — is the standard elbow for these transitions.
