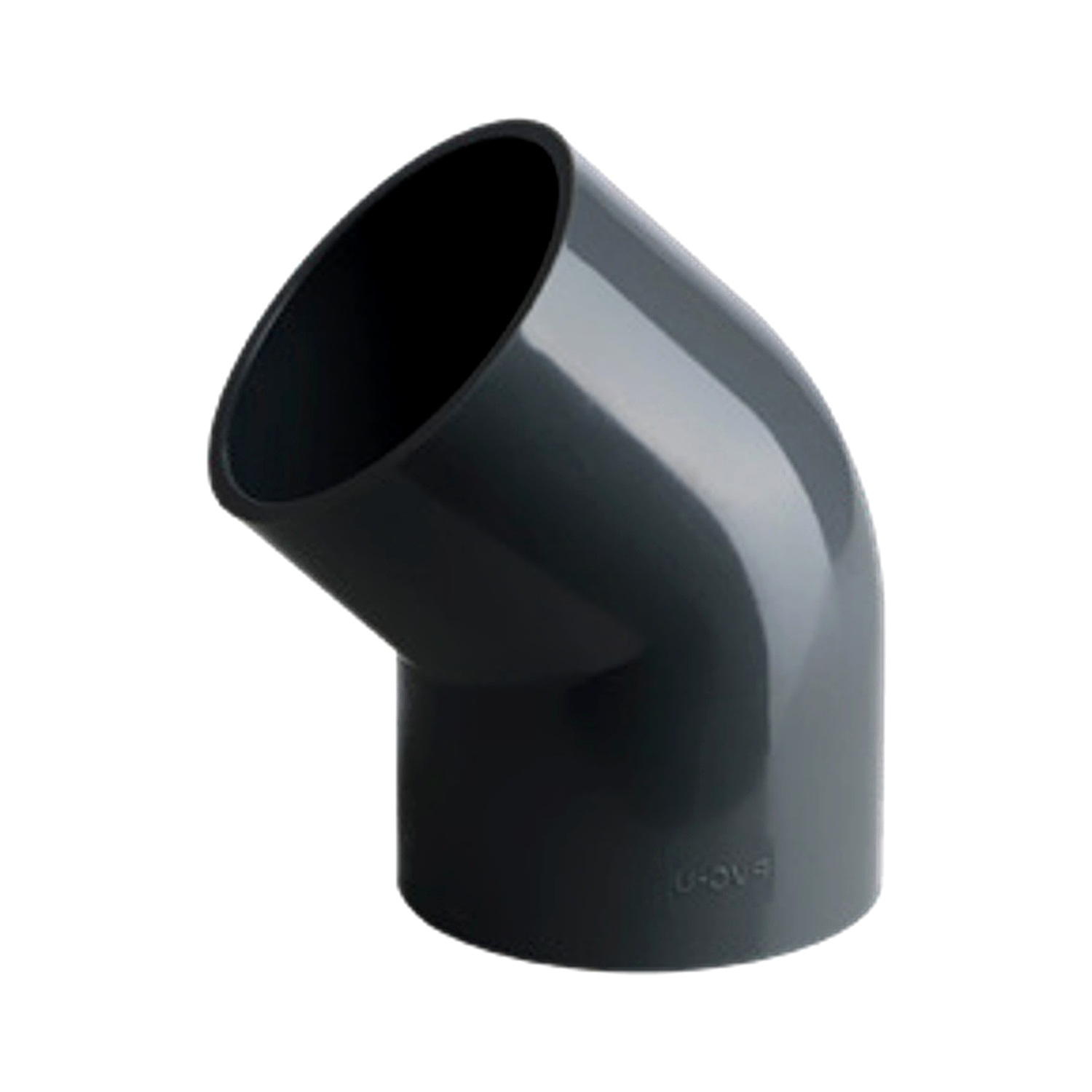

An ASTM SCH40 & SCH80 45° solvent-cement socket elbow manufactured from PVC-U or PVC-C. Used for smooth low-angle directional changes in ASTM industrial piping systems, with lower local resistance than 90° elbows. Chemical fusion with pipes via specialized solvent cement.
Need help? Contact our technical support team

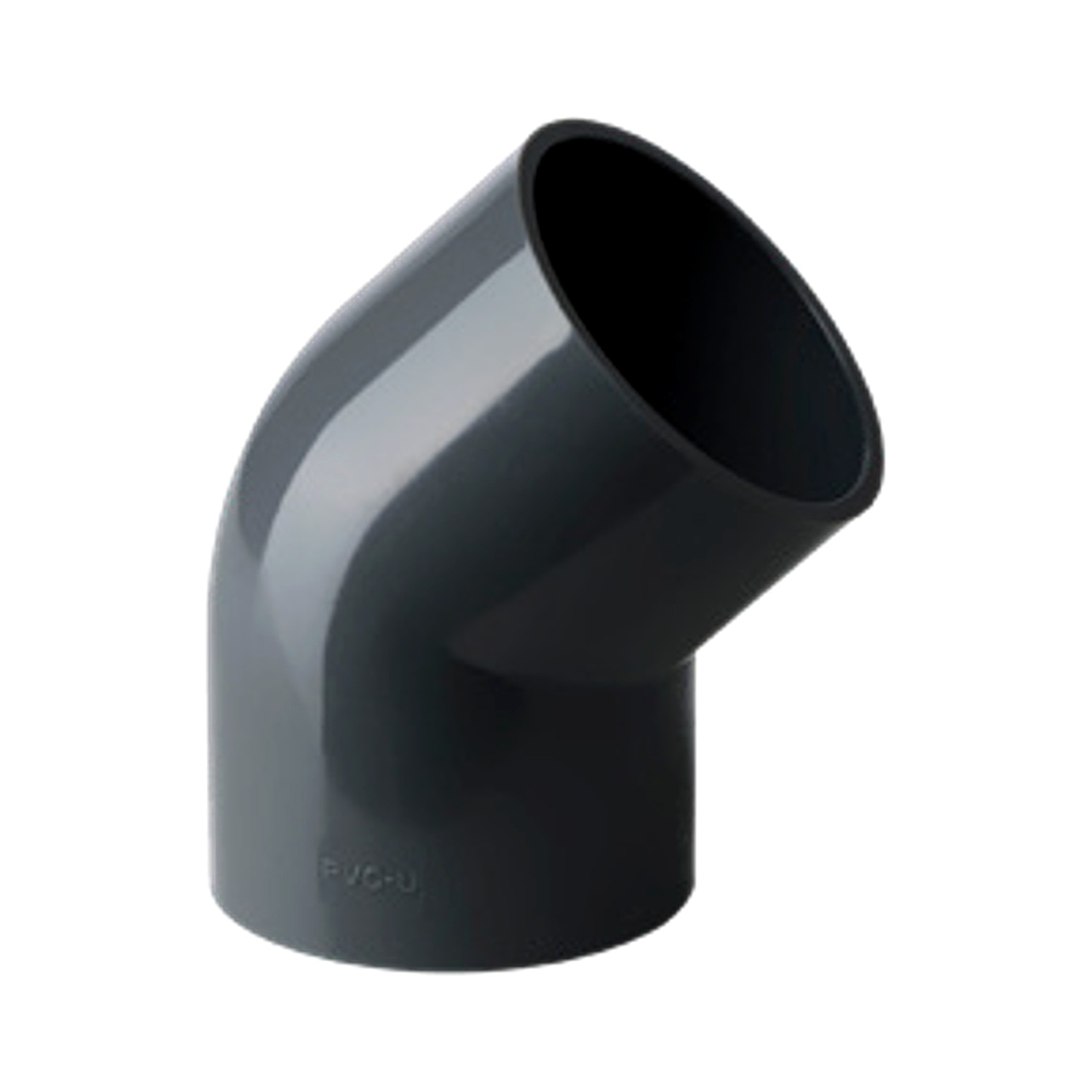

+86 1551559 6408The ASTM SCH40 & SCH80 UPVC 45° Elbow is a solvent-cement socket elbow designed for low-angle directional changes in ASTM industrial piping systems. It provides smooth flow and reliable chemical resistance.
| Size | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|
| D0 | d1 | d2 | d | T | H | |
| 1/2" | 30.50 | 21.54 | 21.23 | 17.00 | 23.22 | 29.72 |
| 3/4" | 35.27 | 26.87 | 26.57 | 22.50 | 26.40 | 34.40 |
| 1" | 43.66 | 33.66 | 33.27 | 29.00 | 29.57 | 37.58 |
| 1-1/4" | 53.02 | 42.42 | 42.04 | 38.00 | 32.75 | 42.75 |
| 1-1/2" | 59.86 | 48.56 | 48.11 | 43.00 | 35.93 | 47.93 |
| 2" | 72.22 | 60.63 | 60.17 | 55.00 | 39.10 | 55.10 |
| 2-1/2" | 88.00 | 73.38 | 72.85 | 67.50 | 45.45 | 63.50 |
| 3" | 105.30 | 89.31 | 88.70 | 83.00 | 48.63 | 68.63 |
| 4" | 132.00 | 114.76 | 114.07 | 106.00 | 58.15 | 84.15 |
| 5" | 161.90 | 141.81 | 141.04 | 133.00 | 67.68 | 104.55 |
| 6" | 190.90 | 168.83 | 168.00 | 160.00 | 77.20 | 122.20 |
| 8" | 245.90 | 219.84 | 218.69 | 208.00 | 102.60 | 153.80 |
| 10" | 305.20 | 273.80 | 272.67 | 262.50 | 128.00 | 188.00 |
| 12" | 358.15 | 324.60 | 323.47 | 311.00 | 164.30 | 242.80 |
| 14" | 394.11 | 355.94 | 354.33 | 331.50 | 200.00 | 270.94 |
| 16" | 450.00 | 407.19 | 405.33 | 363.80 | 230.66 | 306.81 |
| 20" | 540.50 | 511.00 | 508.00 | 469.00 | 236.00 | 377.00 |
| 24" | 668.50 | 612.60 | 609.60 | 591.80 | 306.00 | 471.00 |
Each is produced by high-precision injection molding from UPVC with uniform bend wall thickness and ASTM-compliant socket machining on both ends.
