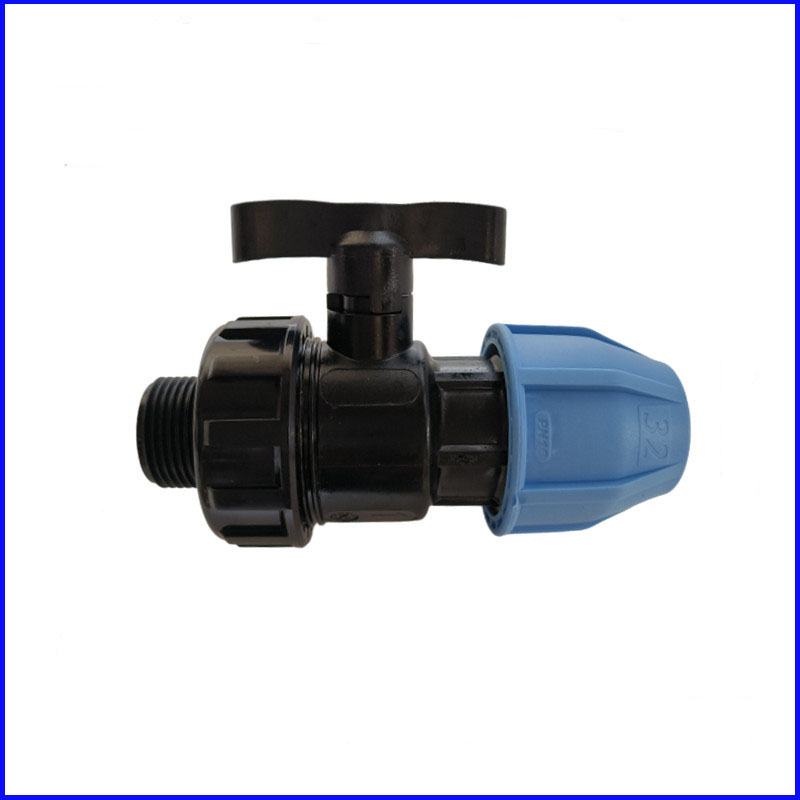

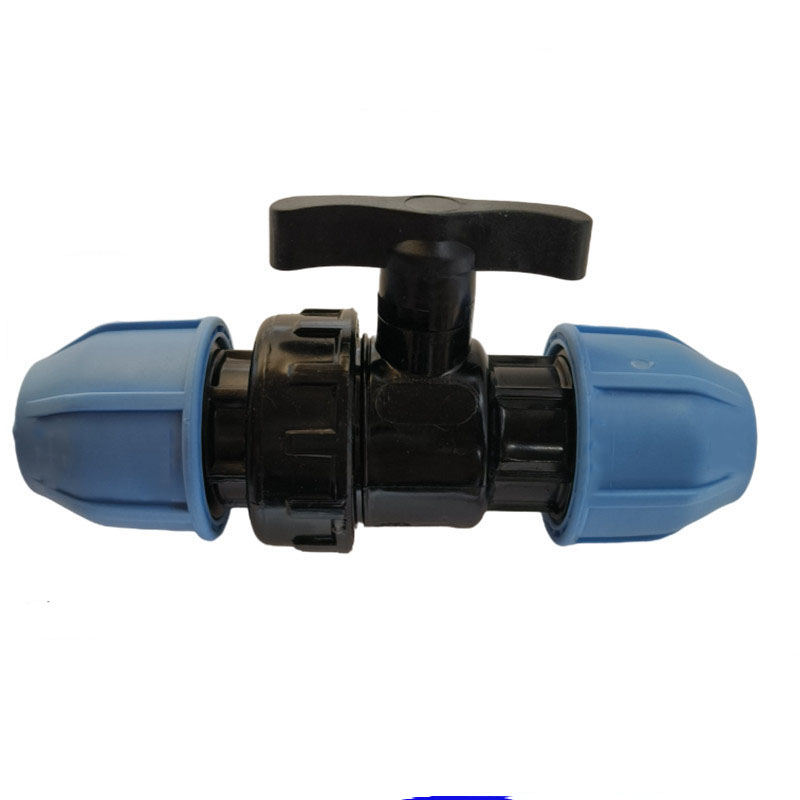

The PP Compression Brass Core Ball Valve for Water is a push-fit ball valve with a brass core, designed for quick shut-off and flow control in PP water supply and irrigation systems.
| DN | Item | L (mm) | H (mm) | G (inch) | Net Weight (Kg) | Packing (pcs) |
|---|
| 20 | BV-020 | 58.5 | 42 | 1/2" | 0.15 | 200 |
| 25 | BV-025 | 62 | 47 | 3/4" | 0.20 | 150 |
| 32 | BV-032 | 76 | 57 | 1" | 0.30 | 100 |
| 40 | BV-040 | 90 | 70 | 1-1/4" | 0.45 | 80 |
| 50 | BV-050 | 112.5 | 78.5 | 1-1/2" | 0.65 | 60 |
| 63 | BV-063 | 130 | 89.5 | 2" | 1.20 | 40 |
Key Features of PP Compression Brass Core Ball Valve for Water
- PP body plus brass ball core balances corrosion resistance and wear resistance.
- A quarter turn opens or closes the valve quickly.
- The full-bore design ensures high flow and minimal pressure loss.
- Compression dual-end connection allows quick push-fit installation.
- Corrosion-resistant and hygienic PP body suits potable and irrigation water.
Manufacturing Process of PP Compression Brass Core Ball Valve for Water
Each is produced by injection molding with a precision-machined brass ball core.
Critical Process Parameters of PP Compression Brass Core Ball Valve for Water
- Control of injection molding parameters for dimensional stability.
- Control of gripping surface dimensions and seal-ring groove concentricity.
- Ball sphericity and seat sealing performance control.
- Wall-thickness uniformity control.
- 100% leak test and sampling hydrostatic strength test.
Raw Material Characteristics of PP Compression Brass Core Ball Valve for Water
- PP body, brass ball core, EPDM seals.
- Good heat resistance: long-term service temperature up to 70°C.
- High stiffness and creep resistance.
- Excellent chemical corrosion resistance.
- The fitting Complies with potable water standards.
Typical Applications of PP Compression Brass Core Ball Valve for Water
- is used for on/off control and zonal rotation in irrigation branches.
- serves isolation valves on building water branches for maintenance.
- is installed for switch control of greenhouse drip and micro-spray loops.
- The valve provides open/close control of industrial cooling water sub-loops.
- is used as isolation valves at water treatment equipment inlet/outlet.
Application Scenarios of PP Compression Brass Core Ball Valve for Water
- Quick shut-off and flow control in PP water supply and irrigation — is the standard valve for these applications.
