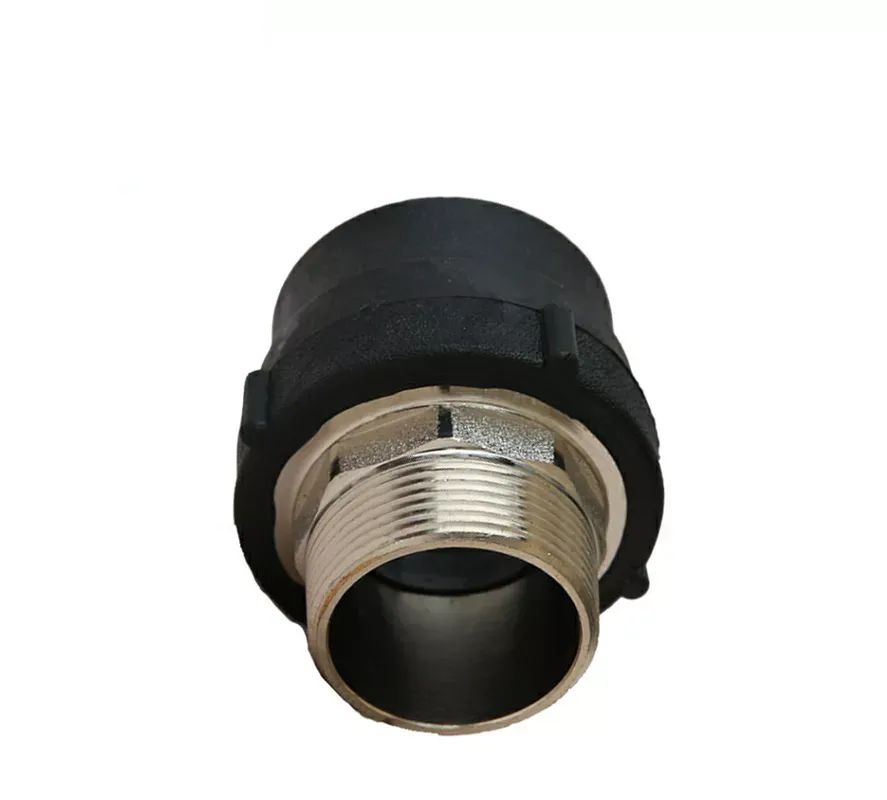

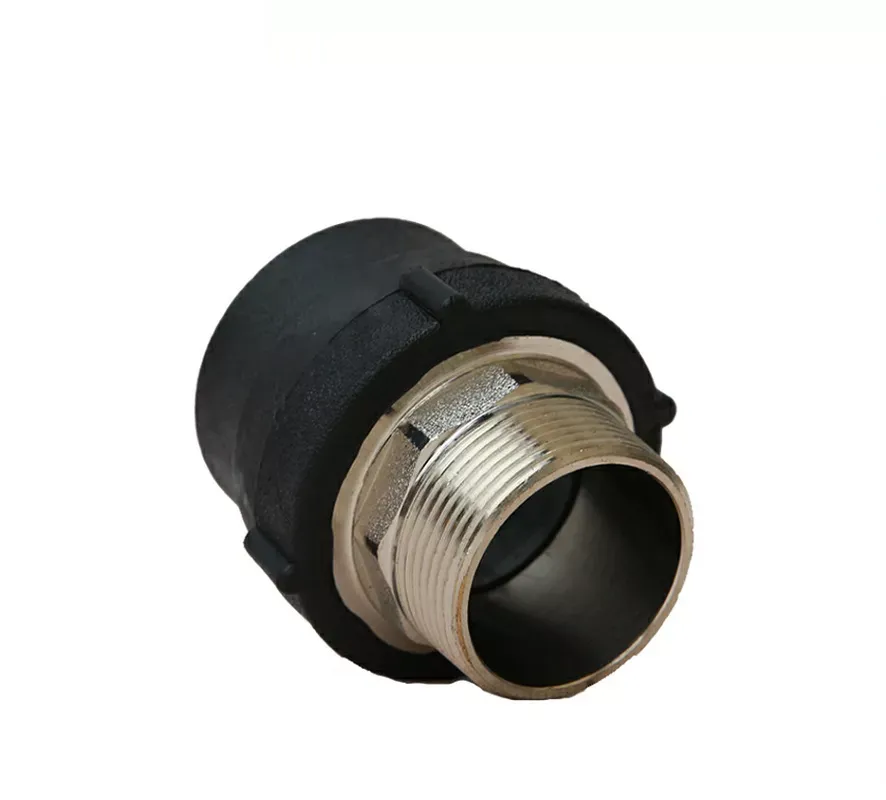

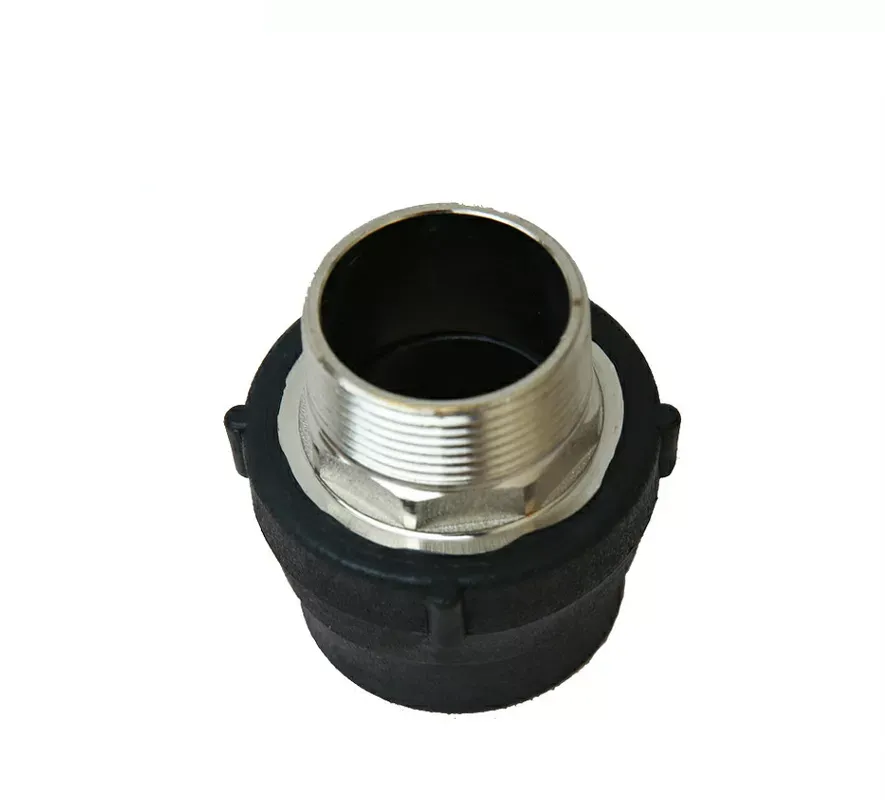

HDPE Socket Fusion Male Thread Coupler

Key Features of HDPE Socket Fusion Male Thread Coupler

• Socket fusion end enables seamless integration with HDPE pipes.
• Male thread interface is compatible with metal and plastic piping systems.
• The fitting complies with ISO 4427 potable water safety standards.
• Chemical corrosion and UV resistance design protects.

Manufacturing Process of HDPE Socket Fusion Male Thread Coupler

Each is produced by precision injection molding with CNC thread machining.

Critical Process Parameters of HDPE Socket Fusion Male Thread Coupler

• Melt temperature control: 210±5°C
• Injection pressure: 100–120 MPa
• Thread tolerance: ISO 228-1 G-series standard
• Cooling rate gradient management

Raw Material Characteristics of HDPE Socket Fusion Male Thread Coupler

• Density: 0.950–0.965 g/cm³
• Melt flow index (190°C/5kg): 0.25 g/10min
• Tensile strength: ≥25 MPa
• Elastic modulus: 1100 MPa

Typical Applications of HDPE Socket Fusion Male Thread Coupler

• is used for transition connections between HDPE mains and metal valves.
• serves filtration piping systems in water treatment plants.
• is installed as rapid repair coupling for subsurface irrigation.
• is used in branch modification in fire water supply networks.

Application Scenarios of HDPE Socket Fusion Male Thread Coupler

• Transitions between HDPE pipe and metal threaded fittings — is the standard coupler for these connections.
