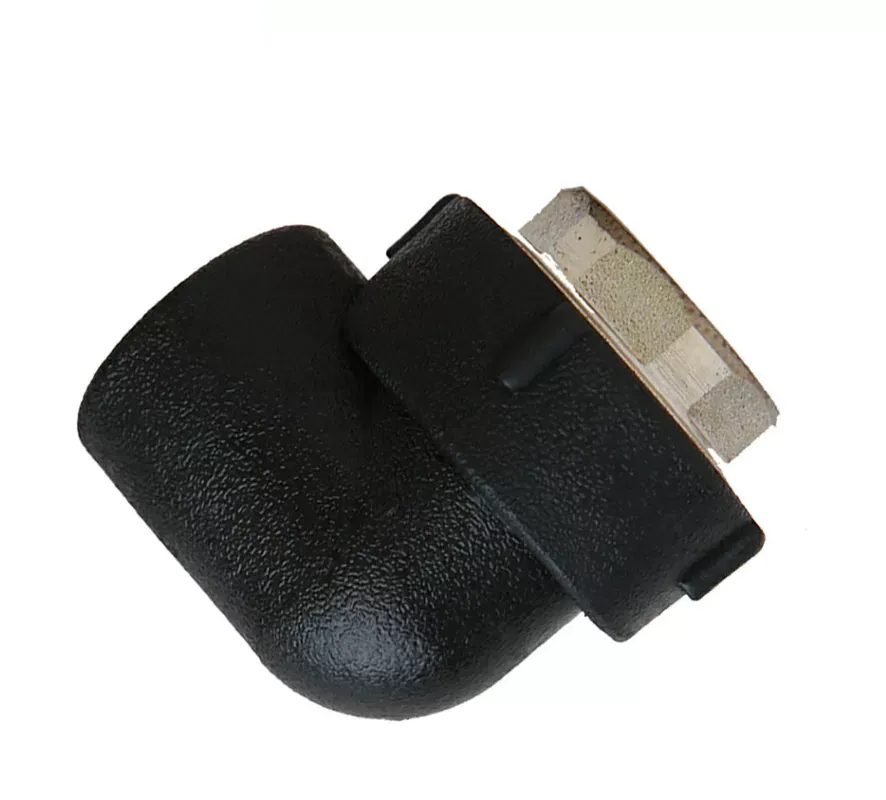

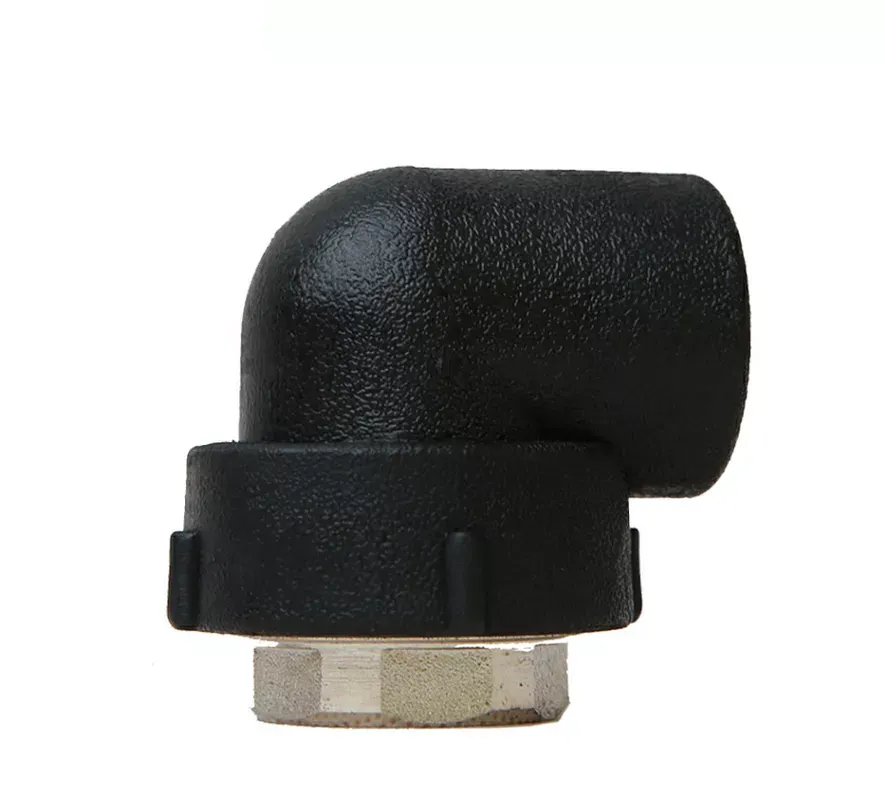

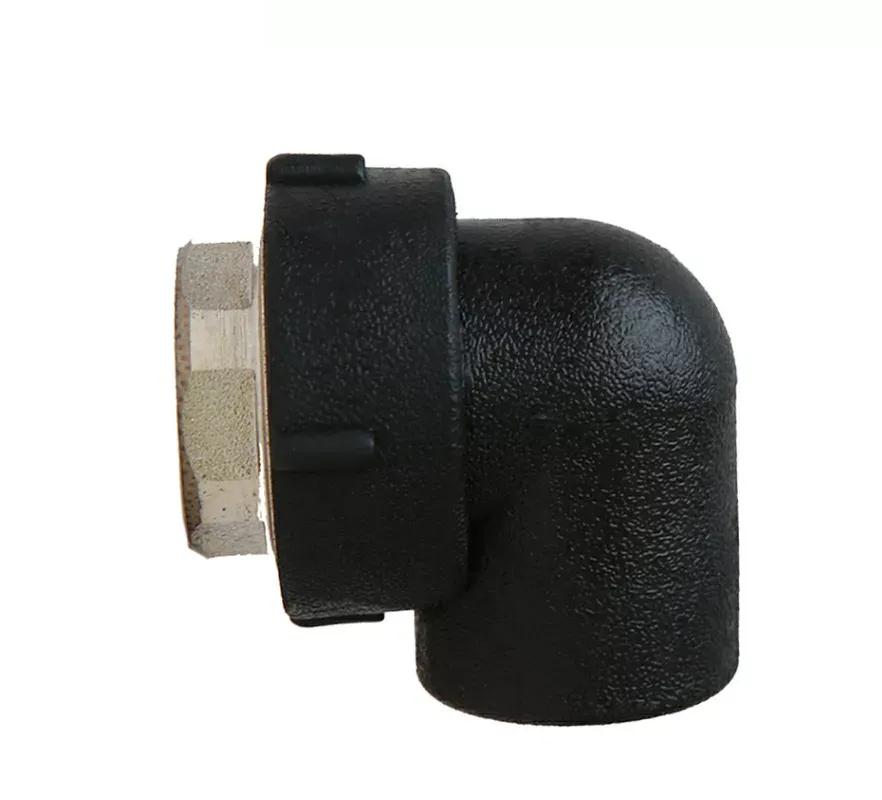

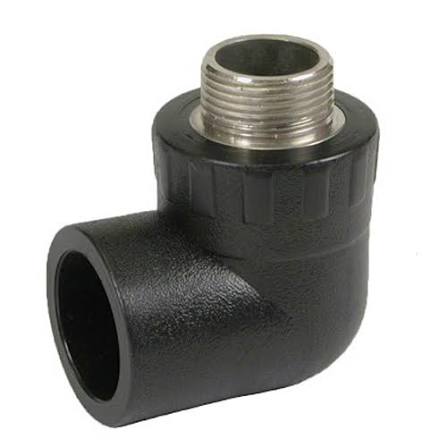

The HDPE Socket Fusion Male Thread 90° Elbow for Water is a 90° transition elbow with a socket fusion end and male thread end, designed for reliable directional changes in water distribution systems.
|
SPECIFICATION
|
|
L20 × 1/2F
|
|
L25 × 1/2F
|
|
L25 × 3/4F
|
|
L32 × 1/2F
|
|
L32 × 3/4F
|
|
L32 × 1F
|
|
L40 × 1¼F
|
|
L50 × 1½F
|
|
L63 × 2F
|
Key Features of HDPE Socket Fusion Male Thread 90° Elbow for Water
- Precise 90° directional change for flow control.
- Socket fusion end guarantees permanent leak-free seal.
- Male thread end is compatible with standard metal and plastic fittings.
- UV-stabilized and chemical corrosion resistance protect the fitting.
Manufacturing Process of HDPE Socket Fusion Male Thread 90° Elbow for Water
Each is produced by precision injection molding with CNC thread machining.
Critical Process Parameters of HDPE Socket Fusion Male Thread 90° Elbow for Water
- Melt temperature control: 210±5°C
- Mold cooling gradient ≤15°C/min
- Thread tolerance: ISO 228-1 Grade G
- Ovality deviation <0.5% nominal diameter
Raw Material Characteristics of HDPE Socket Fusion Male Thread 90° Elbow for Water
- Density: 0.950–0.955 g/cm³ (ISO 1183)
- Melt Flow Index: 0.3–0.5 g/10min (190°C/5kg)
- Slow Crack Growth Resistance: ≥500h (ISO 13479)
- Hydrostatic Strength: 10.0 MPa (20°C/50y)
Typical Applications of HDPE Socket Fusion Male Thread 90° Elbow for Water
- is used at branching points in municipal water distribution networks.
- serves industrial cooling water circulation systems.
- is installed for directional changes in agricultural irrigation mains.
- is used in vertical riser connections in building plumbing.
Application Scenarios of HDPE Socket Fusion Male Thread 90° Elbow for Water
- Directional changes and threaded connections in water systems — is the standard elbow for these transitions.
