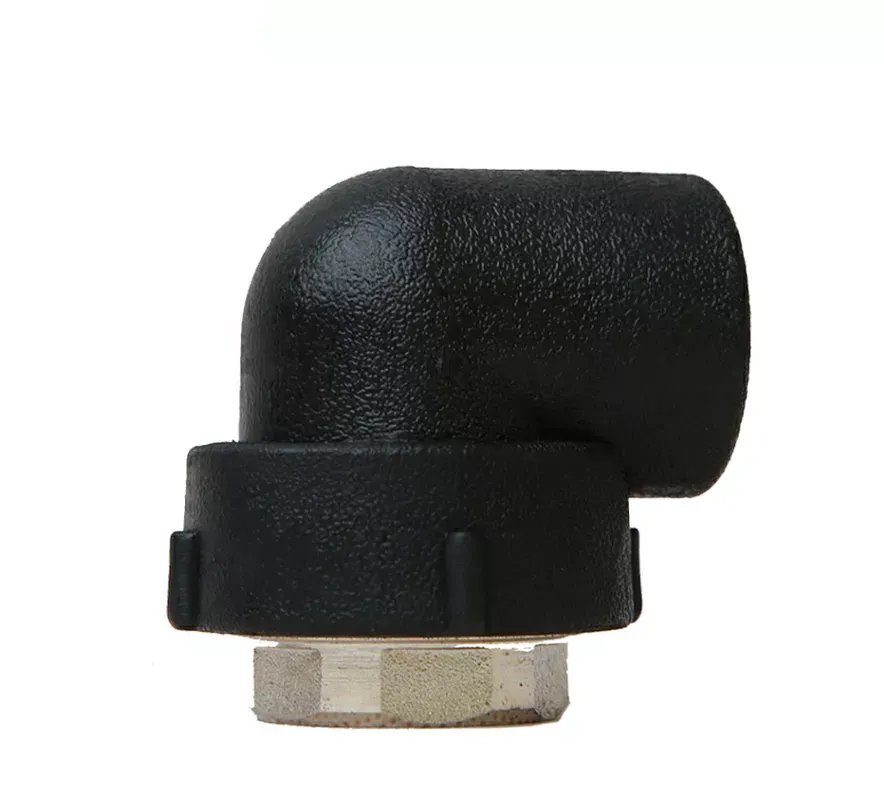

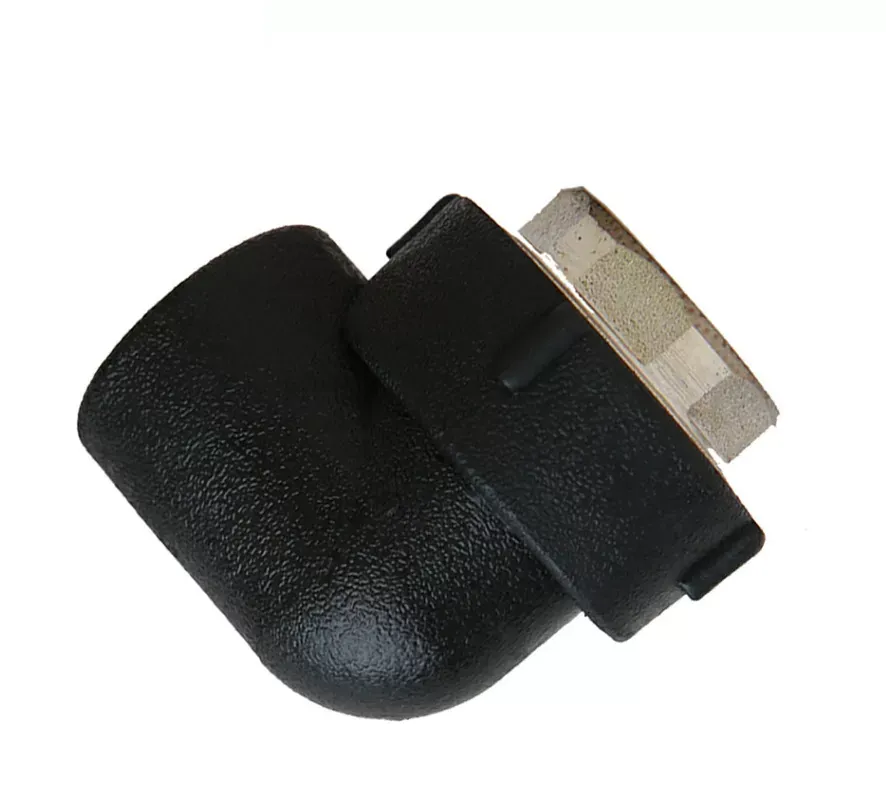

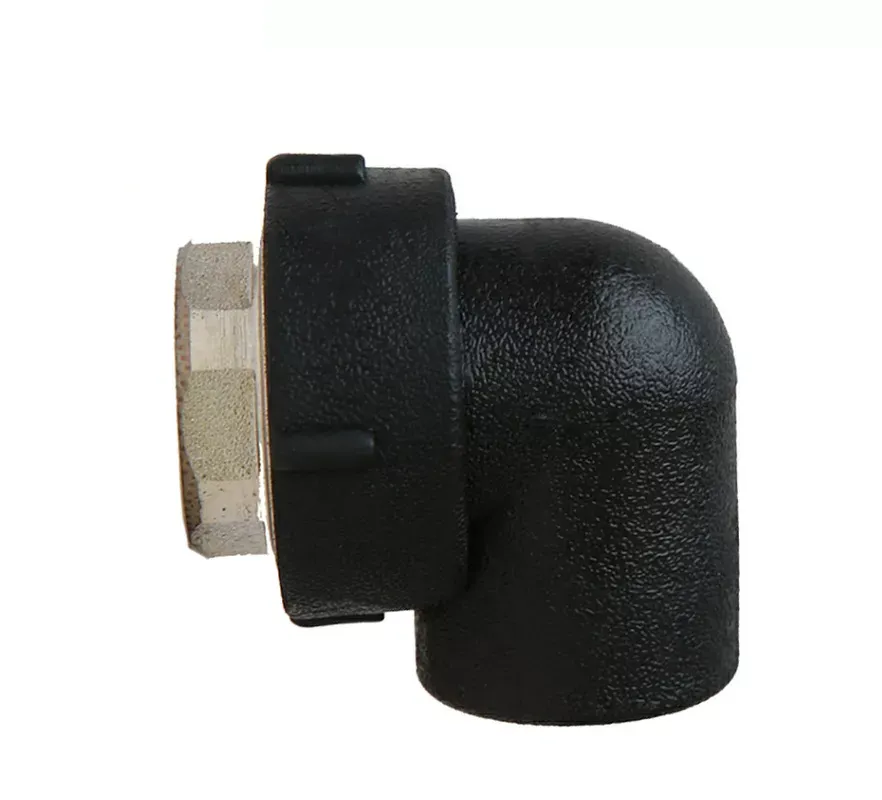

The HDPE Socket Fusion Female Thread 90° Elbow for Water is a 90° elbow with a socket fusion end and female thread end, designed for reliable directional changes and threaded connections in water supply systems.
|
SPECIFICATION
|
|
L20 × 1/2F
|
|
L25 × 1/2F
|
|
L25 × 3/4F
|
|
L32 × 1/2F
|
|
L32 × 3/4F
|
|
L32 × 1F
|
|
L40 × 1¼F
|
|
L50 × 1½F
|
|
L63 × 2F
|
Key Features of HDPE Socket Fusion Female Thread 90° Elbow for Water
- 90° bend design for efficient flow direction change.
- Socket fusion end ensures permanent leak-proof joints.
- Female threaded end enables mechanical connection to valves and equipment.
- ISO 4427-certified PE100 raw material used.
- Resistance to chemical corrosion and environmental stress cracking protects.
Manufacturing Process of HDPE Socket Fusion Female Thread 90° Elbow for Water
Each is produced by precision injection molding.
Critical Process Parameters of HDPE Socket Fusion Female Thread 90° Elbow for Water
- Melt temperature control: 210°C ±5°C
- Cavity pressure maintenance: 80–100 MPa
- Cooling gradient control: ≤20°C/min
- Thread insert positioning accuracy: ±0.1mm
- Dimensional tolerance per ISO 3302-1
Raw Material Characteristics of HDPE Socket Fusion Female Thread 90° Elbow for Water
- Density: 0.948–0.952 g/cm³
- Melt flow rate (190°C/5kg): 0.15–0.4 g/10min
- Tensile strength: ≥25 MPa
- Elastic modulus: 850–1050 MPa
- Environmental stress crack resistance ≥500hrs (ISO 13479)
Typical Applications of HDPE Socket Fusion Female Thread 90° Elbow for Water
- The fitting connects fused HDPE mains to threaded valve assemblies.
- is used for 90° directional changes in underground water networks.
- serves pump station inlet and outlet redirection.
- is installed at metering assembly transition connections.
Application Scenarios of HDPE Socket Fusion Female Thread 90° Elbow for Water
- Transition connections and directional changes in water systems — is the standard elbow for these applications.
