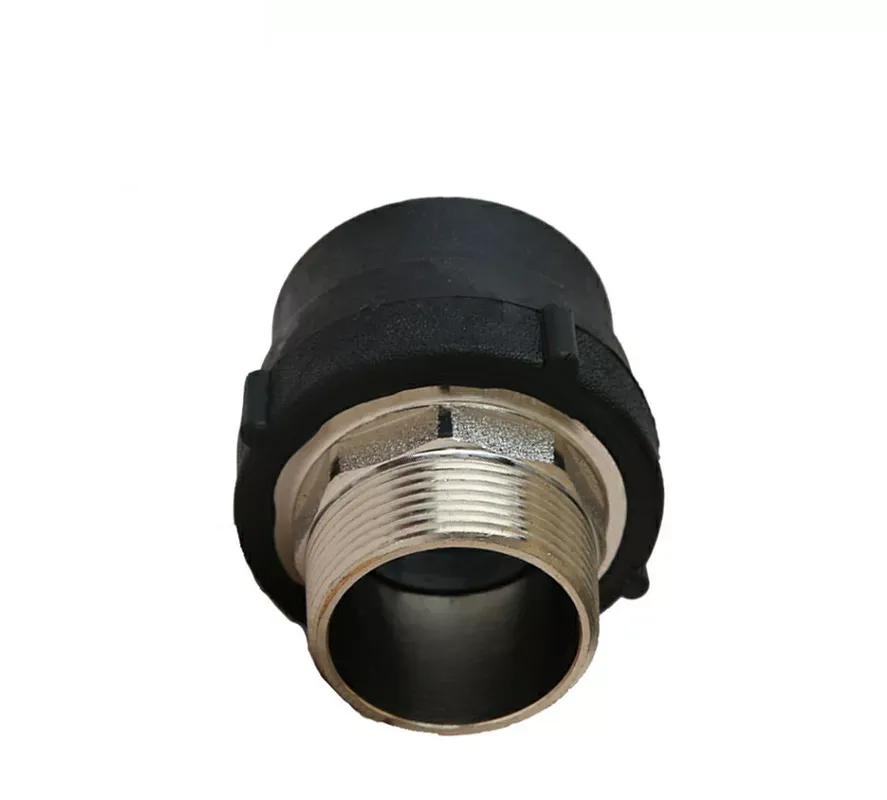

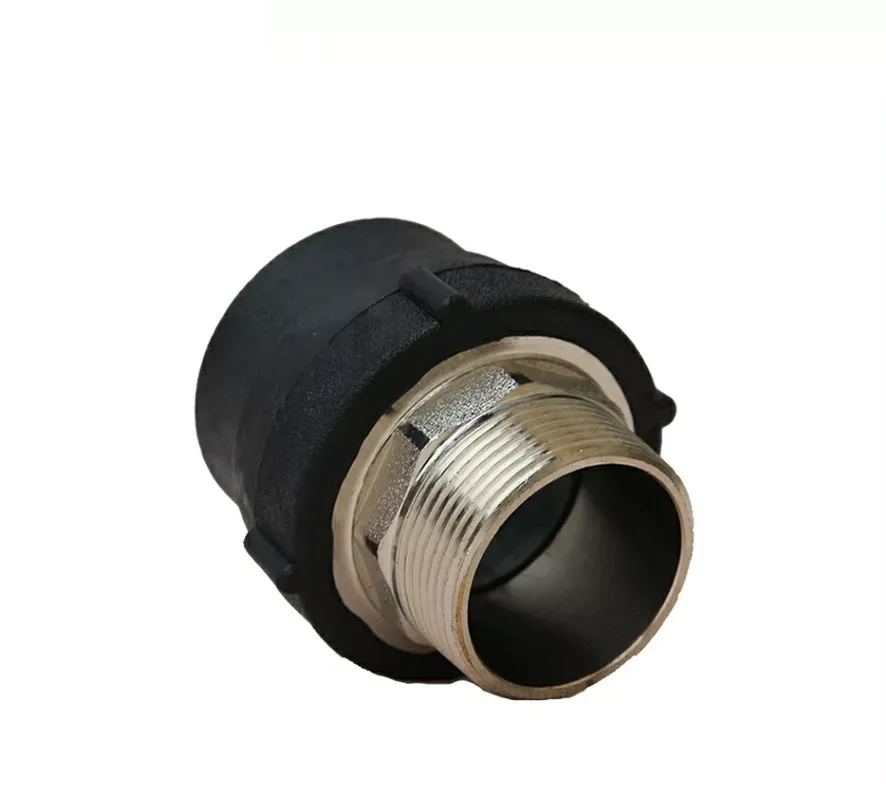

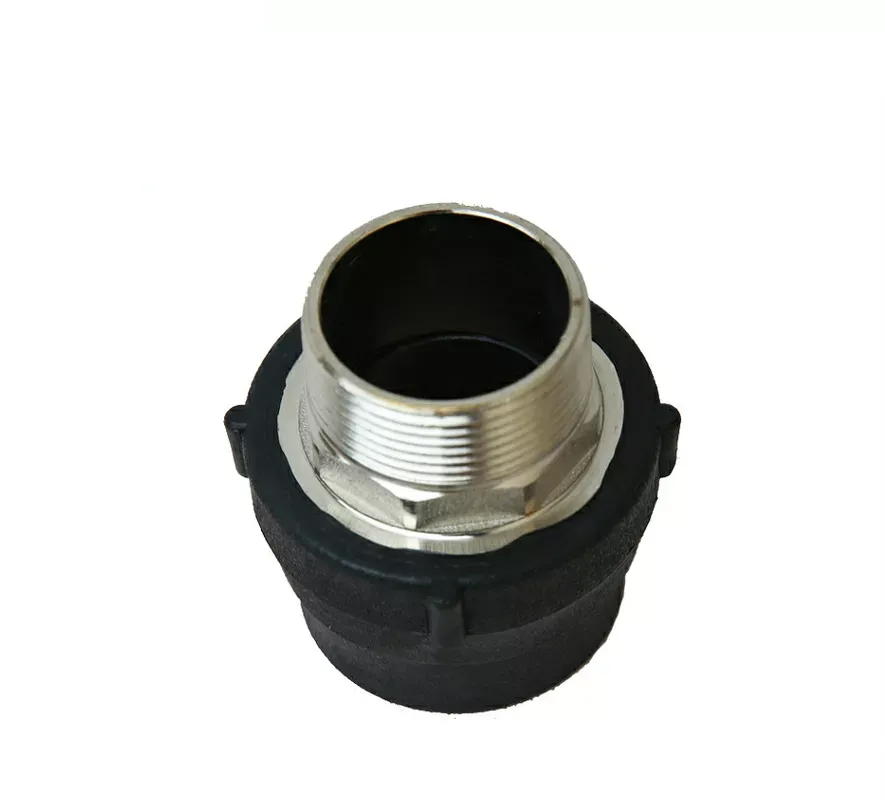

The HDPE Socket Fusion Brass Male Thread Union for Water is a dual-material union with an HDPE socket fusion end and a brass male threaded end. It provides reliable transitions between HDPE pipe and metal fittings in water systems.
Key Features of HDPE Socket Fusion Brass Male Thread Union for Water
- Dual-material construction with HDPE and brass.
- Socket fusion end ensures leak-free connection to HDPE pipes.
- Brass end conforms to ISO 228 thread standards.
- Chemical corrosion-resistant design protects.
Manufacturing Process of HDPE Socket Fusion Brass Male Thread Union for Water
Each is produced by injection molding for the HDPE part and precision turning for the brass part, thermally assembled.
Critical Process Parameters of HDPE Socket Fusion Brass Male Thread Union for Water
- HDPE melt temperature control: 200±5°C
- Brass thread machining accuracy: ISO 228 Class G
- Fusion interface pressure: 0.15–0.25 MPa
- Cooling rate control: ≤3°C/min
Raw Material Characteristics of HDPE Socket Fusion Brass Male Thread Union for Water
- PE100 density: 0.950–0.965 g/cm³ (ISO 1183)
- Brass tensile strength: ≥340 MPa (EN 12165)
- Melt flow index: 0.25 g/10min (190°C/5kg)
- Environmental stress cracking resistance: ≥1000 hr
Typical Applications of HDPE Socket Fusion Brass Male Thread Union for Water
- is used in potable water distribution systems.
- serves irrigation network connections.
- is installed in industrial cooling water pipelines.
- is used in water treatment facilities.
Application Scenarios of HDPE Socket Fusion Brass Male Thread Union for Water
- Transition connections between HDPE pipes and brass fittings — is the standard union for these transitions.
