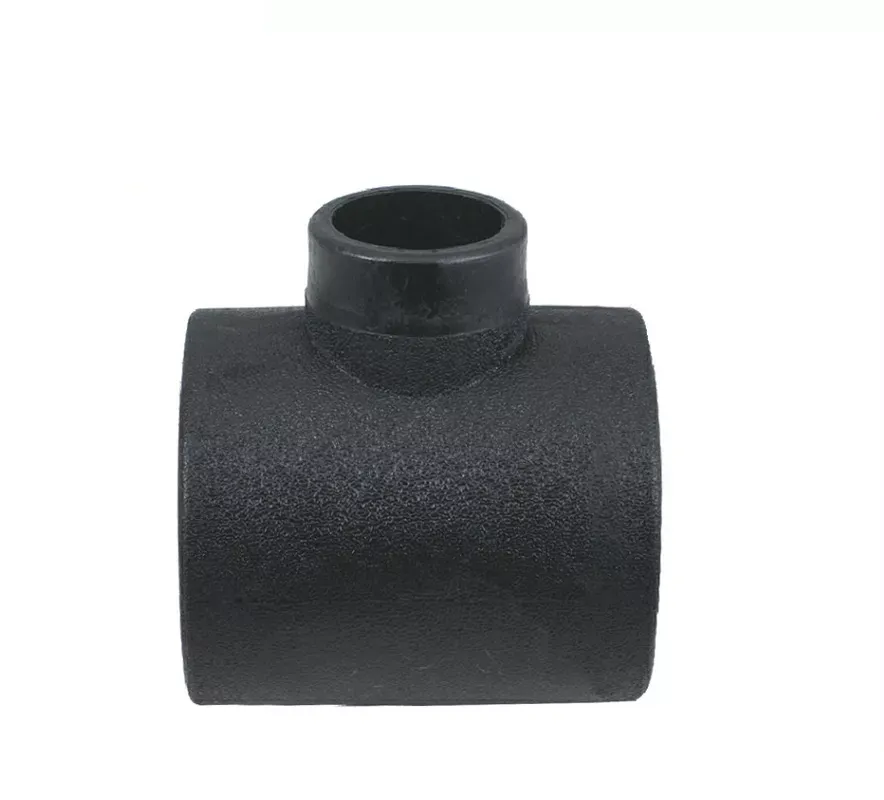

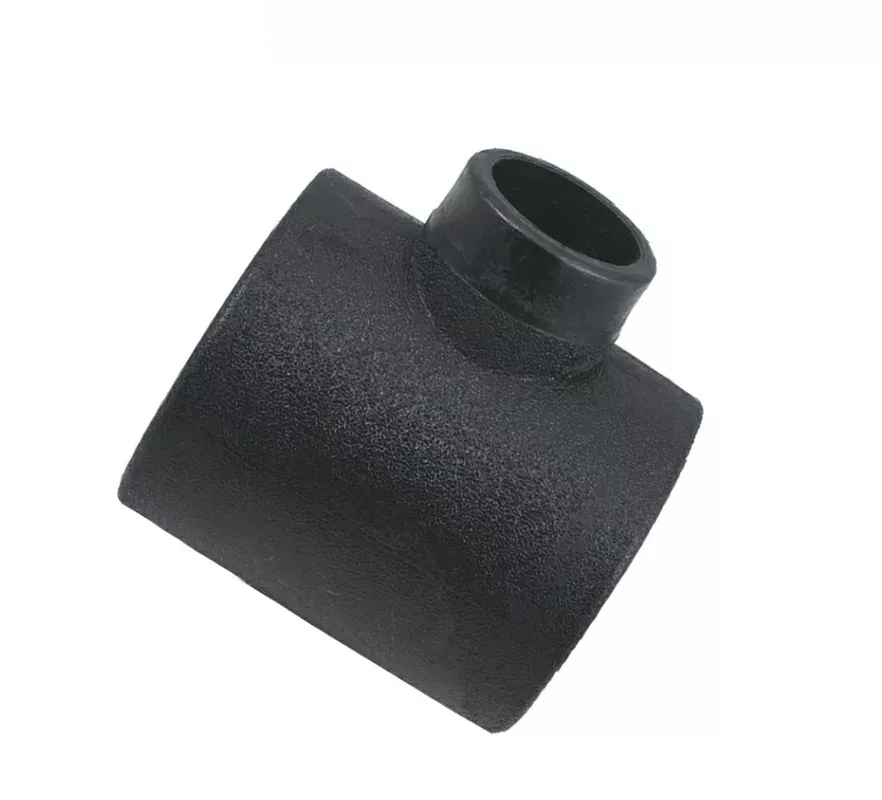

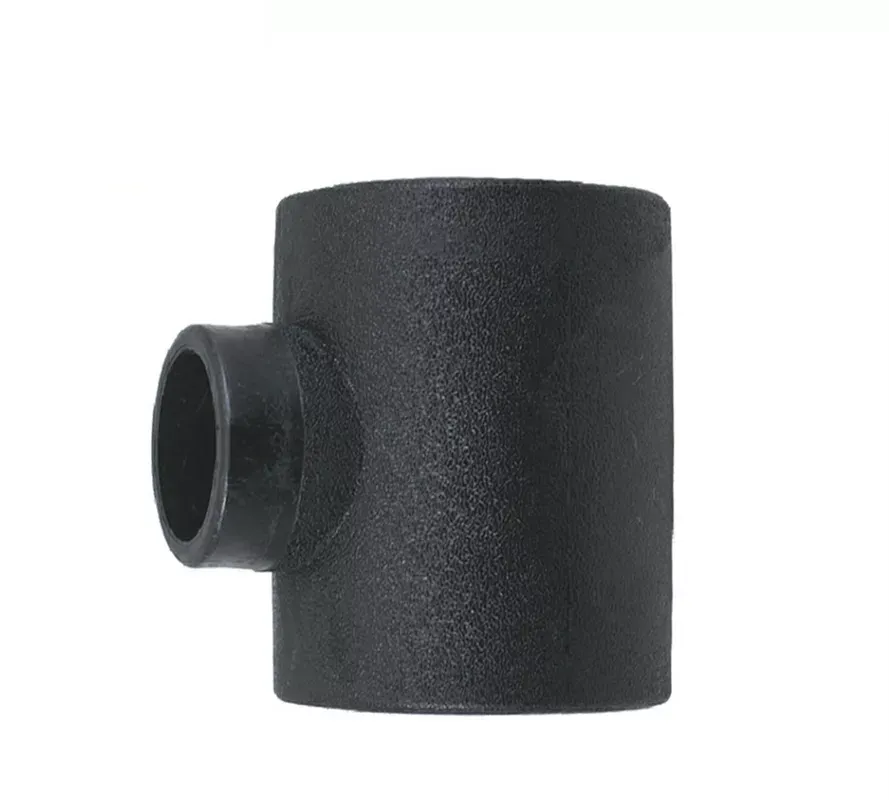

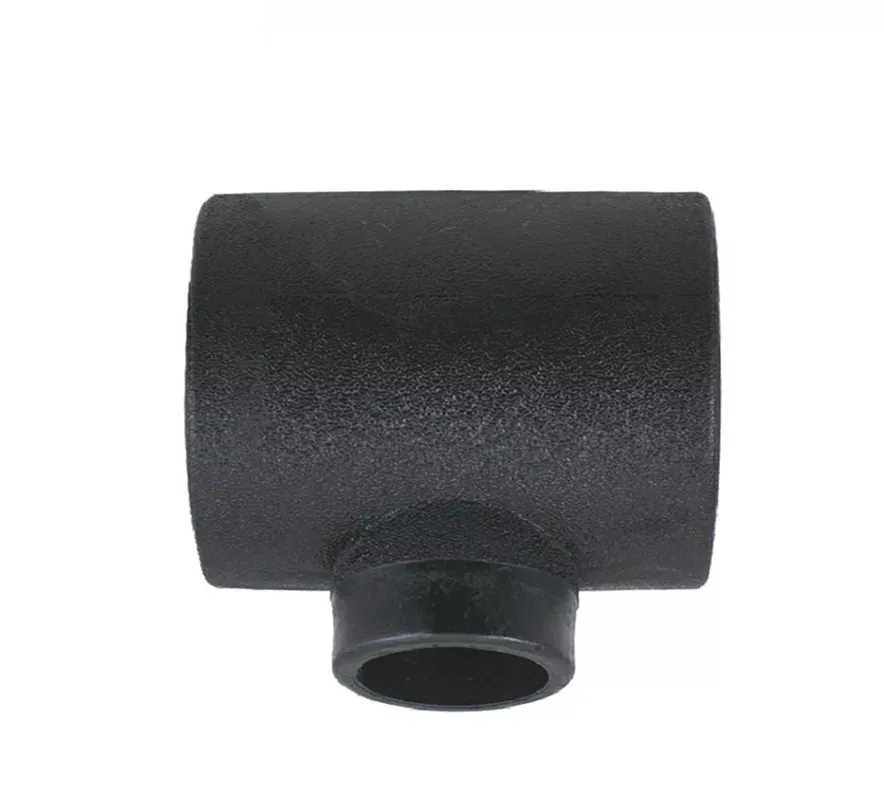

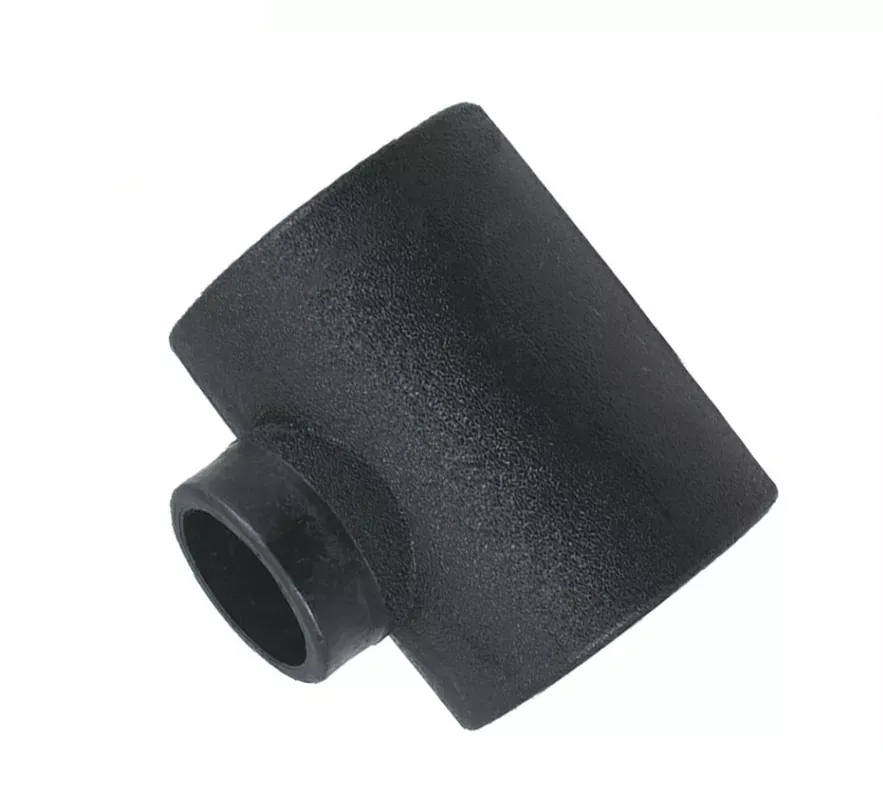

HDPE Socket Fusion Reducer Tee for Water

Key Features of HDPE Socket Fusion Reducer Tee for Water

• Reducer design with unequal branch diameters optimizes hydraulic performance.
• Monolithic socket fusion joint eliminates leakage risks.
• Smooth inner surface minimizes flow resistance.
• 50-year service life per ISO 9080 design methodology.

Manufacturing Process of HDPE Socket Fusion Reducer Tee for Water

Each is produced by injection molding or fabricated from pipe stock with computer-controlled hydraulic fusion.

Critical Process Parameters of HDPE Socket Fusion Reducer Tee for Water

• Fusion temperature control: 210±5°C (ISO 11414)
• Welding pressure: 0.15–0.3 MPa
• Precise heating/cooling phase timing
• Concentricity deviation ≤1% (EN 12201-2)

Raw Material Characteristics of HDPE Socket Fusion Reducer Tee for Water

• Density: ≥0.949 g/cm³ (ISO 1183)
• Melt Flow Rate: 0.25 g/10min (190°C/5kg)
• Slow crack growth resistance: ≥500h (ISO 13479)
• Hydrostatic design basis: ≥10.0 MPa (20°C/50y)

Typical Applications of HDPE Socket Fusion Reducer Tee for Water

• is used in municipal water distribution network branching.
• serves mainline distribution in agricultural irrigation.
• is installed in industrial cooling water circulation systems.
• is used in building water supply riser connections.

Application Scenarios of HDPE Socket Fusion Reducer Tee for Water

• Reducer connections between water treatment mains and distribution lines — is the standard tee for these transitions.
