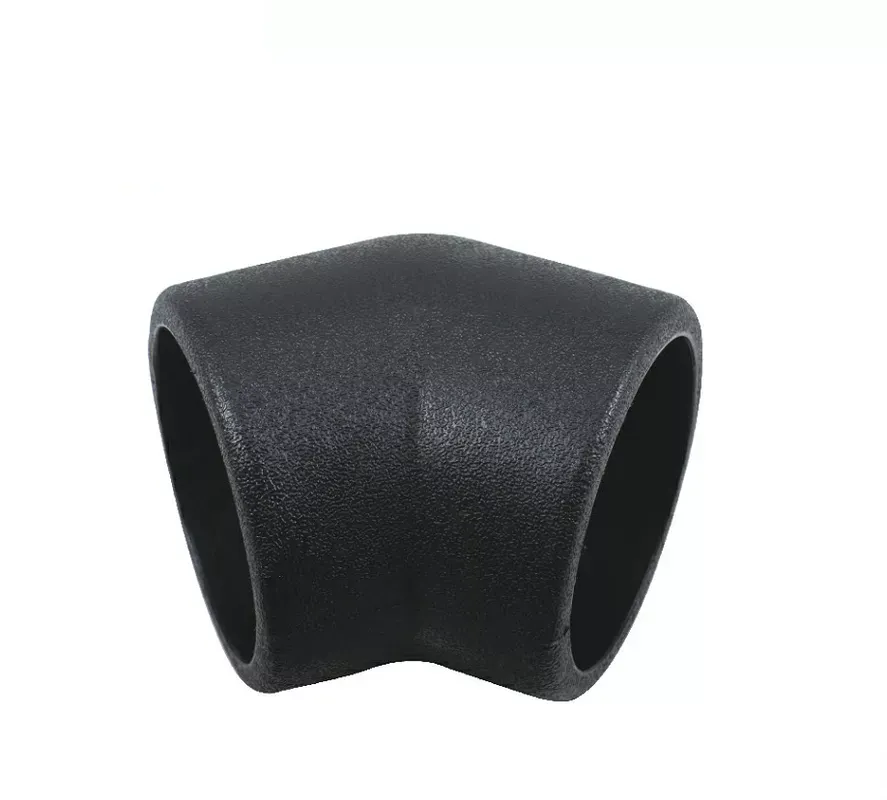

HDPE Socket Fusion 45° Elbow for Water

Key Features

• 45° angle design optimizes hydrodynamics
• Socket fusion ensures leak-free permanent joints
• Resistant to chemical corrosion and UV degradation
• Smooth interior minimizes flow resistance

Typical Applications

• Municipal water supply network retrofits
• Industrial cooling water circulation systems
• Agricultural irrigation distribution networks
• Building water supply and drainage systems

Manufacturing Process

Injection molding technology

• Melt temperature control (190–240°C)
• Optimized mold cooling rate
• Holding pressure accuracy ±0.5MPa
• Crystallinity control ≥65%

Raw Material Characteristics

• Density: 0.950–0.965 g/cm³ (ASTM D792)
• Tensile strength: ≥25 MPa (ISO 527)
• Elastic modulus: 1,100 MPa (EN ISO 178)
• Slow crack growth resistance: ≥500h (ISO 13479)

• Directional changes in water treatment plants
• Branch modifications in underground water networks
• Corner layouts for fire sprinkler systems
• Low-pressure piping in desalination projects
