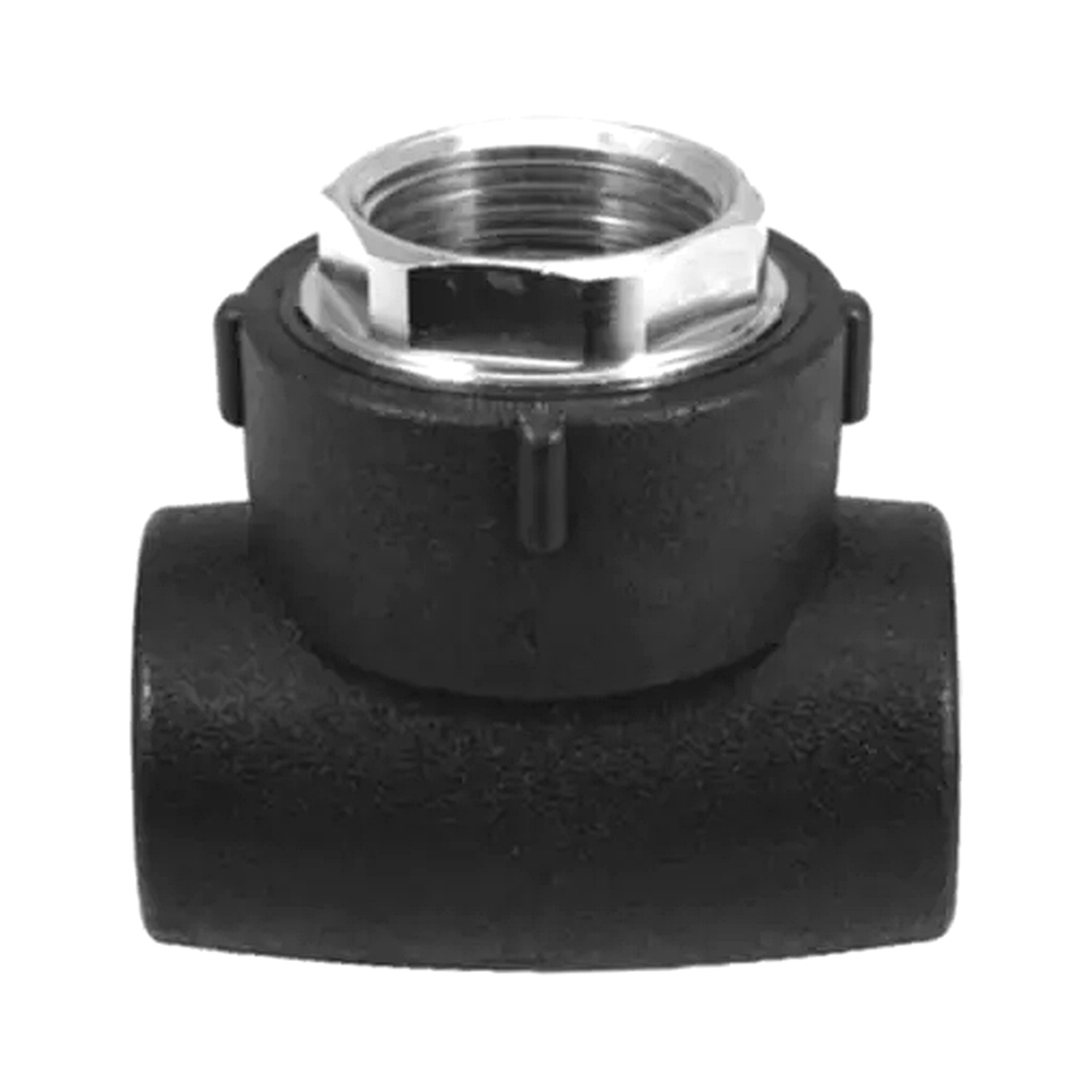

The HDPE Socket Fusion Thread Female Tee for Fuel Gas is a PE100 tee fitting with socket fusion connections and a female threaded branch port. It is designed for branch connections to metal equipment in gas distribution and industrial fuel gas systems.
|
Female Threaded Tee
|
|
|
|
|
Size
|
D (mm)
|
H (mm)
|
L (mm)
|
|
20 x ½"
|
27
|
31
|
51
|
|
25 x ½"
|
33
|
33
|
58
|
|
25 x ¾"
|
33
|
34
|
60
|
|
32 x ½"
|
41
|
37
|
61
|
|
32 x ¾"
|
41
|
40
|
67
|
|
32 x 1"
|
41
|
41
|
72
|
Key Features of HDPE Socket Fusion Thread Female Tee for Fuel Gas
- Permanent leak-proof socket fusion connections characterize.
- The threaded branch port complies with ISO 228 standards.
- PE100 material ensures slow crack growth resistance.
- Monolithic injection molded construction gives high strength.
- Chemical corrosion and third-party damage resistance protect the fitting.
Manufacturing Process of HDPE Socket Fusion Thread Female Tee for Fuel Gas
Each is produced by computer-controlled injection molding.
Critical Process Parameters of HDPE Socket Fusion Thread Female Tee for Fuel Gas
- Melt temperature control: 195–220°C
- Holding pressure ≥75 bar
- Cooling rate gradient management
- Mold temperature control ±2°C
- Wall thickness tolerance ≤5%
Raw Material Characteristics of HDPE Socket Fusion Thread Female Tee for Fuel Gas
- Density: 0.950 g/cm³ (ISO 1183)
- Melt Flow Rate: 0.25 g/10min (190°C/5kg)
- Minimum Required Strength: 10 MPa
- Slow Crack Growth Resistance ≥500h (ISO 13479)
- Rapid Crack Propagation resistance
Typical Applications of HDPE Socket Fusion Thread Female Tee for Fuel Gas
- The fitting provides branch connections in municipal gas networks.
- serves gas distribution systems in industrial parks.
- is installed at residential gas service entry points.
- is used in pipeline layouts for gas compressor stations.
Application Scenarios of HDPE Socket Fusion Thread Female Tee for Fuel Gas
- Branch connections to threaded equipment in gas distribution networks — is the standard tee for these interfaces.
