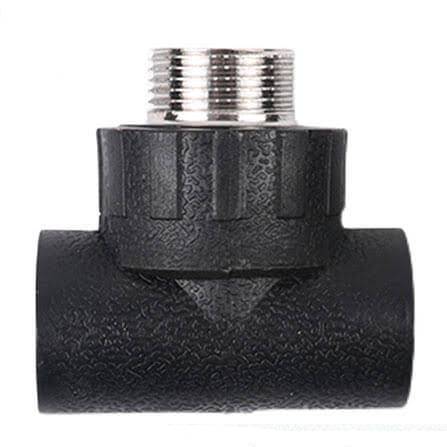

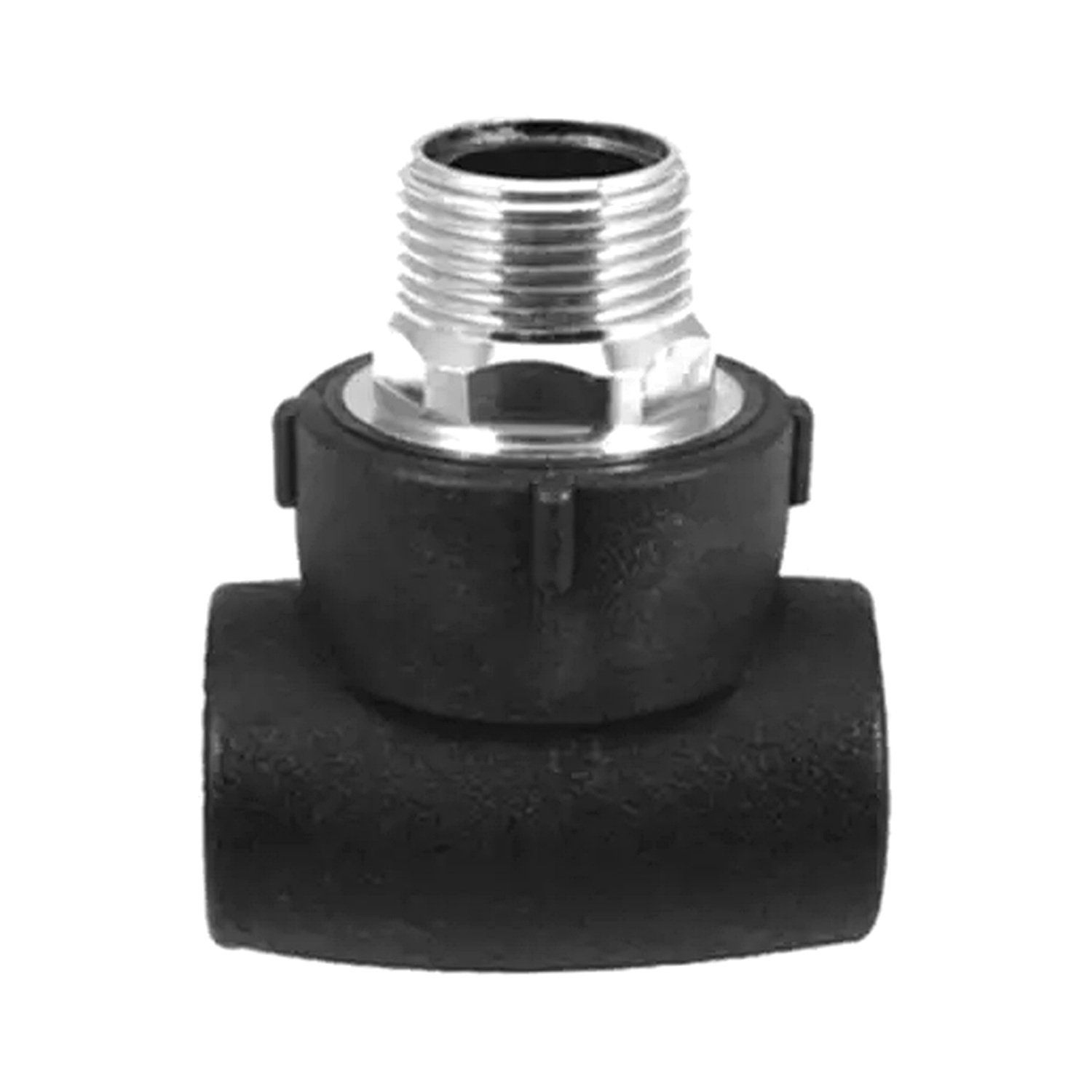

The HDPE Socket Fusion Male Thread Tee for Fuel Gas is a PE100 tee fitting with two socket fusion ends and a male threaded branch. It provides leak-proof branch connections to metal valves or equipment in gas distribution systems.
|
Male Threaded Tee
|
|
|
|
|
Size
|
D (mm)
|
H (mm)
|
L (mm)
|
|
20 x ½"
|
27
|
45
|
52
|
|
25 x ½"
|
33
|
47
|
58
|
|
25 x ¾"
|
33
|
48
|
60
|
|
32 x ½"
|
41
|
51
|
61
|
|
32 x ¾"
|
41
|
52
|
67
|
|
32 x 1"
|
41
|
55
|
72
|
Key Features of HDPE Socket Fusion Male Thread Tee for Fuel Gas
- PE100 material with RCP certification gives slow crack growth resistance.
- Dual socket fusion ends ensure permanent leak-proof joints.
- NPT-standard male thread ends allow rapid mechanical installation.
- Chemical corrosion and UV resistance protect the fitting.
- Full-scale hydrostatic pressure test certification covers the fitting.
Manufacturing Process of HDPE Socket Fusion Male Thread Tee for Fuel Gas
Each is produced by computer-controlled injection molding.
Critical Process Parameters of HDPE Socket Fusion Male Thread Tee for Fuel Gas
- Precise melt temperature control: 190°C ±3°C
- Gradient management of mold cooling rates
- Online Melt Flow Index monitoring
- Closed-loop pressure control during packing phase
- 100% automated ultrasonic wall thickness inspection
Raw Material Characteristics of HDPE Socket Fusion Male Thread Tee for Fuel Gas
- Density: 0.950–0.955 g/cm³ (ASTM D792)
- Tensile yield strength: ≥22 MPa (ISO 527-2)
- Elastic modulus: 900–1100 MPa
- Rapid Crack Propagation S4 test passed at ≤0°C
- Environmental Stress Crack Resistance: >1000 hours (ISO 13479)
Typical Applications of HDPE Socket Fusion Male Thread Tee for Fuel Gas
- The fitting provides branch connections from city gate stations to medium-pressure gas networks.
- serves flow division nodes in LPG storage and distribution facilities.
- is used for branch retrofits in industrial gas boiler supply systems.
- transitions between PE pipelines and steel valves.
Application Scenarios of HDPE Socket Fusion Male Thread Tee for Fuel Gas
- Branch connections with threaded interfaces in gas distribution networks — is the standard tee for these transitions.
