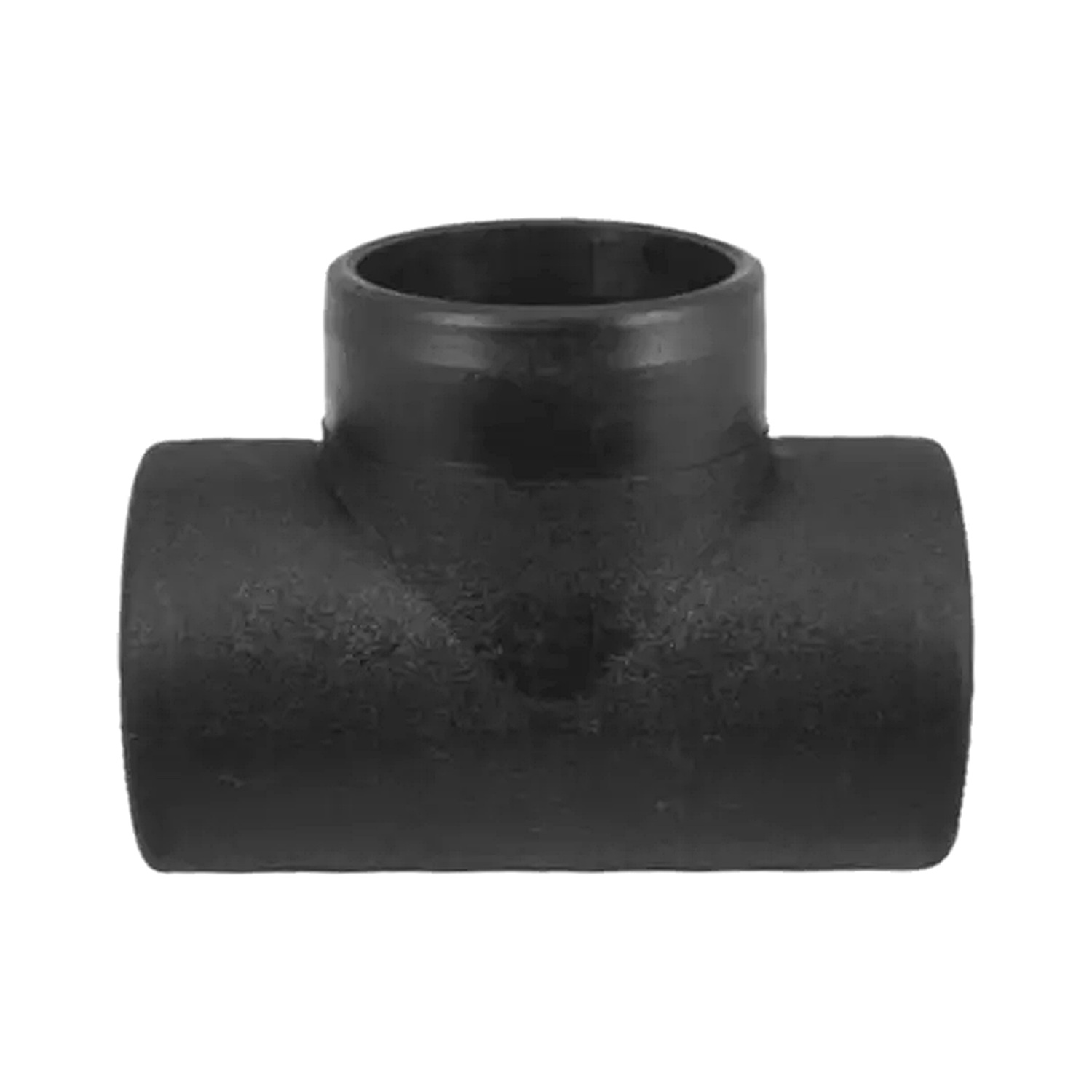

The HDPE Socket Fusion Equal Tee for Fuel Gas is a PE100 RC equal tee with socket fusion connections, designed for permanent leak-proof branch joints in gas distribution and industrial fuel gas piping systems.
|
Specifications
|
Item Number
|
|
20
|
BGET-20
|
|
25
|
BGET-25
|
|
32
|
BGET-32
|
|
40
|
BGET-40
|
|
50
|
BGET-50
|
|
63
|
BGET-63
|
|
75
|
BGET-75
|
Key Features of HDPE Socket Fusion Equal Tee for Fuel Gas
- PE100 RC slow crack growth resistant material.
- Full-size equal diameter branch configuration ensures balanced flow.
- Pre-formed socket ends for butt fusion give reliable joints.
- ISO 4437 gas permeability certification covers the fitting.
- 50-year design service life is expected from.
Manufacturing Process of HDPE Socket Fusion Equal Tee for Fuel Gas
Each is produced by CNC injection molding with precision mold temperature control.
Critical Process Parameters of HDPE Socket Fusion Equal Tee for Fuel Gas
- Melt temperature: 210±5°C
- Holding pressure: 75±5 MPa
- Cooling rate: ≤15°C/min
- Wall thickness tolerance: ≤5% of nominal
- Ovality: ≤0.5% of nominal diameter
Raw Material Characteristics of HDPE Socket Fusion Equal Tee for Fuel Gas
- Density: ≥950 kg/m³ (ISO 1183)
- Melt Flow Rate: 0.2–0.4 g/10min
- Slow Crack Growth Resistance: ≥500 hrs (ISO 13479)
- Full Notch Creep Test: ≥8760 hrs
- Carbon black content: 2.3±0.3%
Typical Applications of HDPE Socket Fusion Equal Tee for Fuel Gas
- is used in urban gas network branch retrofitting projects.
- serves industrial boiler gas supply systems.
- is installed at pressure regulation stations in gas-fired power plants.
- is used in LPG storage terminal process piping.
Application Scenarios of HDPE Socket Fusion Equal Tee for Fuel Gas
- Equal-diameter branch connections in gas distribution networks — is the standard tee for these branch points.
