Electrofusion tapping saddle tee specifically designed for hot tapping operations on live gas pipelines. It integrates an electrofusion welding base and a cuttable sealing structure. After welding, a branch path can be drilled through the main pipe without gas shutdown, enabling branch connection under pressure.
Need help? Contact our technical support team
+86 1551559 6408The HDPE Electrofusion Tapping Saddle Tee for Fuel Gas is a PE100 electrofusion saddle tee designed for hot tapping branch connections on live gas distribution pipelines. It provides a leak-free joint without interrupting gas service.

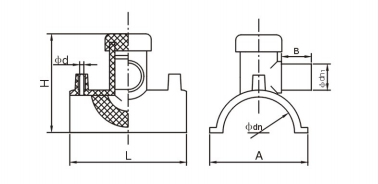

| 规格 (Specifications) | L (mm) | A (mm) | B (mm) | H (mm) | Φd (mm) |
|---|---|---|---|---|---|
| 63×25 | 110 | 104 | 50 | 129 | 4.7 |
| 63×32 | 110 | 104 | 50 | 129 | 4.7 |
| 90×25 | 140 | 130 | 75 | 185 | 4.7 |
| 90×50 | 140 | 130 | 75 | 185 | 4.7 |
| 90×63 | 140 | 130 | 75 | 185 | 4.7 |
| 110×20 | 130 | 155 | 55 | 145 | 4.7 |
| 110×25 | 130 | 155 | 55 | 145 | 4.7 |
| 110×32 | 130 | 155 | 55 | 145 | 4.7 |
| 110×50 | 145 | 160 | 75 | 175 | 4.7 |
| 110×63 | 145 | 160 | 75 | 175 | 4.7 |
| 160×63 | 190 | 240 | 85 | 225 | 4.7 |
| 160×90 | 190 | 240 | 160 | 225 | 4.7 |
| 200×63 | 190 | 255 | 85 | 215 | 4.7 |
| 200×90 | 190 | 255 | 160 | 215 | 4.7 |
| 250×63 | 190 | 265 | 85 | 215 | 4.7 |
| 250×90 | 190 | 265 | 160 | 215 | 4.7 |
| 315×63 | 190 | 310 | 85 | 240 | 4.7 |
| 315×90 | 190 | 310 | 160 | 240 | 4.7 |
Each is produced with a precisely formed cutting zone and embedded resistance wire for reliable electrofusion welding.
