The HDPE Electrofusion Blocking/Plugging Saddle for Fuel Gas is a PE100-grade electrofusion saddle designed for permanent sealing of abandoned branch outlets and temporary tapping holes on gas distribution pipelines.

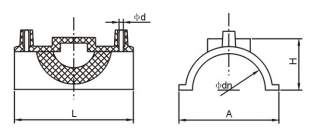

| 规格 (Specifications) | L (mm) | A (mm) | H (mm) | Φd (mm) |
|---|
| 90 | 145 | 154 | 68 | 4.7 |
| 110 | 145 | 160 | 60 | 4.7 |
| 160 | 190 | 230 | 78 | 4.7 |
| 200 | 190 | 235 | 90 | 4.7 |
| 250 | 190 | 300 | 65 | 4.7 |
| 315 | 190 | 300 | 75 | 4.7 |
Key Features of HDPE Electrofusion Blocking/Plugging Saddle for Fuel Gas
- Electrofusion welding: has built-in resistance wire for automatic welding with high joint strength and gas tightness.
- Blocking dedicated: forms a permanent seal directly on the saddle without cutting the main pipe.
- Material compatibility: provides homogeneous connection with PE80, PE100, and PE100RC pipes with no galvanic corrosion.
- Fuel gas resistant: meets rapid crack propagation and long-term hydrostatic strength requirements.
Manufacturing Process of HDPE Electrofusion Blocking/Plugging Saddle for Fuel Gas
Each is produced with precisely embedded resistance wire to enable automated electrofusion welding.
Critical Process Parameters of HDPE Electrofusion Blocking/Plugging Saddle for Fuel Gas
- Uniformity of resistance wire coil spacing and embedding depth.
- Cleanliness and oxide layer treatment of the welding interface.
- Calibration of electrofusion voltage and time to match pipe material.
Raw Material Characteristics of HDPE Electrofusion Blocking/Plugging Saddle for Fuel Gas
- PE80: MRS 8.0 MPa, suitable for medium and low pressure gas networks.
- PE100: MRS 10.0 MPa, preferred for high pressure gas service.
- PE100RC: combines PE100 strength with point load resistance.
Typical Applications of HDPE Electrofusion Blocking/Plugging Saddle for Fuel Gas
- The fitting provides permanent sealing of abandoned branch outlets on gas mains.
- safely plugs old openings after pipeline rerouting.
- closes temporary tapping holes after maintenance or testing.
Application Scenarios of HDPE Electrofusion Blocking/Plugging Saddle for Fuel Gas
- Nodes in urban medium/low pressure gas networks where reserved branches need to be blocked — is the standard fitting for these closures.
