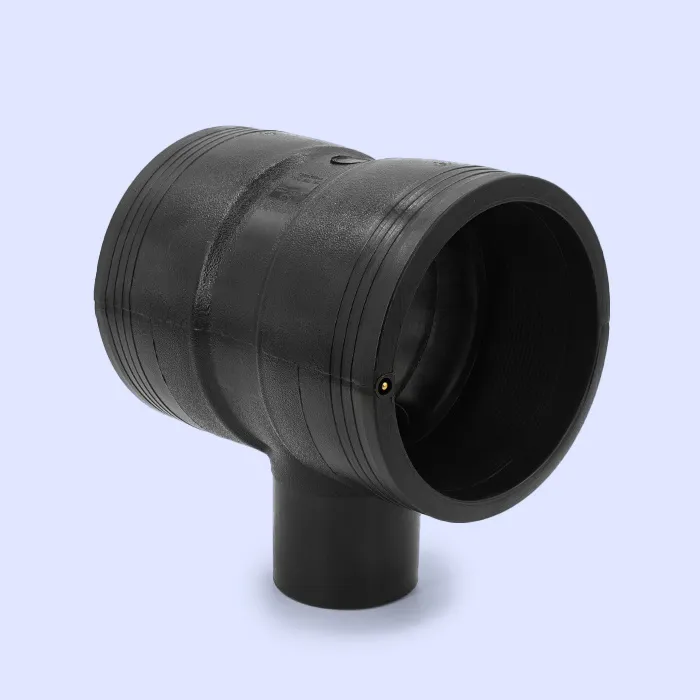

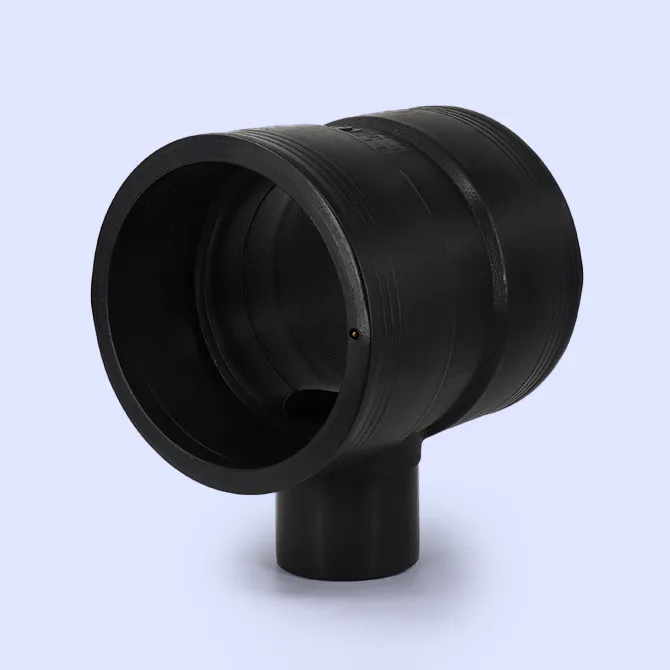

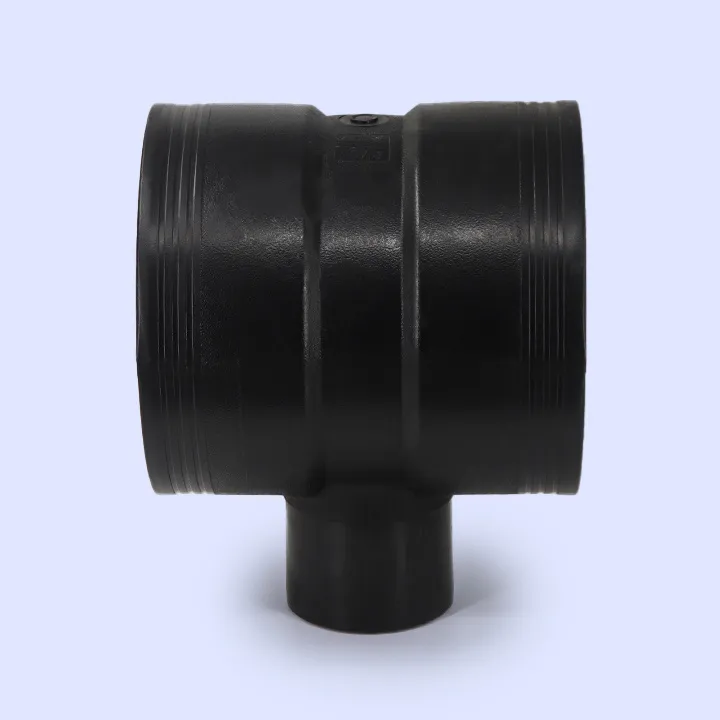

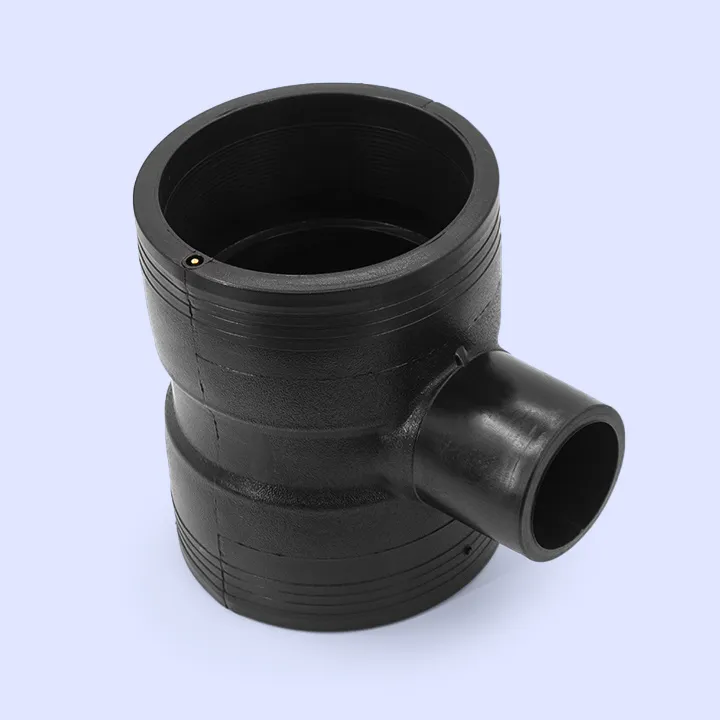

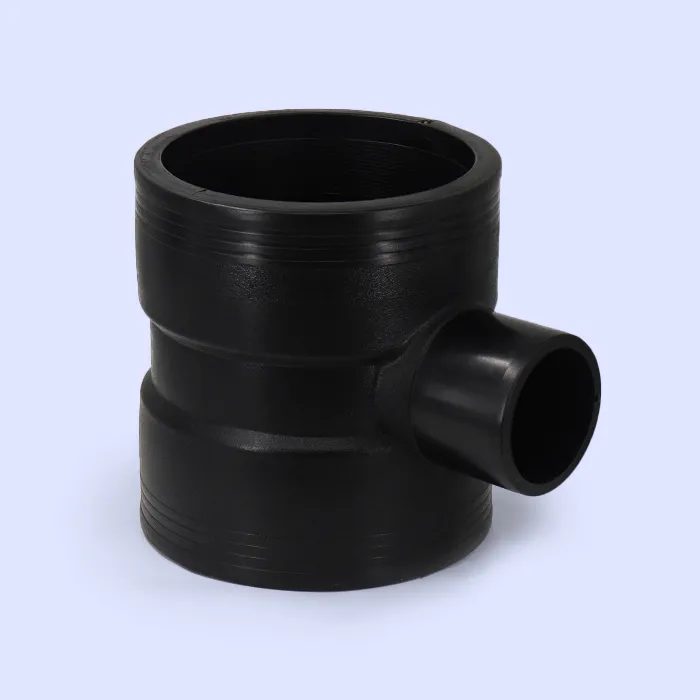

HDPE Electro Fusion Reducer Tee for Water

Diameter Range: 20 mm - 630 mm Pressure Rating: PN6 to PN16 (6-16 bar) Applicable Standards: ISO 4427, EN 12201, ISO 21307 Stock Availabi

HDPE Electro Fusion Reducer Tee for Water
View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1

HDPE Electro Fusion Reducer Tee for Water

Hot Product
High-Density Polyethylene (HDPE) electrofusion reducer tee designed for water transportation systems, utilizing electrofusion technology to ensure sealing integrity and structural reliability.
  • Diameter Range: 20 mm - 630 mm
  • Pressure Rating: PN6 to PN16 (6-16 bar)
  • Applicable Standards: ISO 4427, EN 12201, ISO 21307
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The HDPE Electro Fusion Reducer Tee for Water is an electrofusion tee with a reducing branch, designed for diameter transitions and branch connections in potable water and industrial water distribution systems.

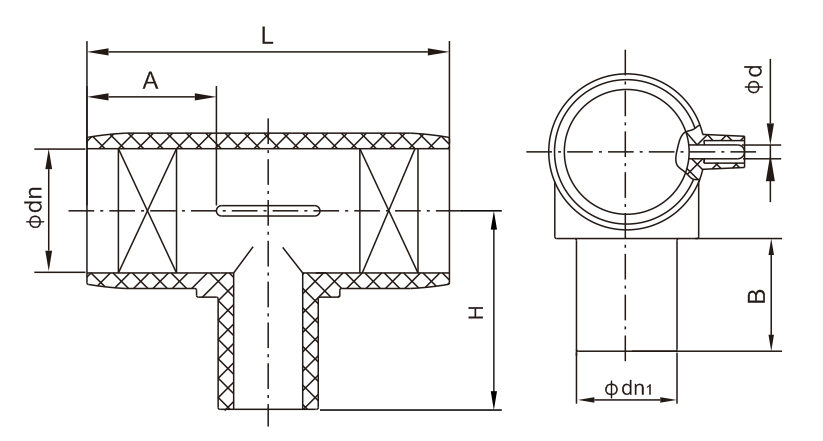

Specification Φdn L A H Φd PN16 PN10 PN20 PN25
32*25 107 54 42 4.7/4.0 √
40*32 123 40 67 4.7/4.0 √
110*50 214 75 95.5 4.7/4.0 √
110*63 214 75 98.5 4.7/4.0 √
110*75 214 75 101.5 4.7/4.0 √
110*90 214 75 108.8 4.7/4.0 √
125*75 260 80 118.25 4.7/4.0 √
125*90 260 80 114.5 4.7/4.0 √
125*110 260 80 118.5 4.7/4.0 √
140*90 281 85 123 4.7/4.0 √
140*110 281 85 126.75 4.7/4.0 √
160*50 263 93 123 4.7/4.0 √
160*63 263 93 125.5 4.7/4.0 √
160*75 263 93 130 4.7/4.0 √
160*90 315 93 134.5 4.7/4.0 √
160*110 315 93 137.5 4.7/4.0 √
160*125 315 93 142.5 4.7/4.0 √
160*140 315 93 140.9 4.7/4.0 √
200*50 295 104 147.5 4.7/4.0 √
200*63 295 104 150 4.7/4.0 √
200*75 295 104 154 4.7/4.0 √
200*90 295 104 158 4.7/4.0 √
200*110 295 104 161.5 4.7/4.0 √
200*125 360 104 167.5 4.7/4.0 √
200*160 360 104 168.5 4.7/4.0 √
225*90 395 120 173 4.7/4.0 √
225*110 395 120 176 4.7/4.0 √
225*160 395 120 186 4.7/4.0 √
225*200 395 120 187.5 4.7/4.0 √
250*75 354 125 183.5 4.7/4.0 √
250*90 354 125 189.25 4.7/4.0 √
250*110 354 125 191 4.7/4.0 √
250*125 354 125 195.5 4.7/4.0 √
250*160 437 125 205.4 4.7/4.0 √
250*200 437 125 205 4.7/4.0 √
280*110 480 125 223 4.7/4.0 √
280*160 480 125 217 4.7/4.0 √
280*200 480 125 221.5 4.7/4.0 √
280*250 480 125 4.7/4.0 √
315*90 398 133 229.5 4.7/4.0 √
315*110 398 133 231.5 4.7/4.0 √
315*160 398 133 240.85 4.7/4.0 √
315*200 518 133 243.5 4.7/4.0 √
315*250 518 133 250.5 4.7/4.0 √
355*110 577 140 257.5 4.7/4.0 √
355*160 577 140 267 4.7/4.0 √
355*200 577 140 267.5 4.7/4.0 √
355*250 577 140 279.5 4.7/4.0 √
355*315 577 140 276.5 4.7/4.0 √
400*110 338 143 285 4.7/4.0 √
400*160 338 143 294.25 4.7/4.0 √
400*200 338 143 294 4.7/4.0 √
400*250 623 143 303.75 4.7/4.0 √
400*315 623 143 304.3 4.7/4.0 √
450*110 703 156 310.75 4.7/4.0 √
450*160 703 156 321 4.7/4.0 √
450*200 703 156 320 4.7/4.0 √
450*250 703 156 330 4.7/4.0 √
450*315 703 156 331 4.7/4.0 √
450*400 703 156 338.5 4.7/4.0 √
500*110 495 151 342 4.7/4.0 √
500*160 495 151 351.5 4.7/4.0 √
500*200 495 151 351.75 4.7/4.0 √
500*250 495 151 361 4.7/4.0 √
500*315 720 151 359.5 4.7/4.0 √
500*400 720 151 369 4.7/4.0 √
560*200 803 168 381.5 4.7/4.0 √
560*250 803 168 390.5 4.7/4.0 √
560*400 803 168 401 4.7/4.0 √
630*110 705 185 421 4.7/4.0 √
630*160 705 185 431 4.7/4.0 √
630*200 705 185 431 4.7/4.0 √
630*250 705 185 438 4.7/4.0 √
630*315 705 185 438.5 4.7/4.0 √
630*400 705 185 447.5 4.7/4.0 √
630*500 930 84.5 453.5 4.7/4.0 √
Tee 315*90 398 135 218.5 4.7/4.0 √
Tee 315*110 398 135 221.5 4.7/4.0 √
Tee 315*160 398 135 233.5 4.7/4.0 √
Tee 315*200 518 135 235 4.7/4.0 √
Tee 315*250 518 135 243.5 4.7/4.0 √
Tee 355*110 585 140 249.5 4.7/4.0 √
Tee 355*160 585 140 259 4.7/4.0 √
Tee 355*200 585 140 257.5 4.7/4.0 √
Tee 355*250 585 140 269.25 4.7/4.0 √
Tee 355*315 585 140 268.5 4.7/4.0 √
Tee 400*110 447 143 275.5 4.7/4.0 √
Tee 400*160 447 143 284.85 4.7/4.0 √
Tee 400*200 447 143 290 4.7/4.0 √
Tee 400*250 620 143 293.5 4.7/4.0 √
Tee 400*315 620 143 292 4.7/4.0 √
Tee 500*110 500 150 341 4.7/4.0 √
Tee 500*160 500 150 338 4.7/4.0 √
Tee 500*200 500 150 338 4.7/4.0 √
Tee 500*250 500 150 347 4.7/4.0 √
Tee 500*315 737 150 347 4.7/4.0 √
Tee 500*400 737 150 356.25 4.7/4.0 √
Tee 630*110 710 184 401 4.7/4.0 √
Tee 630*160 710 184 408.5 4.7/4.0 √
Tee 630*200 710 184 409.5 4.7/4.0 √
Tee 630*250 710 184 419.25 4.7/4.0 √
Tee 630*315 710 184 419 4.7/4.0 √
Tee 630*400 710 184 427.5 4.7/4.0 √
Tee 630*500 932 187 433 4.7/4.0 √
Tee 710*200 792 214 455.5 4.7/4.0 √
Tee 710*315 792 214 465 4.7/4.0 √
Tee 710*400 792 214 472.25 4.7/4.0 √
Tee 710*500 792 214 478 4.7/4.0 √
Tee 800*160 816 227 500 4.7/4.0 √
Tee 800*200 816 227 503.25 4.7/4.0 √
Tee 800*315 816 227 515 4.7/4.0 √
Tee 800*400 816 227 521 4.7/4.0 √
Tee 800*500 816 227 527 4.7/4.0 √
50*40 148 54.7 63.5 4.7/4.0 √
63*50 164 55 71.2 4.7/4.0 √
75*63 183 54.4 81.4 4.7/4.0 √
90*50 214 64.4 86.7 4.7/4.0 √
90*63 214 64.4 89.2 4.7/4.0 √
90*75 214 64.4 94.2 4.7/4.0 √
110*90 240 75 109.5 4.7/4.0 √
160*110 313 93 145.5 4.7/4.0 √
200*110 360 105 167.5 4.7/4.0 √
200*160 360 105 182.5 4.7/4.0 √
250*200 438 125 219.5 4.7/4.0 √
250*110 441 126 197.5 4.7/4.0 √
250*160 441 126 211.5 4.7/4.0 √
315*110 511 134 246.5 4.7/4.0 √
315*160 511 134 246.5 4.7/4.0 √
315*200 511 134 249 4.7/4.0 √
315*250 511 134 260.5 4.7/4.0 √
50*50 148 54.7 63.75 4.7/4.0 √
63*63 164 54.9 74.1 4.7/4.0 √
75*75 183 54.4 86.4 4.7/4.0 √
90*90 213 70 99.4 4.7/4.0 √
110*110 240 75 112 4.7/4.0 √
160*160 313 93 158 4.7/4.0 √
200*200 360 105 182.75 4.7/4.0 √
250*250 438 125 219 4.7/4.0 √
315*315 511 134 261 4.7/4.0 √
Tee 160*110 318 92 143.5 4.7/4.0 √
Tee 200*160 373 93 170 4.7/4.0 √

Key Features of HDPE Electro Fusion Reducer Tee for Water

  • Electrofusion technology ensures leak-proof sealing.
  • Reducer design accommodates pipe diameter transitions.
  • HDPE material resists chemical corrosion and UV degradation.
  • Smooth inner surface minimizes hydraulic losses.
  • Designed service life exceeding 50 years.
  • Suitable for buried or above-ground installations.

Manufacturing Process of HDPE Electro Fusion Reducer Tee for Water

Each is produced by injection molding with integrated electrofusion coil technology.

Critical Process Parameters of HDPE Electro Fusion Reducer Tee for Water

  • Injection temperature control: 190–230°C
  • Electrofusion coil positioning accuracy ±0.2mm
  • Cooling rate gradient management
  • Wall thickness uniformity tolerance ≤5%
  • Melt Flow Rate monitoring
  • Oxidation Induction Time testing

Raw Material Characteristics of HDPE Electro Fusion Reducer Tee for Water

  • Density: 0.950–0.965 g/cm³ (ISO 1183)
  • Tensile strength: ≥25 MPa (ISO 527)
  • Elastic modulus: ≥1000 MPa (ISO 178)
  • Environmental stress crack resistance: >1000 hrs (ISO 13479)
  • Thermal stability: OIT >20 min
  • Vicat softening point: ≥120°C (ISO 306)

Typical Applications of HDPE Electro Fusion Reducer Tee for Water

  • is used for branch connections in municipal water supply networks.
  • serves retrofitting industrial water circulation systems.
  • is installed in main pipe distribution in agricultural irrigation.
  • is used at diameter transition nodes in building plumbing.

Application Scenarios of HDPE Electro Fusion Reducer Tee for Water

  • 90° branch connections with diameter transitions — is the standard tee for these applications.
