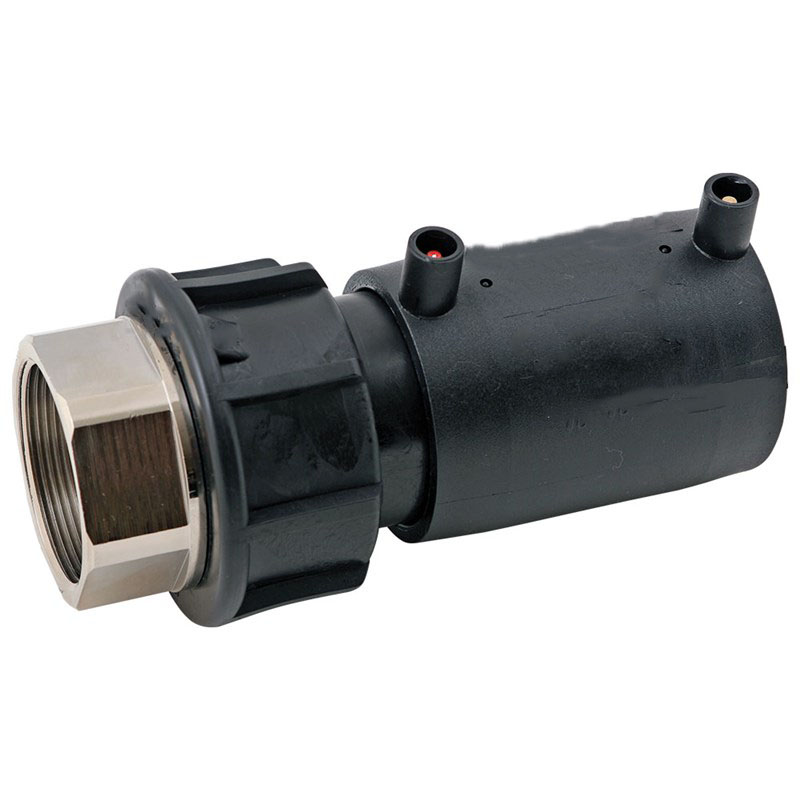

The HDPE Electro Fusion Female Thread Coupler for Water is an electrofusion coupler with a female threaded end, designed for reliable transitions between HDPE pipe and threaded metal equipment in water systems.
| 规格 (Specifications) |
|---|
| 20×1/2F |
| 20×3/4F |
| 25×1/2F |
| 25×3/4F |
| 25×1F |
| 32×1/2F |
| 32×3/4F |
| 32×1F |
| 40×1%F |
| 50×1%F |
| 63×2F |
| 75×2%F |
| 90×3F |
| 110×4F |
Key Features of HDPE Electro Fusion Female Thread Coupler for Water
- Electrofusion integration ensures leak-free joints.
- Female thread interface is compatible with metal piping systems.
- Fully automated fusion process eliminates human error.
- Resistance to chemical corrosion and UV degradation protects.
Manufacturing Process of HDPE Electro Fusion Female Thread Coupler for Water
Each is produced by injection molding combined with precision machining.
Critical Process Parameters of HDPE Electro Fusion Female Thread Coupler for Water
- Electrofusion coil positioning accuracy ≤±0.2mm
- Fusion zone wall thickness uniformity ≥95%
- Thread tolerance grade: ISO 228 Class G
- Cooling rate control: 2–3°C/min
Raw Material Characteristics of HDPE Electro Fusion Female Thread Coupler for Water
- Density: 0.950–0.955 g/cm³ (ISO 1183)
- Melt Flow Rate: 0.25 g/10min (190°C/5kg)
- Slow Crack Growth Resistance >5000h (ISO 13479)
- Hydrostatic Strength ≥12.4 MPa (20°C, 100h)
Typical Applications of HDPE Electro Fusion Female Thread Coupler for Water
- is used for transition connections between HDPE pipes and ball valves in underground water networks.
- serves vibration-damping flexible joints at water treatment plant pump discharges.
- is installed at manhole interface modifications for road-crossing pipelines.
- is used for replacement of fittings in low-pressure sections of desalination plants.
Application Scenarios of HDPE Electro Fusion Female Thread Coupler for Water
- Transitions between HDPE pipe and threaded metal equipment — is the standard coupler for these connections.
