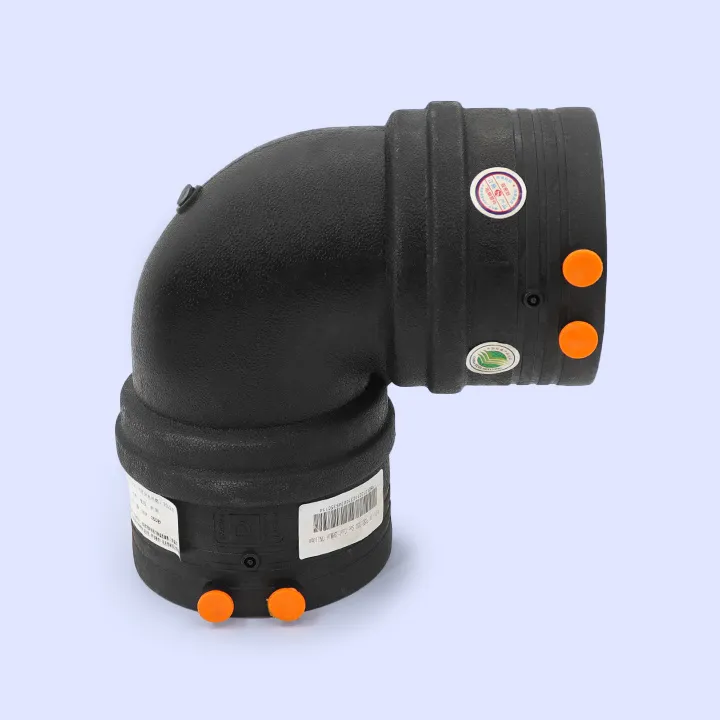

HDPE Electro Fusion Double Sealing 90° Elbow for Water

Key Features of HDPE Electro Fusion Double Sealing 90° Elbow for Water

• Dual-seal structure for redundant leak prevention.
• Electrofusion integration eliminates mechanical stress.
• 90° standard bend optimizes fluid dynamics.
• Fully automated fusion process monitoring.

Manufacturing Process of HDPE Electro Fusion Double Sealing 90° Elbow for Water

Each is produced by injection molding with pre-embedded resistance wires.

Critical Process Parameters of HDPE Electro Fusion Double Sealing 90° Elbow for Water

• Melt temperature control: 210±10°C
• Pressure-holding cooling gradient: 0.5°C/sec
• Resistance wire embedding depth tolerance: ±0.1mm
• Sealing groove coaxiality ≤0.3mm

Raw Material Characteristics of HDPE Electro Fusion Double Sealing 90° Elbow for Water

• Minimum Required Strength: 8.0–10.0 MPa (ISO 12162)
• Melt Flow Rate: 0.15–0.40 g/10min (190°C/5kg)
• Oxidation Induction Time >20min (ASTM D3895)
• Density: 0.950–0.955 g/cm³ (ISO 1183)

Typical Applications of HDPE Electro Fusion Double Sealing 90° Elbow for Water

• is used in municipal potable water distribution networks.
• serves industrial cooling water circulation systems.
• is installed for agricultural irrigation mainline directional changes.
• is used in building water supply riser connections.

Application Scenarios of HDPE Electro Fusion Double Sealing 90° Elbow for Water

• Right-angle directional changes in water mains and pump stations — is the standard elbow for these transitions.
