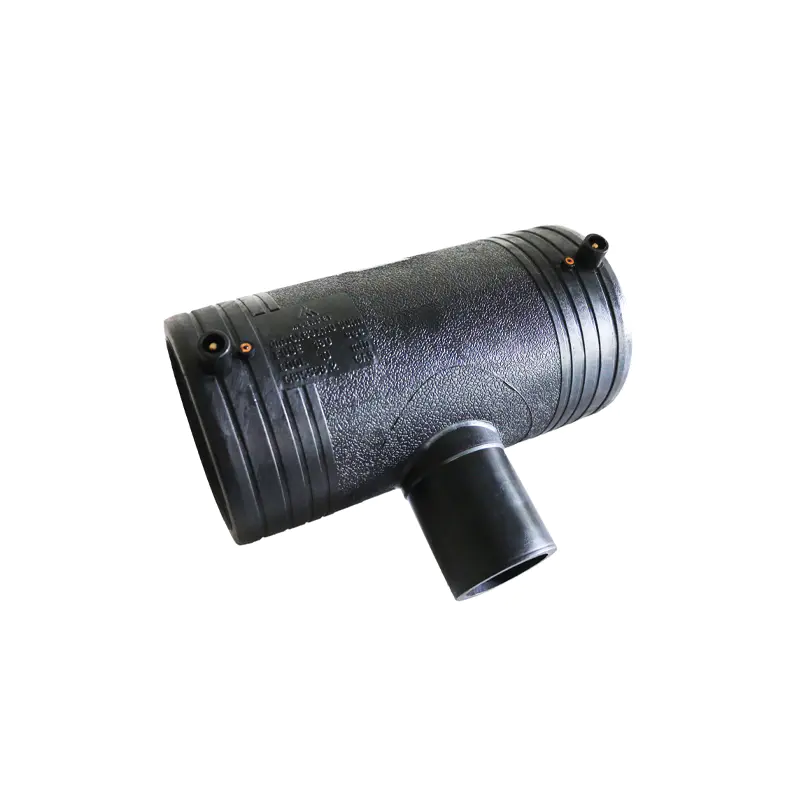

HDPE Electro Fusion Reducer Tee for Fuel Gas

Diameter Range: 20–630 mmPressure Rating: PN16 (SDR11)Applicable Standards: ISO 4437, EN 1555, ASTM F1055Stock Availability: In stockSample Policy: Free sample

HDPE Electro Fusion Reducer Tee for Fuel Gas

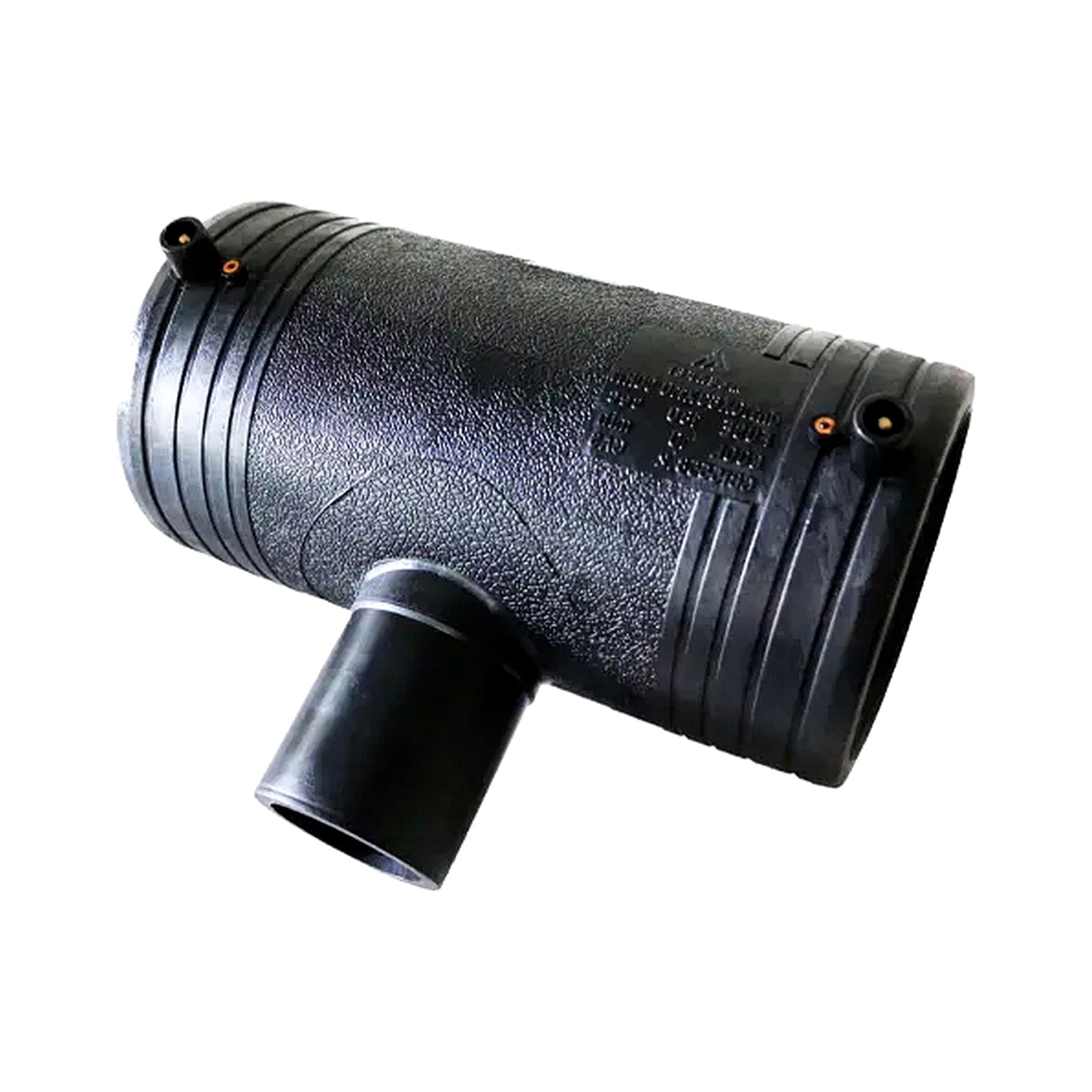

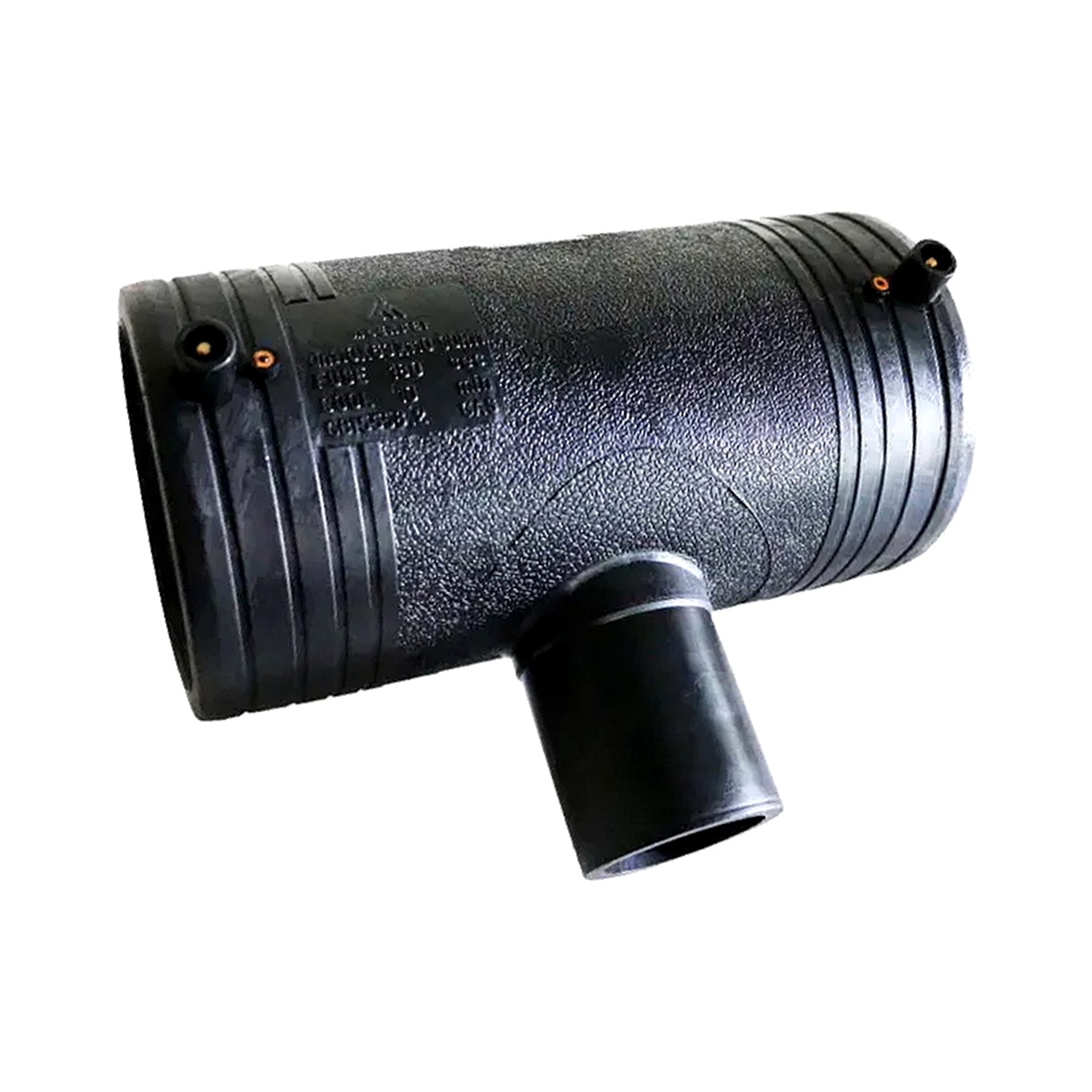

View 1

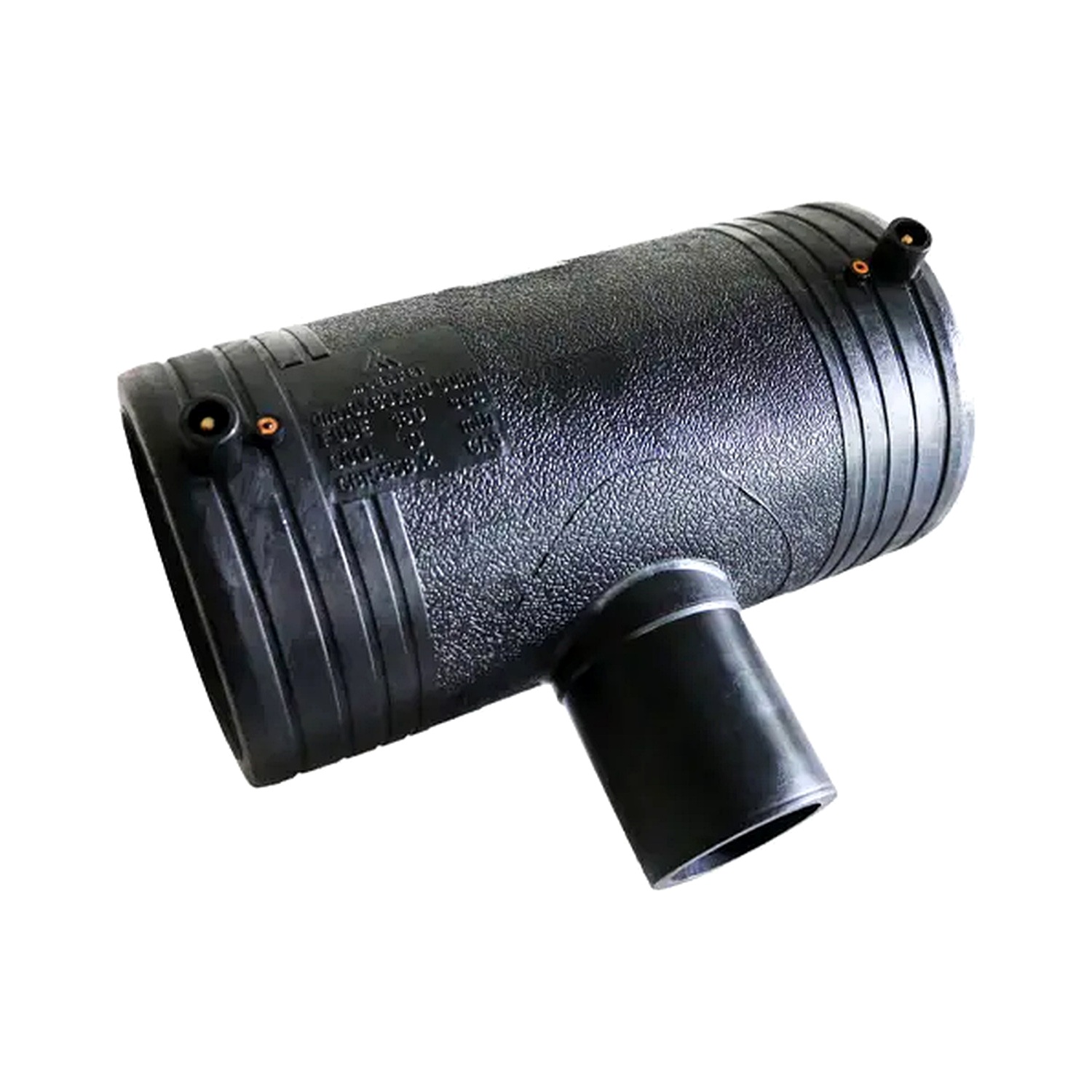

HDPE Electro Fusion Reducer Tee for Fuel Gas

Hot Product
Fuel gas-specific electro fusion reducer tee manufactured from PE100 RC material, compliant with international gas transportation safety standards for high-pressure gas network branching.
  • Diameter Range: 20–630 mm
  • Pressure Rating: PN16 (SDR11)
  • Applicable Standards: ISO 4437, EN 1555, ASTM F1055
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408
HDPE Electro Fusion Reducer Tee for Fuel Gas
Specifications DNxDNxDN Item DNxDNxDN L L L Net Weight(Kg) Packing
25x20x25 BGET 25x20x25 25x20x25 97 41 67 0.08 200
32x20x32 BGET 32x20x32 32x20x32 106 41 76 0.09 200
32x25x32 BGET 32x25×32 32x25x32 118 46 73 0.1 200
40x25x40 BGET 40x25x40 40x25x40 127 51 84 0.15 100
40x32x40 BGET 40x32x40 40x32x40 127 51 84 0.15 100
50x20x50 BGET50x20x50 50x20x50 152 46 82 0.19 80
50x25x50 BGET 50x25×50 50x25x50 152 47 83 0.22 80
50x32x50 BGET 50x32x50 50x32x50 152 51 87 0.23 80
50×40x50 BGET 50x40×50 50x40x50 152 51 87 0.21 80
63x20x63 BGET 63x20x63 63x20x63 130 41 47 0.4 50
63x25x63 BGET 63x25x63 63x25x63 173 49 97 0.4 50
63×32x63 BGET 63x32x63 63x32x63 173 49 97 0.38 50
63x40x63 BGET 63x40x63 63×40x63 173 49 97 0.4 50
63×50x63 BGET 63x50x63 63x50x63 173 53 97 0.43 50
75x63x75 BGET 75x63×75 75x63x75 190 63 117 0.68 30
90x32x90 BGET 90x32x90 90x32x90 215 52 117 0.81 30
90×40x90 BGET 90x40x90 90x40x90 215 49 112 0.79 30
90x50x90 BGET 90x50x90 90x50x90 215 55 120 0.8 30
90x63x90 BGET 90x6390 90x63x90 215 63 122 0.82 30
90x75x90 BGET 90x75×90 90x75x90 207 70 122 0.99 22
110×32x110 BGET 110x32x110 110x32x110 176 44 125 1.32 15
110x40x110 BGET 110x40x110 110x40x110 244 49 125 1.29 15
110×50x110 BGET 110x50x110 110x50x110 244 55 135 132 15
110x63x110 BGET 110x63x110 110x63x110 244 63 136 1.4 10
110×75x110 BGET 110x75x110 110x75x110 211 70 150 1.42 10
110x90x110 BGET 110x90x110 110x90x110 244 79 152 1.51 10
125x110x125 BGET 125x110x125 125x110x125 261 82 145 2.08 10
140x110x140 BGET 140x110x140 140x110x140 277 82 190 2.82 5
140x125×140 BGET 140x125x140 140x125x140 277 87 190 3.16 5
160×50x160 BGET 160x50x160 160x50x160 335 63 190 3.82 5
160x63x160 BGET 160x63x160 160x63x160 335 63 190 3.58 5
160×75x160 BGET 160x75x160 160x75x160 286 70 190 3.27 6
160×90x160 BGET 160x90x160 160x90x160 335 77 190 3.66 5
160x110x160 BGET 160x110x160 160x110x160 286 82 190 3.78 5
160x125x160 BGET 160x125x160 160x125x160 298 87 190 4.27 5
160x140x160 BGET 160x140x160 160x140x160 310 92 190 4.74 5
180x160x180 BGET 180x160x180 180x160x180 345 98 190 5.28 4
200x63x200 BGET 200x63x200 200x63x200 373 63 224 5.93 3
200x90x200 BGET 200x90x200 200x90x200 373 79 224 6.2 3
200x110x200 BGET 200x110x200 200x110x200 373 82 224 6.2 2
200x125x200 BGET 200x125x200 200x125x200 332 87 224 5.55 2
200x140x200 BGET 200x140x200 200x140x200 332 92 224 6 2
200x160x200 BGET 200x160x200 200x160x200 373 98 236 6.57 2
200x180x200 BGET 200x180x200 200x180x200 364 105 236 7.1 2
225x200x225 BGET 225x200x225 225x200x225 401 112 270 8.95 2
250x110x250 BGET 250x110x250 250x110x250 320 82 270 9.1 2
250x125x250 BGET 250x125x250 250x125x250 360 87 270 8.84 2
250x140x250 BGET 250x140x250 250x140x250 360 92 270 9.46 2
250x160x250 BGET 250x160x250 250x160x250 420 104 270 9.5 2
250x180x250 BGET 250x180x250 250x180x250 392 105 287 9.98    2
250x200x250 BGET 250x200x250 250x200x250 420 118 287 10    2
250x225x250 BGET 250x225x250 250x225x250 431 120 287 12.25    2
280x250x280 BGET 280x250x280 280x250x280 485 129 327 16.61    2
315x110x315 BGET 315x110×315 315x110x315 370 82 310 14    1
315x160x315 BGET 315x160x315 315x160x315 442 98 320 16.61    1
315x200x315 BGET 315x200x315 315x200x315 520 116 320 17.4    1
315x250x315 BGET 315x250x315 315x250x315 520 135 336 25    1

Key Features

  • Reducer branch design for seamless transition between different pipe diameters
  • Embedded heating coils ensure 360° uniform fusion
  • Triple-leak-proof structure guarantees absolute sealing for gas transportation

Typical Applications

  • Urban underground gas pipeline renovation projects
  • High-pressure transmission systems for LNG refueling stations
  • Main gas distribution pipelines in industrial facilities

Manufacturing Process

Computer-controlled electrofusion injection molding

  • Fusion zone temperature control accuracy: ±2℃
  • Molecular orientation deviation ≤3%
  • Cooling rate gradient ≤5℃/min

Raw Material Characteristics

  • Density: 955 kg/m³ (ISO 1183)
  • Melt Flow Index: 0.25 g/10min (190℃/5kg)
  • Hydrostatic strength: 10.0 MPa (20℃/50 years)
  • Diameter transition in medium-pressure gas mains
  • Inlet pipeline connections for gas pressure regulating stations
  • Gas casing connections for road/railway crossings
