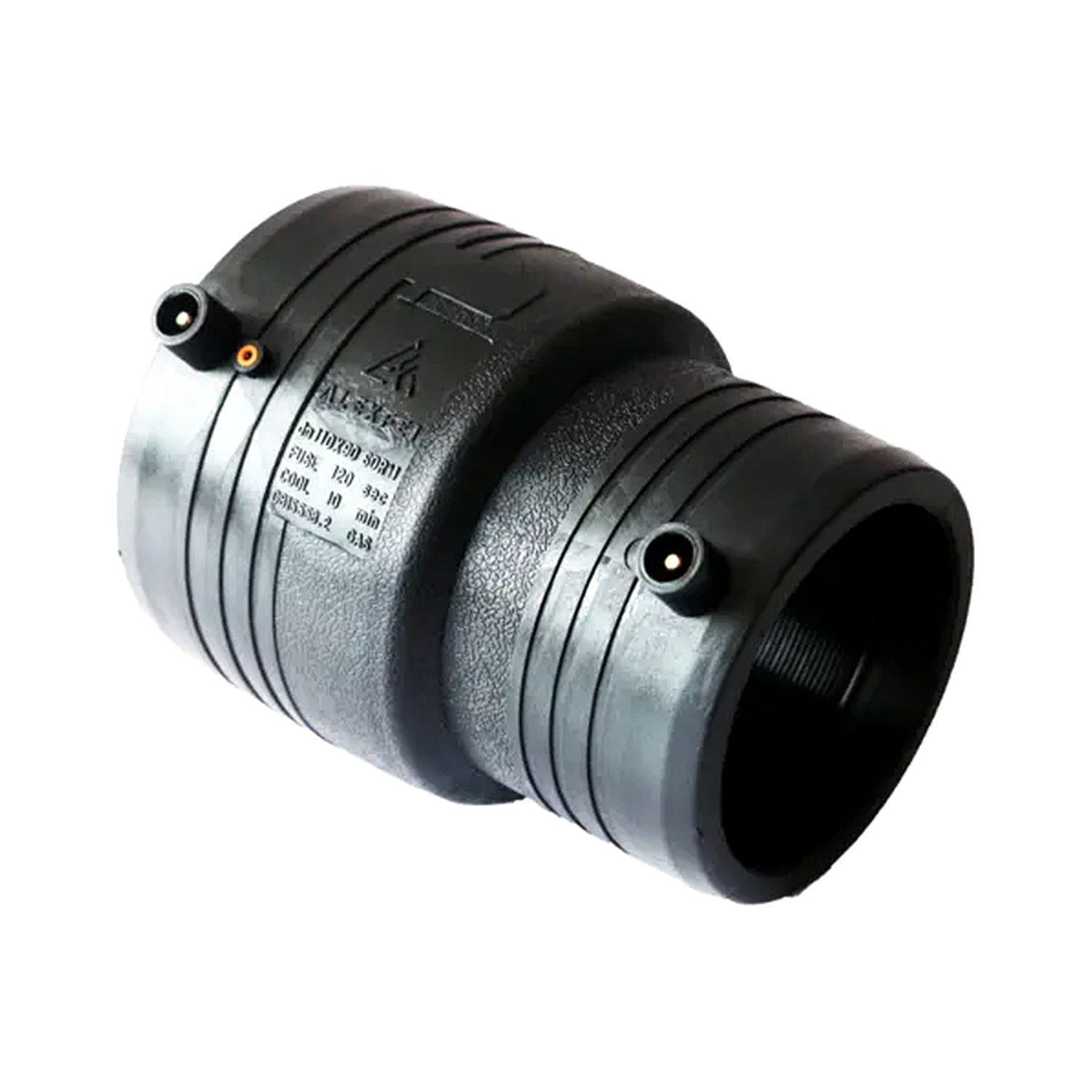

HDPE Electro Fusion Reducer for Fuel Gas

Diameter Range: 20mm - 1200mm Pressure Rating: PN10 - PN16 Applicable Standards: ISO 4437, EN 1555, ASTM F1055, DIN 8074 Stock Availabili

HDPE Electro Fusion Reducer for Fuel Gas

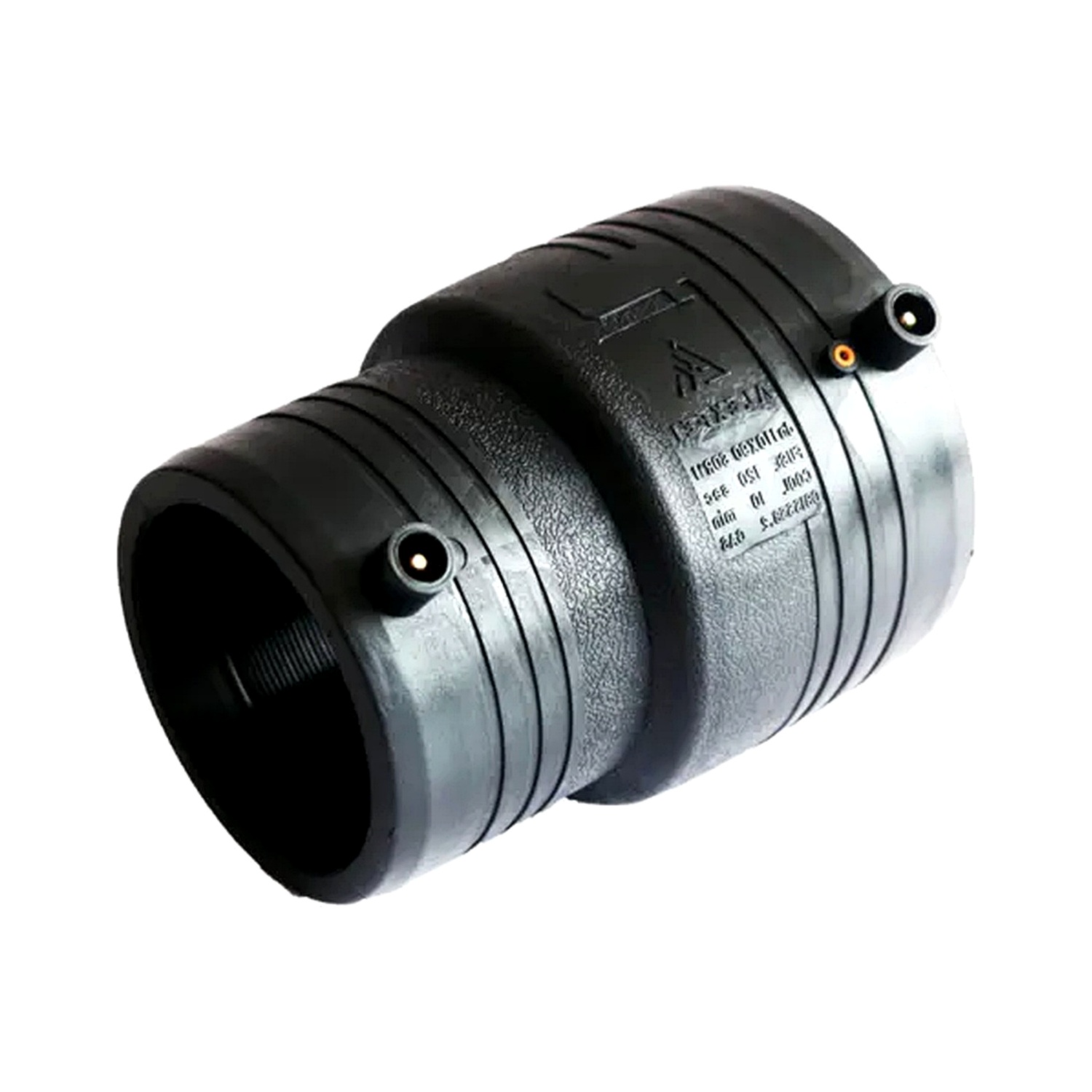

View 1 View 1 View 1

HDPE Electro Fusion Reducer for Fuel Gas

Hot Product
HDPE electro fusion reducer designed for fuel gas transportation, manufactured from PE100 material to ensure secure connections, suitable for high-pressure gas pipeline systems.
  • Diameter Range: 20mm - 1200mm
  • Pressure Rating: PN10 - PN16
  • Applicable Standards: ISO 4437, EN 1555, ASTM F1055, DIN 8074
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The HDPE Electro Fusion Reducer for Fuel Gas is a PE100 electro fusion reducer designed for permanent diameter transitions in gas distribution and industrial fuel gas piping. Its integrated electro fusion elements ensure leak-proof connections.

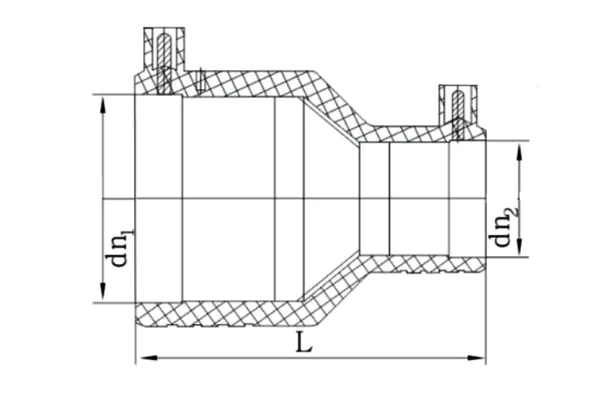

HDPE Electro Fusion Reducer for Fuel Gas
Spedifications  DNxDN ltem DNxDN L Net Weight(Kg) Packing
25x20 BGEY 25x20 25x20 100 0.05 300
32x20 BGEY 32x20 32x20 87 0.06 300
32x25 BGEY 32x25 32x25 100 0.07 250
40x20 BGEY 40x20 40x20 96.5 0.1 200
40x25 BGEY 40x25 40x25 99 0.09 200
40x32 BGEY 40x32 40x32 100 0.08 250
50x25 BGEY 50x25 50x25 115 0.13 150
50x32 BGEY 50x32 50x32 109 0.13 150
50x40 BGEY 50x40 50x40 109 0.14 150
63x32 BGEY 63x32 63x32 121 0.17 100
63x40 BGEY 63x40 63x40 121 0.17 100
63x50 BGEY 63x50 63x50 122 0.2 100
75x50 BGEY 75x50 75x50 129 0.26 50
75x63 BGEY 75x63 75x63 129 0.27 50
90x50 BGEY 90x50 90x50 145 0.43 50
90x63 BGEY 90x63 90x63 137 0.46 50
90x75 BGEY 90x75 90x75 169 0.41 40
110x50 BGEY 110x50 110x50 145 0.56 48
110x63 BGEY 110x63 110x63 167 0.69 30
110x75 BGEY 110x75 110x75 167 0.75 35
110x90 BGEY 110x90 110x90 172 0.78 20
125x63 BGEY 125x63 125x63 153 0.86 15
125x75 BGEY 125x75 125x75 160 0.92 15
125x90 BGEY 125x90 125x90 158 0.99 15
125x110 BGEY 125x110 125x110 173 1.08 15
140x110 BGEY 140x110 140x110 185 1.38 15
160x50 BGEY 160x50 160x50 235 1.78 18
160x75 BGEY 160x75 160x75 184 1.46 24
160x90 BGEY 160x90 160x90 180 1.77 15
160x110 BGEY 160x110 160x110 186 1.78 12
160x125 BGEY 160x125 160x125 242 1.98 12
160x140 BGEY 160x140 160x140 194 1.48 18
180x160 BGEY 180x160 180x160 220 2.72 10
200x50 BGEY 200x50 200x50 255 2.6 8
200x63 BGEY 200x63 200x63 265 2.6 8
200x75 BGEY 200x75 200x75 260 2.7 8
200x90 BGEY 200x90 200x90 224 2.9 6
200x110 BGEY 200x110 200x110 224 3.14 5
200x125 BGEY 200x125 200x125 215 2.23 12
200x140 BGEY 200x140 200x140 215 2.23 12
200x160 BGEY 200x160 200x160 224 3.31 5
225x110 BGEY 225x110 225x110 223 2.81 10
225x160 BGEY 225x160 225x160 232 3.04 10
225x200 BGEY 225x200 225x200 238 4.25 4
250x110 BGEY 250x110 250x110 260 5.2 4
250x160 BGEY 250x160 250x160 272 5.67 4
250x200 BGEY 250x200 250x200 254 12.5 2
250x225 BGEY 250x225 250x225 252 4.32 4
280x250 BGEY 280x250 280x250 275 7.5 4
315x160 BGEY 315x160 315x160 328 9.55 2
315x200 BGEY 315x200 315x200 311 10.25 2
315x250 BGEY 315x250 315x250 283 21.85 1
355x200 BGEY 355x200 355x200 272 9.6 5
355x250 BGEY 355x250 355x250 297 9.6 5
355x315 BGEY 355x315 355x315 285 10.16 3
400x315 BGEY 400x315 400x315 307 13.12 4
400x355 BGEY 400x355 400x355 311 13.56 3

Key Features of HDPE Electro Fusion Reducer for Fuel Gas

  • Electro fusion technology ensures leak-proof sealing.
  • PE100 material offers excellent chemical resistance.
  • Design complies with international gas pipeline safety standards.
  • Lightweight structure allows easy installation and maintenance.
  • High durability gives a service life exceeding 50 years.

Manufacturing Process of HDPE Electro Fusion Reducer for Fuel Gas

Each is produced by injection molding with integrated electro fusion elements.

Critical Process Parameters of HDPE Electro Fusion Reducer for Fuel Gas

  • Melt temperature control: 200–220°C
  • Resistance calibration accuracy of electro fusion elements ±2%
  • Cooling rate management to prevent internal stresses
  • Pressure testing at 1.5x working pressure
  • Surface treatment for enhanced connection compatibility

Raw Material Characteristics of HDPE Electro Fusion Reducer for Fuel Gas

  • Minimum Required Strength ≥10 MPa
  • Density range: 0.950–0.965 g/cm³
  • Excellent resistance to Slow Crack Growth
  • Melt Flow Rate: 0.2–0.4 g/10min
  • Environmental Stress Crack Resistance >1000 hours

Typical Applications of HDPE Electro Fusion Reducer for Fuel Gas

  • is used for pipe diameter transitions in urban gas distribution networks.
  • serves connection points in industrial fuel transportation systems.
  • is installed in compressed natural gas stations.
  • is used in LPG distribution networks.
  • is applied in renewable energy gas infrastructure.

Application Scenarios of HDPE Electro Fusion Reducer for Fuel Gas

  • Diameter transitions in underground gas main lines and industrial piping — is the standard reducer for these size changes.
