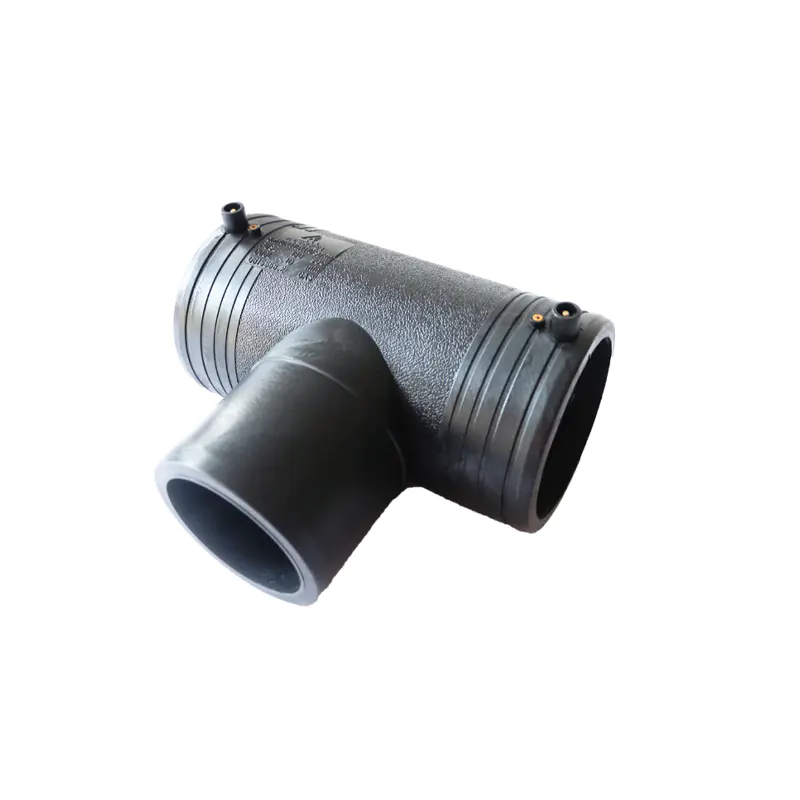

HDPE Electro Fusion Equal Tee for Fuel Gas

Diameter Range: 20–315 mmPressure Rating: PN10–PN16Applicable Standards: ISO 4437, EN 1555, ISO 8085-2, EN 1555-3Stock Availability: In stockSample Policy: Free

HDPE Electro Fusion Equal Tee for Fuel Gas

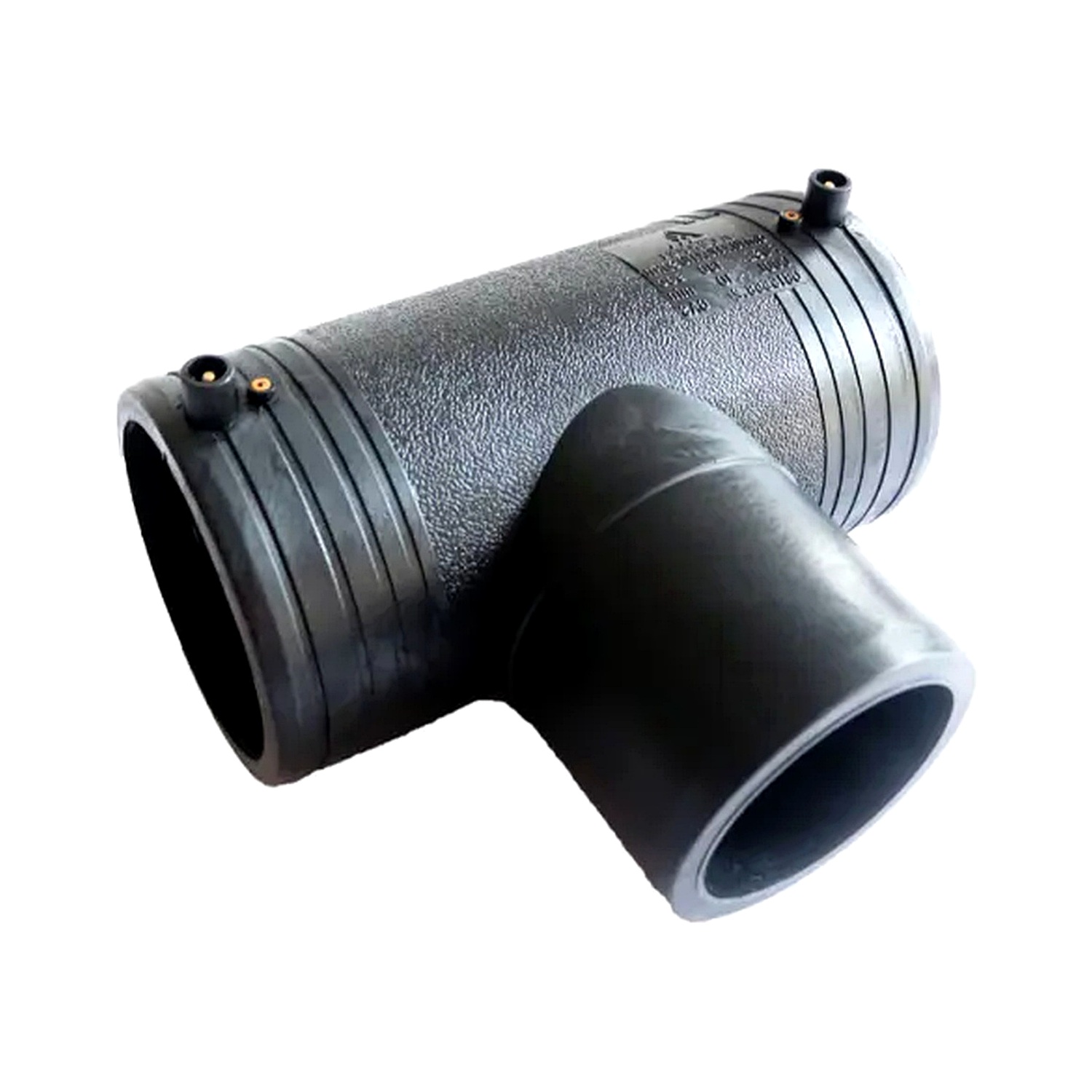

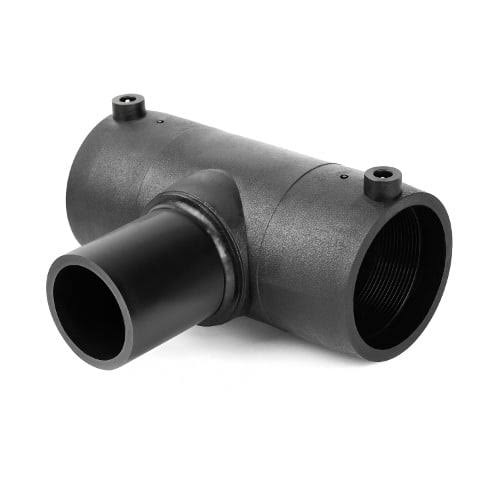

View 1

HDPE Electro Fusion Equal Tee for Fuel Gas

Hot Product
HDPE electrofusion equal tee manufactured from PE100 RC material, specifically engineered for fuel gas distribution systems, compliant with international safety standards to ensure high-pressure sealing and long-term reliability.
  • Diameter Range: 20–315 mm
  • Pressure Rating: PN10–PN16
  • Applicable Standards: ISO 4437, EN 1555, ISO 8085-2, EN 1555-3
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

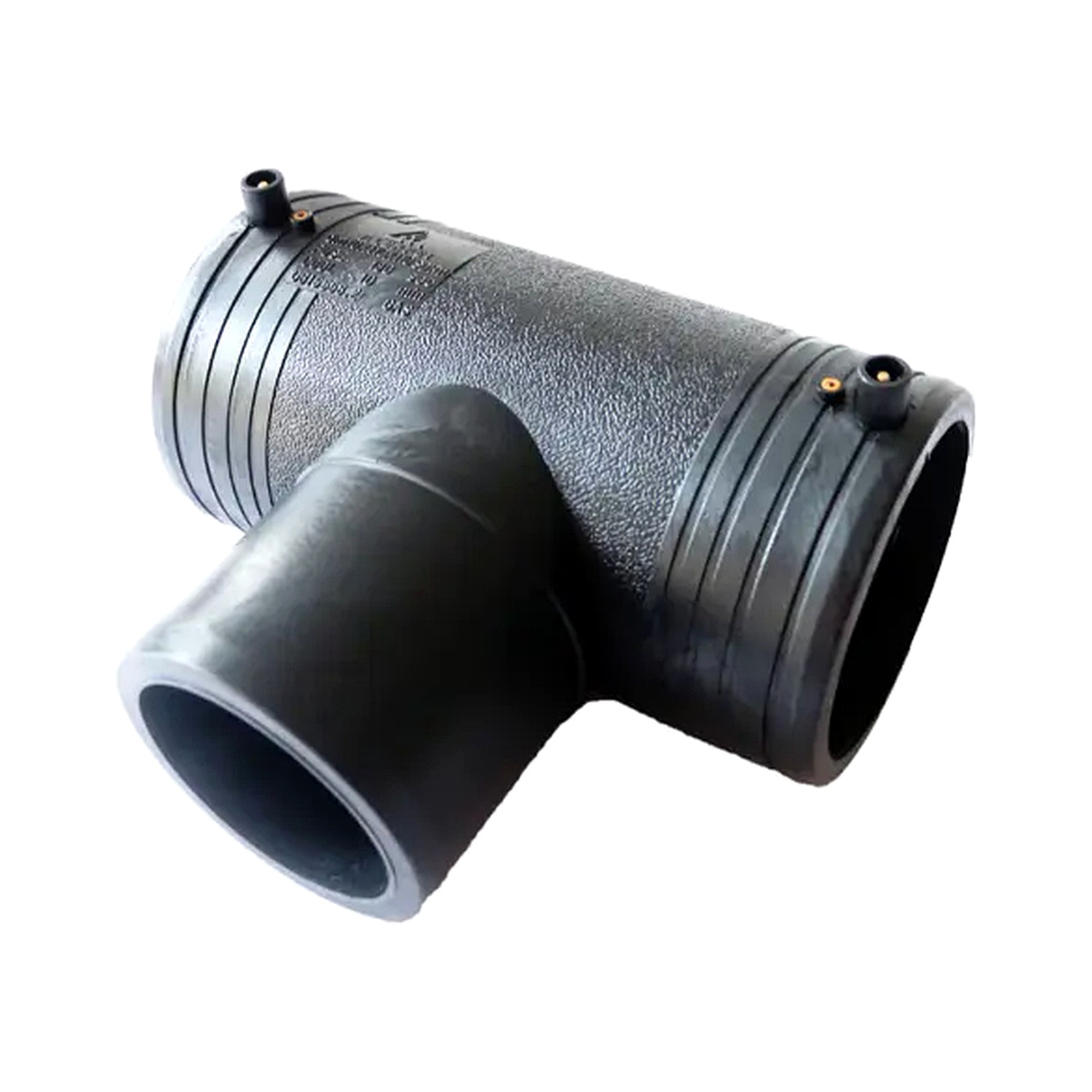

HDPE Electro Fusion Equal Tee for Fuel Gas
Specifications DNxDNxDN Item DNxDNxDN L L L Net Weight(Kg) Packing
20x20x20 BGET 20x20x20   20x20x20 117  41 64 0.06 250
25x25x25 BGET 25x25x25   25x25x25 120  48 73 0.08 200
32x32x32 BGET 32x32x32   32x32x32 118  46 73 0.12 100
40x40x40 BGET 40x40x40   40x40x40 127  51 84 0.16 100
50x50x50 BGET 50x50x50   50x50x50 152  55 89 0.25 70
63x63x63 BGET 63x63x63   63x63x63 173  63 109 0.45 50
   75x75x⁷5 BGET 75x75x75   75x75x⁷5 190  70 126 0.61 25
   90x90x90 BGET 90x90x90   90x90x90 215  79 141 0.95 20
 110x110x110 BGET 110x110x110 110x110x110 244  82 158 1.61 10
 125x125x125 BGET 125x125x125 125x125x125 261  87 174 2.2 10
 140x140x140 BGET 140x140x140 140x140x140 277  92 193 3.17 8
 160x160x160 BGET 160x160x160 160x160x160 335  98 207 4.2 4
 180x180x180 BGET 180x180x180 180x180x180 345 105 229 5.45 4
 200x200x200 BGET 200x200x200 200x200x200 373 112 250 9.67 2
 225x225x225 BGET 225x225x225 225x225x225 401 120 257 9.95 2
 250x250x250 BGET 250x250x250 250x250x250 420 131 295 10.9 2
 280x280x280 BGET 280x280x280 280x280x280 485 139 273 17.05 1
 315x315x315 BGET 315x315x315 315x315x315 520 150 347 19.8 1

Key Features

  • Equal-diameter three-port design for uniform fluid distribution
  • Electrofusion technology achieves permanent leak-free sealing
  • PE100 RC material delivers superior slow crack growth resistance
  • Embedded heating wires enable precise fusion control

Typical Applications

  • Branch connections in urban gas distribution networks
  • Fuel gas transportation pipelines in industrial plants
  • LPG/CNG refueling station piping systems
  • Residential gas supply distribution points

Manufacturing Process

Injection molding with embedded electrofusion components assembly

  • Melt temperature control (190-220°C)
  • Electrofusion joint resistance tolerance ≤±5%
  • Cooling rate gradient management
  • Dimensional verification per ISO 8085-2

Raw Material Characteristics

  • Density: ≥950 kg/m³ (ISO 1183)
  • Melt Flow Rate: 0.25 g/10min (190°C/5kg)
  • Long-term hydrostatic strength: 10.0 MPa (20°C, 50 years)
  • Slow Crack Growth Resistance: Passed ISO 13479 test
  • Medium-pressure gas main distribution branches
  • Underground gas pipeline maintenance section retrofits
  • Industrial gas boiler supply systems
  • Regional pressure regulation station outlet networks
