HDPE Electro Fusion 90° Elbow for Fuel Gas

Diameter Range: 20mm-630mm Pressure Rating: PN10-PN16 Applicable Standards: ISO 4437, EN 1555, ASTM F1055 Stock Availability: In stock

HDPE Electro Fusion 90° Elbow for Fuel Gas

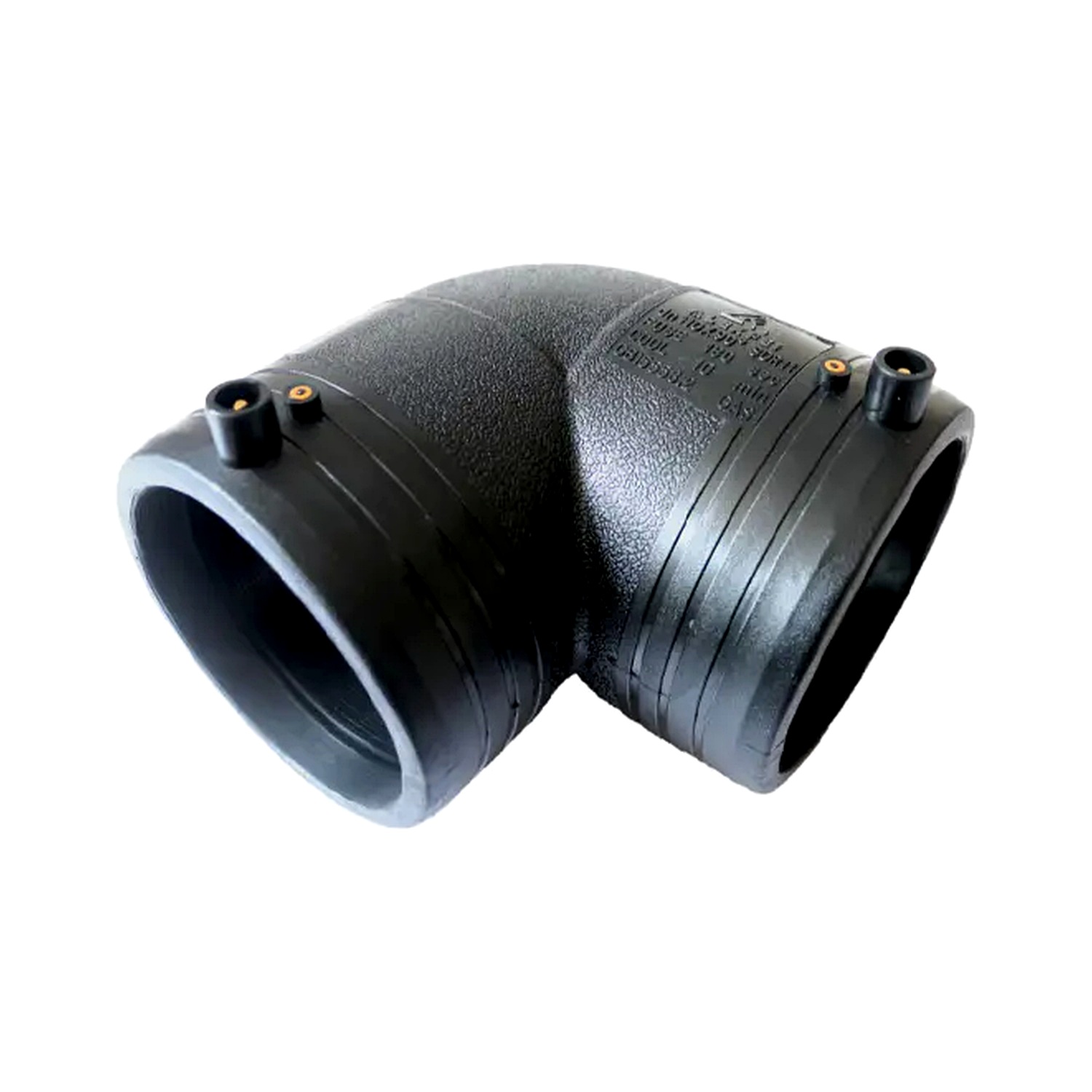

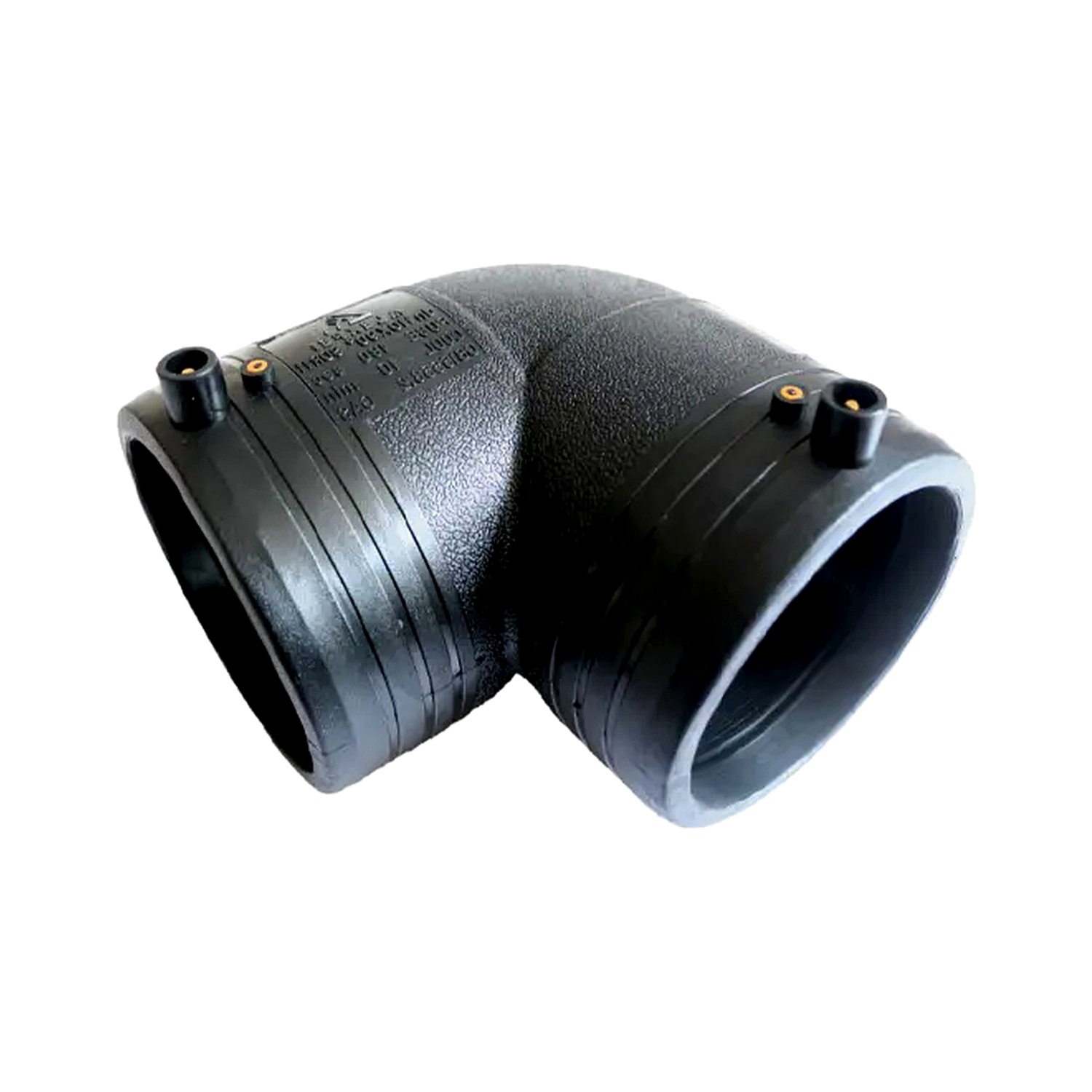

View 1

HDPE Electro Fusion 90° Elbow for Fuel Gas

Hot Product

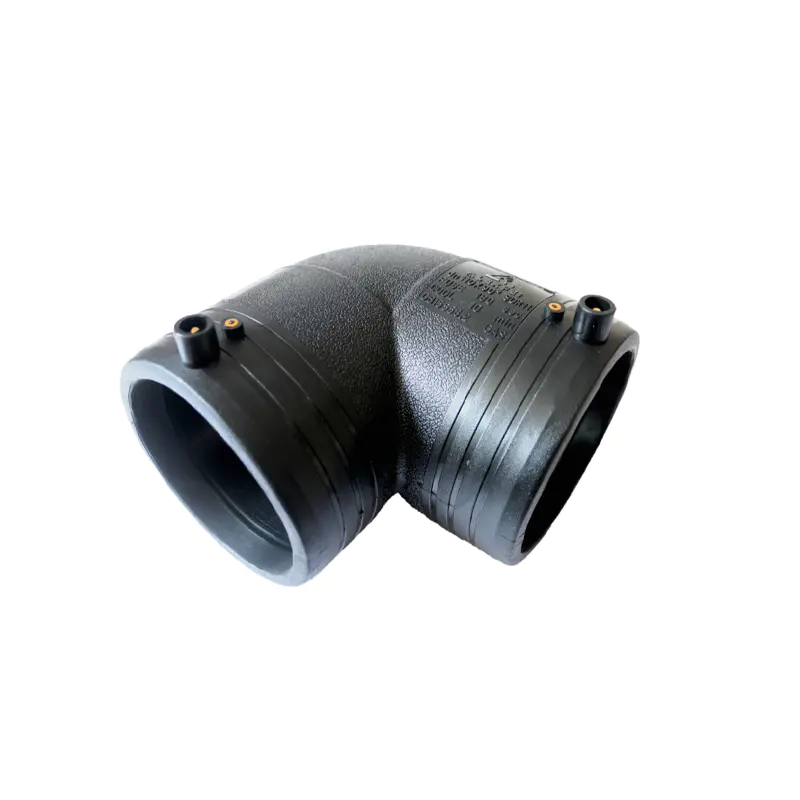

90-degree electrofusion elbow compliant with ISO 4437 and EN 1555 standards, manufactured from PE100 RC material specifically for fuel gas pipeline systems
  • Diameter Range: 20mm-630mm
  • Pressure Rating: PN10-PN16
  • Applicable Standards: ISO 4437, EN 1555, ASTM F1055
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408
HDPE Electro Fusion 90° Elbow for Fuel Gas
Specifications DN Item DN L Net Weight(Kg) Packing
20 BGEL 90°020 20 62 0.04 300
25 BGEL 90°025 25 62 0.07 300
32 BGEL 90°032 32 64 0.09 250
40 BGEL 90°040 40 70 0.14 150
50 BGEL 90°050 50 80 0.2 100
63 BGEL 90°063 63 96 0.4 50
75 BGEL 90°075 75 109 0.55 30
90 BGEL 90°090 90 118 0.79 25
110 BGEL 90°0110 110 131 1.26 15
125 BGEL 90°0125 125 142 1.87 10
140 BGEL 90°0140 140 153 2.41 10
160 BGEL 90°0160 160 165 3.45 6
180 BGEL 90°0180 180 192 4.8 4
200 BGEL 90°0200 200 214 6.47 2
225 BGEL 90°0225 225 222 8.28 2
250 BGEL 90°0250 250 265 11 2
280 BGEL 90°0280 280 270 15.51 1
315 BGEL 90°0315 315 310 19.55 1
355(SDR17) BGEL 90°0355 355 368 21.85 1

Key Features

  • 90-degree turn design minimizes fluid resistance
  • Integrated electrofusion connection ensures zero leakage
  • Embedded copper coils enable controlled fusion process
  • Permanent UV-resistant oxidation-proof marking

Typical Applications

  • Urban gas distribution branch systems
  • Industrial plant fuel gas transmission pipelines
  • LNG refueling station piping connections
  • Gas pressure regulating station network upgrades

Manufacturing Process

Precision injection molding with embedded heating element technology

  • Melt temperature control: 210±5°C
  • Heating wire spacing tolerance: ≤0.2mm
  • Cooling gradient: 3-5°C/min
  • Holding pressure: 15-20MPa

Raw Material Characteristics

  • Minimum Required Strength (MRS): 10 MPa (ISO 9080)
  • Thermal stability: >200h (110°C, ASTM D3350)
  • Resistance to slow crack growth: S4 class (ISO 13479)
  • Carbon black dispersion rating: ≤Class 3 (ASTM D5596)
  • Medium-pressure gas networks (≤4bar) branch modification projects
  • Directional drilling for gas pipelines crossing roads/railways
  • Gas distribution systems in corrosive soil environments
  • Seismic zone flexible pipeline connections
