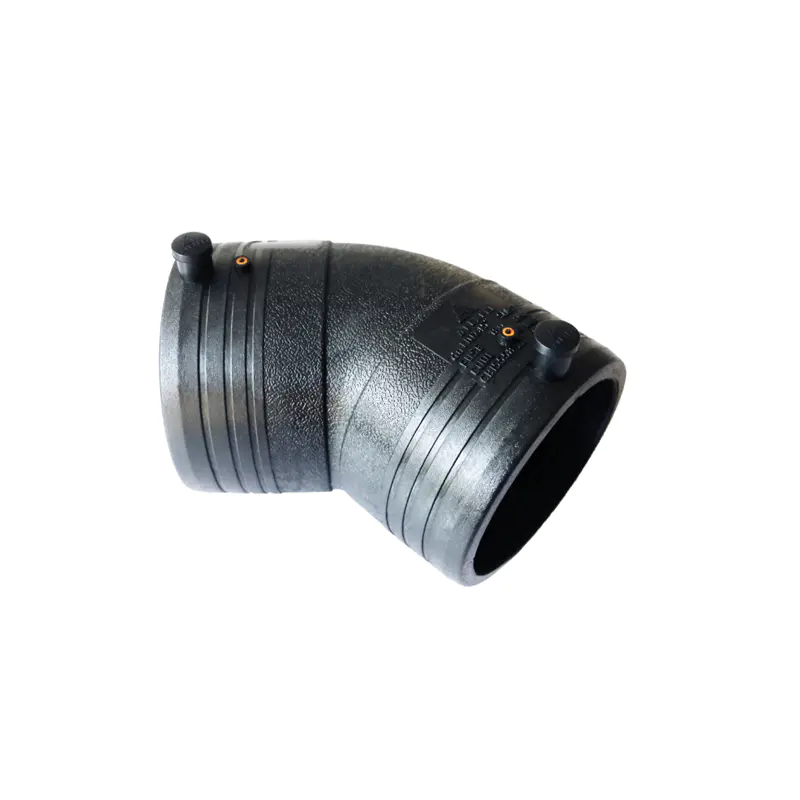

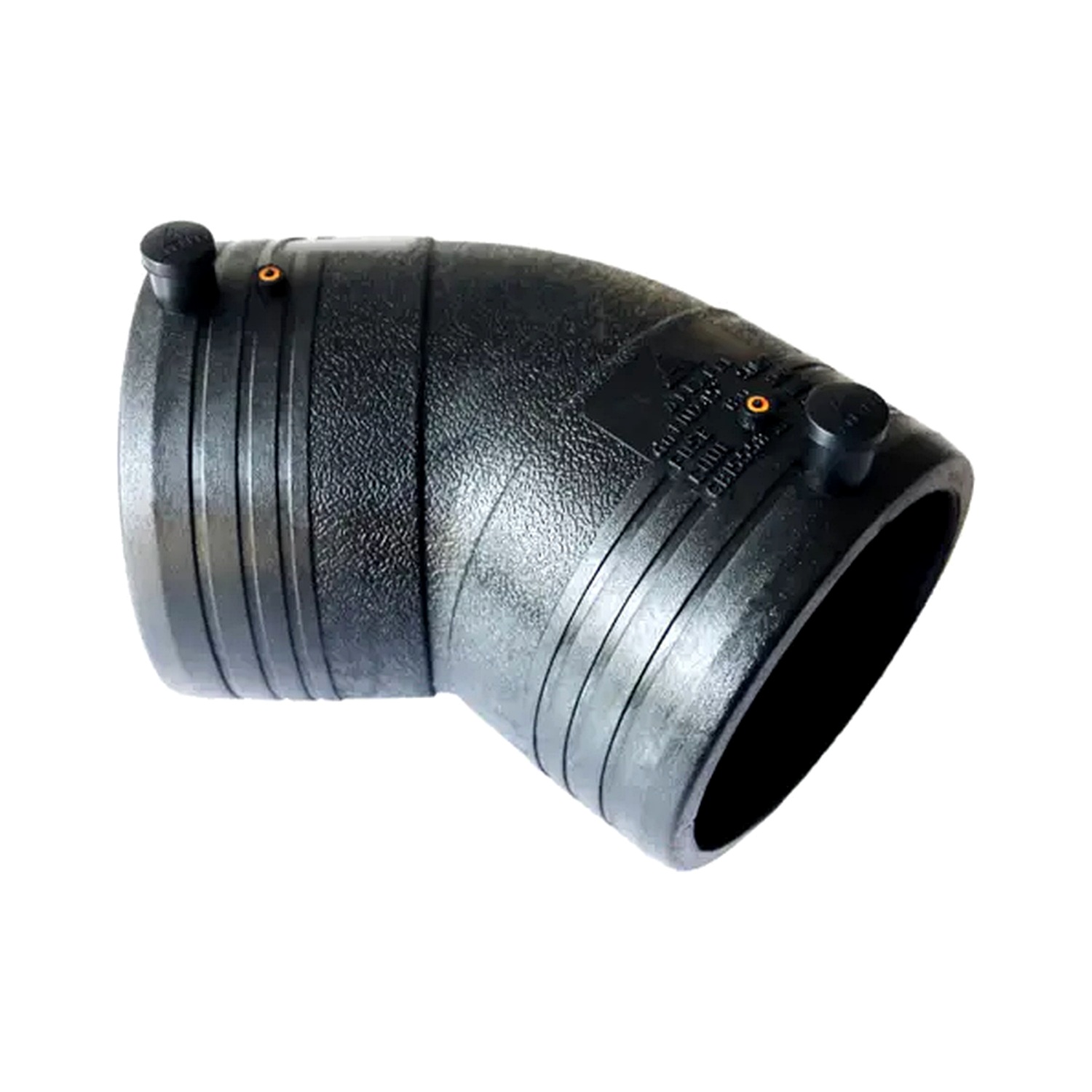

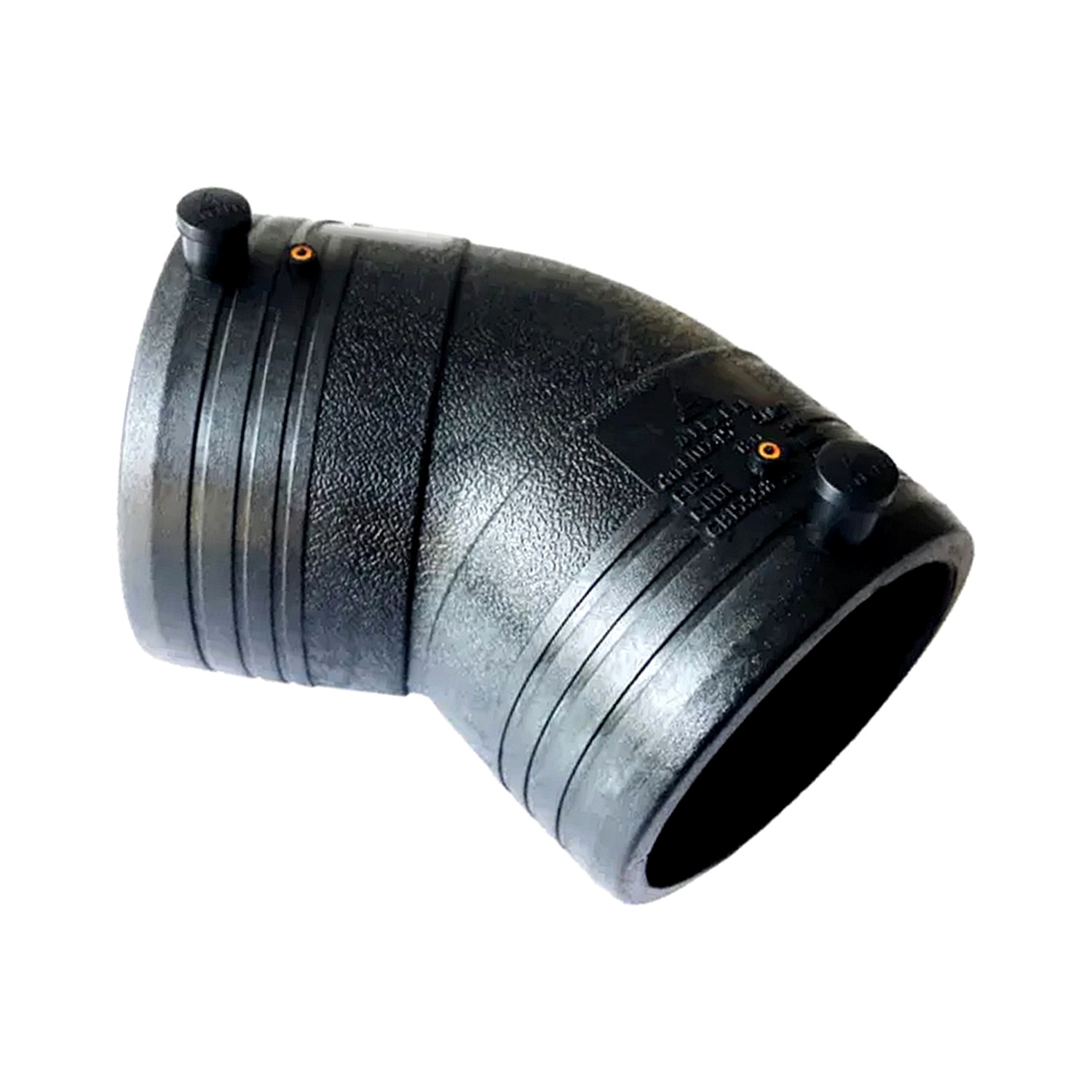

HDPE Electro Fusion 45° Elbow for Fuel Gas

Hot Product

45° electrofusion elbow manufactured from PE100 RC material, specifically engineered for fuel gas transportation systems and compliant with international gas pipeline safety standards.

Diameter Range: 20mm - 630mm
Pressure Rating: PN10 - PN16 (SDR11 - SDR17)
Applicable Standards: ISO 4437, EN 1555, ISO 21307
Stock Availability: In stock
Sample Policy: Free sample available
Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The HDPE Electro Fusion 45° Elbow for Fuel Gas is a PE100 RC elbow with integrated electrofusion technology, designed for smooth directional changes in gas distribution and industrial fuel gas piping.

Specifications DN	Item	DN	L	Net Weight(Kg)	Packing
32	BGEL 45°032	32	79	0.09	200
40	BGEL 45°040	40	91	0.13	150
50	BGEL 45°050	50	142	0.39	50
63	BGEL 45°063	63	183	0.32	50
75	BGEL 45°075	75	136	0.46	25
90	BGEL 45°090	90	211	0.76	25
110	BGEL 45°0110	110	226	1.07	20
125	BGEL 45°0125	125	185	1.5	10
140	BGEL 45°0140	140	193	1.92	10
160	BGEL 45°0160	160	293	2.43	6
180	BGEL 45°0180	180	239	3.87	4
200	BGEL 45°0200	200	364	4.62	4
225	BGEL 45°0225	225	273	6.21	2
250	BGEL 45°0250	250	290	8.1	2
280	BGEL 45°0280	280	327	11.25	2
315	BGEL 45°0315	315	357	15	1

Key Features of HDPE Electro Fusion 45° Elbow for Fuel Gas

45° precision angle design minimizes flow resistance.
Integrated heating wires enable automated fusion control.
UV stabilizers provide extended outdoor service life.
Visual inspection window allows fusion zone verification.

Manufacturing Process of HDPE Electro Fusion 45° Elbow for Fuel Gas

Each is produced by injection molding with integrated electrofusion technology.

Critical Process Parameters of HDPE Electro Fusion 45° Elbow for Fuel Gas

Melt temperature control: 210±5°C
Heating wire positioning accuracy ≤0.1mm
Cooling gradient control: 3°C/min
100% air-tightness testing at 0.5 MPa

Raw Material Characteristics of HDPE Electro Fusion 45° Elbow for Fuel Gas

Density: 0.950 g/cm³ (ISO 1183)
Melt Flow Index: 0.3 g/10min (ISO 1133)
Slow crack growth resistance ≥500h (ISO 13479)
Weathering class: UV-C (ISO 4892)

Typical Applications of HDPE Electro Fusion 45° Elbow for Fuel Gas

is used for branch connections in natural gas mains.
serves propane/butane mixed gas delivery systems.
is installed in pressure regulation sections in biogas collection networks.
is used in trenchless rehabilitation of urban gas grids.

Application Scenarios of HDPE Electro Fusion 45° Elbow for Fuel Gas

45° directional changes in gas distribution networks — is the standard elbow for these transitions.
