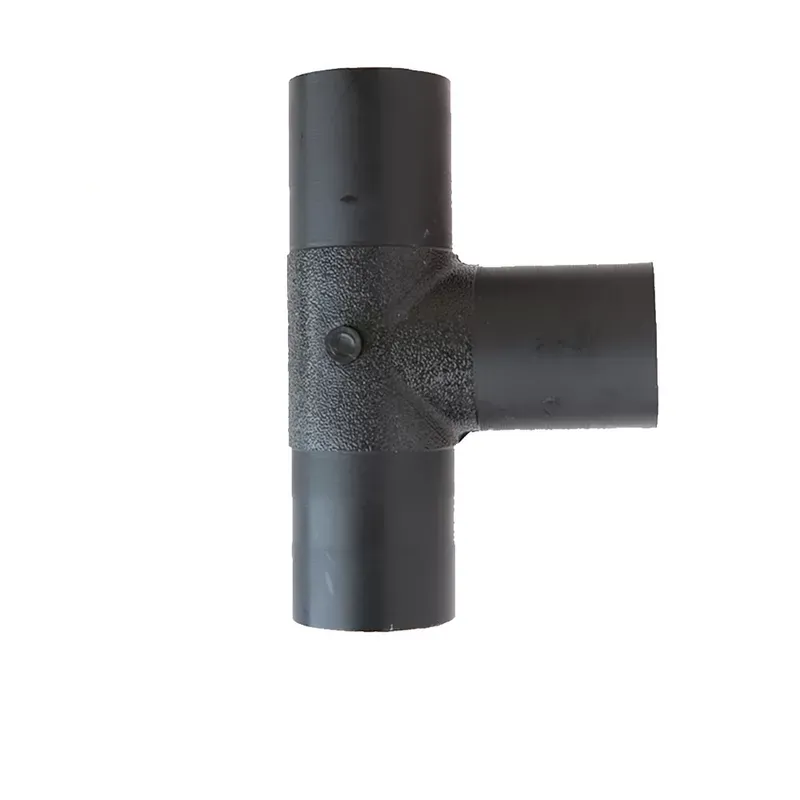

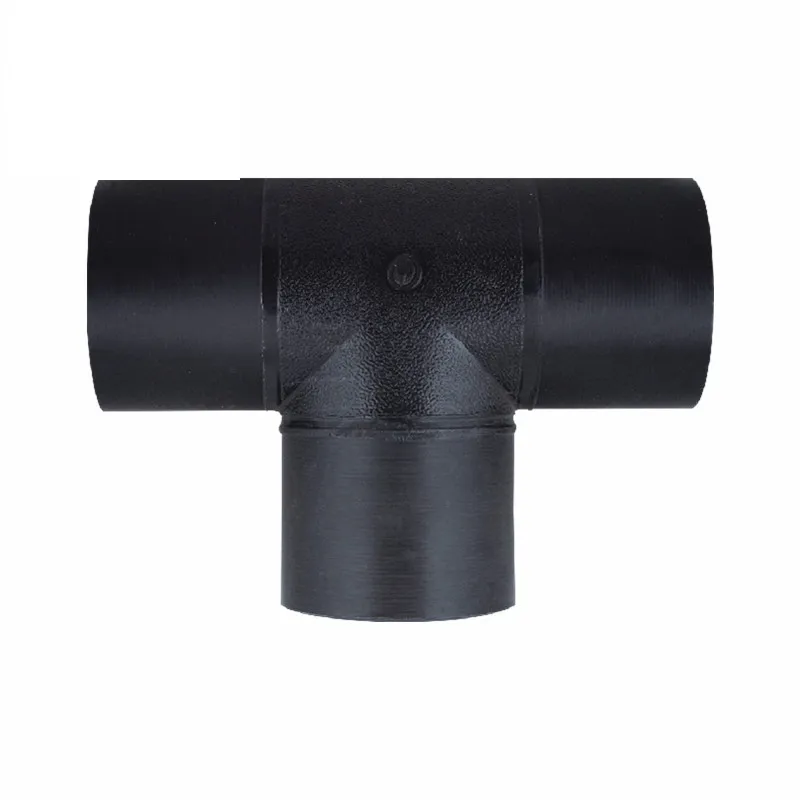

HDPE Butt Fusion Equal Tee for Water

Key Features of HDPE Butt Fusion Equal Tee for Water

• Equal diameter design ensures uniform fluid distribution.
• Butt fusion connection achieves full structural strength sealing.
• Fusion interface compliant with ISO 12176 standards.
• Chemical corrosion and UV resistance protect the fitting.
• Pressure ratings covering SDR11/SDR17 series.

Manufacturing Process of HDPE Butt Fusion Equal Tee for Water

Each is produced by injection molding and precision machining.

Critical Process Parameters of HDPE Butt Fusion Equal Tee for Water

• Melt temperature control: 190±5°C
• Weld end flatness tolerance ≤0.1mm
• Cooling rate gradient management
• Oxidation layer removal ≥0.2mm
• Dimensional compliance with ISO 4427-3

Raw Material Characteristics of HDPE Butt Fusion Equal Tee for Water

• Density: 0.950–0.965 g/cm³ (ISO 1183)
• Melt Flow Index: 0.3–0.5 g/10min (190°C/5kg)
• Tensile Strength: ≥25 MPa (ISO 527)
• Elastic Modulus: ≥1000 MPa
• Environmental Stress Crack Resistance: ≥1000 hrs (ISO 13479)

Typical Applications of HDPE Butt Fusion Equal Tee for Water

• is used in branching systems in municipal water supply networks.
• serves industrial cooling water circulation pipelines.
• is installed in agricultural irrigation water distribution networks.
• is used in process piping in water treatment plants.

Application Scenarios of HDPE Butt Fusion Equal Tee for Water

• Equal-diameter branch connections in water mains and pump stations — is the standard tee for these branches.
