HDPE Butt Fusion Stub End for Fuel Gas

Diameter Range: 20–630 mmPressure Rating: PN6–PN25Applicable Standards: ISO 4437-2, EN 1555-3, ASTM F2206Stock Availability: In stockSample Policy: Free sample

HDPE Butt Fusion Stub End for Fuel Gas
View 1

HDPE Butt Fusion Stub End for Fuel Gas

Hot Product

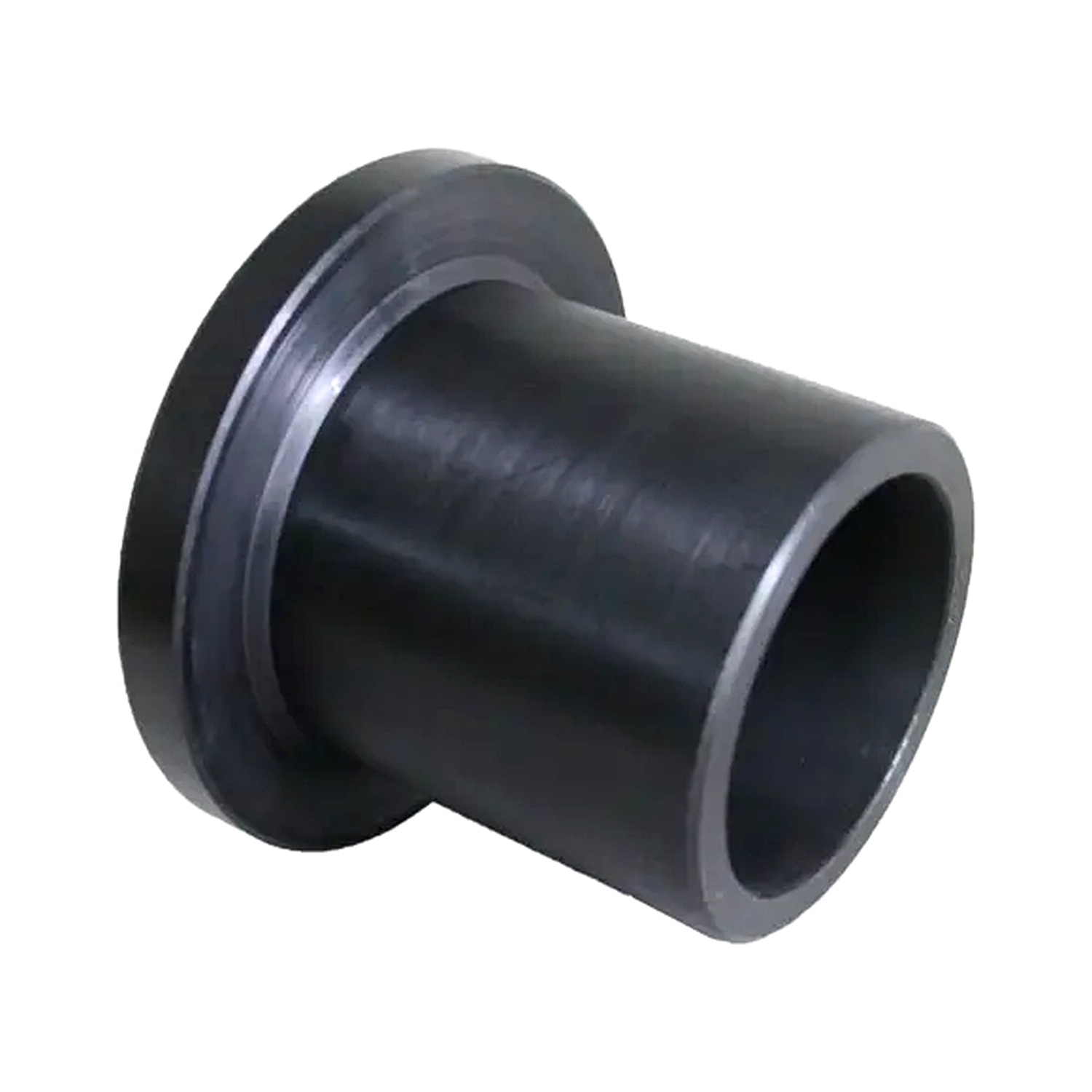

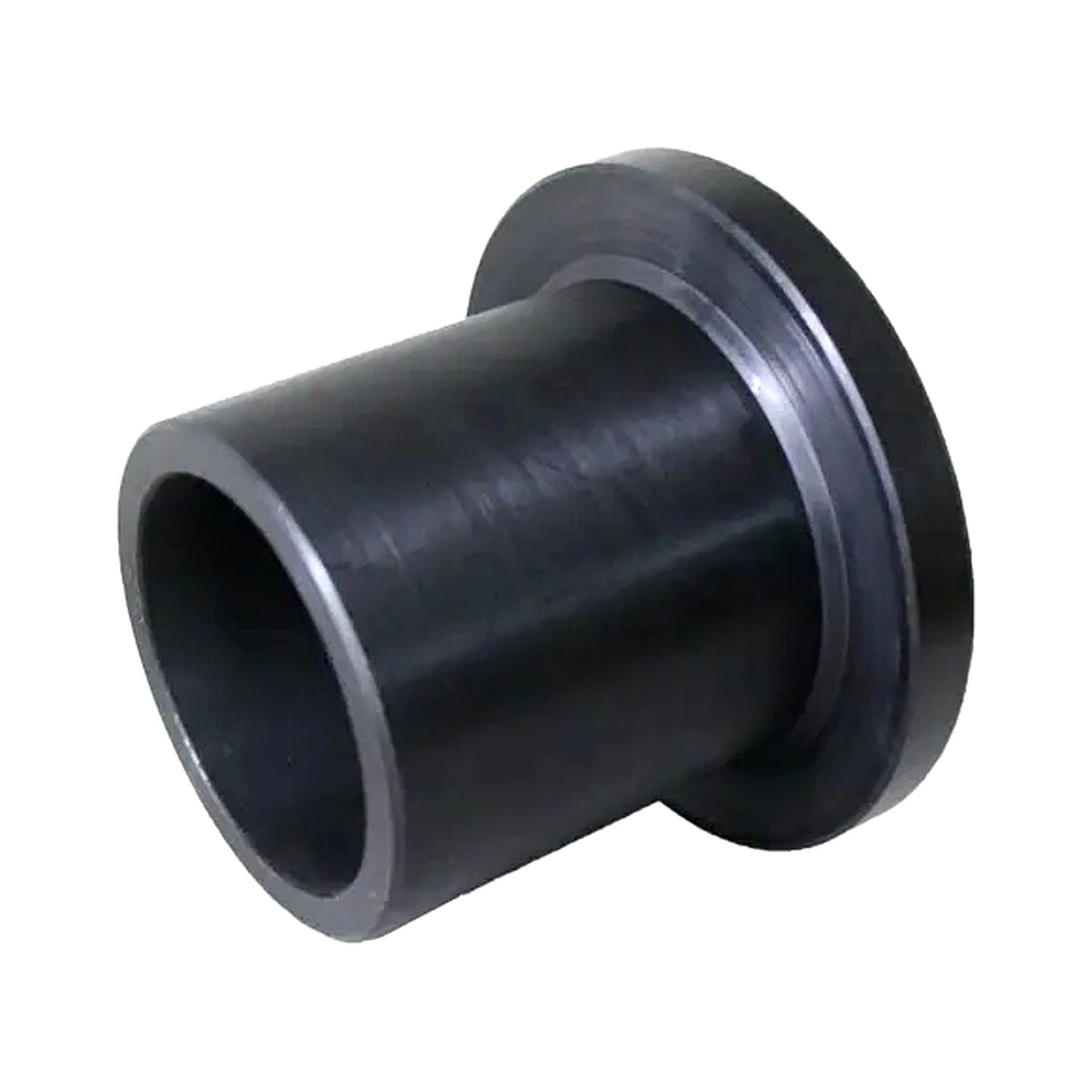

Fuel gas-specific stub end manufactured from PE100 RC-grade HDPE material, providing high-integrity sealing between pipelines and flanges via butt fusion technology
  • Diameter Range: 20–630 mm
  • Pressure Rating: PN6–PN25
  • Applicable Standards: ISO 4437-2, EN 1555-3, ASTM F2206
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408
HDPE Butt Fusion Stub End for Fuel Gas
Specifications DN Item DN L L D Net Weight(Kg) Packing
63 BGMP 063 63 96 15 104 0.23 100
75 BGMP 075 75 99 16 120 0.31 60
90 BGMP 090 90 110 17 138 0.41 45
110 BGMP 0110 110 111 20 158 0.63 25
125 BGMP 0125 125 156 26 221 0.82 20
140 BGMP 0140 140 127 20 188 1.1 16
160 BGMP 0160 160 147 26 212 1.63 12
180 BGMP 0180 180 153 27 212 1.66 12
200 BGMP 0200 200 172 27 212 3.17 10
225 BGMP 0225 225 195 35 268 2.83 6
250 BGMP 0250 250 192 32 320 4.52 5
280 BGMP 0280 280 218 33 320 4.5 4
315 BGMP 0315 315 174 39 371 6.44 4

Key Features

  • PE100 RC material compliant with fuel gas safety regulations
  • Automated butt fusion ensures zero-leak connections
  • Stub end compatible with standard ANSI/ASME flanges
  • Superior resistance to slow crack growth (SCG)

Typical Applications

  • Connection points in natural gas distribution pressure stations
  • Flange transition joints in industrial fuel gas pipelines
  • Branching interfaces in municipal gas networks
  • Termination connections for CNG/LNG station piping

Manufacturing Process

Precision injection molding + secondary thermoforming for flange

  • Melt temperature control: 200°C±5°C
  • Cooling rate gradient ≤15°C/min
  • Flange angle precision: 89°–91°
  • Fusion face surface roughness Ra≤5μm

Raw Material Characteristics

  • Density: 0.948–0.955 g/cm³ (ISO 1183)
  • Melt Mass-Flow Rate (190°C/5kg): 0.15–0.35 g/10min
  • Full Notch Creep Test (FNCT): ≥8760 hours
  • Hydrostatic design stress: 12.4 MPa/20°C/50 years
  • Spigot-flange transition at gas gate stations
  • Sealed transitions between buried and above-ground sections
  • Flange connections for gas pressure regulator skids
  • Termination sealing in pipeline rehabilitation sections
