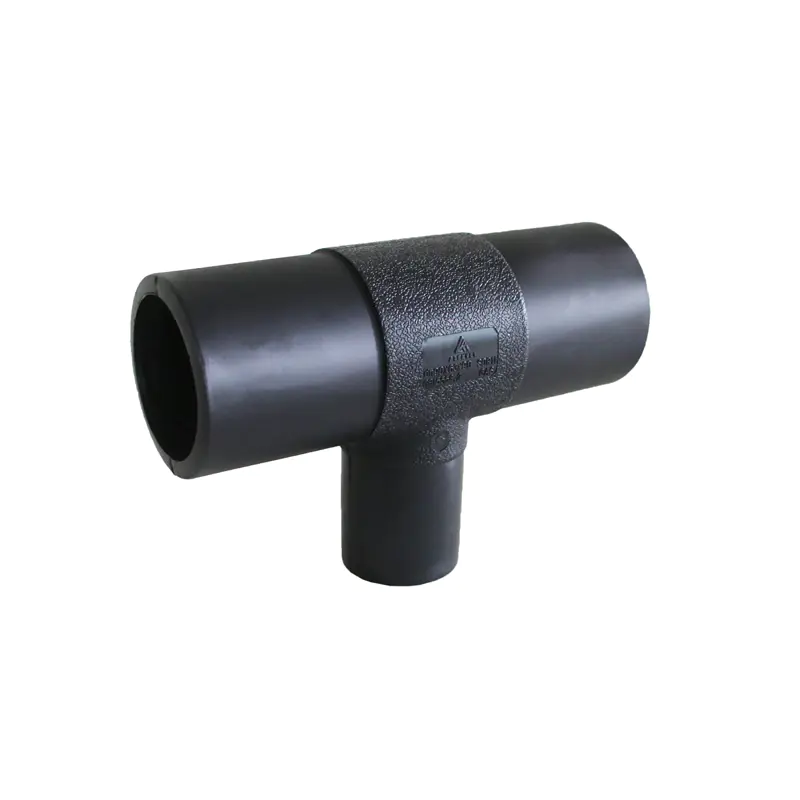

HDPE Butt Fusion Reducer Tee for Fuel Gas

Specifications DNxDNxDN	Item	DNxDNxDN	L	L	L	Net Weight(Kg)	Packing
63x32x63	BGMT 63x32x63	63x32x63	200	65	51	0.38	50
63x40x63	BGMT 63x40x63	63x40x63	200	67	54	0.29	50
63x50x63	BGMT 63x50x63	63x50x63	199	56	55	0.3	50
75x50x75	BGMT 75x50x75	75x50x75	217	65	55	0.42	40
75x63x75	BGMT 75x63x75	75x63x75	230	65	63	0.43	40
90x32x90	BGMT 90x32x90	90x32x90	226	82	52	0.58	30
90x40x90	BGMT 90x40x90	90x40x90	228	83	52	0.59	30
90x50x90	BGMT 90x50x90	90x50x90	283	87	60	0.66	25
90x63x90	BGMT 90x63x90	90x63x90	285	83	68	0.82	30
90x75x90	BGMT 90x75x90	90x75x90	249	68	70	0.72	25
110x32x110	BGMT 110x32x110	110x32x110	237	78	52	0.91	20
110x40x110	BGMT 110x40x110	110x40x110	238	87	52	0.91	20
110x50x110	BGMT 110x50x110	110x50x110	280	87	61	1	20
110x63x110	BGMT 110x63x110	110x63x110	280	87	72	1.4	10
110x75x110	BGMT 110x75x110	110x75x110	266	76	70	1.42	10
110x90x110	BGMT 110x90x110	110x90x110	307	87	82	1.51	10
125x90x125	BGMT 125x90x125	125x90x125	291	81	79	1.73	8
125x110x125	BGMT 125x110x125	125x110x125	312	81	82	18.12	8
140x90x140	BGMT 140x90x140	140x90x140	295	83	79	2.17	8
140x110x140	BGMT 140x110x140	140x110x140	316	83	82	2.3	8
140x125x140	BGMT 140x125x140	140x125x140	331	83	87	2.35	8
160x63x160	BGMT 160x63x160	160x63x160	300	109	67	3.58	5
160x75x160	BGMT 160x75x160	160x75x160	350	114	70	2.94	5
160x90x160	BGMT 160x90x160	160x90x160	362	109	95	3.66	5
160x110x160	BGMT 160x110x160	160x110x160	360	108	97	3.78	5
160x125x160	BGMT 160x125x160	160x125x160	363	99	87	3.34	5
160x140x160	BGMT 160x140x160	160x140x160	378	99	92	3.44	5
180x125x180	BGMT 180x125x180	180x125x180	367	101	87	4.3	5
180x140x190	BGMT 180x140x190	180x140x190	382	101	92	4.45	5
180x160x180	BGMT 180x160x180	180x160x180	402	101	99	4.6	5
200x63x200	BGMT 200x63x200	200x63x200	408	117	71	4.1	5
200x90x200	BGMT 200x90x200	200x90x200	407	117	90	4.64	5
200x110x200	BGMT 200x110x200	200x110x200	410	118	90	4.73	4
200x140x200	BGMT 200x140x200	200x140x200	385	102	92	5.2	4
200x160x200	BGMT 200x160x200	200x160x200	482	128	103	5.59	4
200x180x200	BGMT 200x180x200	200x180x200	425	102	105	5.79	4
225x110x225	BGMT 225x110x225	225x110x225	380	111	82	5.78	3
225x160x225	BGMT 225x160x225	225x160x225	423	111	99	7.7	3
225x180x225	BGMT 225x180x225	225x180x225	443	111	105	8.26	3
225x200x225	BGMT 225x200x225	225x200x225	465	111	112	8.53	3
250x90x250	BGMT 250x90x250	250x90x250	460	129	91	7.7	2
250x110x250	BGMT 250x110x250	250x110x250	458	129	70	8.4	2
250x160x250	BGMT 250x160x250	250x160x250	501	135	108	8.85	2
250x180x250	BGMT 250x180x250	250x180x250	479	116	129	9.6	2
250x200x250	BGMT 250x200x250	250x200x250	505	140	115	10.65	2
250x225x250	BGMT 250x225x250	250x225x250	531	116	120	11.35	2
280x200x280	BGMT 280x200x280	280x200x280	506	131	112	13.85	2
280x225x280	BGMT 280x225x280	280x225x280	529	131	120	14.45	2
280x250x280	BGMT 280x250x280	280x250x280	564	131	129	15.1	2
315x110x315	BGMT 315x110x315	315x110x315	598	150	92	14.2	1
315x160x315	BGMT 315x160x315	315x160x315	592	150	111	14.5	1
315x200x315	BGMT 315x200x315	315x200x315	592	150	128	16.18	1
315x225x315	BGMT 315x225x315	315x225x315	555	141	120	17	1
315x250x315	BGMT 315x250x315	315x250x315	727	150	136	18.1	1
315x280x315	BGMT 315x280x315	315x280x315	612	141	139	18.8	1
355x250x355	BGMT 355x250x355	355x250x355	725	168	142	25	1
355x280x355	BGMT 355x280x355	355x280x355	632	147	139	26.5	1
355x315x355	BGMT 355x315x355	355x315x355	730	170	164	29	1
400x200x400	BGMT 400x200x400	400x200x400	632	147	160	32.4	1
400x280x400	BGMT 400x280x400	400x280x400	632	147	139	35	1
400x315x400	BGMT 400x315x400	400x315x400	673	147	150	35.88	1
400x355x400	BGMT 400x355x400	400x355x400	719	147	164	38.1	1

Key Features

Butt fusion connection ensures leak-free sealing
PE100 material guarantees high pressure resistance and chemical corrosion resistance
Reducer design optimizes flow and pressure distribution in pipelines

Typical Applications

Urban natural gas distribution networks
Industrial fuel gas transportation systems
Compressed natural gas (CNG) refueling stations

Manufacturing Process

Injection molding combined with precision butt fusion process

Melt temperature control (200-220°C)
Cooling time management to ensure structural integrity
Material purity testing (compliant with ISO 4437)

Raw Material Characteristics

Minimum Required Strength (MRS) ≥10 MPa
High impact toughness (compliant with EN 1555)
Low gas permeability ensures transportation safety

Underground gas pipeline networks in residential areas
Branch systems for fuel gas in chemical plants
Liquefied petroleum gas (LPG) storage facilities
